Disconnect connectors ”C” from meter.
Inspect connector on wire harness side as follows.

HINT : While carrying out the following inspection, make certain that the connectors and terminals are properly con-
nected.

Yes

31

Ground terminal B7 and turn the light control
switch to TAIL. Does taillight indicator light up?

Is bulb OK?

Replace circuit plate.

No

Abnormal operation or indicator
does not light up.

TAILLIGHT INDICATOR

Turn the light control switch to TAIL.
Does taillight light up?

Inspect headlight and taillight system.
(See page

BE–27

).

Wire harness faulty between meter and:

 Light control switch.

 Taillight Relay, Panel Relay (CANADA)

Is there battery positive voltage (0 V

↔

 battery

positive voltage) between following terminals with

light control switch TAIL?

 C5 and ground.

Connect connectors ”B” to meter.

Disconnect connector ”B” from meter.

Inspect connector on combination meter side as

follows.

 Open circuit in wire harness between terminal

   B7 of meter and ground.

 Ground faulty.

Temporarily install another circuit plate.
Is operation normal?

Replace bulb.
Then recheck system.

Replace combination
meter computer.
Then recheck system.

No

Yes

Yes

Yes

Yes

No

No

No

COMBINATION
METER

–

BODY ELECTRICAL

COMBINATION METER

BE–83

1467

1997 LEXUS ES300   (RM511U)

V08453

Disconnect connector ”C” from meter.
Inspect connector on wire harness side as follows.

HINT : While carrying out the following inspection, make certain that the connectors and terminals are properly con-
nected.

Yes

32

Ground terminal B7 and turn light control switch to
HEAD. Does headlight indicator light up?

Is bulb OK?

Replace circuit plate.

No

Abnormal operation or indicator
does not light up.

HEADLIGHT INDICATOR

Turn light control switch to HEAD.
Do headlights light up?

Inspect headlight and taillight system.
(See page

BE–27

).

Is there battery positive voltage (0 V

↔

 battery

positive voltage) between following terminals with

light control switch HEAD?

 C5 and ground.

Connect connector ”A” to meter.

Disconnect connector ”B” from meter.

Inspect connector on combination meter side as

follows.

 Open circuit in wire harness between terminal

   B7 of meter and ground.

 Ground faulty.

Temporarily install another circuit plate.
Is operation normal?

Replace bulb.
Then recheck system.

Replace combination
meter computer.
Then recheck system.

No

Yes

Yes

Yes

Yes

No

No

No

COMBINATION
METER

Wire harness faulty between meter and:

 Light control switch

 HEAD Fuse

 Headlight control relay

BE–84

–

BODY ELECTRICAL

COMBINATION METER

1468

1997 LEXUS ES300   (RM511U)

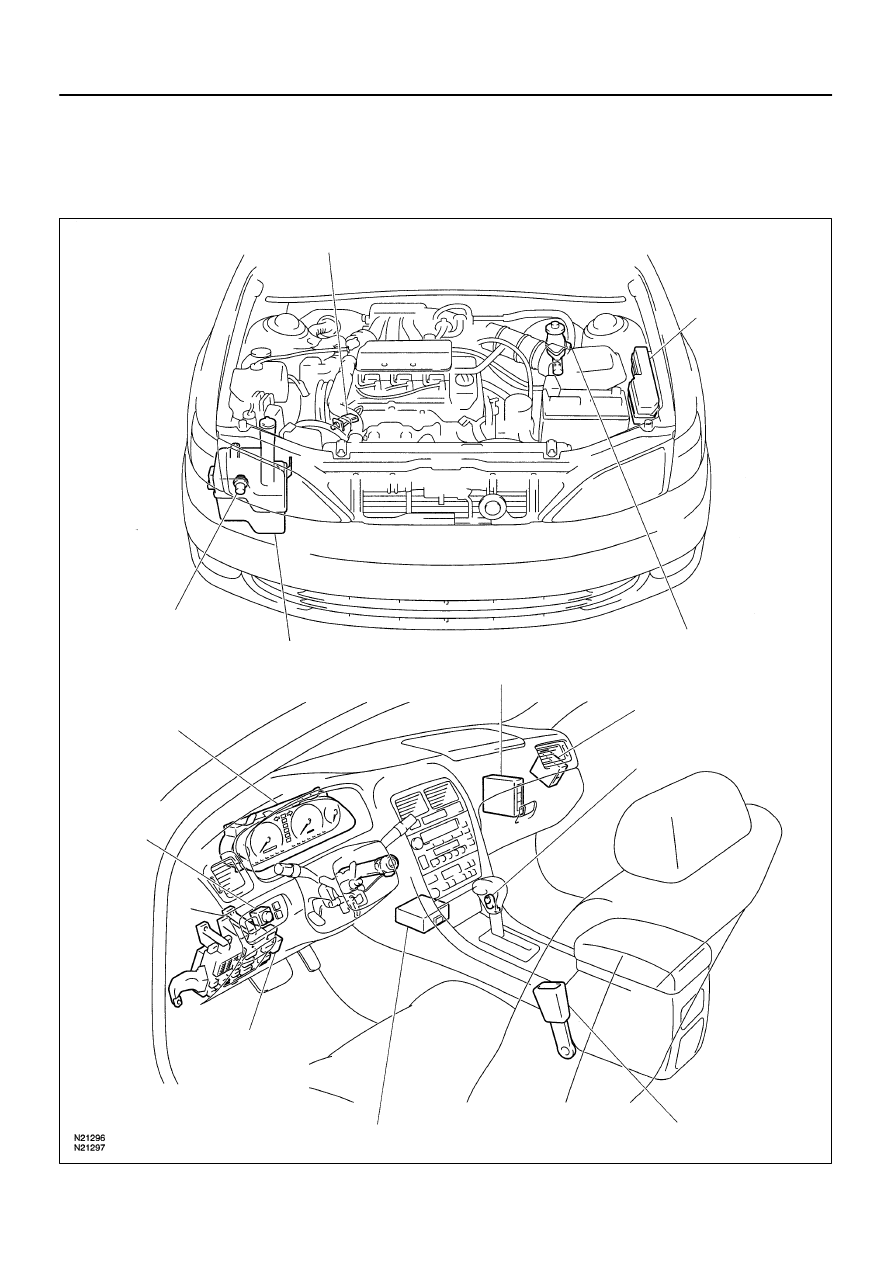

BE05E–01

Z18765

Engine Room
Junction Block

 DOME Fuse

 ECU–B Fuse

 HEAD (LH) Fuse

 HEAD (RH) Fuse

Engine Oil Level Sensor

Washer Level Warning Switch

Washer Tank

Brake Fluid Level
Waming Switch

ECM

ABS ECU or
ABS and Traction ECU

O/D OFF Switch

Combination Meter

 Meter Circuit

 Bulb Check Relay

Light Control
Rheostat

Instrument Panel
Junction Block

 GAUGE Fuse

 IGN Fuse

Seat Belt Buckle Switch

Airbag Sensor Assembly

–

BODY ELECTRICAL

COMBINATION METER

BE–85

1469

1997 LEXUS ES300   (RM511U)

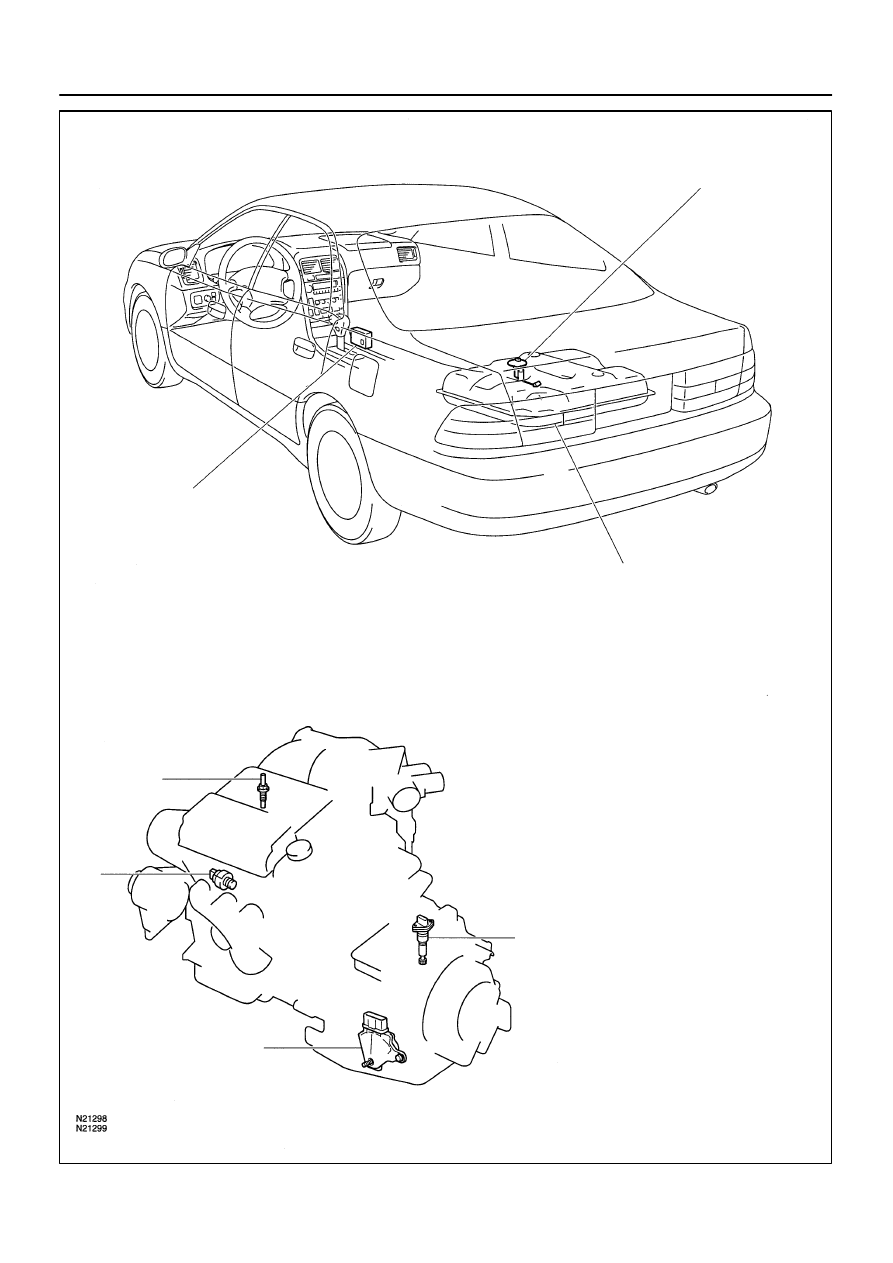

LOCATION

Z18766

Fuel Sender Gauge

1

Light Failure Sensor

Fuel Tank

2

3

4

1: Engine Coolant Temperature Sender Gauge
2: Low Oil Pressure Switch
3: Park/Neutral Position Switch
4: Vehicle Speed Sensor

BE–86

–

BODY ELECTRICAL

COMBINATION METER

1470
