Lexus ES300 (1997 year). Manual - part 150

BO0A8–01

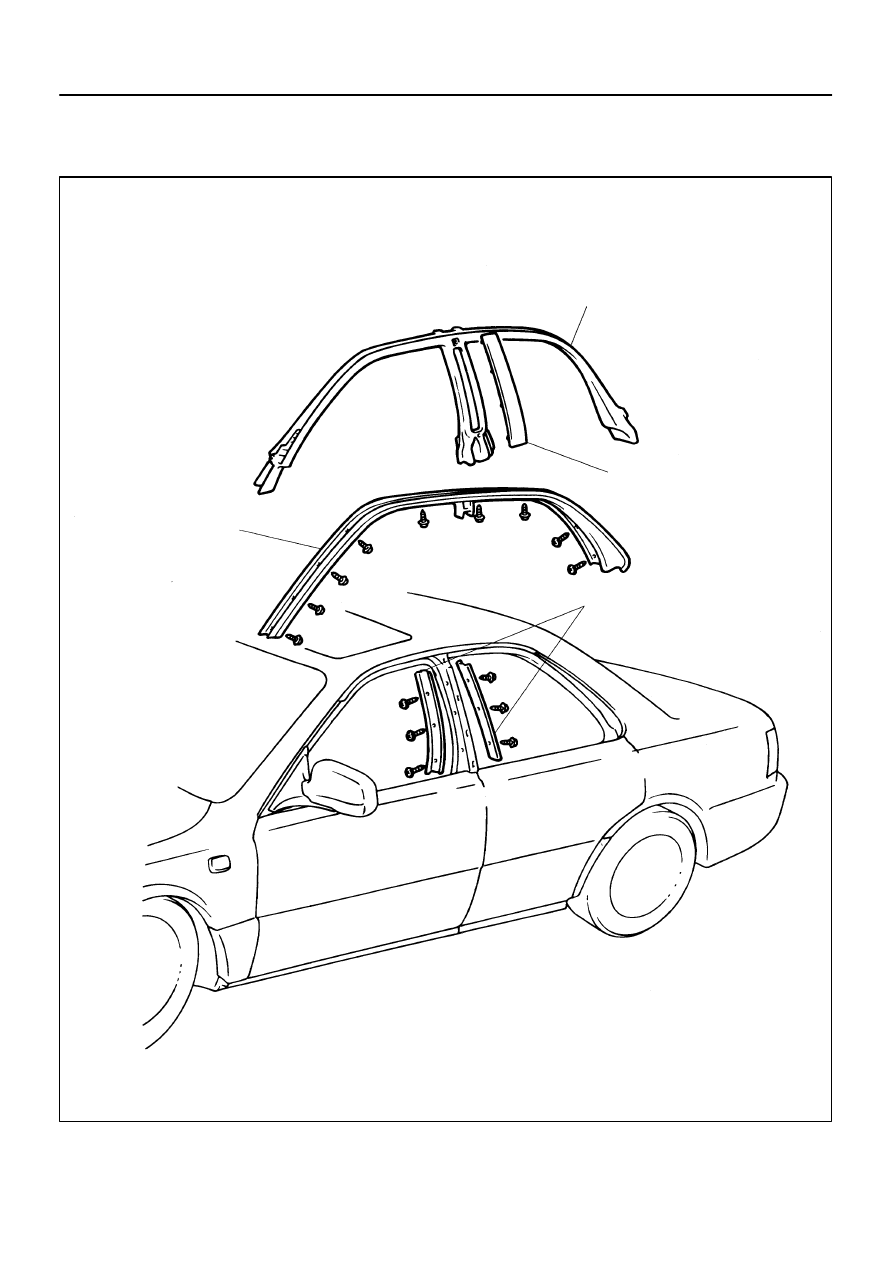

H02704

Roof Side Rail Weatherstrip

Roof Drip Side Finish
Moulding

Front Roof Side
Weatherstrip Retainer

Center Roof Side Rail
Weatherstrip Retaner

–

BODY

ROOF DRIP SIDE FINISH MOULDING

BO–53

1231

1997 LEXUS ES300   (RM511U)

ROOF DRIP SIDE FINISH MOULDING

COMPONENTS

BO0A9–01

N21433

: 4 Clips

N21434

: 2 Clips

: 3 Clips

: 2 Clips

Butyl Tape

Butyl Tape

Butyl Tape

N21411

N21435

: 2 Clips

BO–54

–

BODY

ROOF DRIP SIDE FINISH MOULDING

1232

1997 LEXUS ES300   (RM511U)

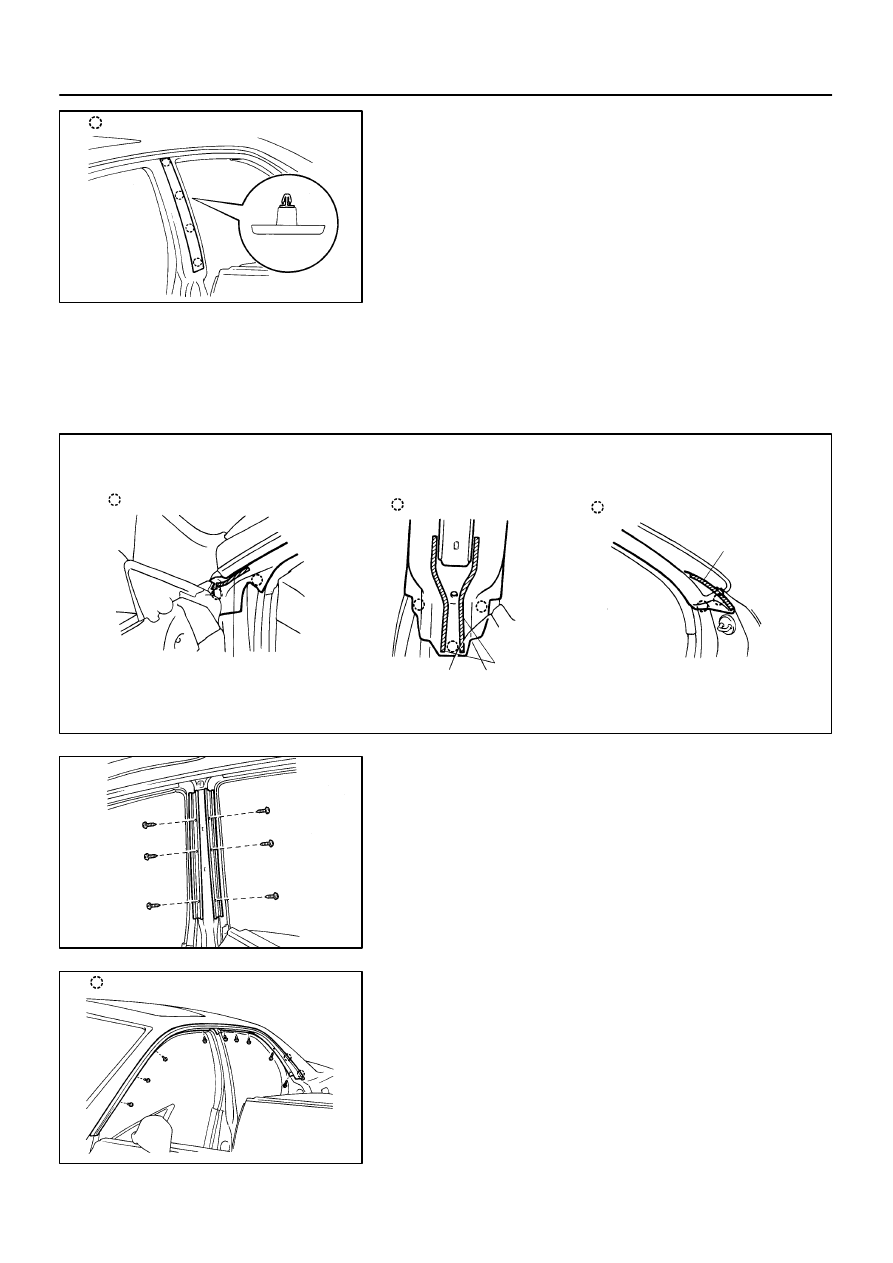

REMOVAL

1.

REMOVE ROOF DRIP SIDE FINISH MOULDING

Remove the moulding.

2.

REMOVE ROOF SIDE RAIL WEATHERSTRIP

(a)

Using a clip remover, remove the 7 clips.

(b)

Pull off the weatherstrip.

3.

REMOVE CENTER ROOF SIDE RAIL WEATHERSTRIP
RETAINER

Remove the 6 screws and retainers.

4.

REMOVE FRONT ROOF SIDE WEATHERSTRIP RE-
TAINER

Remove the 9 screws and retainers.

BO0AA–01

–

BODY

ROOF DRIP SIDE FINISH MOULDING

BO–55

1233

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

BO–54

).

BO0AB–01

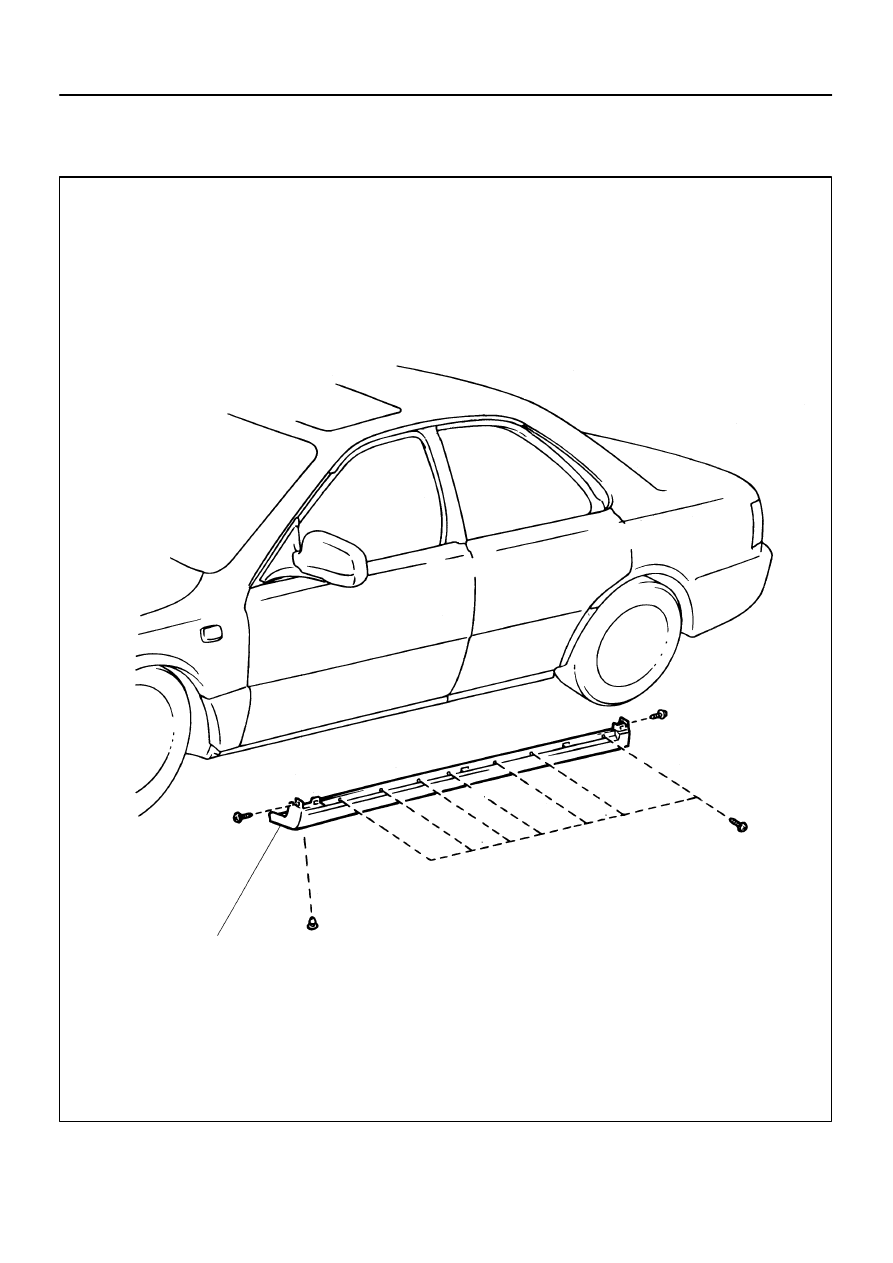

H02705

Rocker Panel Moulding

x 7

BO–56

–

BODY

ROCKER PANEL MOULDING

1234

1997 LEXUS ES300   (RM511U)

ROCKER PANEL MOULDING

COMPONENTS
