BODY
FRONT WIPER AND WASHER
BO–45
1223
1997 LEXUS ES300 (RM511U)
INSPECTION
INSPECT WASHER NOZZLE
(a)

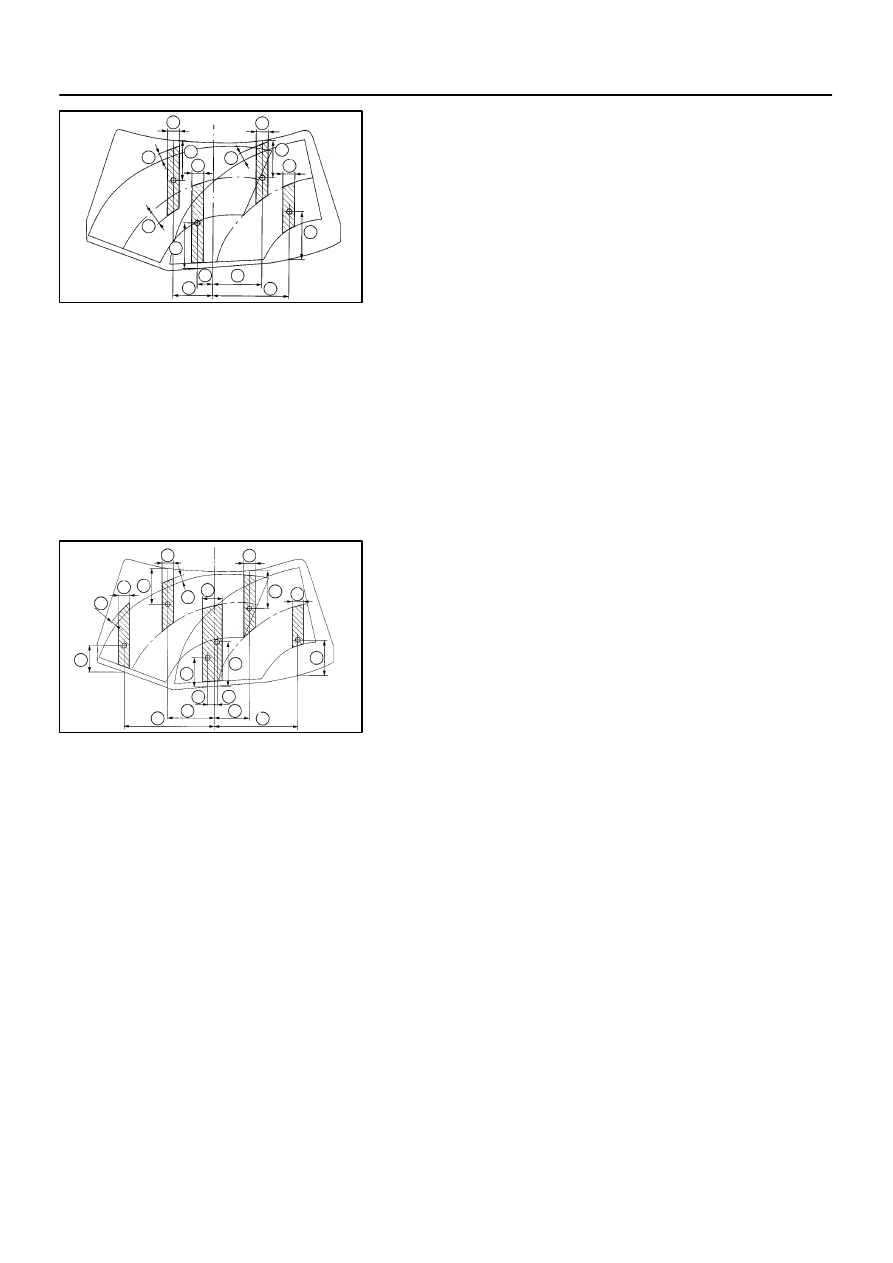

While operating the washer, check that the points where
the washer fluid hits the windshield and the upsurge area
are within the range indicated by the hatched line.
USA:
A: Approx. 150 mm (5.91 in.)
B: Approx. 50 mm (1.99 in.)
C: Approx. 251 mm (9.88 in.)
D: Approx. 243 mm (9.57 in.)
E: Approx. 100 mm (3.94 in.)
F: Approx. 297 mm (11.69 in.)
G: Approx. 306 mm (12.05 in.)
H: Approx. 90 mm (3.54 in.)
I: Approx. 230 mm (9.06 in.)
J: Approx. 280 mm (11.02 in.)
K: Approx. 440 mm (17.32 in.)
CANADA:
A: Approx. 150 mm (5.91 in.)
B: Approx. 50 mm (1.99 in.)
C: Approx. 262 mm (10.31 in.)
D: Approx. 260 mm (10.24 in.)
E: Approx. 210 mm (8.27 in.)
F: Approx. 239 mm (9.41 in.)
G: Approx. 310 mm (12.20 in.)
H: Approx. 196 mm (7.72 in.)
I: Approx. 194 mm (7.64 in.)
J: Approx. 22 mm (0.87 in.)
K: Approx. 40 mm (1.57 in.)
L: Approx. 230 mm (9.06 in.)
M: Approx. 283 mm (11.14 in.)
N: Approx. 521 mm (20.51 in.)
O: Approx. 548 mm (21.57 in.)
(b)

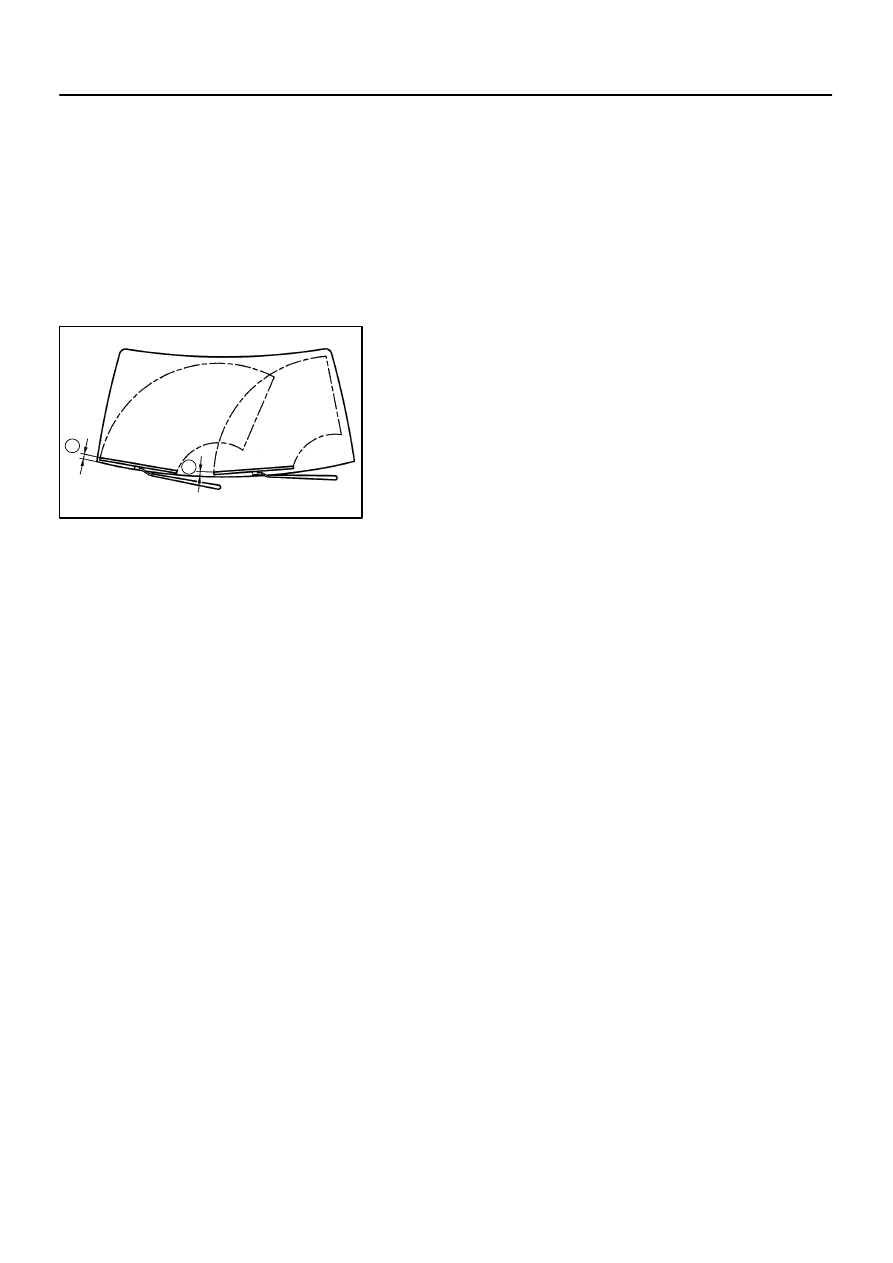

Check that the lower point where the washer fluid hits the
windshield is within the range of the wiping pattern (the
area of the glass which is wiped by the wiper blades).
