BODY

LUGGAGE COMPARTMENT DOOR AND HINGE

BO–37

1215

1997 LEXUS ES300   (RM511U)

ADJUSTMENT

1.

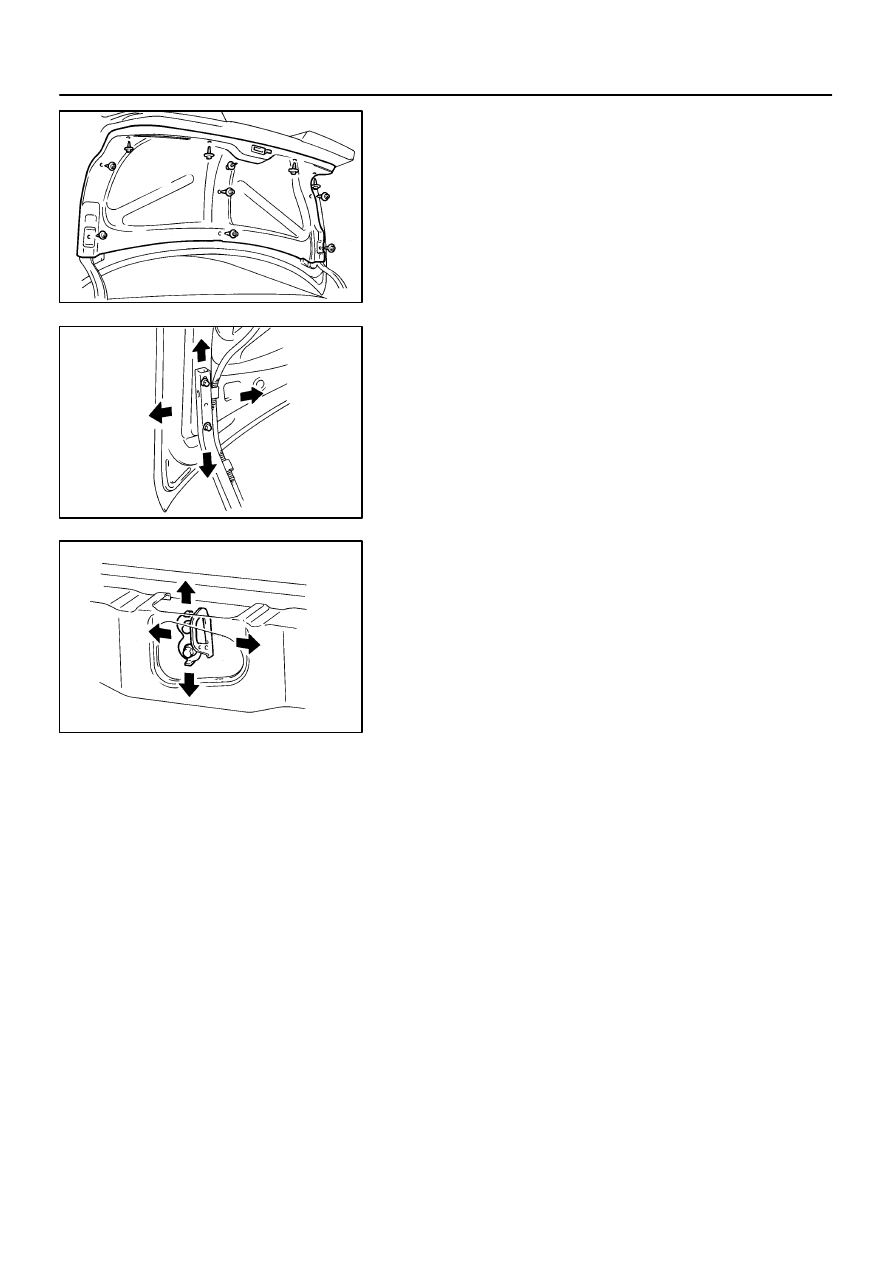

ADJUST LUGGAGE COMPARTMENT DOOR

(a)

Remove the 11 clips and luggage compartment door trim.

(b)

For forward/rearward and horizontal adjustment loosen
the bolts.
Torque: 8.0 N·m (82 kgf·cm, 71 in.·lbf)

(c)

For vertical adjustment of the front end of the door, in-
crease or decrease the number of washers between the
hinge and the door.
Torque: 8.0 N·m (82 kgf·cm, 71 in.·lbf)

2.

ADJUST DOOR LOCK STRIKER

(a)

Remove the LH and RH rear floor finish side plates.

(b)

Remove the rear floor finish plate.

(c)

Loosen the 2 lock striker set bolts.
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

(d)

Using a hammer and a brass bar, tap the striker to adjust
it.

BO09V–01

BO–38

–

BODY

LUGGAGE COMPARTMENT DOOR AND HINGE

1216

1997 LEXUS ES300   (RM511U)

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

BO–36

).

BO09W–01

–

BODY

LUGGAGE COMPARTMENT DOOR AND HINGE

BO–39

1217

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

BO–34

).

BO09X–03

H02890

N·m (kgf·cm, ft·lbf) : Specified torque

Fuel Filler
Opening Lid

Fuel Tank
Cap Hanger

Fuel Tank Cap

Ring

Fuel Lid Lock Assembly

Fuel Filler Opening
Lid Lock Retainer

Fuel Tank
Shield

Inner LH Cover
Luggage Compartment Trim

Luggage Compartment Floor Mat

RH Rear Floor
Finish Side Plate

Rear Floor Finish Plate

LH Rear Floor
Finish Side Plate

5.5 (56, 49 in.·lbf)

5.5 (56, 49 in.·lbf)

BO–40

–

BODY

FUEL LID

1218

1997 LEXUS ES300   (RM511U)

FUEL LID

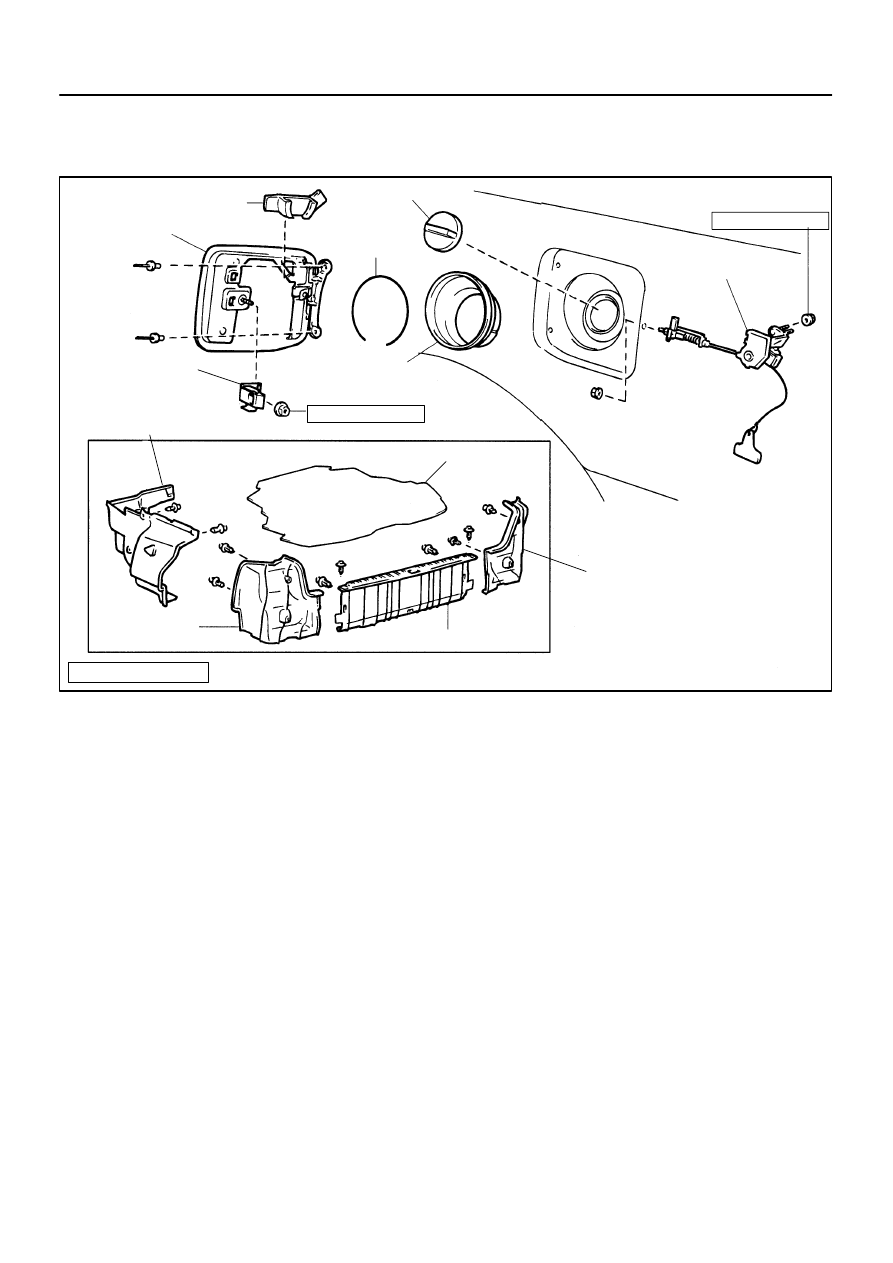

COMPONENTS
