AUTOMATIC TRANSAXLE

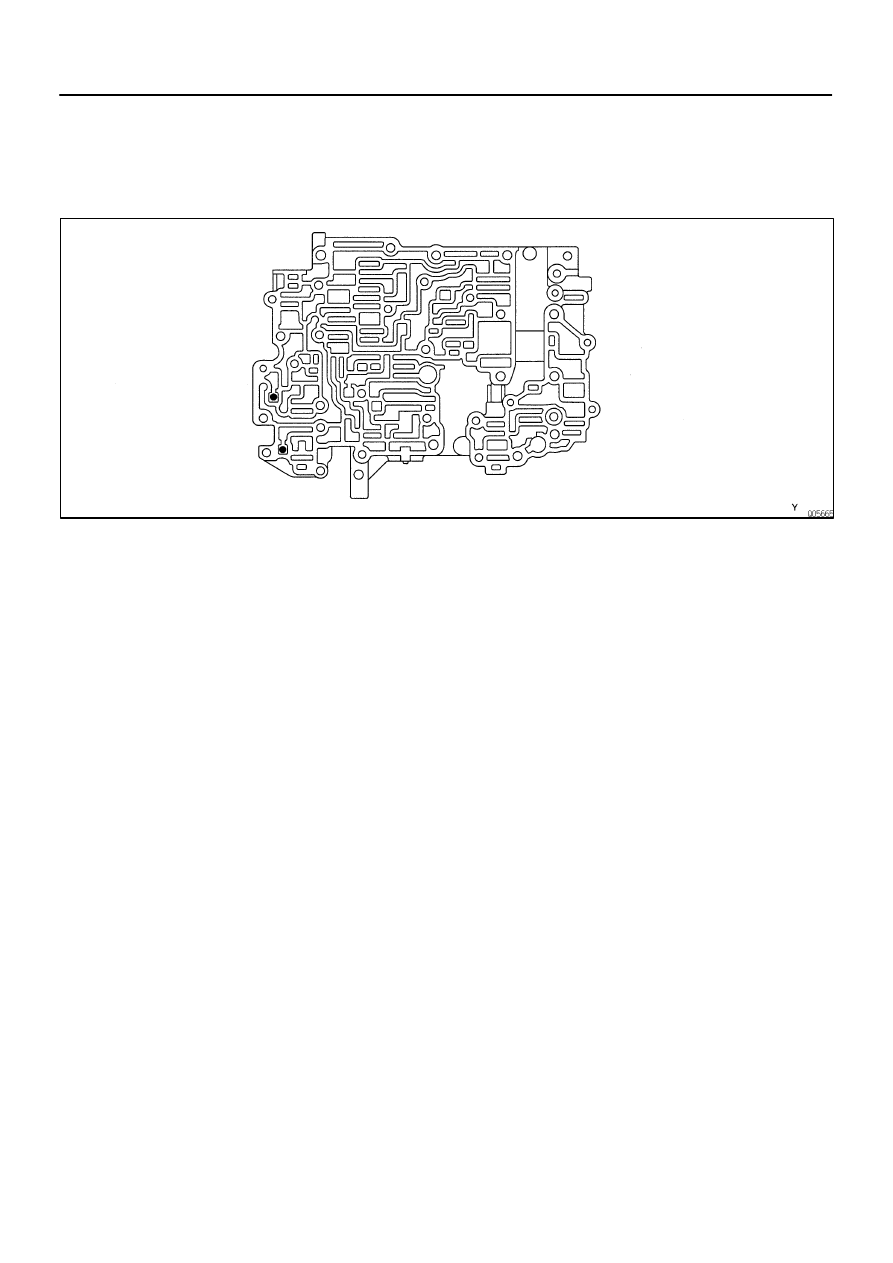

LOWER VALVE BODY
-
AUTOMATIC TRANSAXLE
LOWER VALVE BODY
-
AX-87

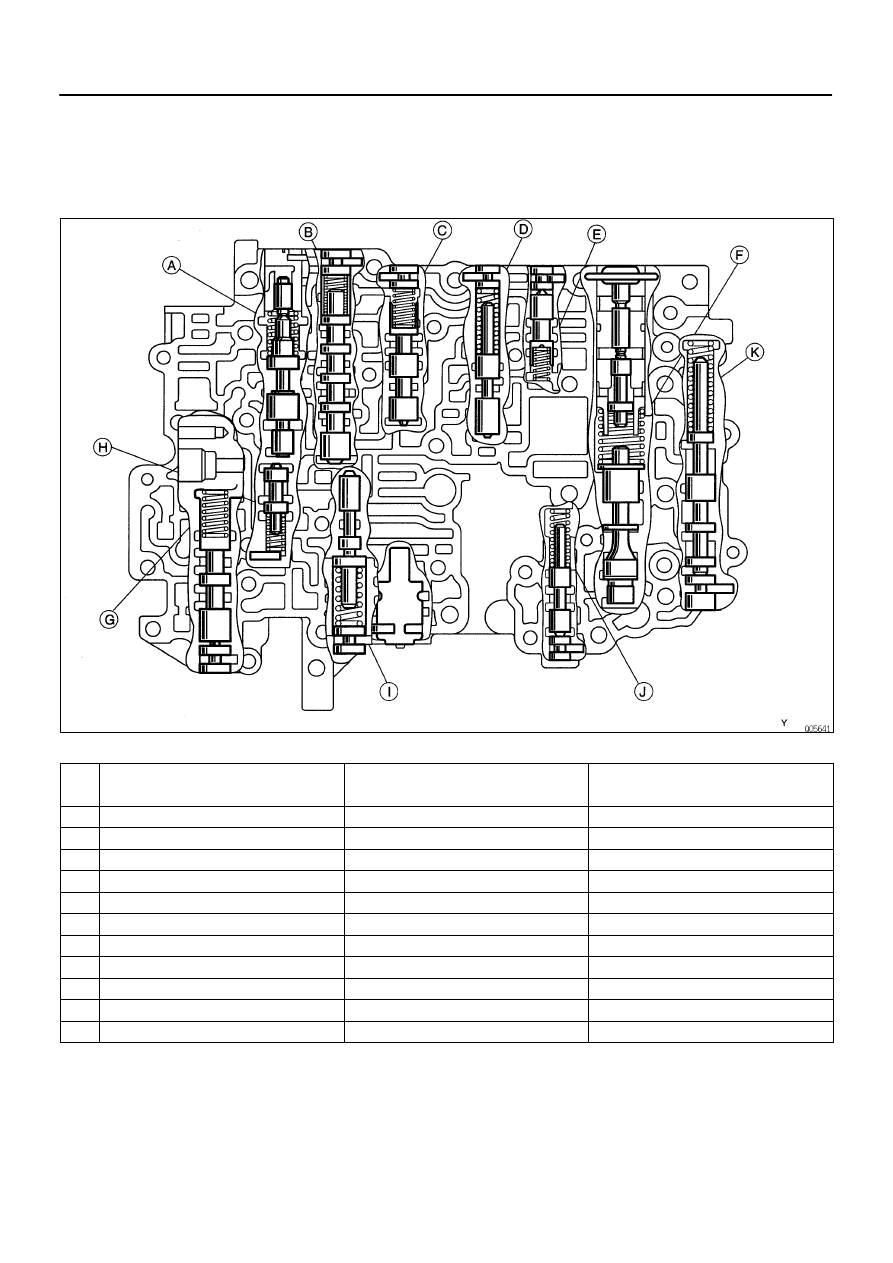

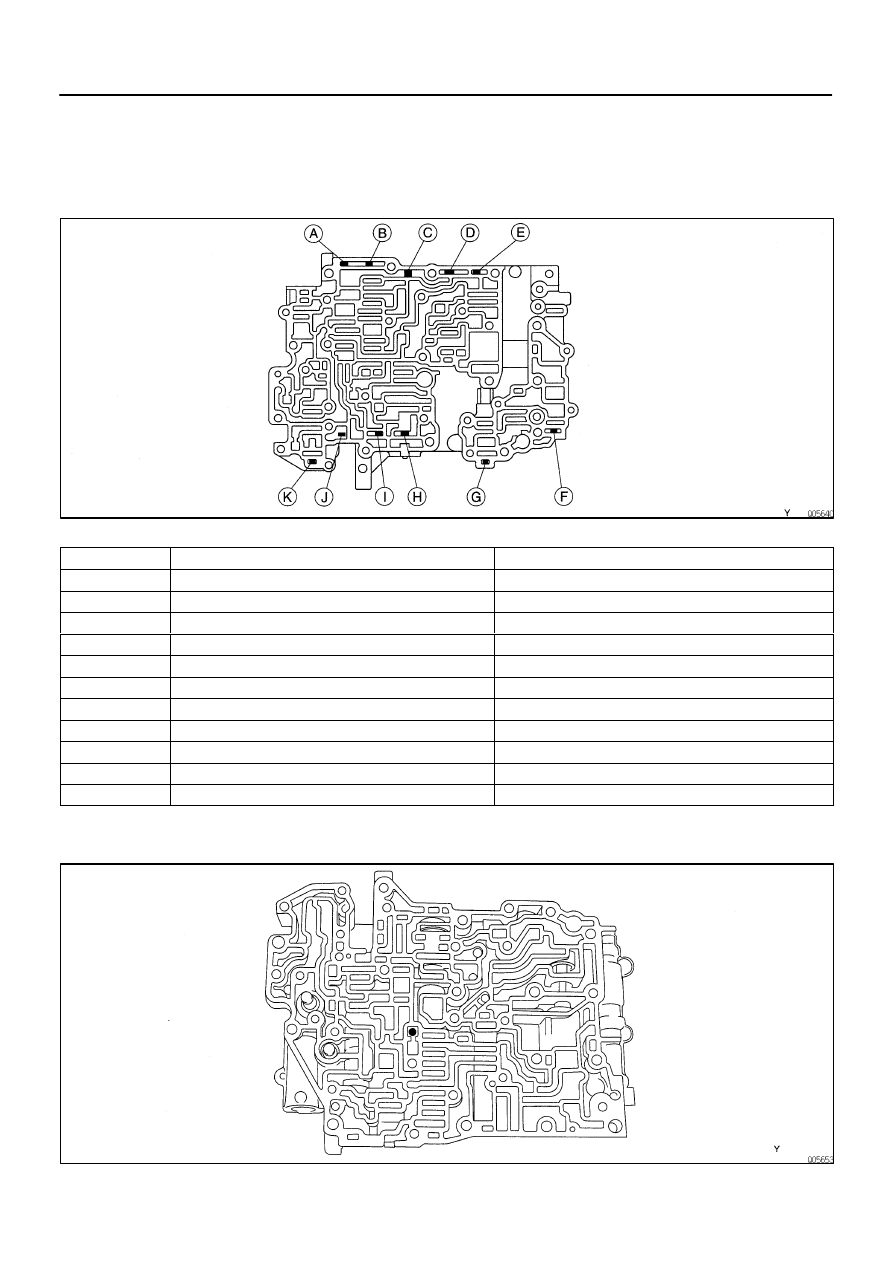

VALVE BODY SPRINGS SPECIFICATIONS
HINT: During reassembly please refer to the spring specifications above to help discriminate between
the different springs.
Mark
Name (Color)
Free Length / Outer Diameter
mm (in.)
Total No. of Coils
(A)
Accumulator Control Valve (Red)
25.1 (0.988) / 8.6 (0.339)
8.0
(B)
2-3 Shift Valve (None)
28.0 (1.102) / 7.6 (0.299)
10.3
(C)
1-2 Shift Valve (Light Green)
29.2 (1.150) / 8.9 (0.350)
12.0
(D)
Reverse Control Valve (White/Purple)
38.1 (1.500) / 6.5 (0.256)
19.0
(E)
Cut-Back Valve (None)
21.8 (0.858) / 6.0 (0.236)
13.5
(F)
Primary Regulator Valve (None)
36.6 (1.441) / 16.1 (0.634)
6.3
(G)
3-4 Shift Valve (None)
28.0 (1.102) / 7.6 (0.299)
10.3
(H)
Second Lock Valve (None)
20.7 (0.815) / 7.4 (0.291)
9.5
(I)
Second Coast Modulator Valve (White)
32.2 (1.268) / 9.0 (0.354)
11.4
(J)
Solenoid Modulator Valve (Purple/Pink)
30.2 (1.189) / 5.6 (0.220)
15.3
(K)
Secondary Regulator Valve (None)
46.9 (1.846) / 5.9 (0.232)
21.8
