AUTOMATIC TRANSAXLE

UPPER VALVE BODY

-

AX-83

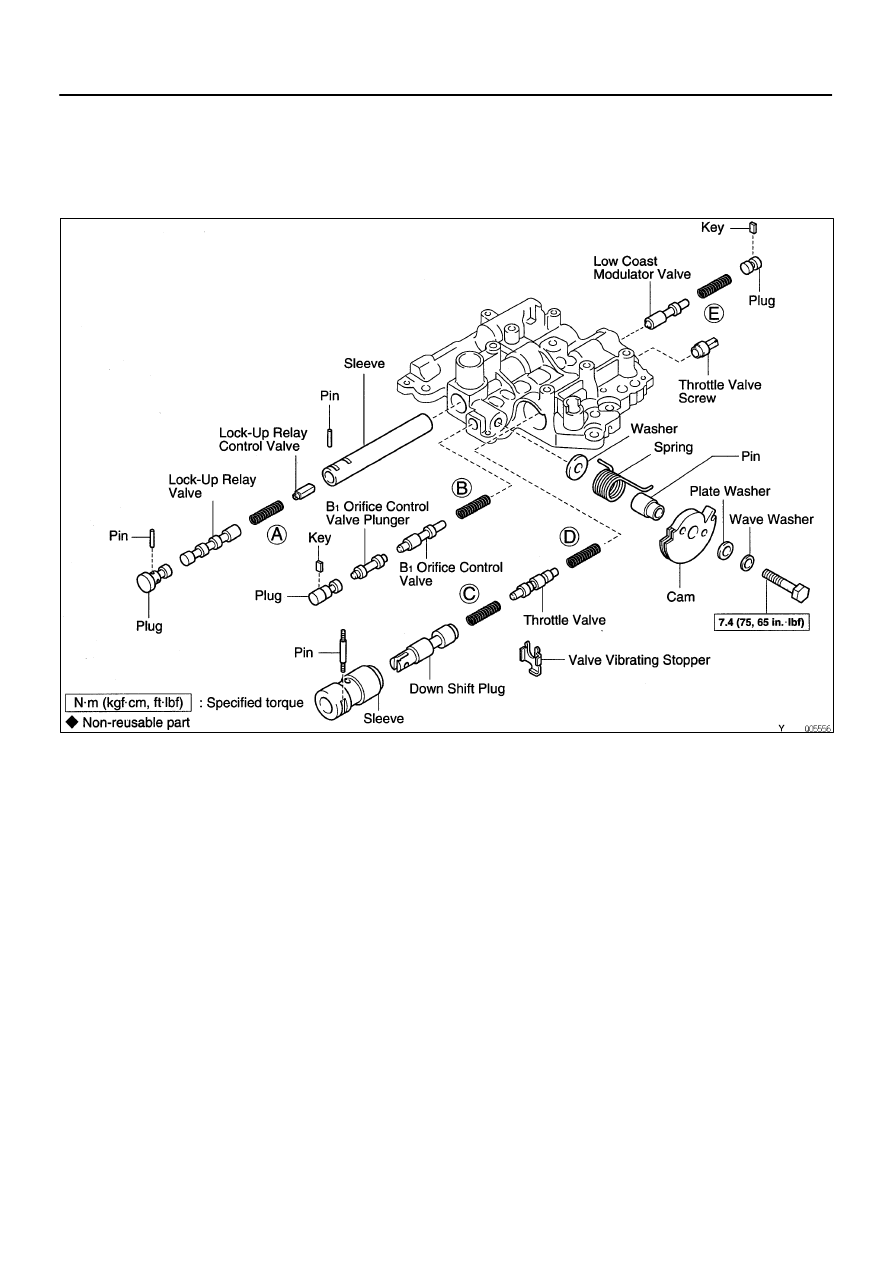

UPPER VALVE BODY

COMPONENTS

AX047-03

AUTOMATIC TRANSAXLE

UPPER VALVE BODY

-

AUTOMATIC TRANSAXLE

UPPER VALVE BODY

-

AX-84

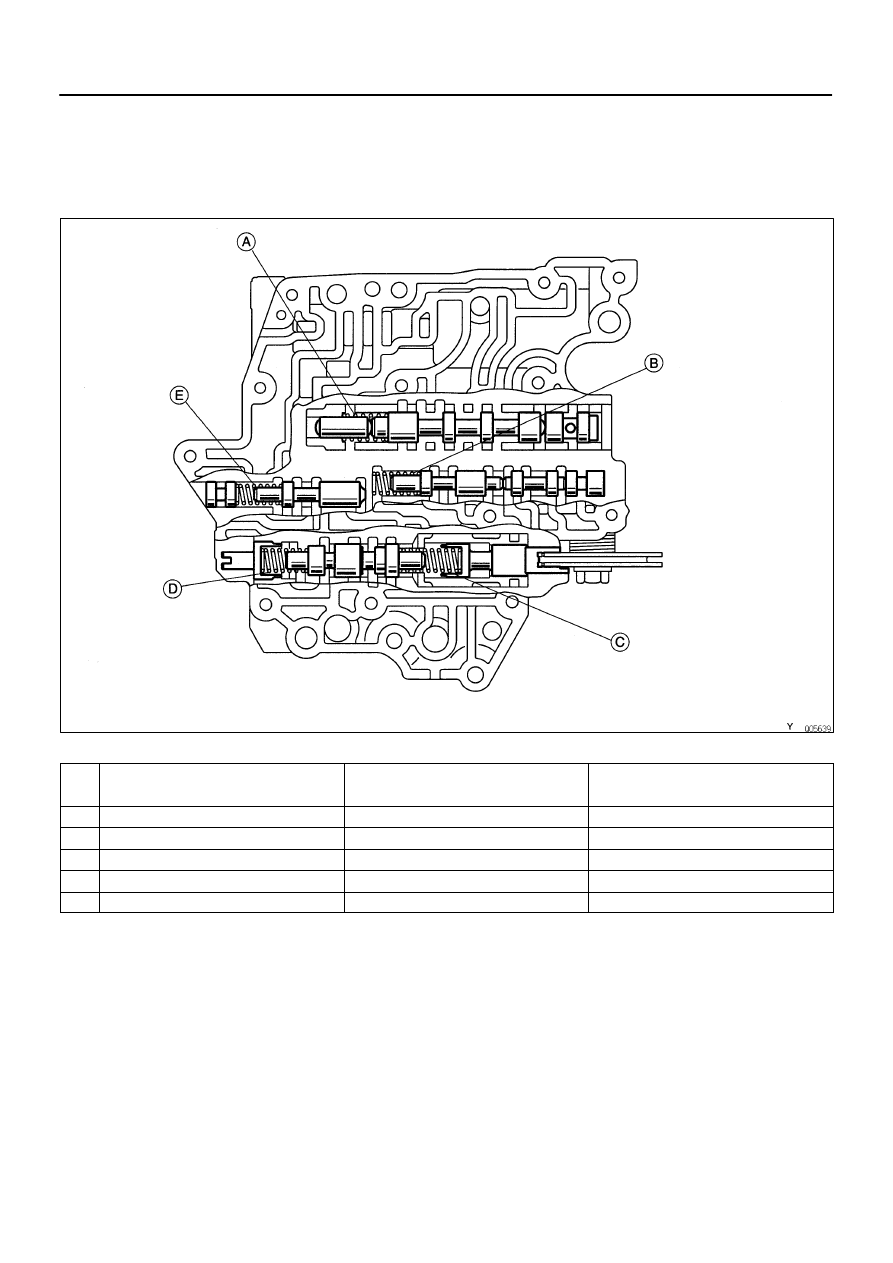

VALVE BODY SPRINGS SPECIFICATIONS

HINT: During reassembly please refer to the spring specifications above to help discriminate between
the different springs.

Mark

Name (Color)

Free Length / Outer Diameter

mm (in.)

Total No. of Coils

(A)

Lock-Up Relay Valve (Yellow)

26.8 (1.055) / 10.2 (0.402)

10.8

(B)

B

1

 Orifice Control Valve (White)

24.8 (0.976) / 6.4 (0.252)

12.0

(C)

Throttle Valve (Green)

31.5 (1.240) / 7.0 (0.276)

11.4

(D)

Down-Shift Plug (None)

15.0 (0.591) / 11.0 (0.433)

7.0

(E)

Low Coast Modulator Valve (Purple)

20.2 (0.795) / 7.9 (0.311)

11.9

AX048-03

AUTOMATIC TRANSAXLE

UPPER VALVE BODY

-

AX-85

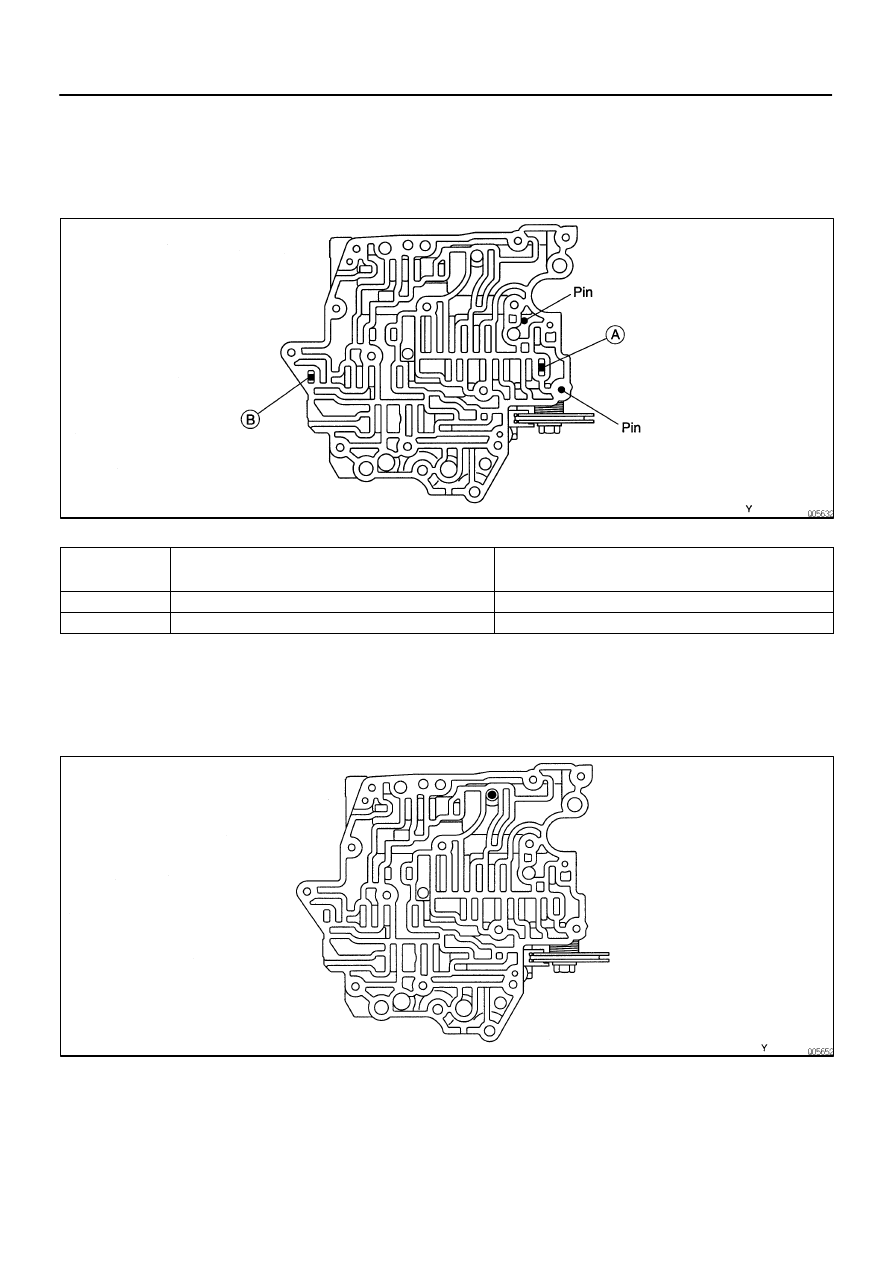

RETAINERS, PIN, AND CHECK BALLS LOCATION

1.

PIN, RETAINERS

Mark

Name

Height / Width / Thickness

mm (in.)

(A)

B

1

 Orifice Control Valve

8.9 (0.350) / 5.0 (0.197) / 3.2 (0.126)

(B)

Low Coast Modulator Valve

8.5 (0.335) / 5.0 (0.197) / 3.2 (0.126)

2.

CHECK BALLS

AX0GZ-02

AUTOMATIC TRANSAXLE

LOWER VALVE BODY

-

AX-86

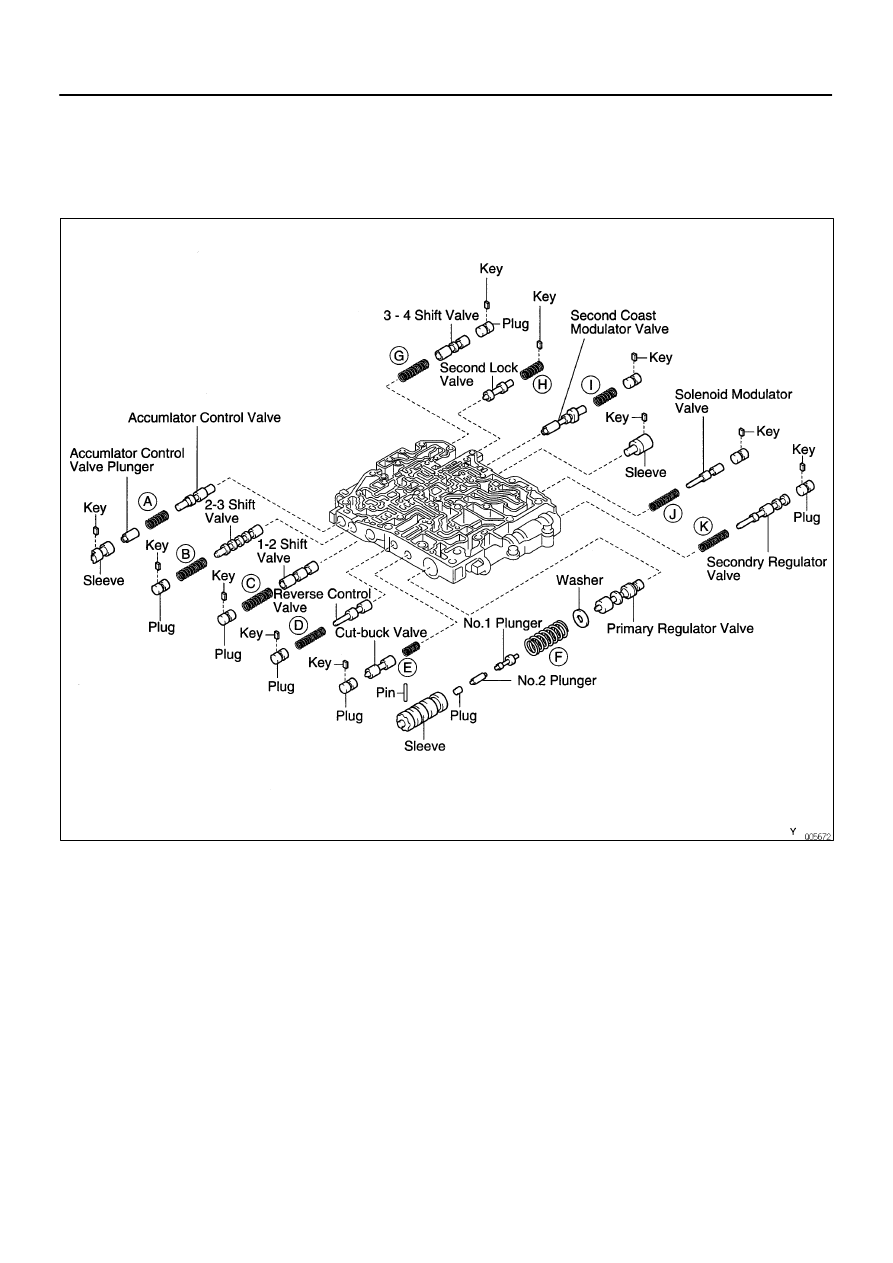

LOWER VALVE BODY

COMPONENTS

AX04A-03
