AUTOMATIC TRANSAXLE

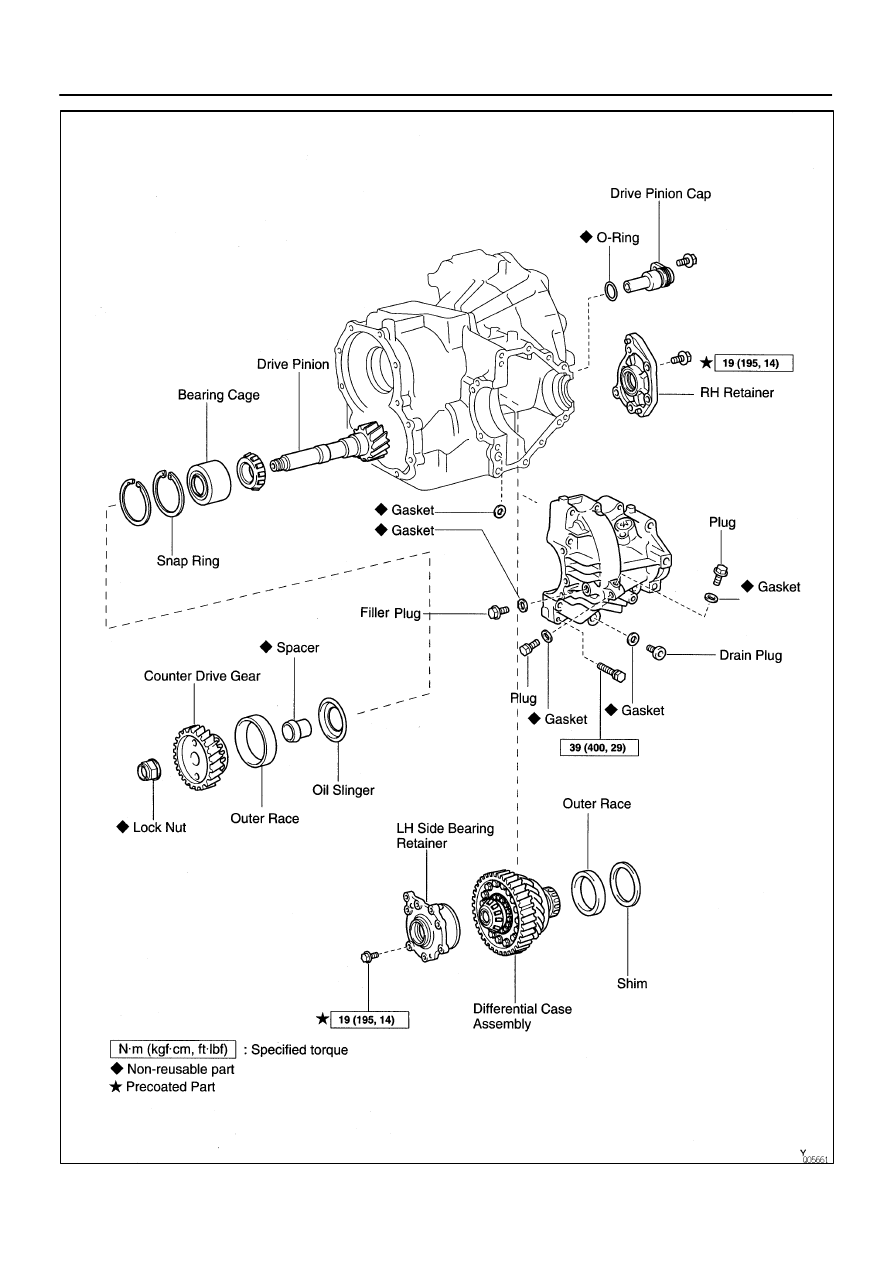

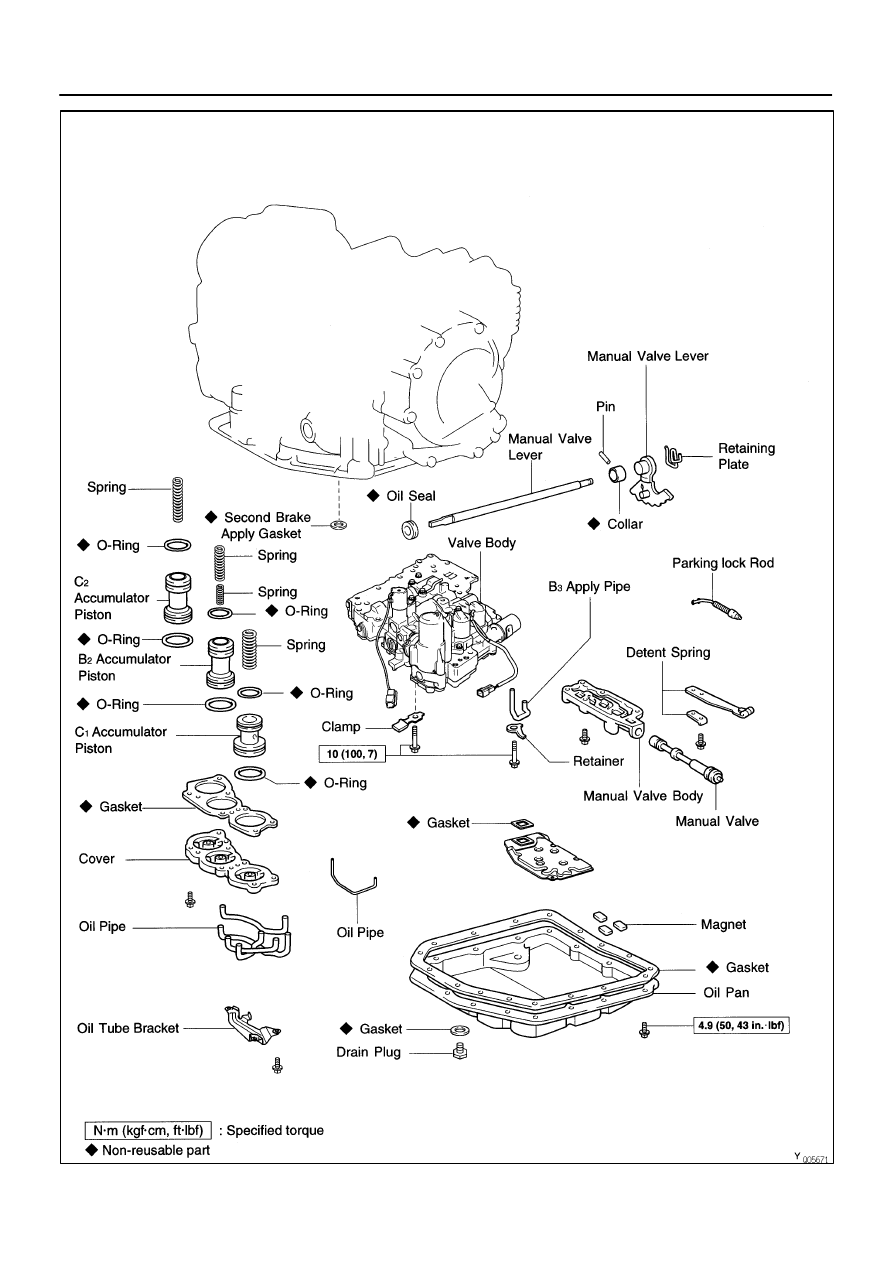

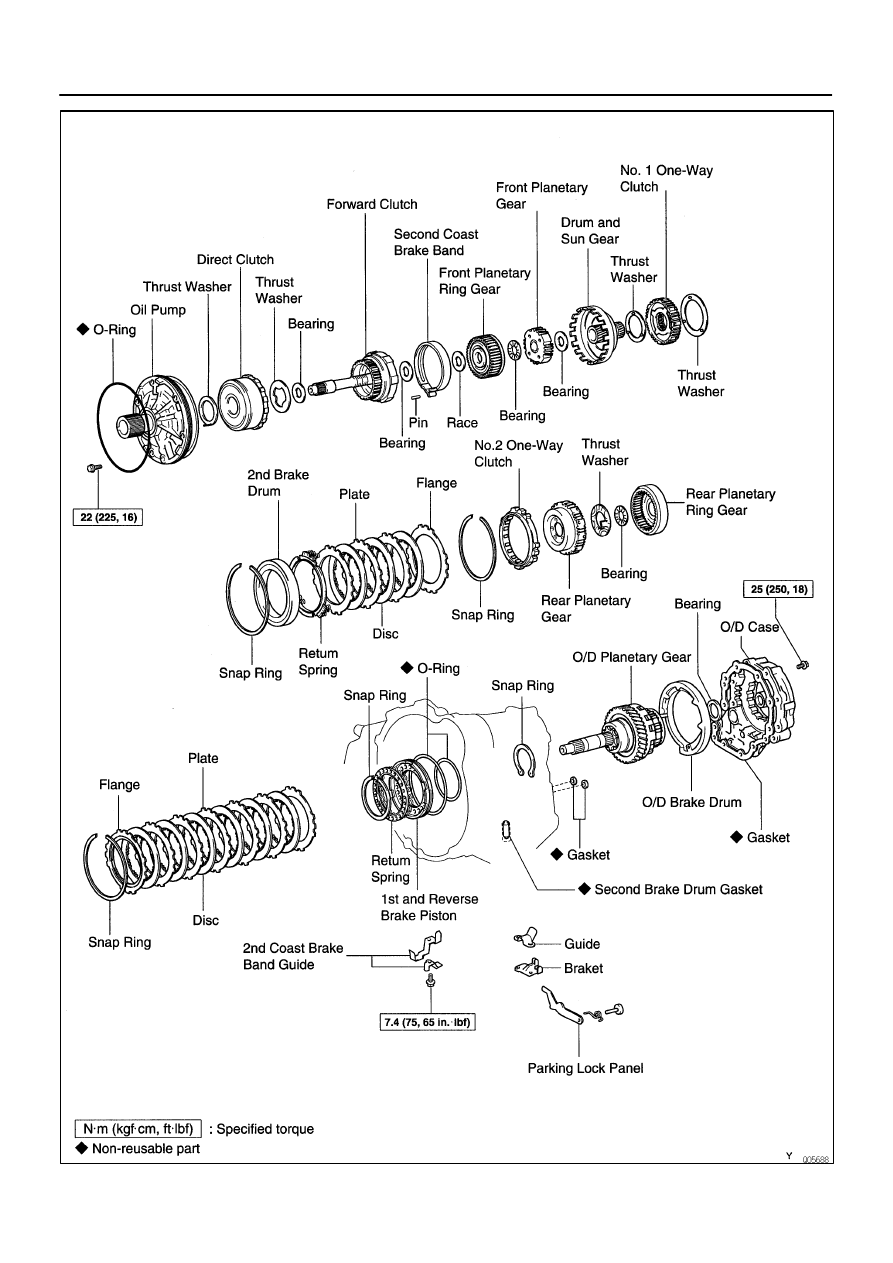

COMPONENT PARTS REMOVAL

-

AX-7

AUTOMATIC TRANSAXLE

COMPONENT PARTS REMOVAL

-

AX-8

AUTOMATIC TRANSAXLE

COMPONENT PARTS REMOVAL

-

AX-9

AUTOMATIC TRANSAXLE

COMPONENT PARTS REMOVAL

-

AX-10

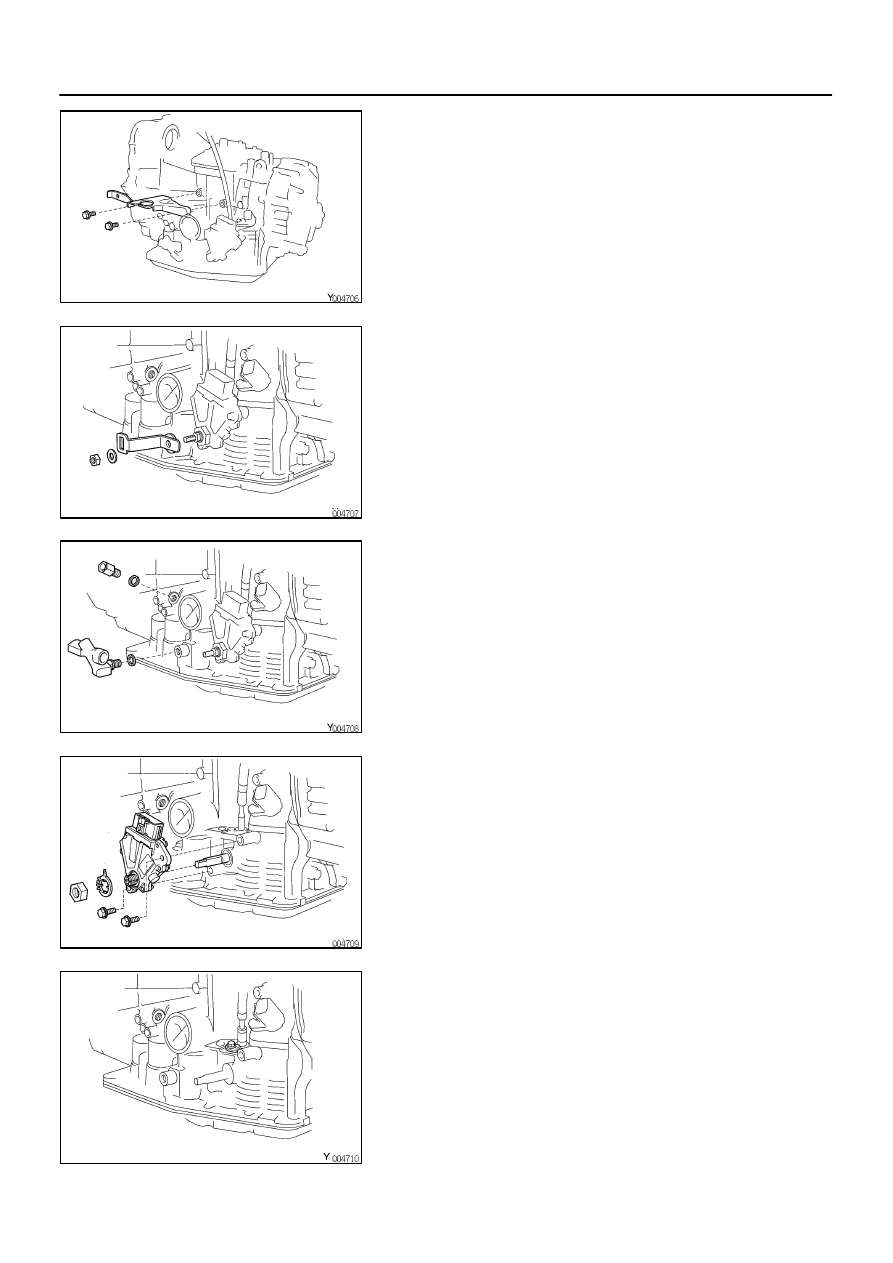

SEPARATE BASIC SUBASSEMBLY

1.

REMOVE SHIFT CONTROL CABLE BRACKET

2.

REMOVE UNION AND ELBOW

(a)

Remove the manual shift lever.

(b)

Using a open end wrench, remove the union and elbow.

(c)

Remove the O-rings from the union and elbow.

3.

REMOVE PARK/NEUTRAL POSITION SWITCH

(a)

Pry off the lock washer and remove the manual valve
shaft nut.

(b)

Remove the 2 bolts and pull out the park/neutral position
switch.

4.

REMOVE THROTTLE CABLE RETAINING BOLT AND
PLATE

AX0TT-02
