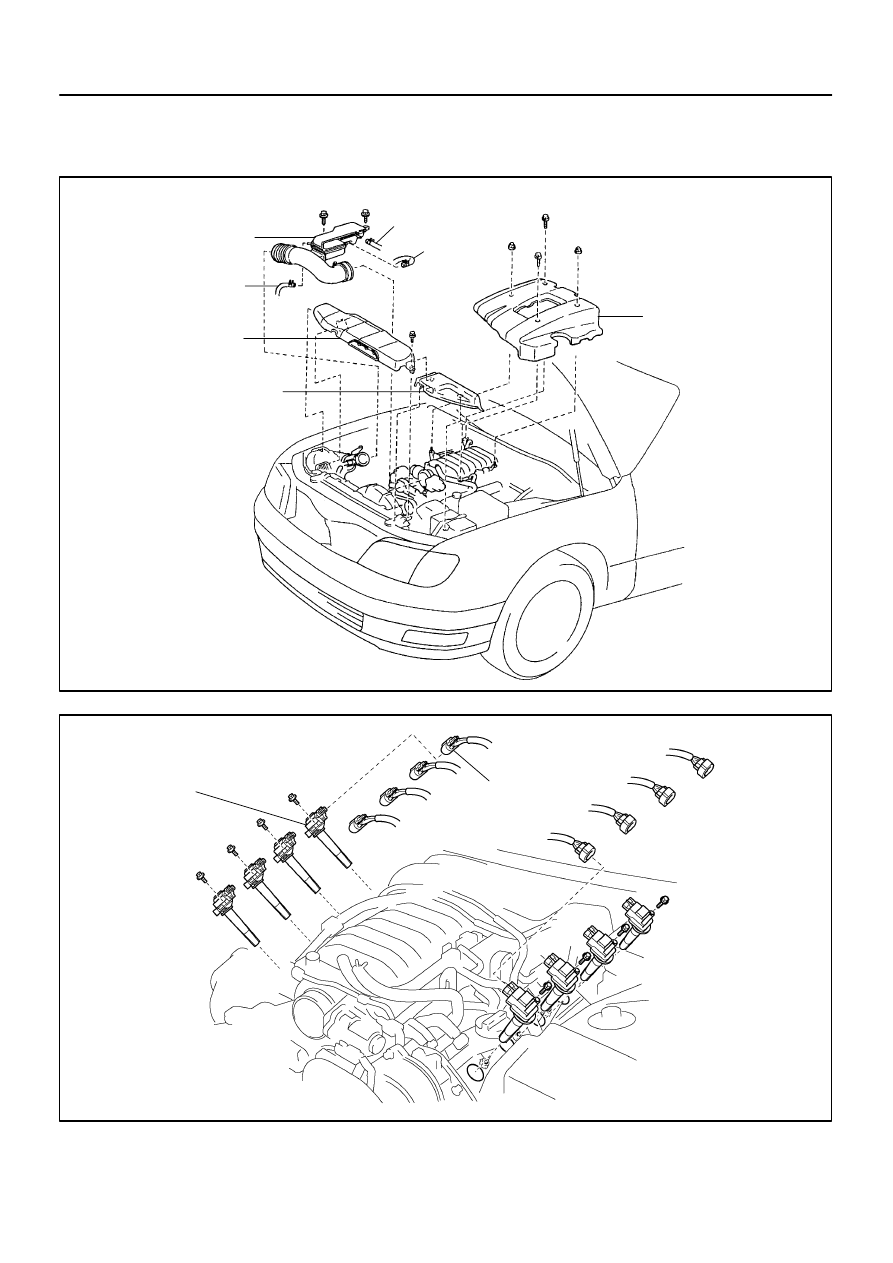

IG04N–02

B01297

Intake Air Connector

Air Cleaner Inlet

Battery Clamp Cover

V–Bank Cover

EVAP Hose

PS Air Hose

PCV Hose

B01298

Ignition Coil Connector

Ignition Coil

IG–6

–

IGNITION

IGNITION COIL

1463

IGNITION COIL

COMPONENTS

IG04O–02

B01299

–

IGNITION

IGNITION COIL

IG–7

1464

REMOVAL

1.

REMOVE V–BANK COVER

2.

REMOVE BATTERY CLAMP COVER

3.

REMOVE AIR CLEANER INLET

4.

REMOVE INTAKE AIR CONNECTOR

5.

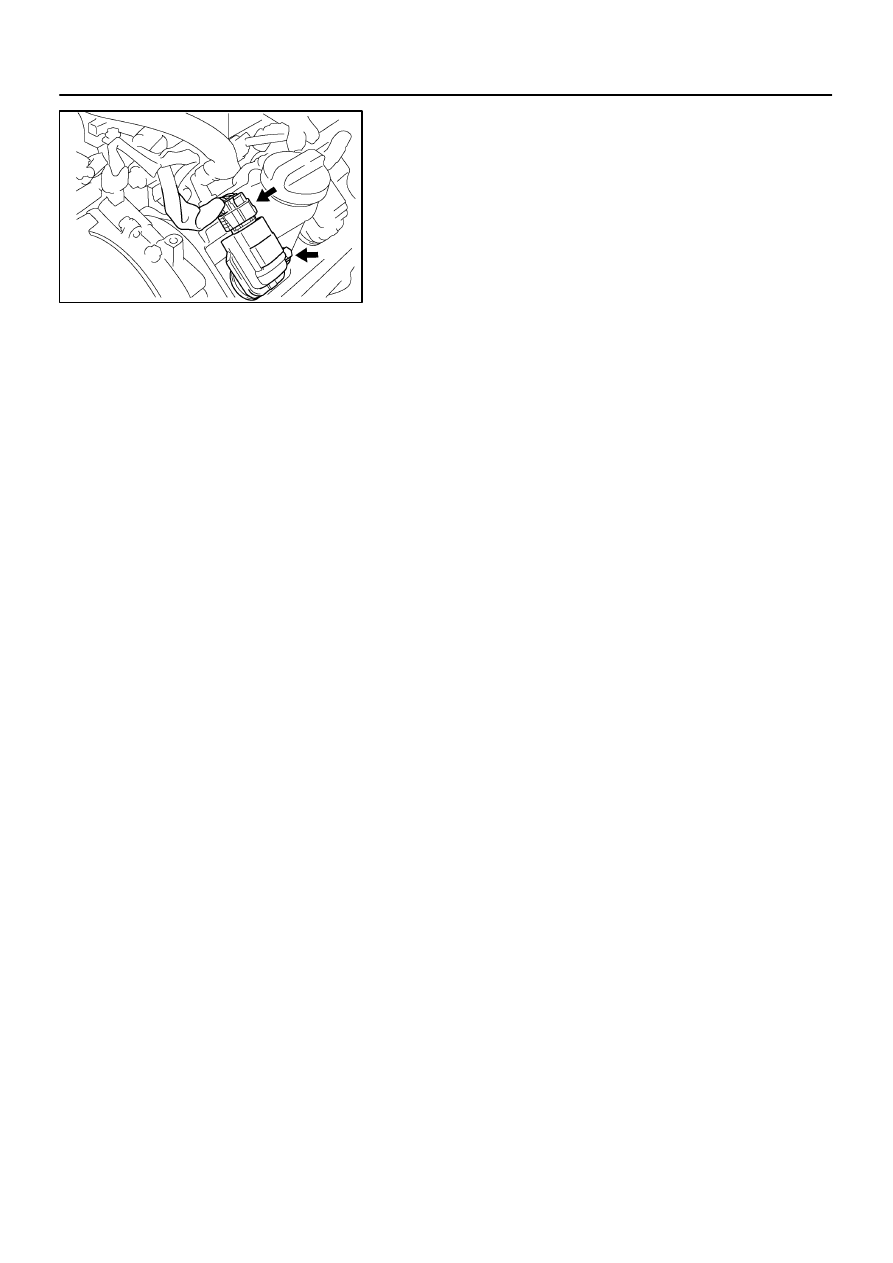

DISCONNECT IGNITION COIL CONNECTORS

6.

REMOVE IGNITION COILS FROM SPARK PLUGS

Remove the 8 bolt and 8 ignition coils.

Torque: 7.5 N·m (80 kgf·cm, 66 in.·lbf)

IG04P–02

IG–8

–

IGNITION

IGNITION COIL

1465

INSTALLATION

Installation is in the reverse order of removal. (See page

IG–7

)

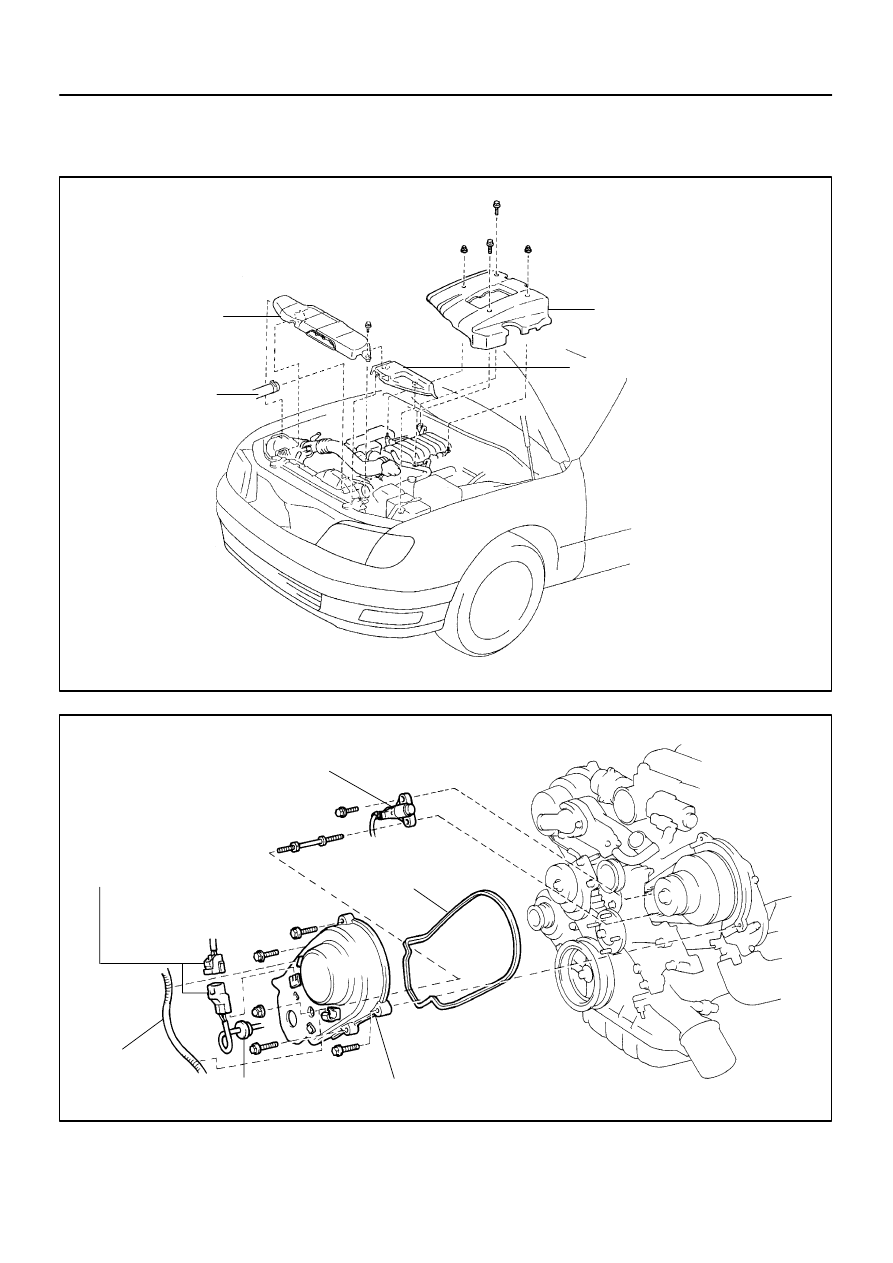

IG04Q–02

B02551

Air cleaner Inlet

Battery Clamp Cover

V–Bank Cover

Radiator Hose

B01296

Camshaft Position Sensor

Gasket

LH No.3 Timing Belt Cover

Camshaft Position Sensor
Connector

Engine Wire

Grommet

–

IGNITION

CAMSHAFT POSITION SENSOR

IG–9

1466

CAMSHAFT POSITION SENSOR

COMPONENTS
