IG04S–02

B01293

–

IGNITION

CAMSHAFT POSITION SENSOR

IG–11

1468

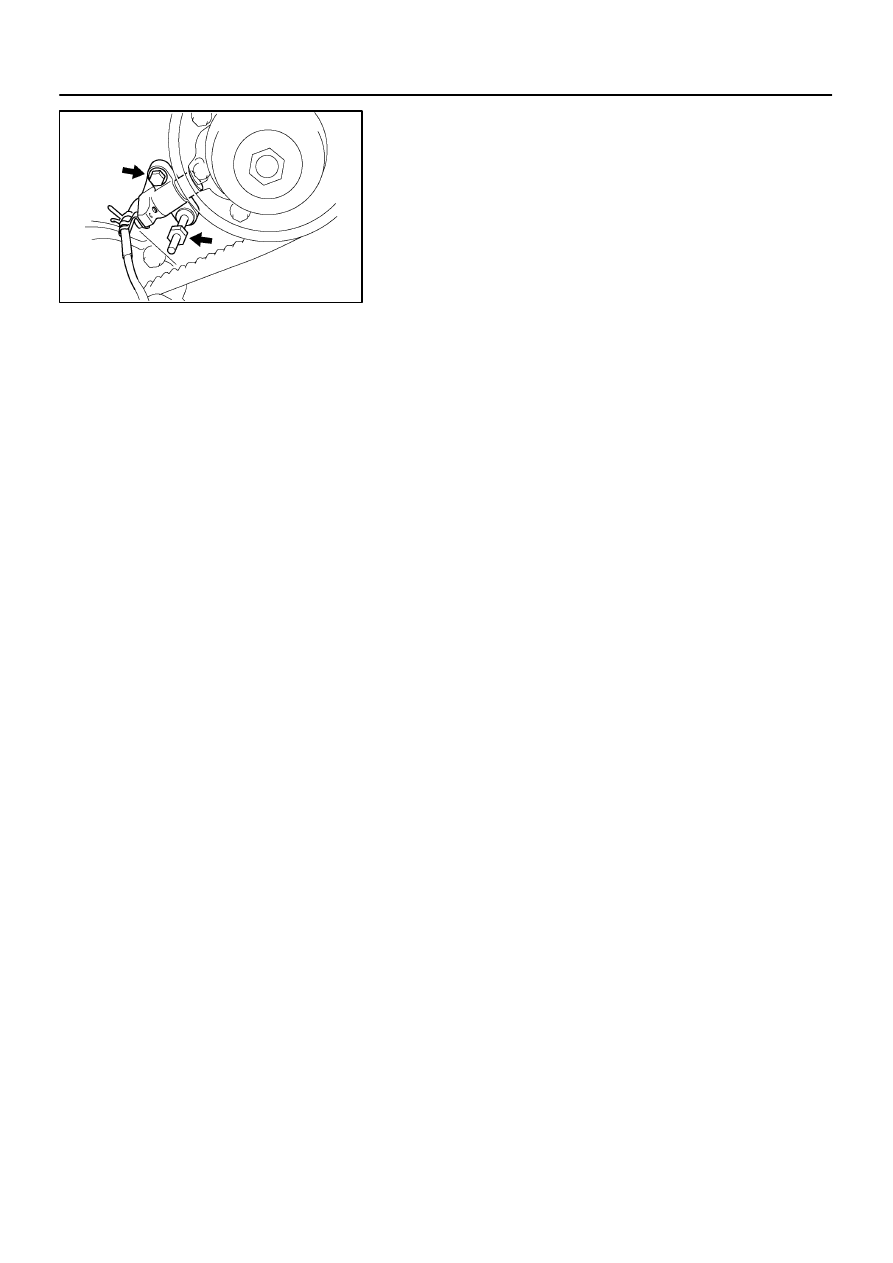

INSTALLATION

1.

INSTALL CAMSHAFT POSITION SENSOR
Torque: 7.5 N·m (80 kgf·cm, 66 in.·lbf)

2.

CONNECT

 CAMSHAFT POSITION SENSOR CONNEC-

TOR

3.

INSTALL NO.3 TIMING BELT COVER
(See page

EM–22

)

4.

CONNECT RADIATOR HOSE

5.

INSTALL AIR CLEANER INLET

6.

INSTALL BATTERY CLAMP COVER

7.

INSTALL V–BANK COVER

8.

FILL ENGINE COOLANT (See page

CO–2

)

9.

CHECK ENGINE COOLANT FOR LEAKS

10.

CHECK IGNITION TIMING (See page

EM–9

)

IG04T–02

B01304

Crankshaft
Position Sensor

Crankshaft Position Sensor
Connector

Engine Under Cover

Oil Pan Protector

x 8

x 7

x 11

IG–12

–

IGNITION

CRANKSHAFT POSITION SENSOR

1469

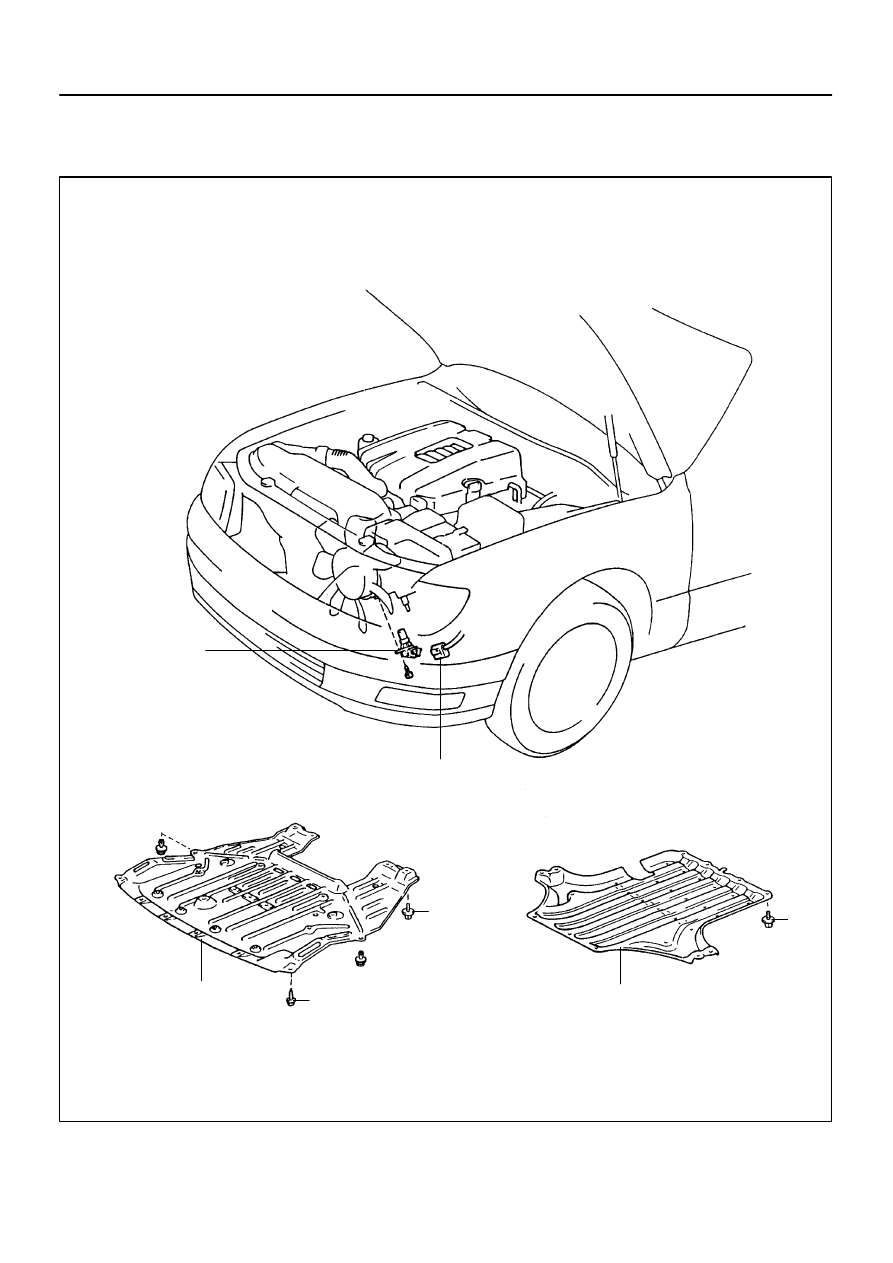

CRANKSHAFT POSITION SENSOR

COMPONENTS

IG04U–02

P21883

–

IGNITION

CRANKSHAFT POSITION SENSOR

IG–13

1470

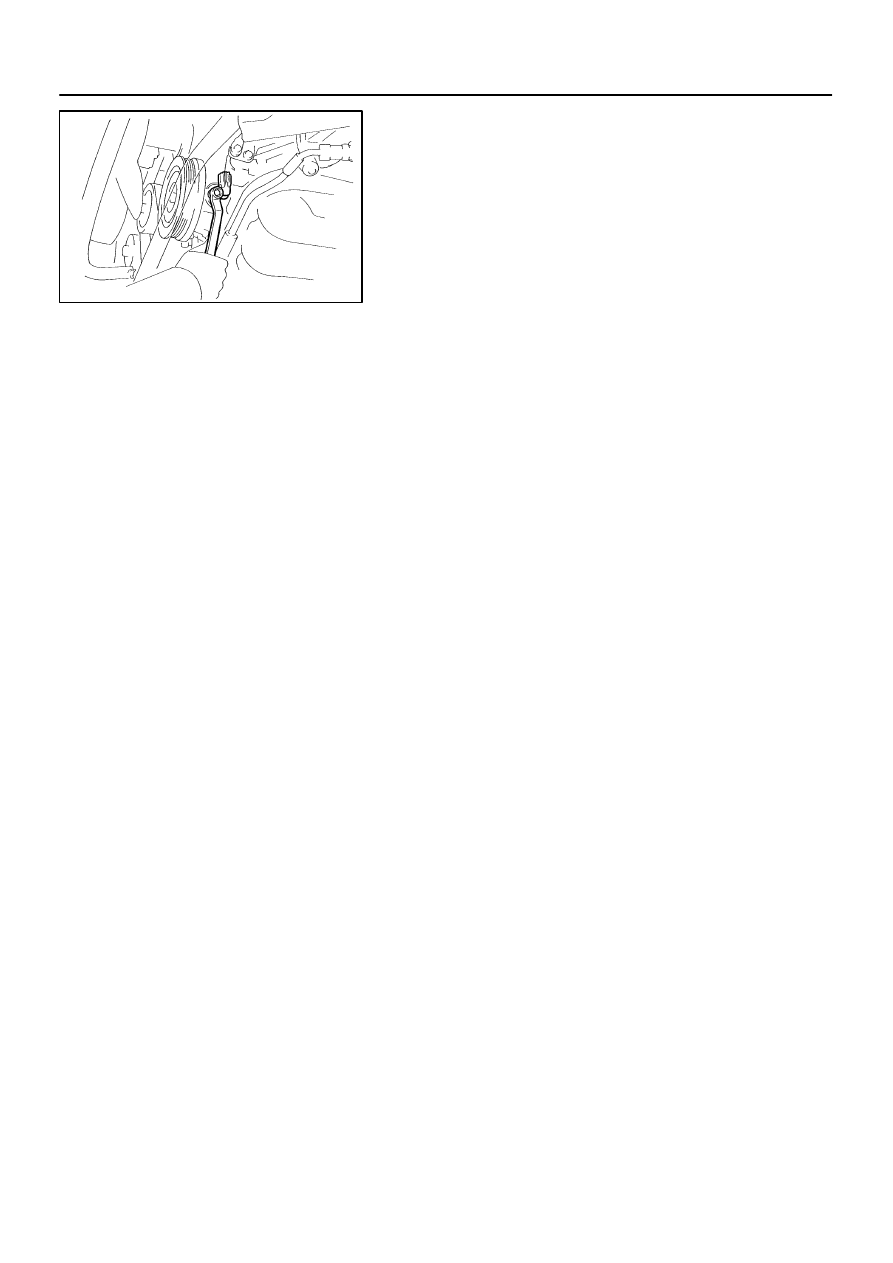

REMOVAL

1.

REMOVE OIL PAN PROTECTOR

2.

REMOVE ENGINE UNDER COVER

3.

DISCONNECT CRANKSHAFT POSITION SENSOR
CONNECTOR

4.

REMOVE CRANKSHAFT POSITION SENSOR

Remove the bolt and crankshaft position sensor.

Torque: 6.5 N·m (65 kgf·cm, 58 in.·lbf)

IG04V–02

IG–14

–

IGNITION

CRANKSHAFT POSITION SENSOR

1471

INSTALLATION

Installation is in the reverse order of removal. (See page

IG–13

)
