INTRODUCTION
FOR ALL OF VEHICLES
IN–11
11
reset the memory. To avoid erasing the memory of
each memory system, never use a back–up power
supply from another battery.
(3)

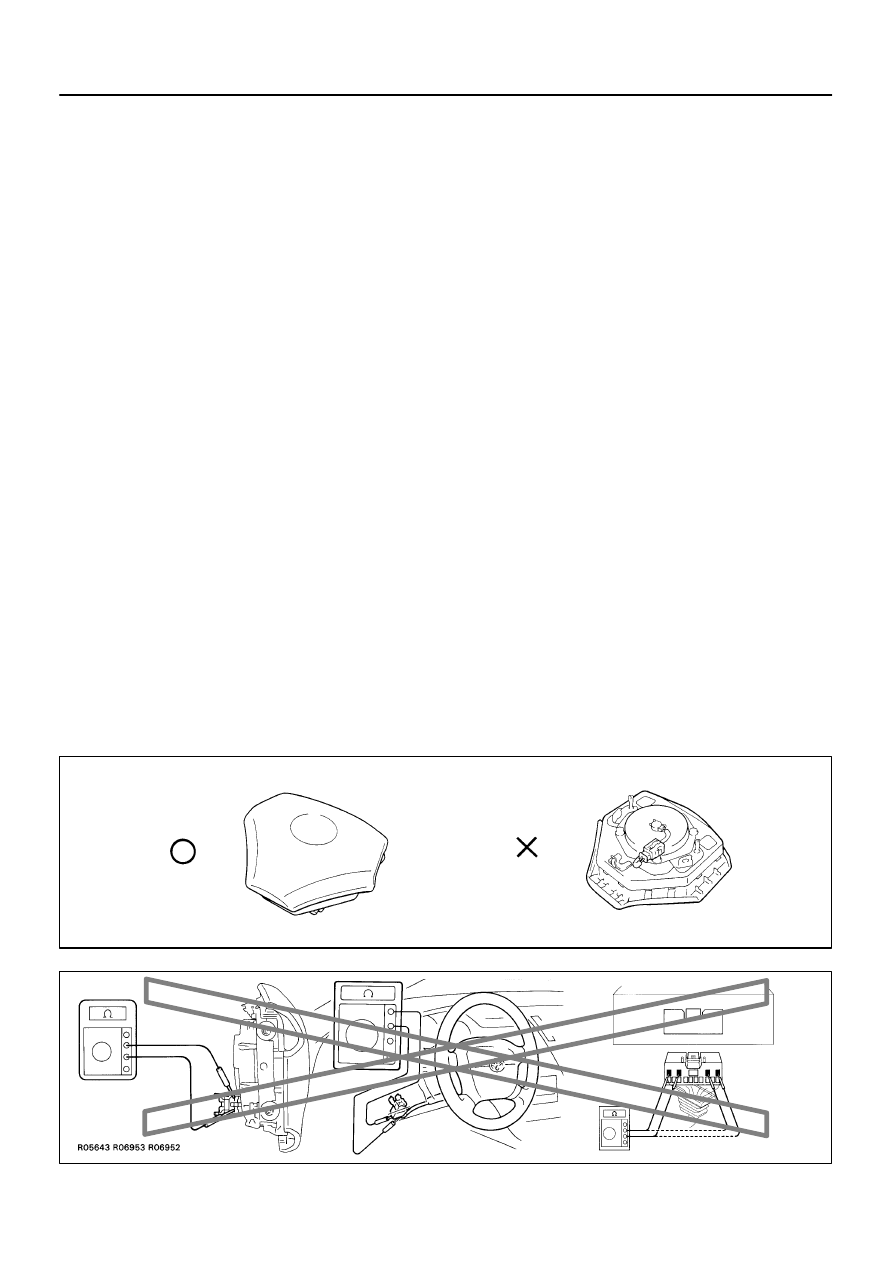

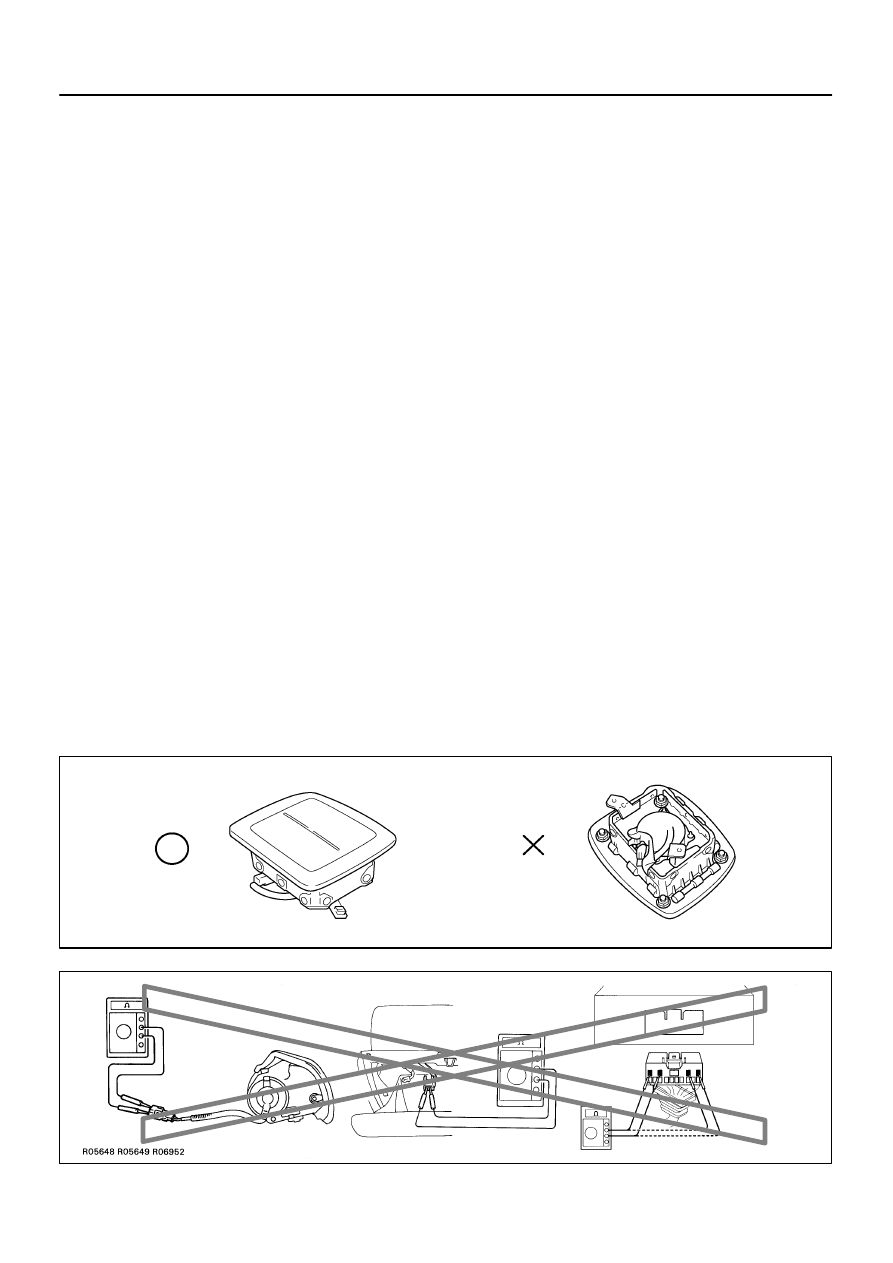

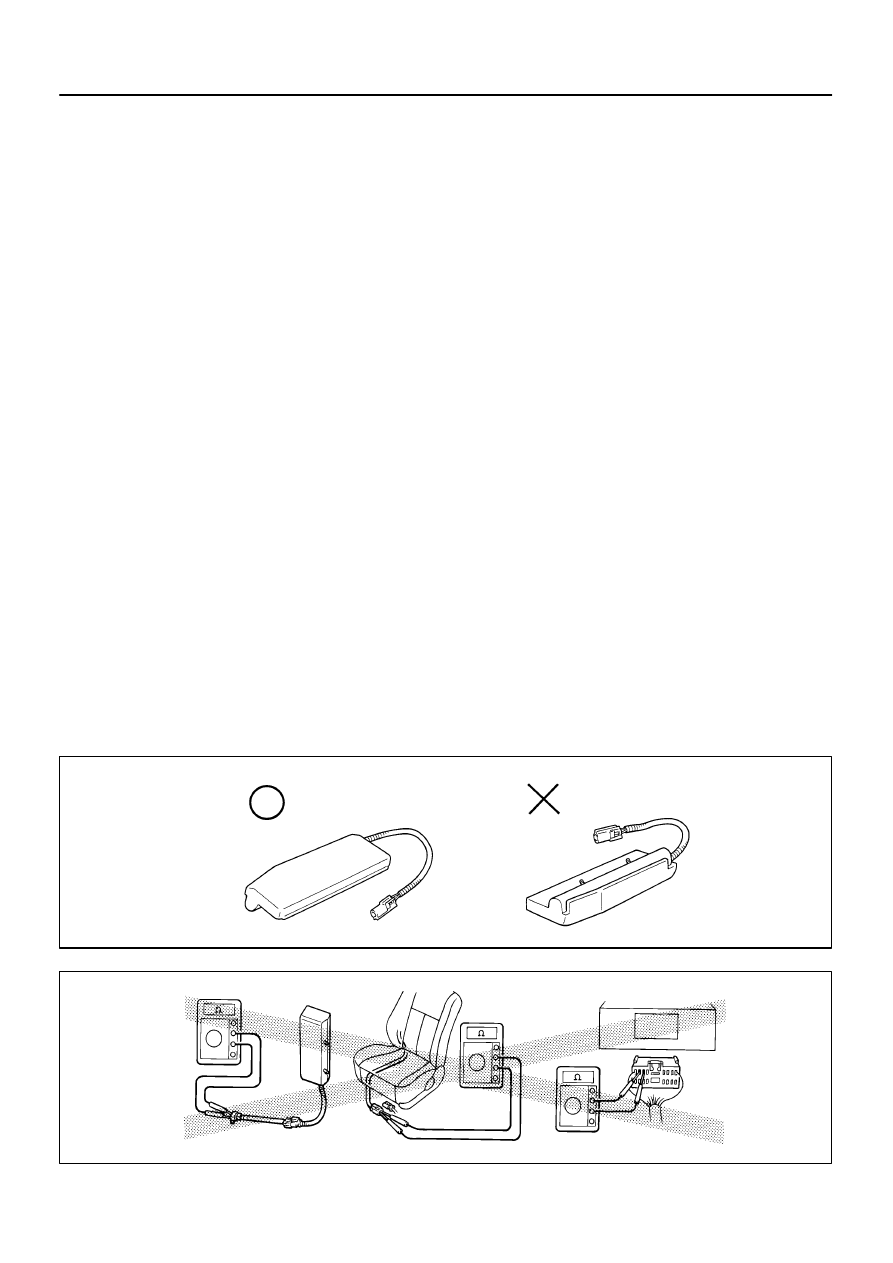

Even in cases of a minor collision where the SRS
does not deploy, the steering wheel pad, front pas-
senger airbag assembly, side airbag assembly,
front airbag sensor, side airbag sensor and seat belt
pretensioner should be inspected
(See page
RS–15
,
RS–29
,
RS–42
,
RS–60
,
RS–65
and
BO–125
).
(4)
Never use SRS parts from another vehicle. When
replacing parts, replace them with new parts.
(5)
Before repairs, remove the airbag sensor if shocks
are likely to be applied to the sensor during repairs.
(6)
Never disassemble and repair the airbag sensor as-
sembly, side airbag sensor assembly, steering
wheel pad, front passenger airbag assembly, side
airbag assembly, front airbag sensor, side airbag
sensor or seat belt pretensioner.
(7)
If the airbag sensor assembly, side airbag sensor
assembly, steering wheel pad, front passenger air-
bag assembly, side airbag assembly, front airbag
sensor, side airbag sensor or seat belt pretensioner
has been dropped, or if there are cracks, dents or
other defects in the case, bracket or connector, re-
place them with new ones.
(8)
Do not directly expose the airbag sensor assembly,
side airbag sensor assembly, steering wheel pad,
front passenger airbag assembly, side airbag as-
sembly, front airbag sensor, side airbag sensor or
seat belt pretensioner to hot air or flames.
(9)
Use a volt/ohmmeter with high impedance (10 k
Ω
/V
minimum) for troubleshooting of the electrical cir-
cuit.
(10) Information labels are attached to the periphery of
the SRS components. Follow the instructions on the
notices.
(11) After work on the supplemental restraint system is
completed, check the SRS warning light (See page
DI–552
).
(c)

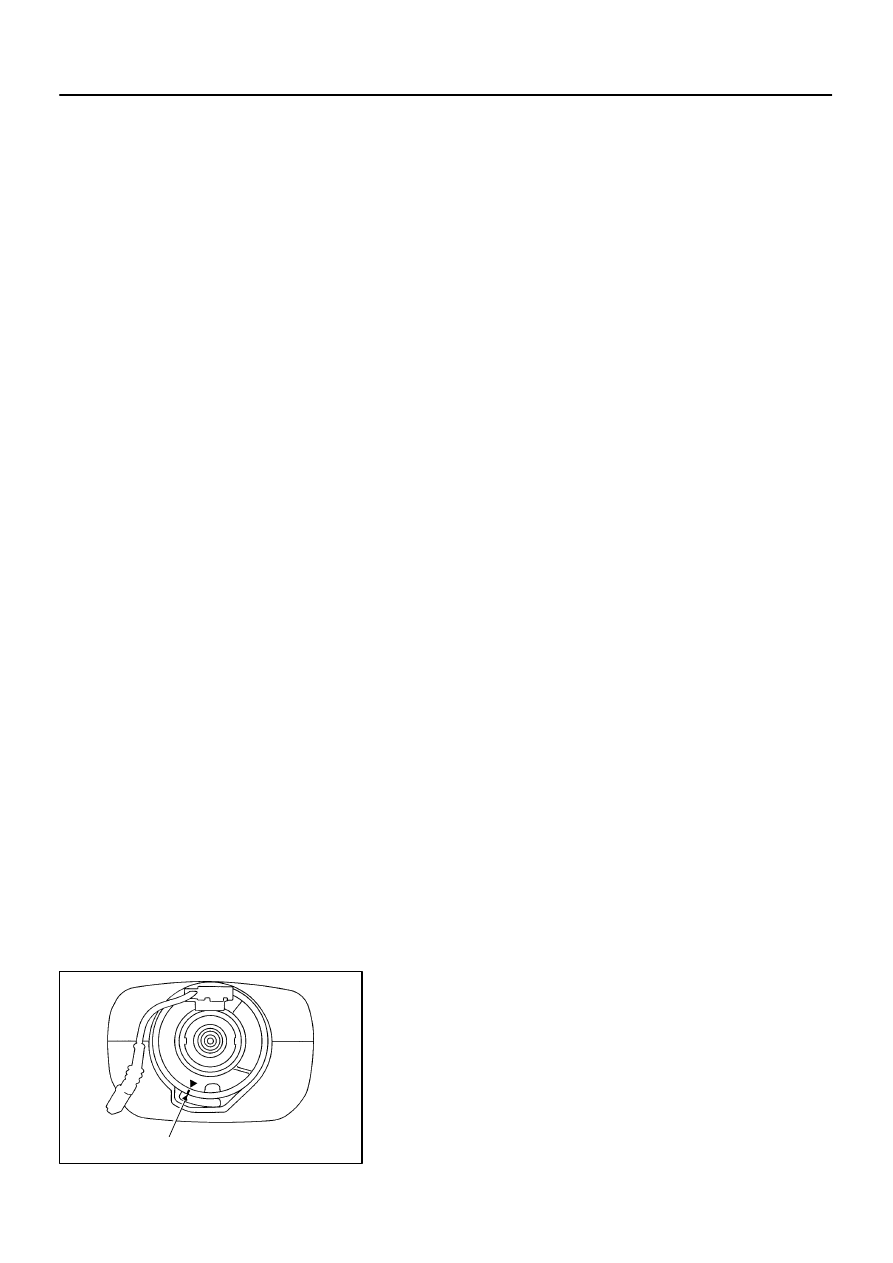

SPIRAL CABLE (in Combination Switch)
The steering wheel must be fitted correctly to the steering
column with the spiral cable at the neutral position, other-
wise cable disconnection and other troubles may result.
Refer to
SR–17
of this manual concerning correct steer-
ing wheel installation.
