ENGINE MECHANICAL (2JZ–GE)

CYLINDER BLOCK

EM–93

1447

7.

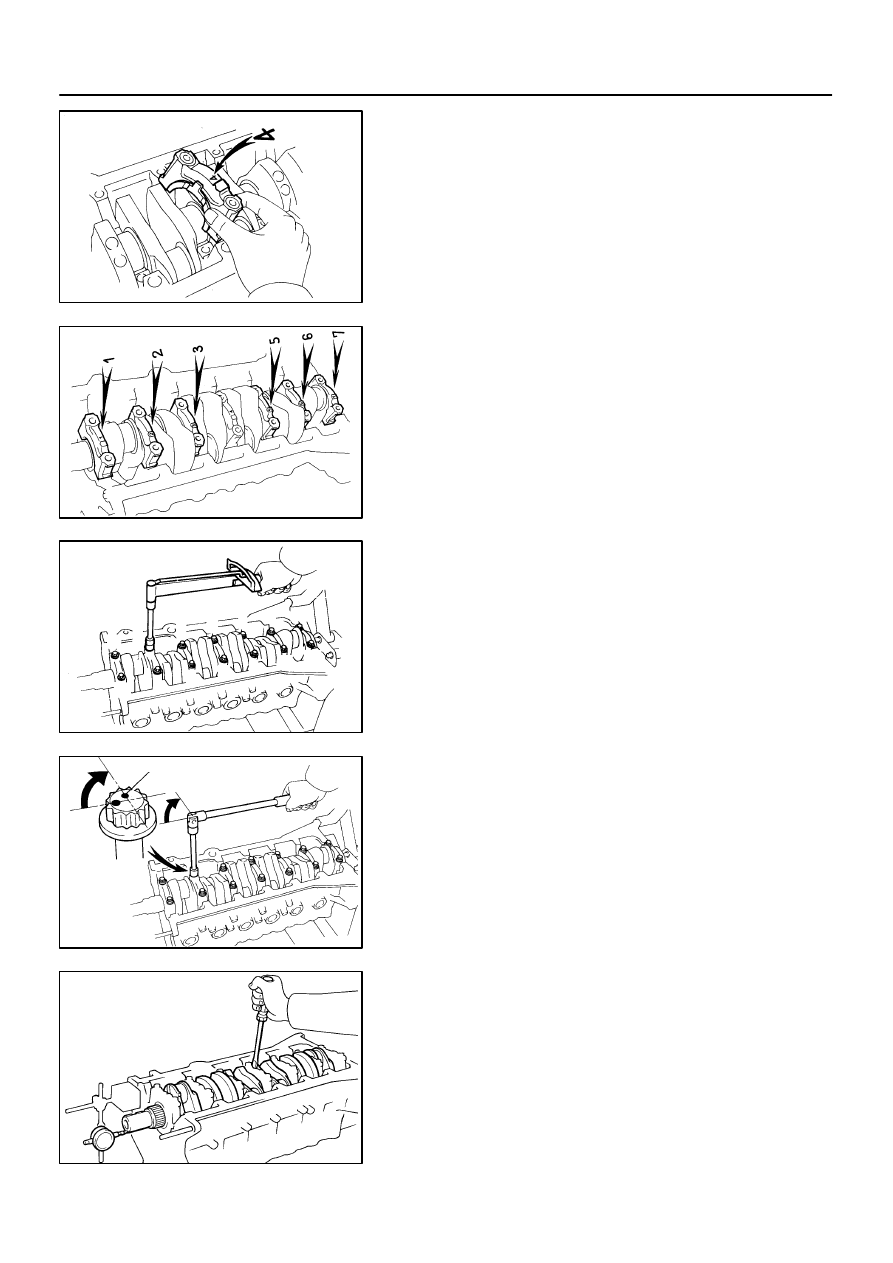

PLACE MAIN BEARING CAP AND LOWER THRUST
WASHERS ON CYLINDER BLOCK

(a)

Install the lower thrust washers on the No.4 main bearing
with the grooves facing outward.

(b)

Install the main bearing caps in numerical order with the
arrows facing forward.

8.

INSTALL MAIN BEARING CAP BOLTS

HINT:

The main bearing cap bolts are tightened in 2 progressive
steps (steps (b) and (d)).

If any of the main bearing bolts break or deform, replace
them.

(a)

Apply a light coat of engine oil on the threads and under
the heads of the main bearing cap bolts.

(b)

Install and uniformly tighten the 14 main bearing cap
bolts, in several passes, in the sequence shown.
Torque: 45 N·m (450 kgf·cm, 33 ft·lbf)

If any one of the main bearing cap bolts does not meet the
torque specification, replace the main bearing cap bolt.

(c)

Mark the front of the main bearing cap bolt head with
paint.

(d)

Retighten the main bearing cap bolts 90

°

 in the numerical

order shown above.

(e)

Check that the painted mark is now at a 90

°

 angle to the

front.

(f)

Check that the crankshaft turns smoothly.

9.

CHECK CRANKSHAFT THRUST CLEARANCE

Using a dial indicator, measure the thrust clearance while prying
the crankshaft back and forth with a screwdriver.

Standard thrust clearance:
0.020 – 0.220 mm (0.0008 – 0.0087 in.)
Maximum thrust clearance:
0.30 mm (0.0118 in.)

If the thrust clearance is greater than maximum, replace the
thrust washers as a set.

A02747

Front Mark
(Cavity)

Front

P04479

P02426

EM–94

–

ENGINE MECHANICAL (2JZ–GE)

CYLINDER BLOCK

1448

Thrust washer thickness:
1.940 – 1.990 mm (0.0764 – 0.0783 in.)

10.

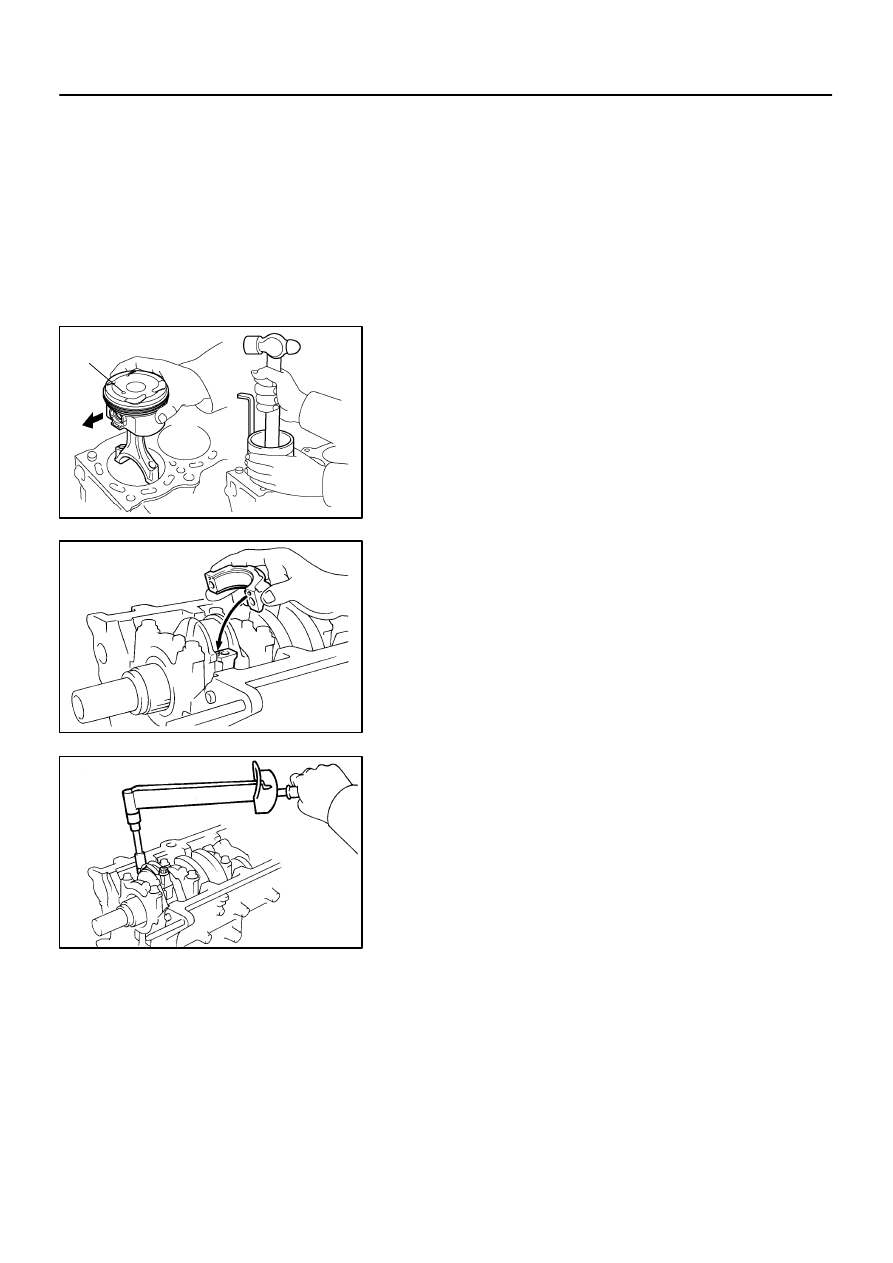

INSTALL PISTON AND CONNECTING ROD
ASSEMBLIES

Using a piston ring compressor, push the correctly numbered
piston and connecting rod assemblies into each cylinder with
the front mark of the piston facing forward.

11.

PLACE CONNECTING ROD CAP ON CONNECTING
ROD

(a)

Match the numbered connecting rod cap with the con-
necting rod.

(b)

Install the connecting rod cap with by aligning the dowel
pin to the corresponding hole.

12.

INSTALL CONNECTING ROD CAP BOLTS

HINT:

The connecting rod cap bolts are tightened in 2 progres-
sive steps (steps (b) and (d)).

If any of the connecting rod bolts break or deform, replace
them.

(a)

Apply a light coat of engine oil on the threads and under
the heads of the connecting rod cap bolts.

(b)

Install and alternately tighten the bolts of the connecting
rod cap in several passes.
Torque: 30 N·m (300 kgf·cm, 22 ft·lbf)

If any one of the connecting rod cap bolts does not meet the
torque specification, replace the cap bolt.

P02420

Painted Mark

90

°

90

°

P02197

Seal Width
2 – 3 mm

Seal
Packing

–

ENGINE MECHANICAL (2JZ–GE)

CYLINDER BLOCK

EM–95

1449

(c)

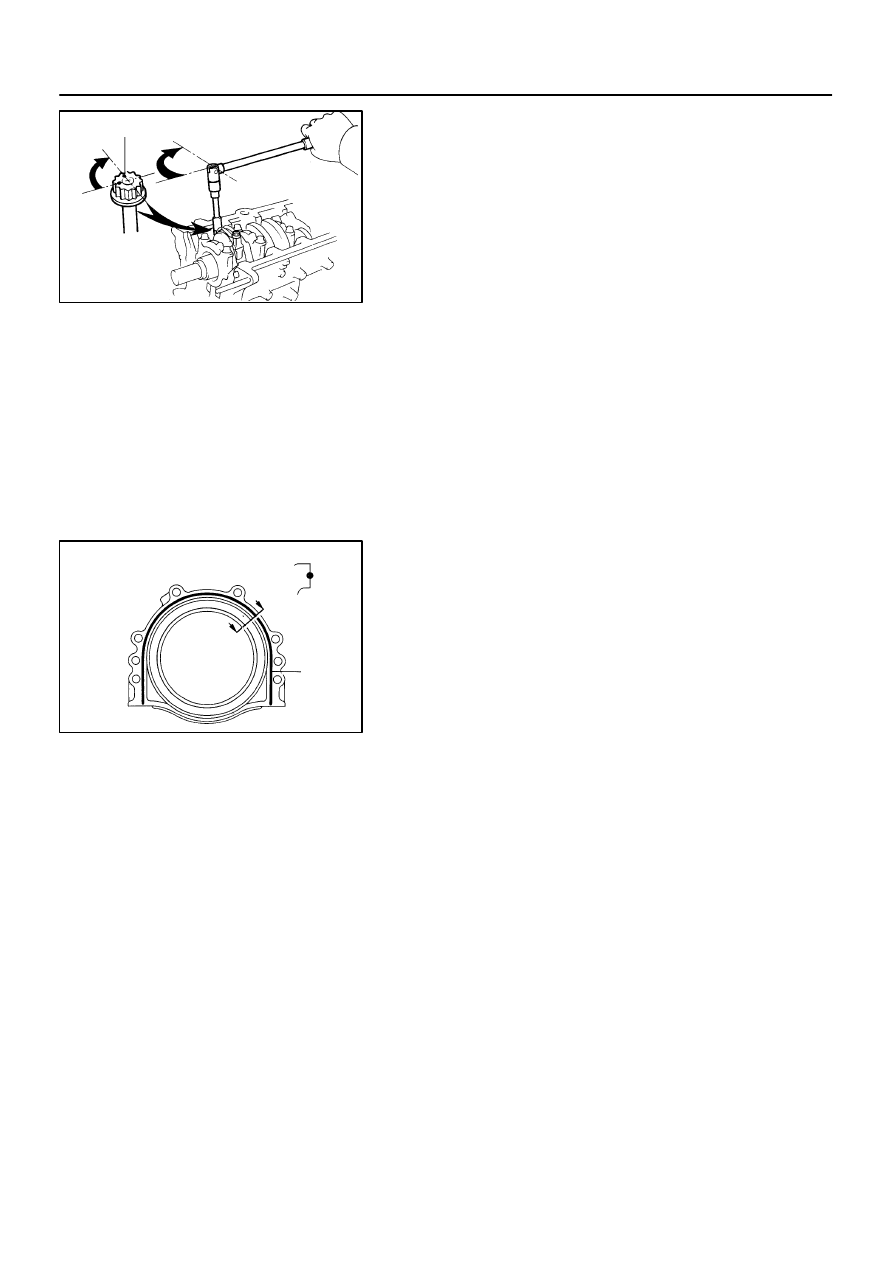

Mark the front of the connecting rod cap bolt with paint.

(d)

Retighten the connecting rod cap bolts 90

°

 in the numeri-

cal order shown.

(e)

Check that the painted mark is now at a 90

°

 angle to the

front.

(f)

Check that the crankshaft turns smoothly.

13.

CHECK CONNECTING ROD THRUST CLEARANCE
(See page

EM–76

)

14.

INSTALL REAR OIL SEAL RETAINER

(a)

Remove any old packing (FIPG) material and be careful
not to drop any oil on the contact surfaces of the retainer
and cylinder block.

Using a razor blade and gasket scraper, remove all
the old packing (FIPG) material from the gasket sur-
faces and sealing groove.

Thoroughly clean all components to remove all de-
bris.

Using a non–residue solvent, clean both sealing
surfaces.

(b)

Apply seal packing to the retainer as shown in the illustra-
tion.
Seal packing: Part No.08826–00080 or equivalent

Install a nozzle that has been cut to a 2 – 3 mm (0.08
– 0.12 in.) opening.

Parts must be assembled within 3 minutes of ap-
plication. Otherwise the material must be removed
and reapplied.

Immediately remove nozzle from the tube and rein-
stall cap.

(c)

Install the retainer with the 6 bolts.
Torque: 6.0 N·m (60 kgf·cm, 53 in.·lbf)

15.

INSTALL OIL PUMP (See page

LU–12

)

16.

INSTALL RH ENGINE MOUNTING BRACKET AND
INSULATOR ASSEMBLY

Install the mounting bracket with the 4 bolts.

Torque: 59 N·m (590 kgf·cm, 44 ft·lbf)

17.

INSTALL LH ENGINE MOUNTING BRACKET AND
INSULATOR ASSEMBLY

Install the mounting bracket with the 4 bolts.

Torque: 59 N·m (590 kgf·cm, 44 ft·lbf)

18.

INSTALL FUEL INLET PIPE

Install the fuel inlet pipe with the 2 bolts.

Torque: 29 N·m (290 kgf·cm, 21 ft·lbf)

19.

INSTALL NO.1 OIL PIPE

Install the No.1 oil pipe with 2 new gaskets and the union bolt.

Torque: 55 N·m (550 kgf·cm, 41 ft·lbf)

EM–96

–

ENGINE MECHANICAL (2JZ–GE)

CYLINDER BLOCK

1450

20.

INSTALL OIL FILTER AND BRACKET ASSEMBLY

(a)

Install a new O–ring to the oil filter bracket.

(b)

Install a new gasket to the union bolt.

(c)

Install the oil filter bracket with the union bolt.
Torque: 90 N·m (900 kgf·cm, 65 ft·lbf)

21.

INSTALL OIL PRESSURE SWITCH AND KNOCK
SENSORS (See page

LU–1

,

SF–63

)

22.

INSTALL CYLINDER HEAD (See page

EM–52

)

23.

INSTALL WATER PUMP (See page

CO–8

)

24.

INSTALL NO.2 WATER BYPASS PIPE WITH HOSE

(a)

Install the water bypass pipe with the bolt and 2 nuts.
Torque: 21 N·m (210 kgf·cm, 15 ft·lbf)

(b)

Connect the water bypass hose to the hose clamp.

25.

INSTALL TIMING PULLEYS AND BELT
(See page

EM–23

)

26.

INSTALL GENERATOR

Install the generator and pipe bracket with the bolt and nut.

Torque: 40 N·m (400 kgf·cm, 30 ft·lbf)

27.

REMOVE ENGINE STAND FROM ENGINE
