Lexus GS300/400 (2000 year). Manual - part 70

BE0G1–08

I01374

Ignitioin Switch

Clock Assembly

Driver Side Junction Block

 SRS ACC Fuse

Passenger Side
Junction Block

 DOME Fuse

–

BODY ELECTRICAL

CLOCK

BE–229

2530

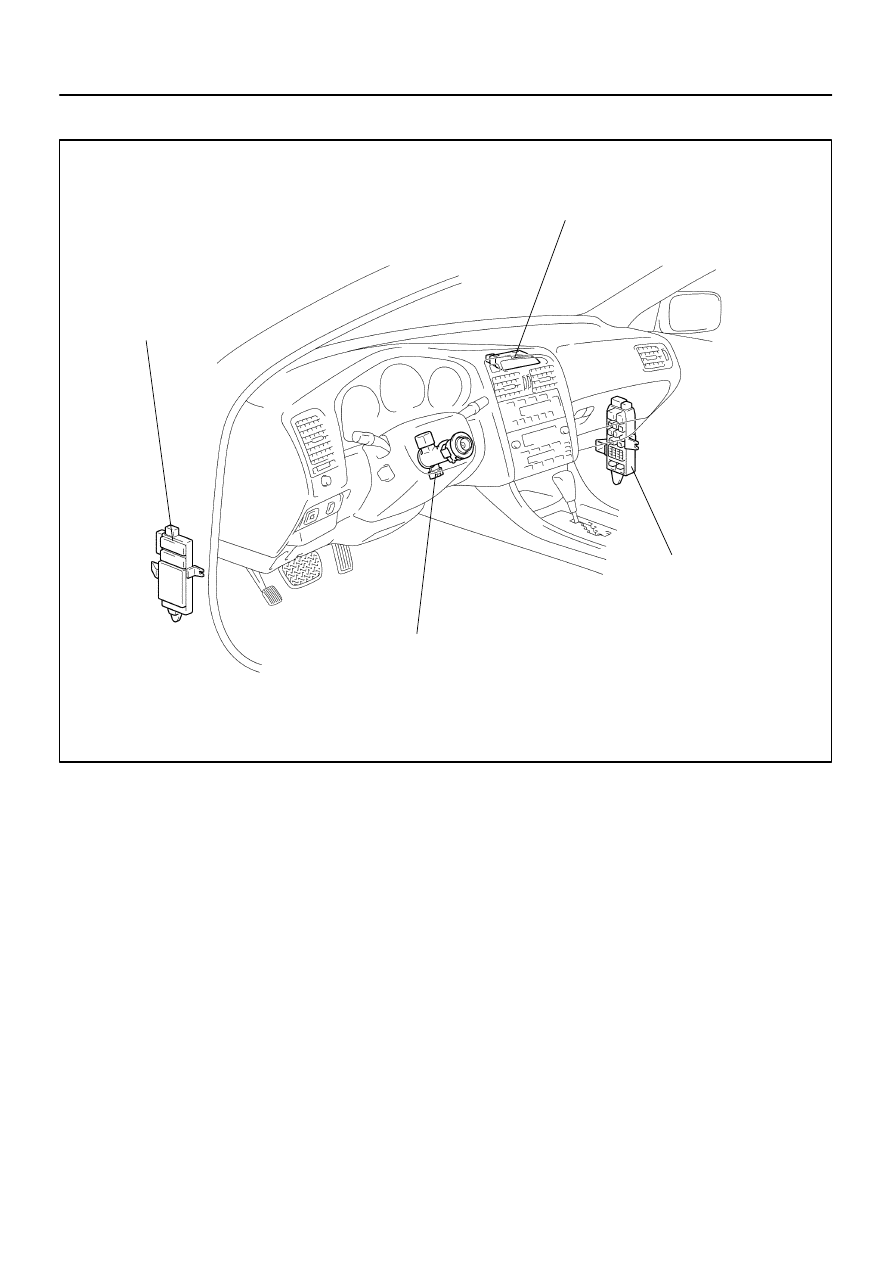

LOCATION

BE0G2–03

I04191

BE–230

–

BODY ELECTRICAL

GARAGE DOOR OPENER SYSTEM

2531

GARAGE DOOR OPENER SYSTEM

REGISTRATION PROCEDURE

1.

NEW CODE REGISTRATION

NOTICE:

If pressing the switch of the original transmitter to
register the code, the system might operate.

When registering the transmitter codes such as for
garage or gate, check that there is nobody around
those places then register.

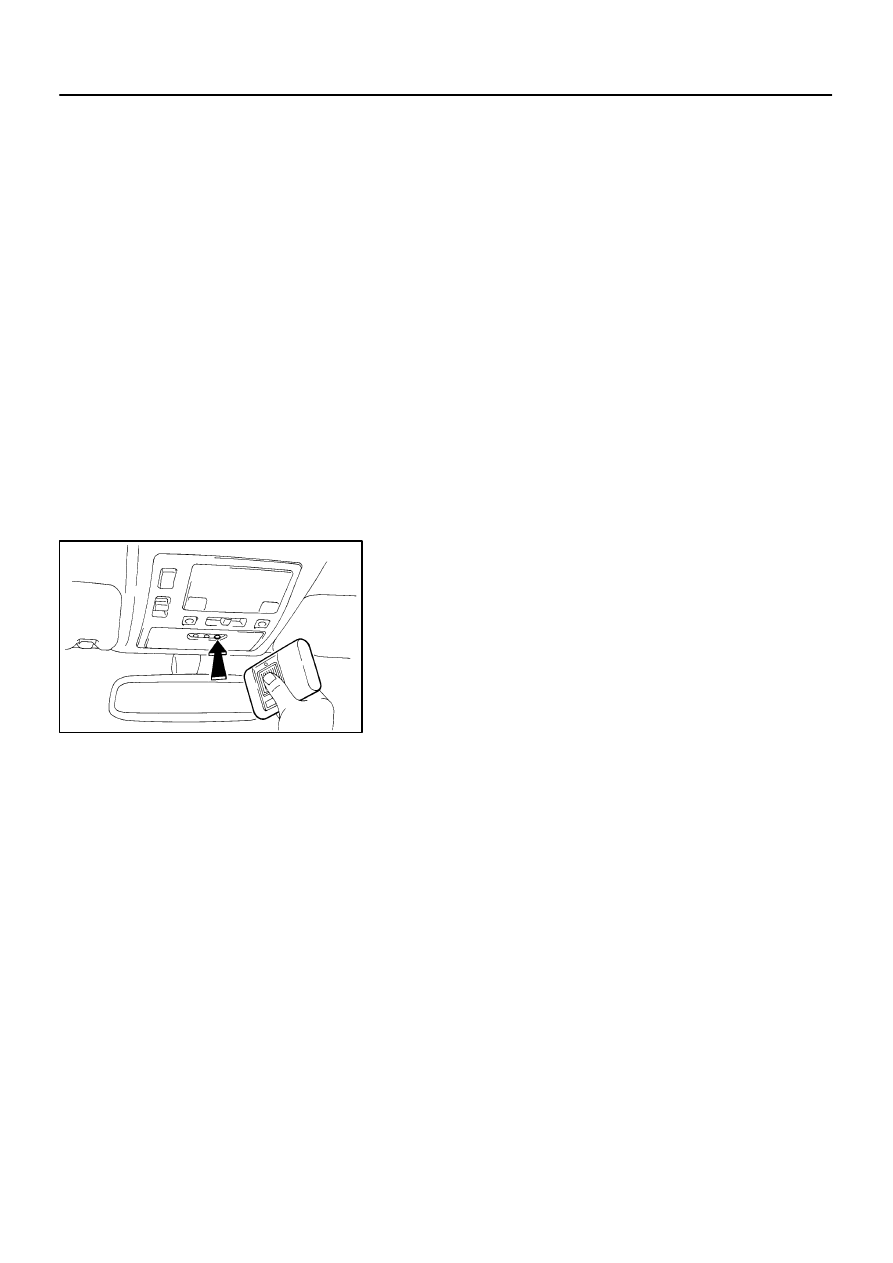

(a)

Press the switch for the item to be registered for 20 se-
conds

HINT:
When transferring to registration mode, LED (red) blinks in 1 Hz
cycle.

(b)

In the condition of (a), bring the original transmitter to with-
in 1–inch area around the garage door opener and press
the switch. (code transmitting).

HINT:
When code registration completes correctly, LED (red) blinks in
5.6 Hz cycle.

I03487

GARAGE DOOR
OPENER SWITCH

LEARN MODE

LED
OPERATION

ORIGINAL
TRANSMITTER

PRESSED

ENTER

EXIT

ON

OFF

20 sec

LED flashes
at a rate of 1 Hz

LED flashes at a
rate of 5.6 Hz

PRESSED

ON

OFF

–

BODY ELECTRICAL

GARAGE DOOR OPENER SYSTEM

BE–231

2532

New code registration timing chart.

If a code can not be registered, observe the following condi-
tions.
HINT:

If the battery of original transmitter is consumed.

Press the switch of the transmitter repeatedly in registra-
tion mode, as some transmitters stop transmitting for 1 to
2 seconds.

This system is not applicable to the garage door opener
which had been made before 1982.

2.

CODE DELETION

(a)

Press the switches at both ends of garage door opener
simultaneously for 20 seconds.

HINT:
When transferring to deletion mode, LED (red) blinks in 6 Hz
cycle.
(b)

When releasing the switch within 10 seconds after trans-
ferring to deletion mode, all the registered codes will be
erased.

HINT:
Press the switch until blinking in 6 Hz cycle stops, so that the
default code for check is set.

I03488

LED
OPERATION

GARAGE DOOR
OPENER SWITCH
(Switch at either end)

ON

OFF

CLEAR/DEFAULT
MODE

PRESSED

LOAD DEFAULT

LED flashes at a rate of 6 HZ

10 SEC

20 SEC

PRESSED

ON

OFF

Enter in erase mode to erase all 3 channels

BE–232

–

BODY ELECTRICAL

GARAGE DOOR OPENER SYSTEM

2533

Code deletion timing chart
