Lexus GS300/400 (2000 year). Manual - part 27

D01066

D01067

D01904

1

2

3

D01069

D01070

Tip of Screwdriver

AT–18

–

AUTOMATIC TRANSMISSION

FLOOR SHIFT ASSEMBLY

1966

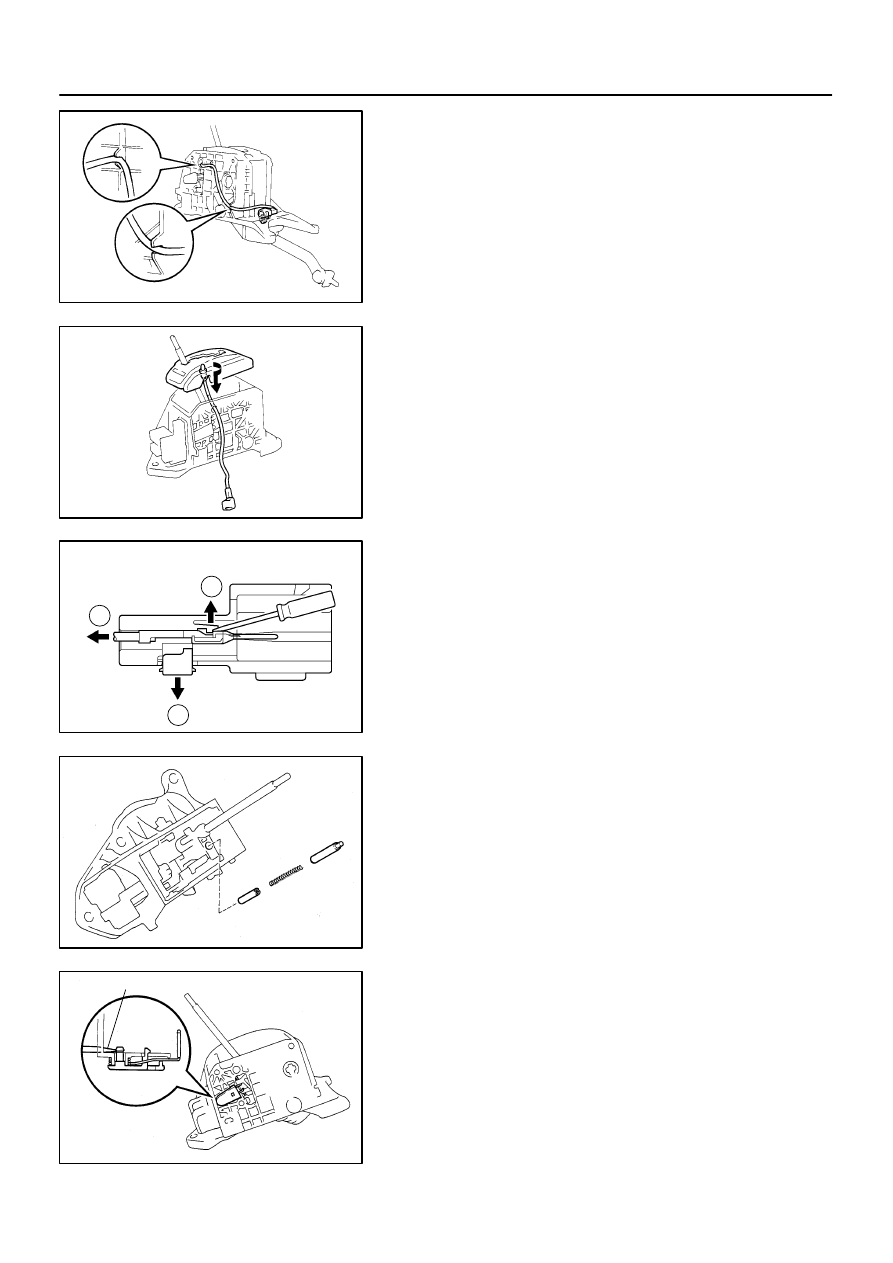

7.

REMOVE SHIFT LEVER GUIDE HOUSING AND INDI-
CATOR LAMP SUB–ASSEMBLY

(a)

Disconnect the indicator lamp wire and connector from
the shift lever plate.

(b)

Remove the shift lever guide housing with the indicator
lamp sub–assembly from the shift lever plate.

(c)

Remove the indicator lamp sub–assembly from the shift
lever guide housing.

8.

DISASSEMBLE INDICATOR LAMP SUB–ASSEMBLY

(a)

Remove the bulb from the indicator lamp wire sub–as-
sembly.

(b)

Using a small screwdriver, remove the terminals of the in-
dicator lamp wire sub–assembly from the connector, as
shown in the illustration.

9.

REMOVE SHIFT LEVER DETENT PIN, SHIFT LEVER
SPRING DAMPER AND COMPRESSION SPRING
FROM SHIFT LEVER SUB–ASSEMBLY

10.

REMOVE SPRING HOLDER AND SHIFT LEVER TOR-
SION SPRING

(a)

Using a screwdriver, remove the spring holder.

D01072

D01073

D01074

Remove

Raise

D01076

D01077

–

AUTOMATIC TRANSMISSION

FLOOR SHIFT ASSEMBLY

AT–19

1967

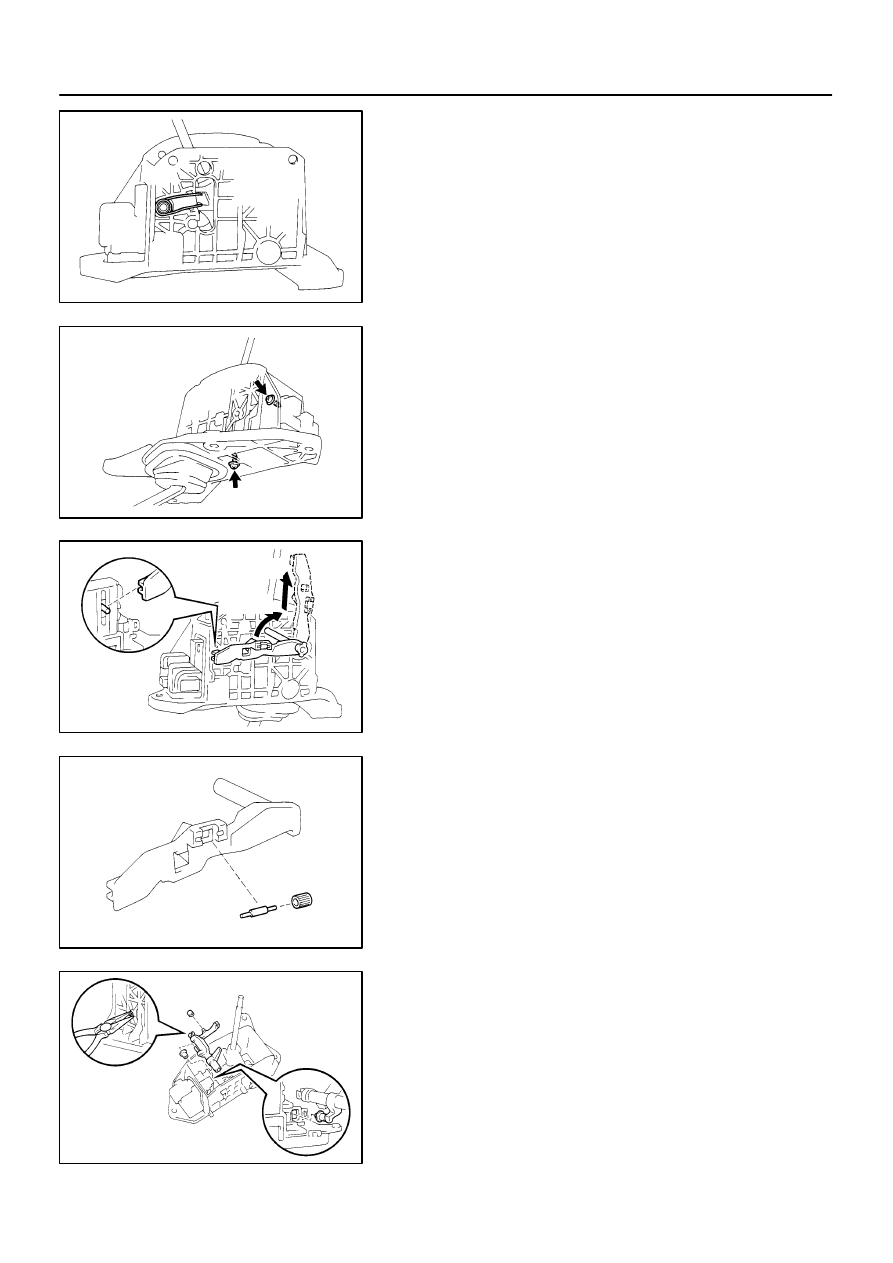

(b)

Remove the shift lever torsion spring.

11.

REMOVE 2 SHIFT LOCK CONTROL UNIT ASSEMBLY
SET SCREWS

12.

REMOVE NO.1 SHIFT LOCK SWITCH PLATE

(a)

Disconnect the groove of the No.1 shift lock switch plate
from the projection of the shift lock control unit.

(b)

Raise the plate up to the direction shown in the illustra-
tion.

(c)

Remove the plate.

(d)

Remove the roller and shift lever anti–rattle cushion from
the plate.

(e)

Separate the shift lever anti–rattle cushion from the roller.

13.

REMOVE SHIFT LOCK PLATE STOPPER

(a)

Using pliers, remove the stopper.

(b)

Remove the shift lever anti–rattle cushion and shift lock
plate stopper cap from the stopper.

D01078

D01080

D01082

D01083

D01084

AT–20

–

AUTOMATIC TRANSMISSION

FLOOR SHIFT ASSEMBLY

1968

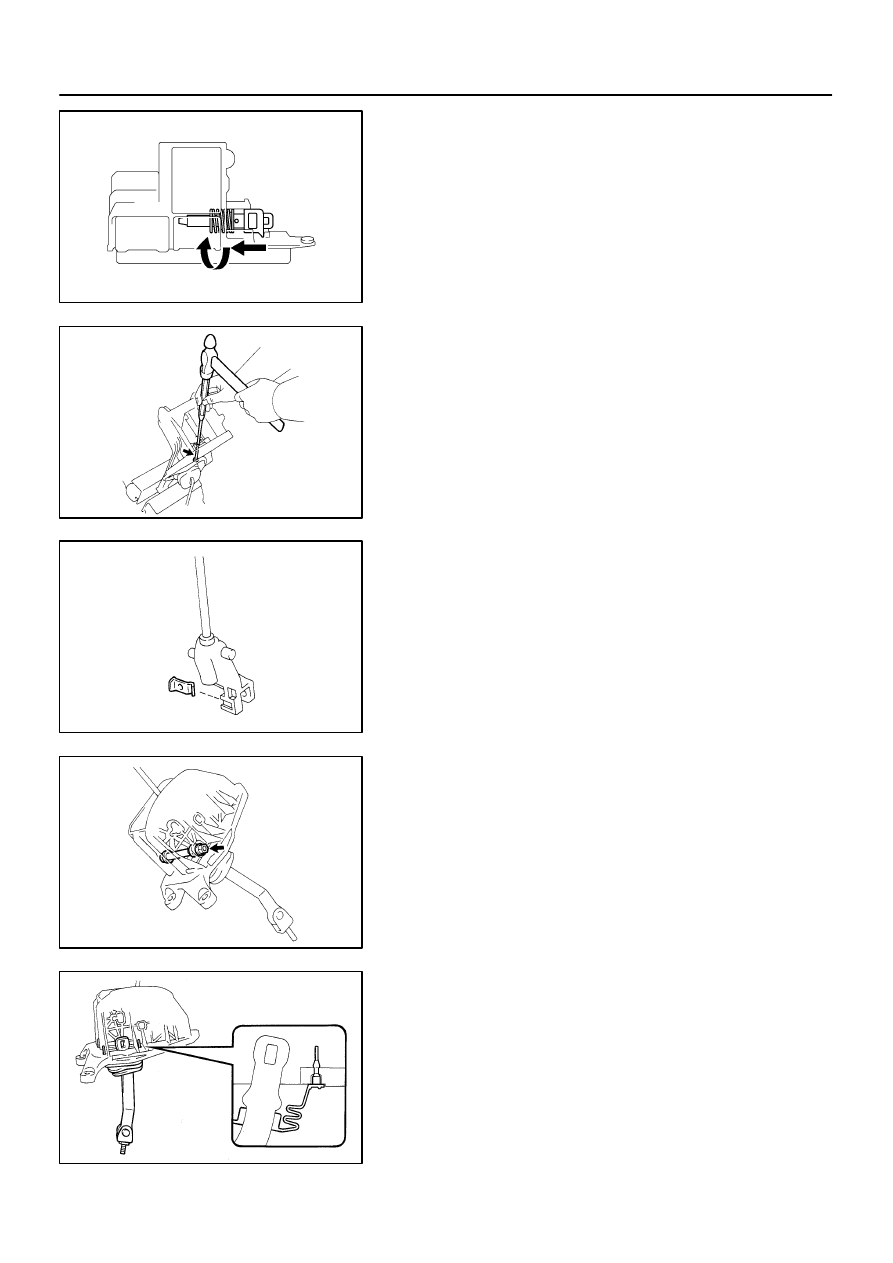

14.

REMOVE SHIFT LOCK CONTROL UNIT ASSEMBLY

(a)

Remove the shift lock control unit assembly from the shift
lever plate.

(b)

Push the shift lock solenoid link lightly, turn and remove
it.

(c)

Remove the compression spring.

(d)

Remove the slotted spring pin and separate the shift lock
solenoid link.

15.

REMOVE SHIFT LEVER SUB–ASSEMBLY

(a)

Using a pin punch and hammer, drive out the pin.

(b)

Remove the shift lever sub–assembly.

(c)

Remove the shift lever nut from the shift lever sub–as-
sembly.

16.

REMOVE CONTROL LEVER, SPACER AND CON-
TROL SHAFT

(a)

Remove the nut.

(b)

Remove the 2 spacers and control shaft from the shift le-
ver plate.

(c)

Disconnect the shift lever boot from shift lever plate.

(d)

Remove the control lever.

D01085

–

AUTOMATIC TRANSMISSION

FLOOR SHIFT ASSEMBLY

AT–21

1969

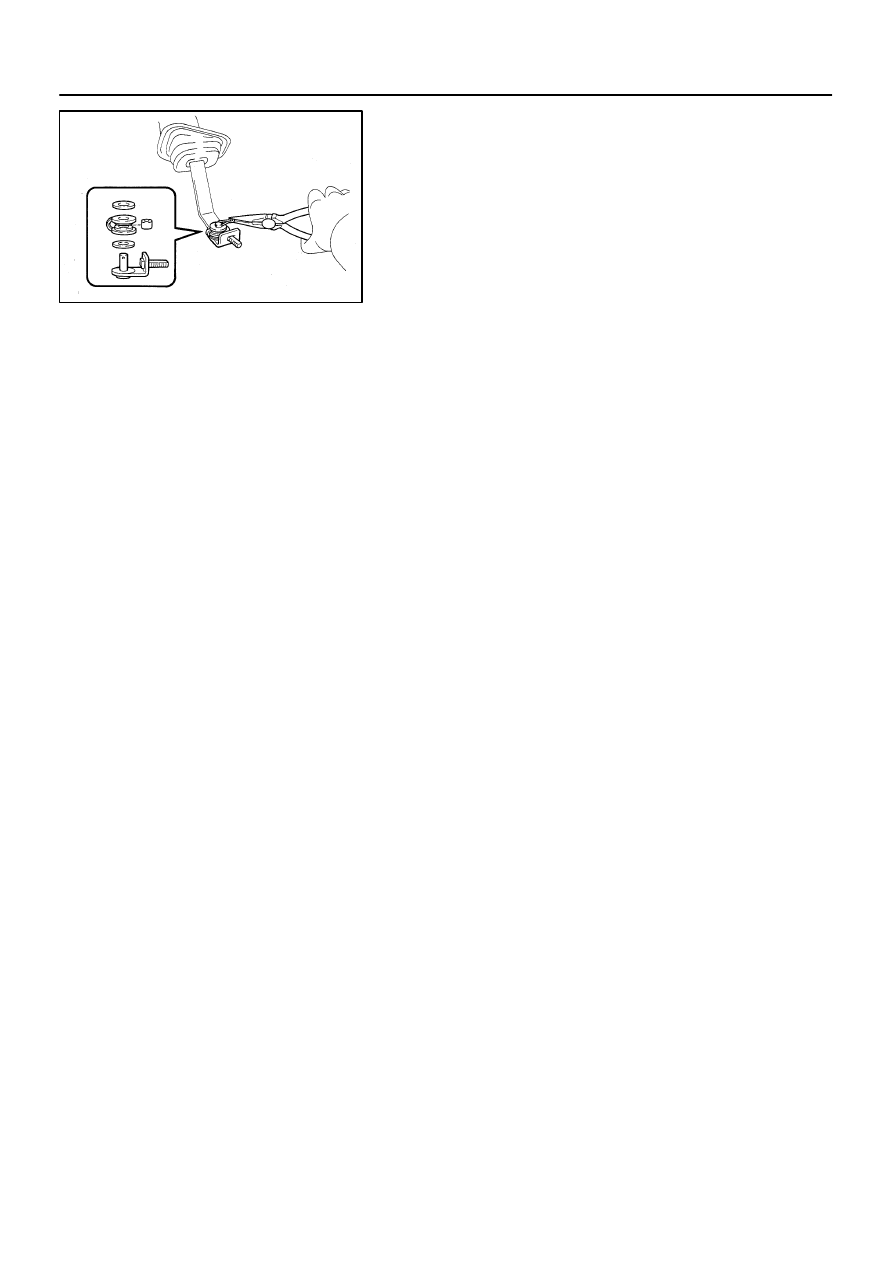

17.

REMOVE CLIP, CONNECTING ROD SWIVEL, LOWER
CONTROL SHAFT BUSHING, LOWER CONTROL
SHAFT PIECE, PLATE WASHER AND SHIFT LEVER
BOOT FROM CONTROL LEVER

(a)

Using pliers, remove the clip.

(b)

Remove the connecting rod swivel, lower control shaft
bushing, lower control shaft piece, 2 plate washers and
shift lever boot from the control lever.
