Lexus GS300/400 (2000 year). Manual - part 26

D01038

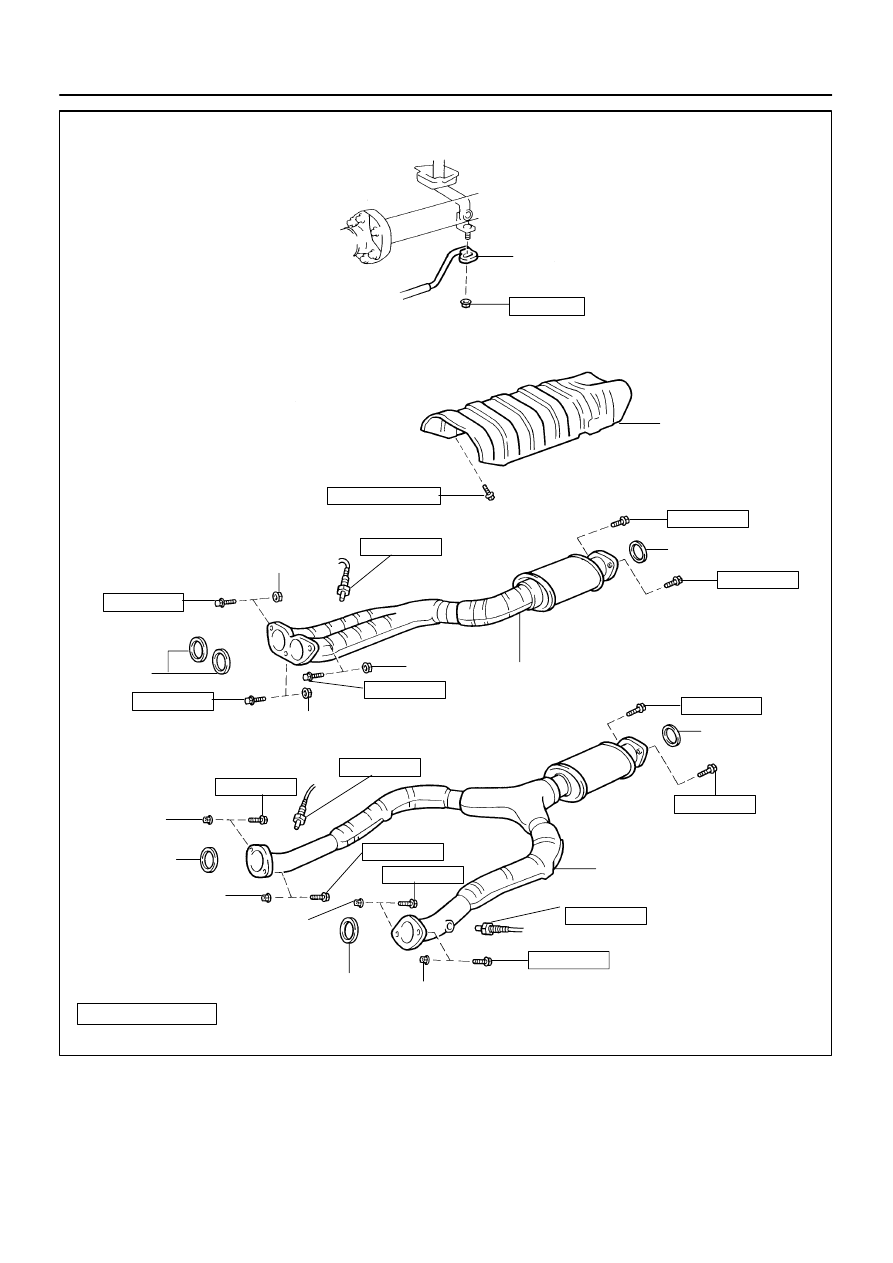

Shift Control Rod

Heat Insulator

Heated Oxygen Sensor

Front Exhaust Pipe

Front Exhaust Pipe

Heated Oxygen Sensor

Heated Oxygen Sensor

 Gasket

13 (130, 9)

5.4 (55, 48 in.·lbf)

44 (450, 33)

 Gasket

 Gasket

 Gasket

 Gasket

2JZ–GE Engine:

1UZ–FE Engine:

N·m (kgf·cm, ft·lbf) : Specified torque

 Non–reusable part

x6

44 (450, 33)

44 (450, 33)

44 (450, 33)

44 (450, 33)

44 (450, 33)

44 (450, 33)

44 (450, 33)

44 (450, 33)

44 (450, 33)

44 (450, 33)

44 (450, 33)

44 (450, 33)

44 (450, 33)

AT–14

–

AUTOMATIC TRANSMISSION

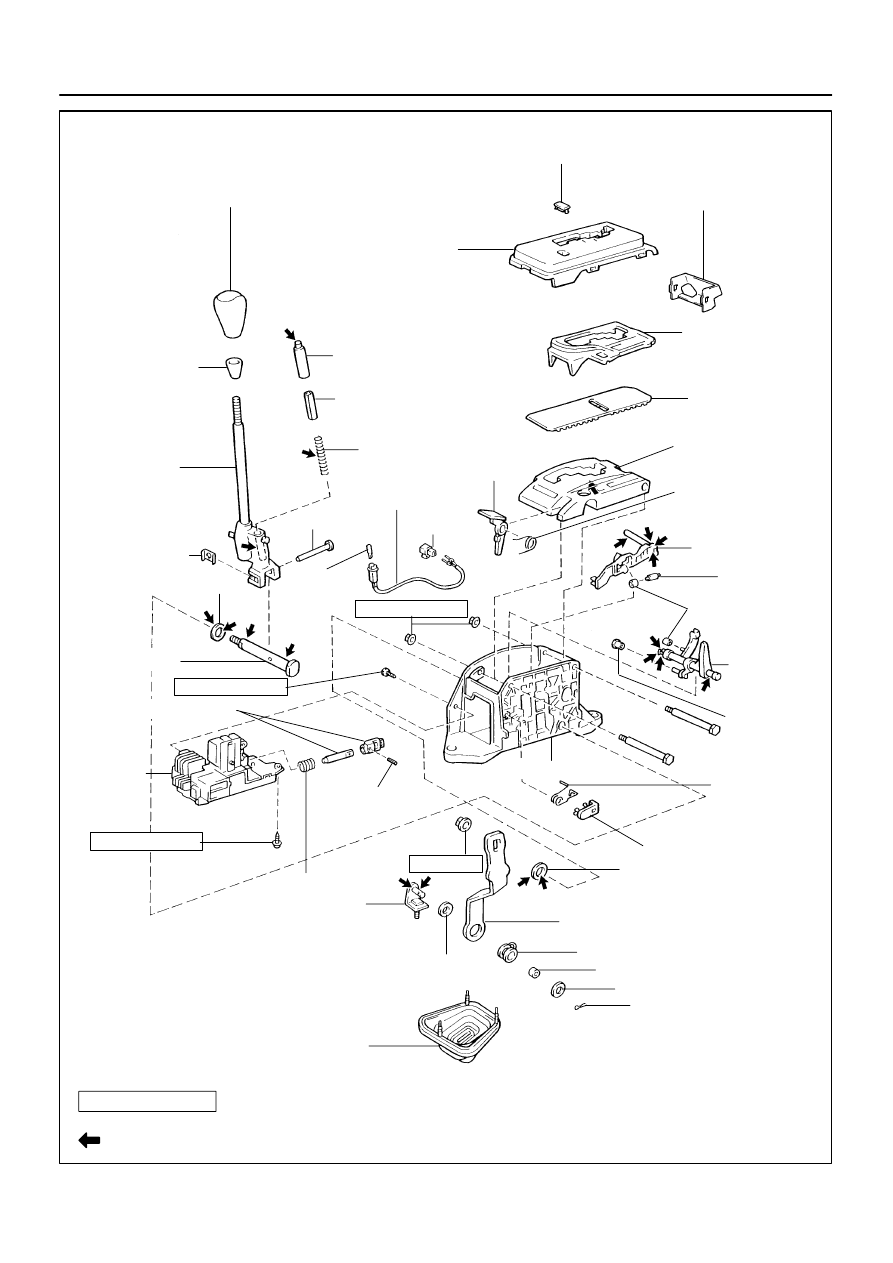

FLOOR SHIFT ASSEMBLY

1962

D01090

Shift Lever Knob

Shift Lever Knob
Cover

Shift Lever
Sub–Assembly

Shift Lever Detent Pin

Shift Lever Spring Damper

Compression Spring

Shift Lock Release Link

Indicator Lamp Wire

Position Indicator Housing

Position Indicator
Lens

Slide Cover

Shift Lever Guide
Housing

Shift Lever
Anti–Rattle Cushion

Shift Lock
Plate Stopper

Shift Lever
Torsion Spring

Spring Holder

Lower Control Shaft Bushing

Lower Control Shaft Piece

Plate Washer

Shift Lever Boot

Connecting Rod Swivel

Shift Lock Solenoid Link

Control Shaft

Pin

Bulb

Connector

Compression Spring

Plate Washer

Roller

Spacer

Clip

Control Lever

2.0 (20, 17 in.·lbf)

3.9 (40, 35 in.·lbf)

2.0 (20, 17 in.·lbf)

13 (128, 9)

Shift Lock
Control Unit
Assembly

Shift Lock Release
Spring

No.1 Shift Lock
Switch Plate

Shift Lever Plate

Spacer

N·m (kgf·cm, ft·lbf)

: MP grease

: Specified torque

Shift Lever Cap

Wire Protector

 Shift Lever Nut

Shift Lock
Plate Stopper
Cap

 Slotted

Spring Pin

 Non–reusable part

–

AUTOMATIC TRANSMISSION

FLOOR SHIFT ASSEMBLY

AT–15

1963

AT063–01

D01039

AT–16

–

AUTOMATIC TRANSMISSION

FLOOR SHIFT ASSEMBLY

1964

REMOVAL

1.

RAISE VEHICLE

NOTICE:
Make sure that the vehicle is securely supported.
2.

REMOVE FRONT EXHAUST PIPE
1UZ–FE Engine: (See page EM–120)
2JZ–GE Engine: (See page EM–97)

3.

REMOVE HEAT INSULATOR

Remove the 6 bolts and heat insulator.

Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)

4.

DISCONNECT SHIFT CONTROL ROD
(See page

AT–28

)

5.

LOWER VEHICLE

6.

REMOVE THESE PARTS:
(See page

BO–88

)

Grove compartment panel assembly

Box plate

No.2 under cover

No.1 safety pad

No.1 under cover

Cluster finish panel

Lower rear console box

Console box and rear console armrest

No.3 console box mounting bracket

Ash receptacle

No.1 console box duct

Finish plate

End pad

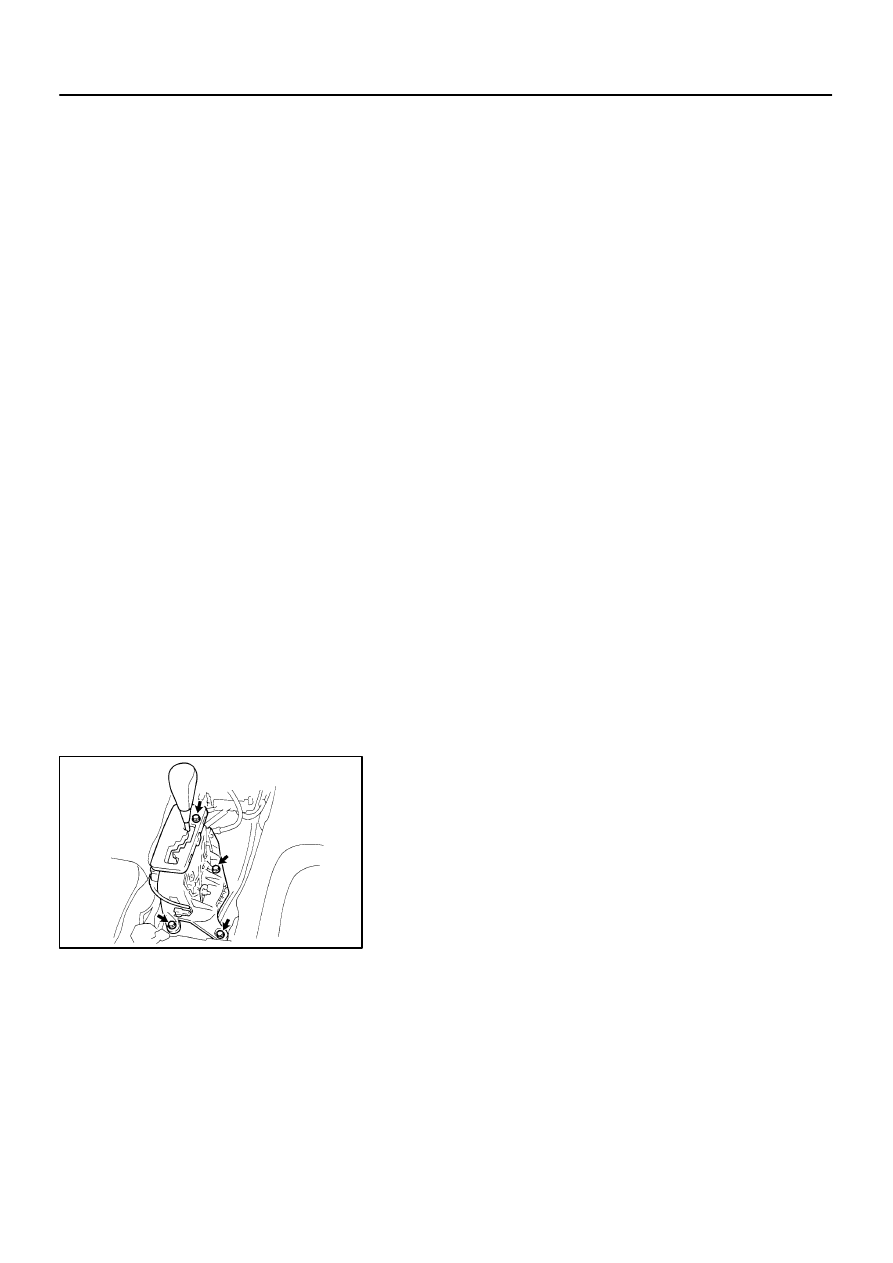

7.

REMOVE SHIFT LEVER ASSEMBLY

(a)

Disconnect the connectors and wire harness from the
shift lever assembly.

(b)

Remove the 4 bolts and shift lever assembly.
Torque: 8.3 N·m (85 kgf·cm, 74 in.·lbf)

AT064–01

D01923

D01061

D01063

D01065

–

AUTOMATIC TRANSMISSION

FLOOR SHIFT ASSEMBLY

AT–17

1965

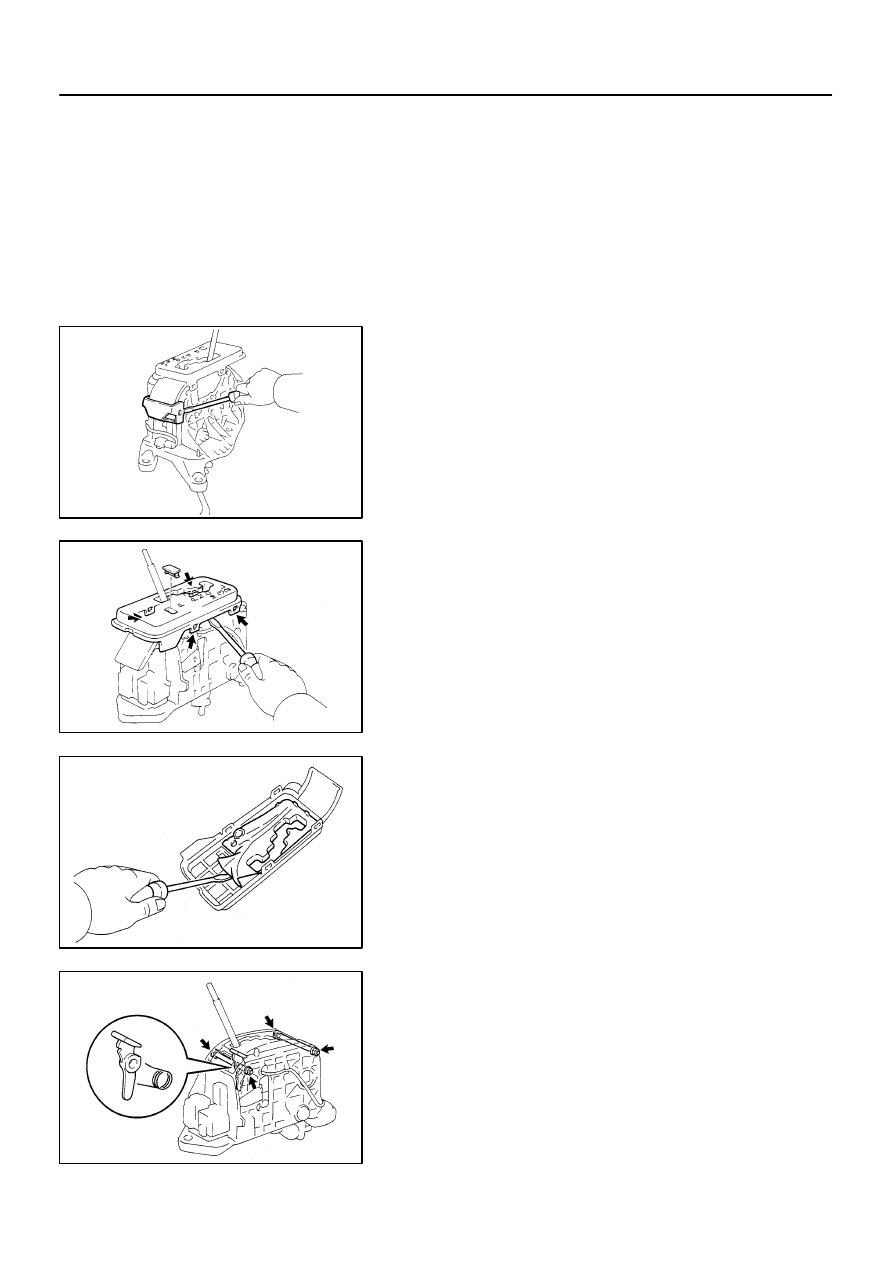

DISASSEMBLY

1.

REMOVE SHIFT LEVER KNOB AND SHIFT LEVER
KNOB COVER

2.

REMOVE WIRE PROTECTOR

Using a screwdriver, remove the wire protector.

3.

REMOVE POSITION INDICATOR HOUSING

(a)

Using a screwdriver, remove the position indicator hous-
ing.

(b)

Using a screwdriver, remove the shift lever cap from the
position indicator housing.

4.

REMOVE POSITION INDICATOR LENS

Using a screwdriver, remove the position indicator lens from the
position indicator housing.
5.

REMOVE SLIDE COVER

6.

REMOVE SHIFT LOCK RELEASE LINK AND SPRING

(a)

Remove the 2 shift lever housing set bolts and nuts with
the shift lock release link and spring.

(b)

Using a screwdriver, separate the shift lock release spring
from the shift lock release link.
