AC0Y7–01

–

AIR CONDITIONING

CONDENSER FAN

AC–85

2770

INSTALLATION

Installation is in the reverse order of removal (See page

AC–82

).

AC0XR–01

I03746

Electrical Multi Vision:

I03747

Except Electrical Multi Vision:

I04720

Except Electrical Multi Vision:

Electrical Multi Vision:

AC–86

–

AIR CONDITIONING

AIR CONDITIONING CONTROL ASSEMBLY

2771

AIR CONDITIONING CONTROL
ASSEMBLY

REMOVAL

1.

REMOVE THESE PARTS:

(a)

No.2 register

(b)

Cluster finish panel
(See page

BO–91

)

2.

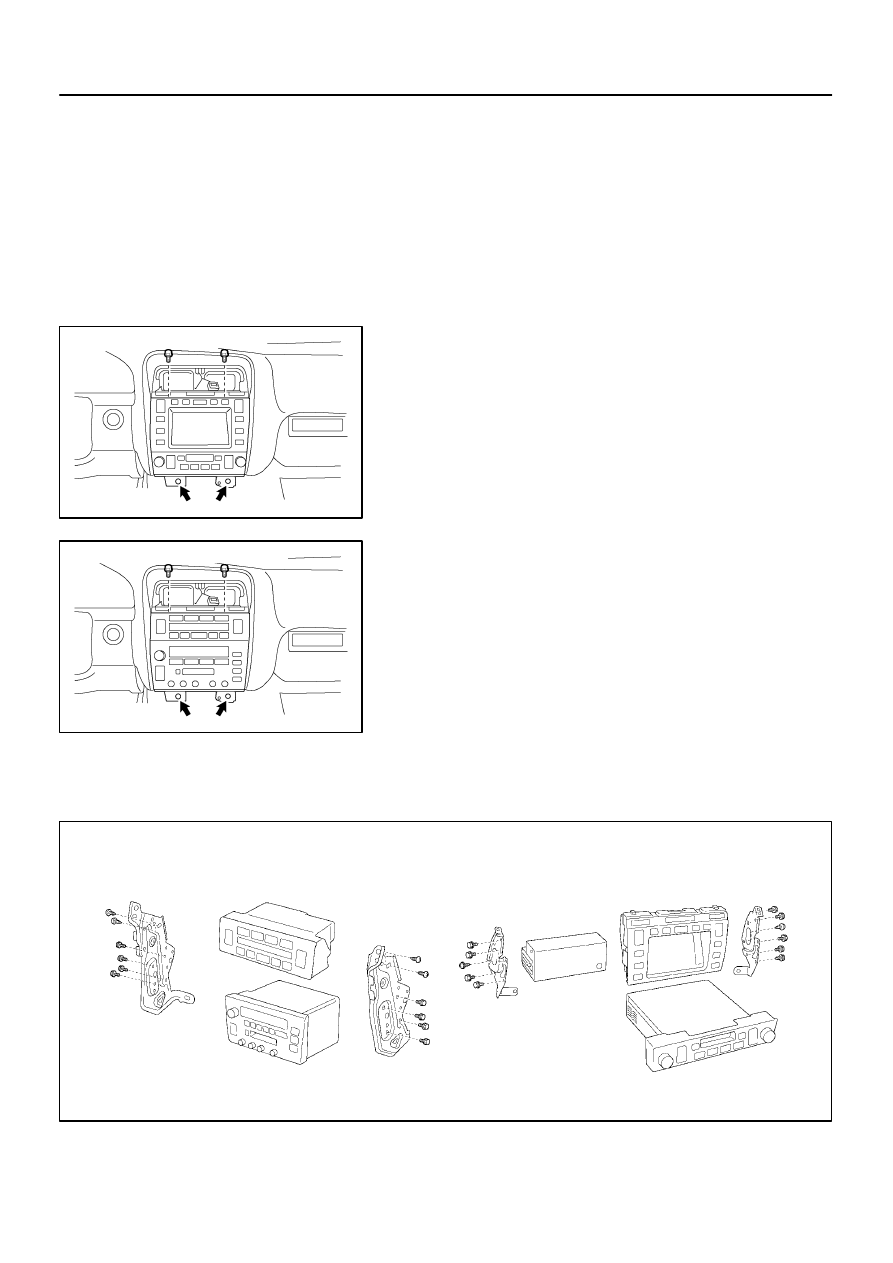

REMOVE A/C CONTROL ASSEMBLY WITH RADIO

Remove the 4 bolts and pull out the A/C control assembly, then
disconnect the connectors.

3.

REMOVE A/C CONTROL ASSEMBLY FROM RADIO

Remove the 8 bolts, 2 screw and 2 brackets, then remove the
A/C control assembly.

AC0XS–01

–

AIR CONDITIONING

AIR CONDITIONING CONTROL ASSEMBLY

AC–87

2772

INSPECTION

INSPECT A/C CONTROL ASSEMBLY CIRCUIT
(See page

DI–1067

)

AC0XT–01

AC–88

–

AIR CONDITIONING

AIR CONDITIONING CONTROL ASSEMBLY

2773

INSTALLATION

Installation is in the reverse order of removal (See page

AC–86

).
