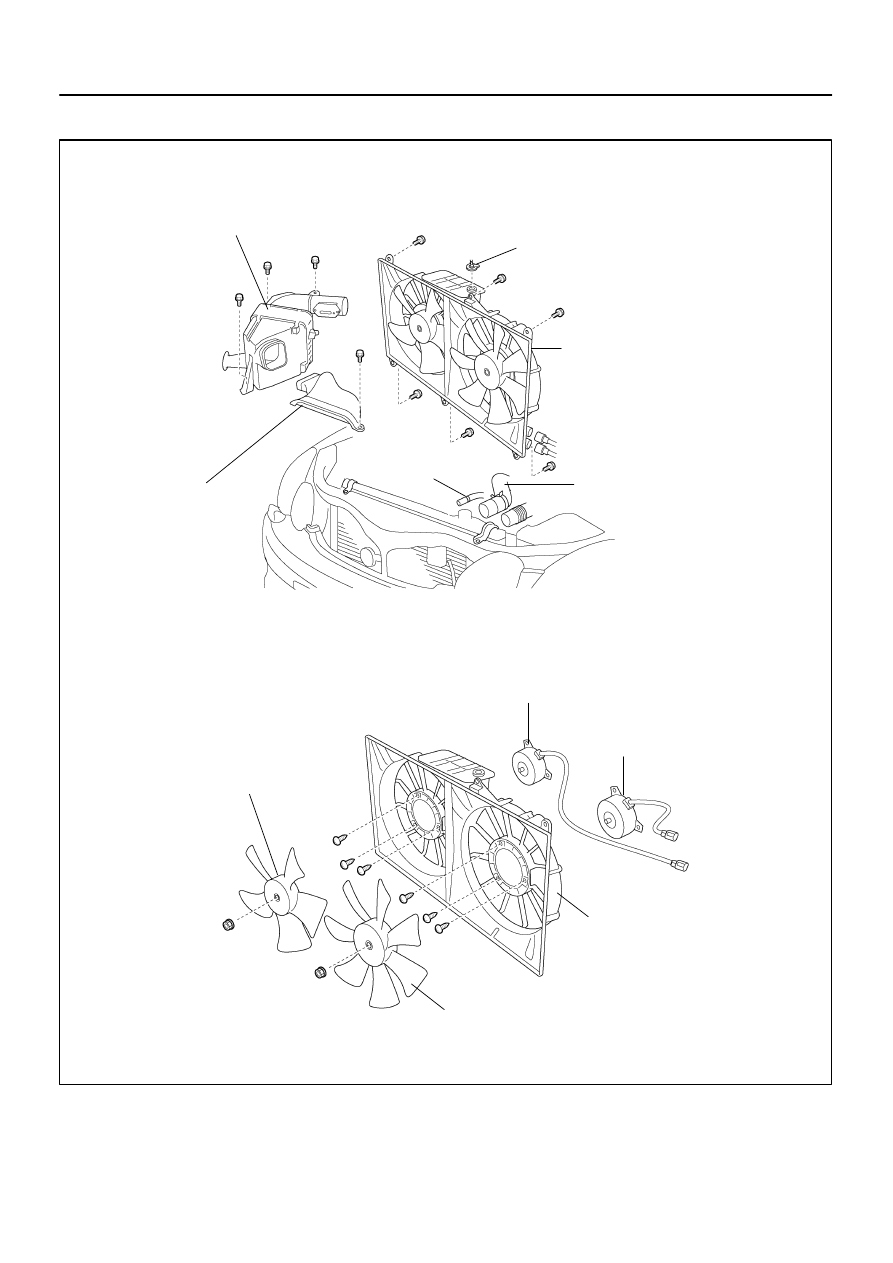

AC0Y3–01

I04719

Air Cleaner Assembly

Radiator Reservoir
Tank Cap

Cooling Fan Assembly

Air Cleaner
Duct

Upper Radiator Hose

Reservoir Hose

Fan Motor

Fan Motor

Fan Shroud

Fan

Fan

–

AIR CONDITIONING

CONDENSER FAN

AC–81

2766

COMPONENTS

AC0Y4–01

AC–82

–

AIR CONDITIONING

CONDENSER FAN

2767

REMOVAL

1.

DRAIN ENGINE COOLANT FROM RADIATOR

HINT:
It is not necessary to drain out all coolant.
2.

REMOVE THESE PARTS:

(a)

Air cleaner duct

(b)

Air cleaner assembly

(c)

Radiator reservoir tank cap

3.

DISCONNECT THESE PARTS:

(a)

Upper radiator hose

(b)

Reservoir hose

4.

REMOVE COOLING FAN

(a)

Disconnect the connectors.

(b)

Remove the 6 bolts cooling fan.

AC0Y5–01

–

AIR CONDITIONING

CONDENSER FAN

AC–83

2768

DISASSEMBLY

1.

REMOVE COOLING FANS

Remove the 2 nuts and both fans.
2.

REMOVE COOLING FAN MOTORS

(a)

Disconnect wire harness clamps.

(b)

Remove the 6 screws and both motors.

AC0Y6–01

AC–84

–

AIR CONDITIONING

CONDENSER FAN

2769

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

AC–83

).
