R380 GEARBOX. Manual - part 13





MANUAL GEARBOX

OVERHAUL

31

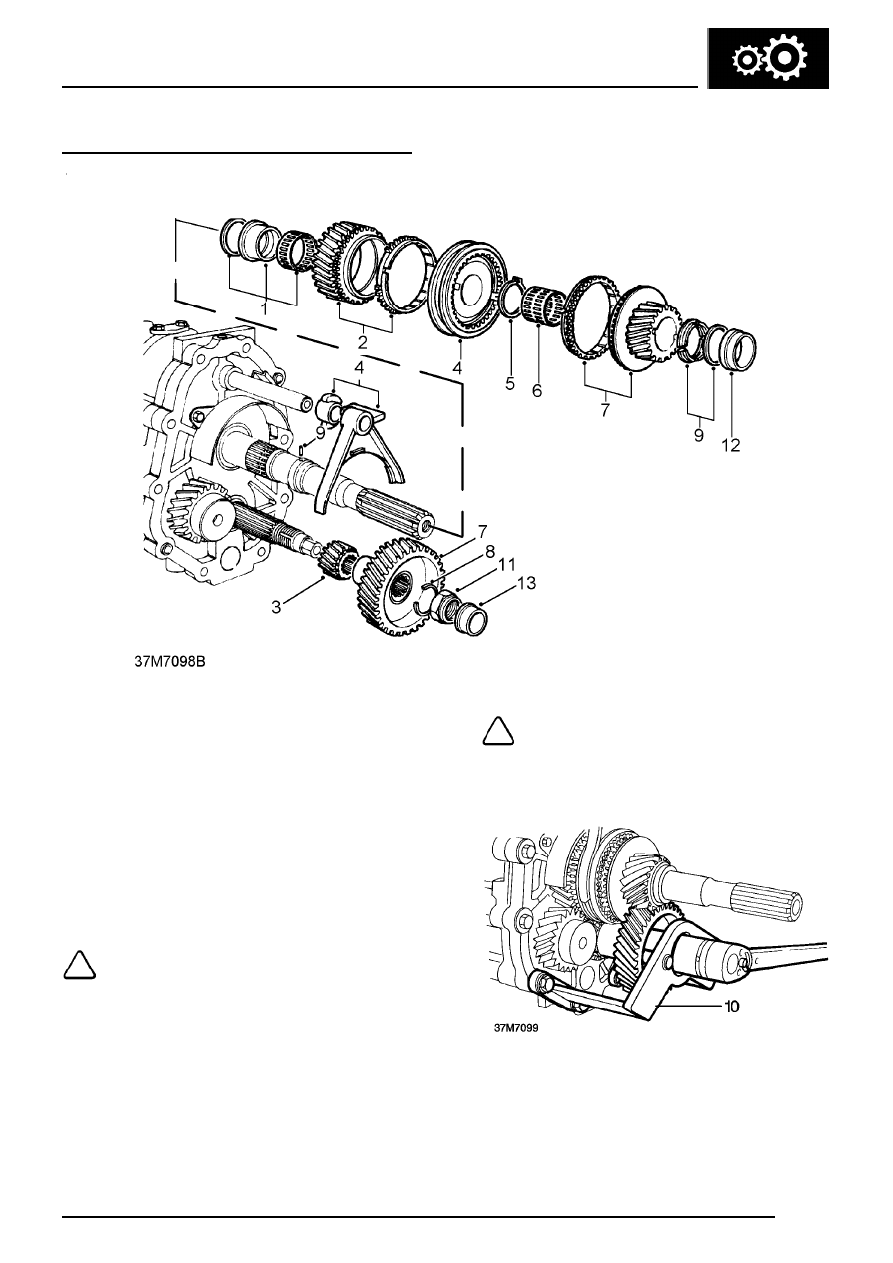

Reverse and 5th gear - Reassembly

1. Fit mainshaft reverse gear selectable washer,

bush and needle bearing.

2. Fit mainshaft reverse gear and synchromesh

baulk ring.

3. Fit layshaft reverse gear.
4. Assemble selector spool, selector fork and

reverse /5th gear synchromesh hub. Fit as one
assembly to mainshaft splines and selector
shaft. (Ensure synchromesh baulk ring locates
inside hub).

5. Fit new circlip.

NOTE: The fit of the circlip is controlled by
the selectable washer behind the reverse
gear. Adjust to

0.005 - 0.055mm (0.0002 -

0.0021in).

6. Fit 5th gear split needle bearing.
7. Fit 5th gear and 5th gear synchromesh baulk

ring to mainshaft, fit layshaft 5th gear.

8.

Later gearboxes: Fit split washer to retain
layshaft 5th gear.

NOTE: Bevelled side of washer must face
towards gear.

9. Fit new mainshaft thrust collar roll pin. Locate

5th gear thrust segments and retaining ring.

10. Using LRT-37-023 to hold layshaft 5th gear,

tighten the layshaft 5th gear nut to 220 Nm.

11. Stake layshaft 5th gear nut.

MANUAL GEARBOX

32

OVERHAUL

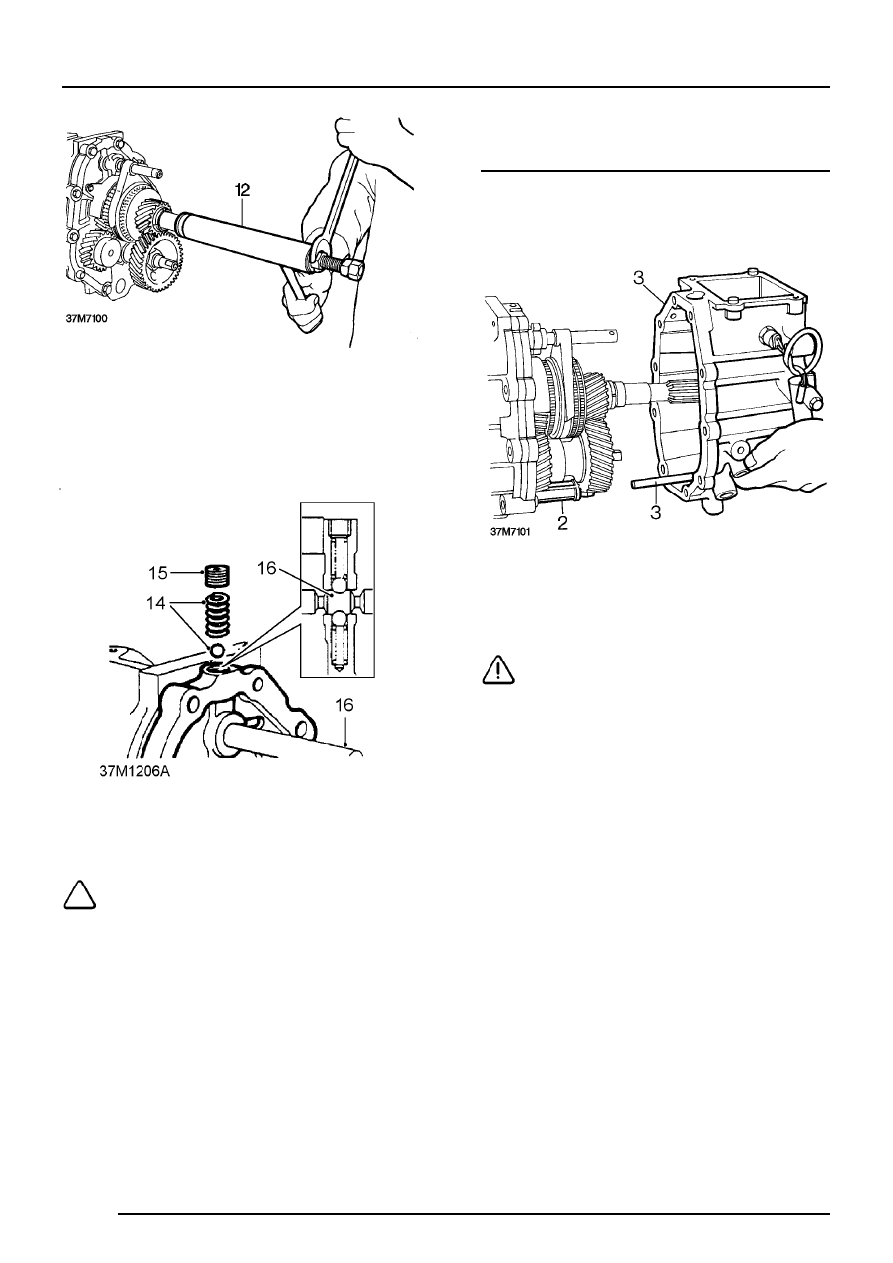

12. Using tool LRT-37-015 and LRT-37-021 press

mainshaft rear support bearing track to collar
on mainshaft.

13. Apply small amount of heat and fit layshaft rear

support bearing.

14. Fit centre plate detent ball and spring.
15. Fit and tighten plug to 25 Nm.

NOTE: Patchlok plug may be re-used
provided threads are undamaged.

16. Move selector shaft and check that detent balls

can be felt to engage in detent.

Extension housing - Type A and B Gearbox -
Refit

1. Remove all ’slave’ bolts from centre plate and

casing.

2. Refit oil filter.

3. Apply Hylosil RTV 102 to mating surfaces and

fit extension housing ensuring oil pipe locates
in filter and roller bearings are not dislodged.

CAUTION: Do not use force, if necessary,
remove extension housing and re - align
oil pump drive.

4. Bolt extension housing to centre plate and

main casing.

MANUAL GEARBOX

OVERHAUL

33

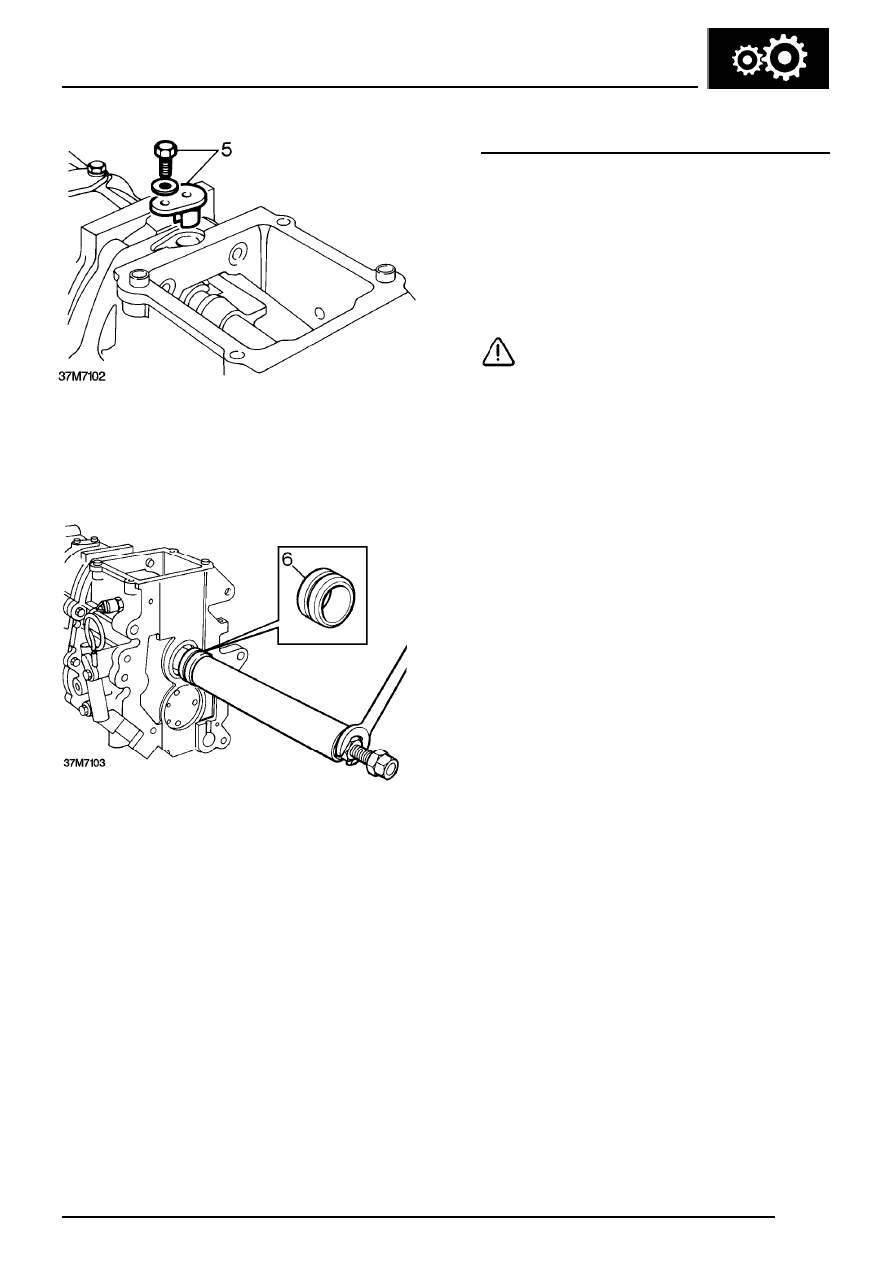

5. Apply Hylosil RTV 102 to extension case spool

retainer, fit retainer and tighten bolt to 8 Nm.

6. Using LRT-37-015 and LRT-37-21 press on

mainshaft oil seal collar.

Extension housing - Type C gearbox - Refit

1. Lubricate a new selector shaft oil seal with

gearbox oil.

2. Fit selector shaft oil seal.
3. Refit oil filter.
4. Apply Hylosil RTV 102 to mating surfaces.
5. Fit extension housing ensuring oil pick - up

pipe locates in filter and drive locates in oil
pump.

CAUTION: Do not use force, if necessary,
remove extension housing and re - align
oil pump drive.

6. Fit extension housing bolts and tighten by

diagonal selection to 25 Nm.

7. Fit spacer
8. Position speedometer drive gear on output

shaft splines.

9. Using a round nosed punch, carefully tap

speedometer drive gear into position.

10. Smear a new ’O’ ring with gearbox oil and fit to

speedometer pinion housing.

11. Lubricate speedometer pinion with silicone

grease.

12. Fit speedometer pinion housing ensuring teeth

of pinion mesh with those of driven gear.

13. Apply Hylosil RTV 102 and fit 5th gear spool

guide. Tighten bolt to 8 Nm.

14. Fit selector shaft pin to selector shaft, fit and

tighten a new self - locking nut.

15. Fit output flange to output shaft.
16. Fit new ’O’ ring and spacer.
17. Fit new tab washer.
18. Fit output flange bolt and tighten to 90 Nm.
19. Lock bolt with tab washer.

MANUAL GEARBOX

34

OVERHAUL

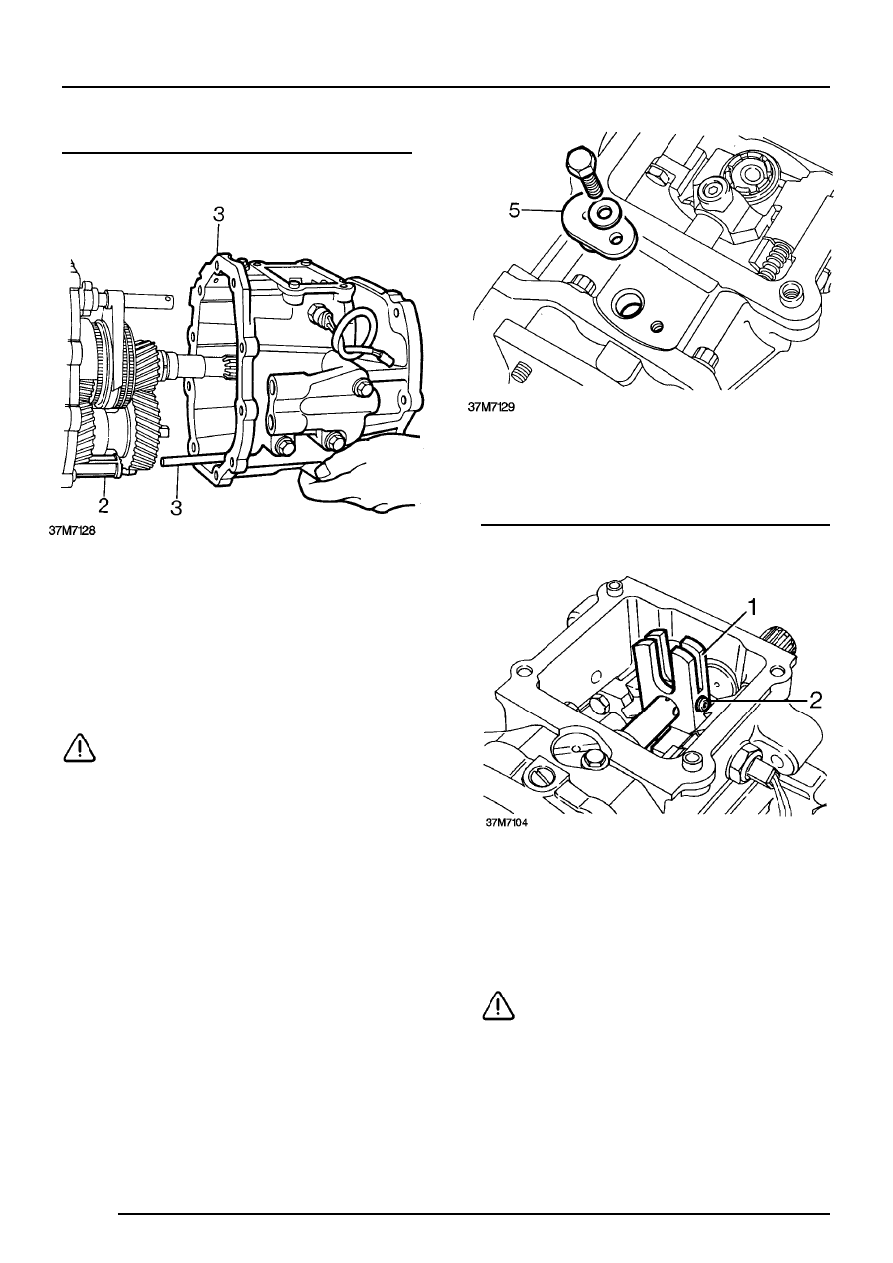

Extension housing - Type D gearbox - Refit

1. Remove all ’slave’ bolts from centre plate.
2. Refit oil filter.
3. Apply Hylosil RTV 102 to mating surfaces and

fit extension housing. Ensure that oil pipe
locates in filter and that roller bearings are not
dislodged.

CAUTION: Do not use force. If necessary,
remove extension housing and re-align oil
pump drive.

4. Bolt extension housing to centre plate and

main casing.

5. Apply Hylosil RTV 102 and fit extension case

spool retainer, fit and tighten bolt to 8 Nm.

Selector quadrant - Type A gearbox - Refit

1. Position selector quadrant to selector shaft.
2. Apply Loctite 270 to thread of a new setscrew.

Fit and tighten screw to 25 Nm.

3. Move selector shaft to neutral position.

CAUTION: Ensure end of setscrew locates
in hole in selector shaft.
