MANUAL GEARBOX

OVERHAUL

11

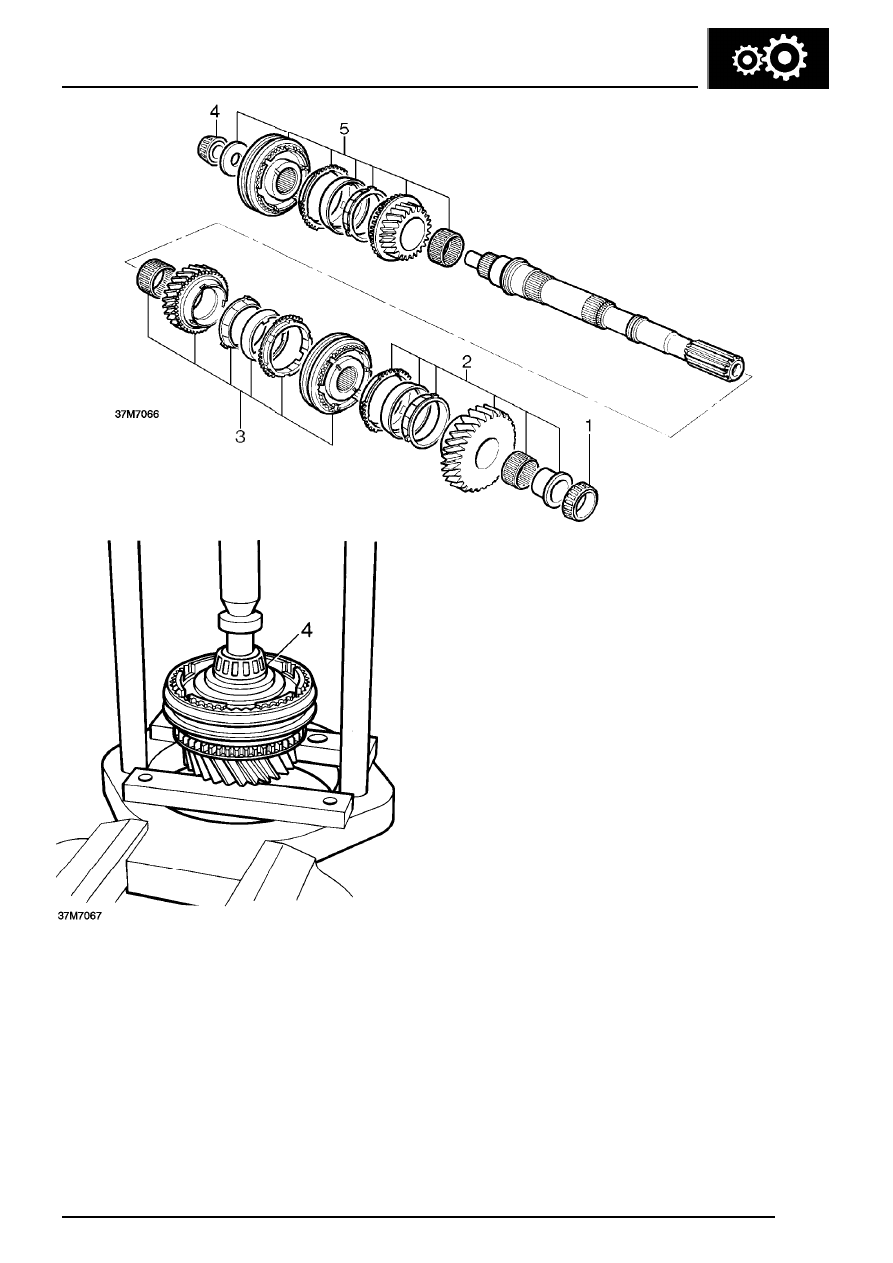

2. Remove 1st gear, bush needle bearing and

synchromesh baulk rings.

3. Remove 1st/2nd gear synchromesh selector

hub, 2nd gear synchromesh baulk rings,
second gear and needle bearing.

4. Invert mainshaft and using LRT-99-002 and

support bars under 3rd gear, press off pilot
bearing

5. Remove spacer, 3rd/4th gear synchromesh

selector hub, synchromesh baulk rings, 3rd
gear and needle bearing.

MANUAL GEARBOX

12

OVERHAUL

Gearbox casing

Degrease and clean all components. Inspect casing
for damage, cracks and stripped threads.

1. Fit level plug.
2. Fit new copper washer to drain plug.

Front Cover - Dismantle

1. Remove front cover and remove bearing

tracks. Check that spring clips are intact.

2. Remove oil seal from cover. DO NOT fit new

seal at this stage.

Centre plate - Dismantle

1. Remove bearing tracks and shims and check

for wear and damage.

2. Inspect for damage and selector rail bore for

wear.

3. Remove splash shield if required.
4. Press out reverse idler gear shaft using

suitable press and check for wear.

5. Remove idler gear, needle bearing and spacer

and check for wear and damage.

6. Check centre plate detent balls for wear and

springs for distortion, replace as necessary.

7. Check that threads of detent plug are not

damaged.

NOTE: Patchlok plug may be re-used
provided threads are undamaged.

MANUAL GEARBOX

OVERHAUL

13

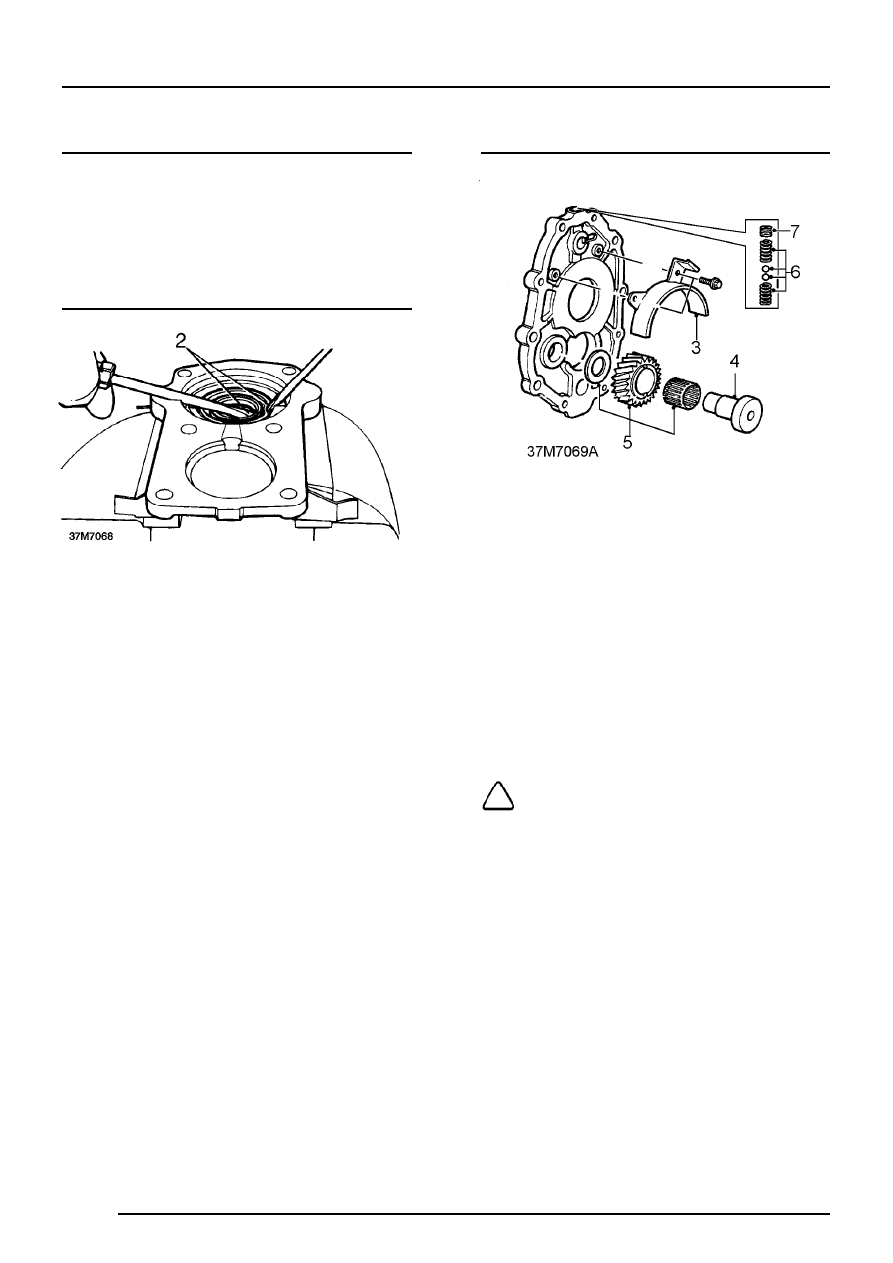

Extension housing - Types A and B gearbox -
Overhaul

1. Examine for damage to threads and machined

faces.

NOTE: Types A and B gearbox extension
housing shown.

2. Remove three screws and remove oil pump.
3. Remove oil pick-up pipe and check for

obstruction.

4. Drift out layshaft support bearing.
5. Remove mainshaft rear oil seal.
6. Drift out mainshaft support bearing and oil pick

up ring.

7. Remove shaft retaining reverse inhibition cam.
8. Remove reverse inhibition cam and spring.
9. Remove reverse light switch and sealing

washer.

10. Remove gate plate.
11. Check all components for wear and renew as

required.

Type C gearbox - As for A and B Types and
including the following:

12. Recover speedometer dive gear and spacer.
13. Check speedometer drive gear for wear and

damage, renew if necessary.

14. Check speedometer pinion for wear and

damage. Check that scrolling on shaft is clear;
renew pinion and shaft if necessary.

15. Check slots in 5th gear spool guide for wear,

renew spool guide if necessary.

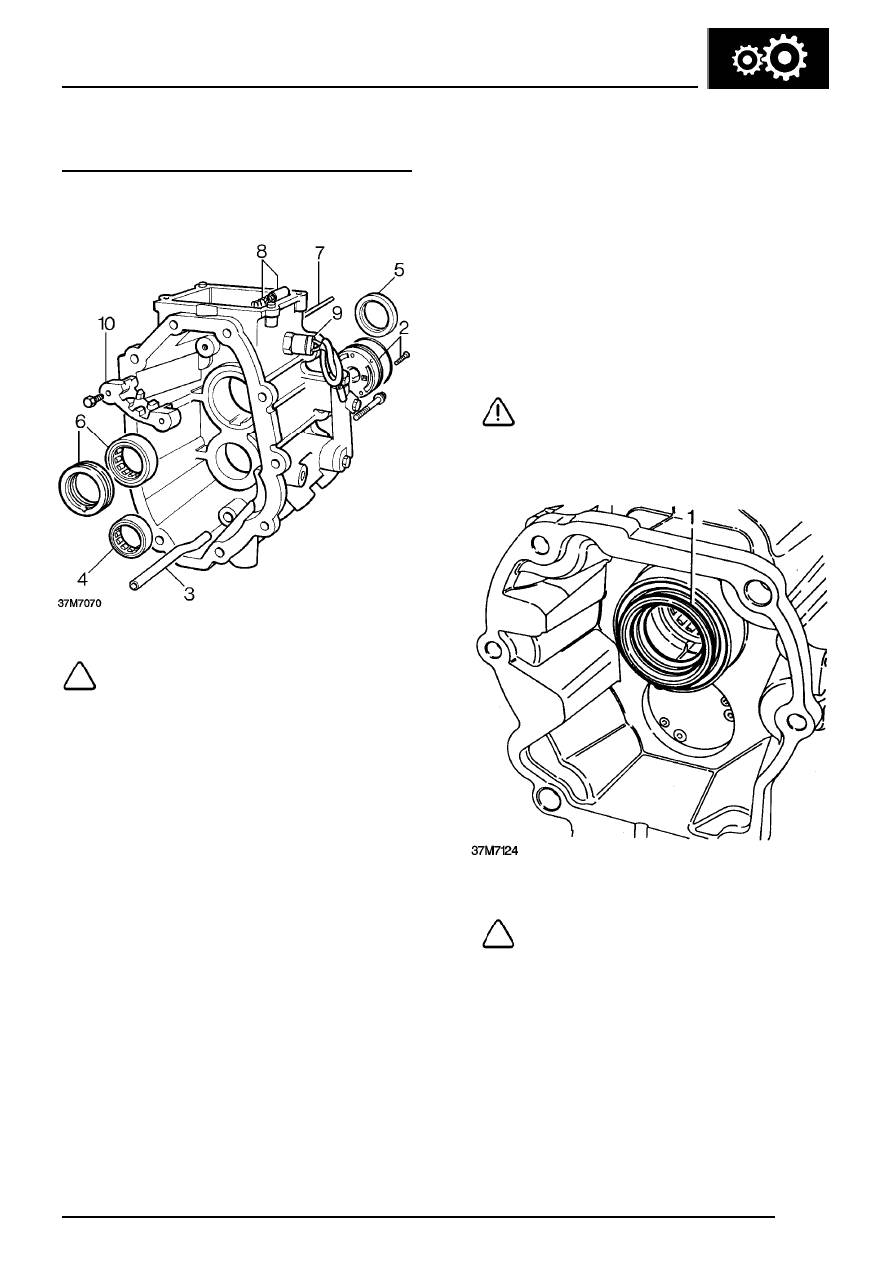

Type C and D gearboxes

CAUTION: The rear mainshaft oil seal
fitted to Type C and D extension housings
is different to Types A and B. When

levering out seal, take care not to damage the
seal location surfaces.

NOTE: Type D gearbox extension housing
shown.

1. Lever out mainshaft oil seal, taking care not to

damage the location surfaces.

MANUAL GEARBOX

14

OVERHAUL

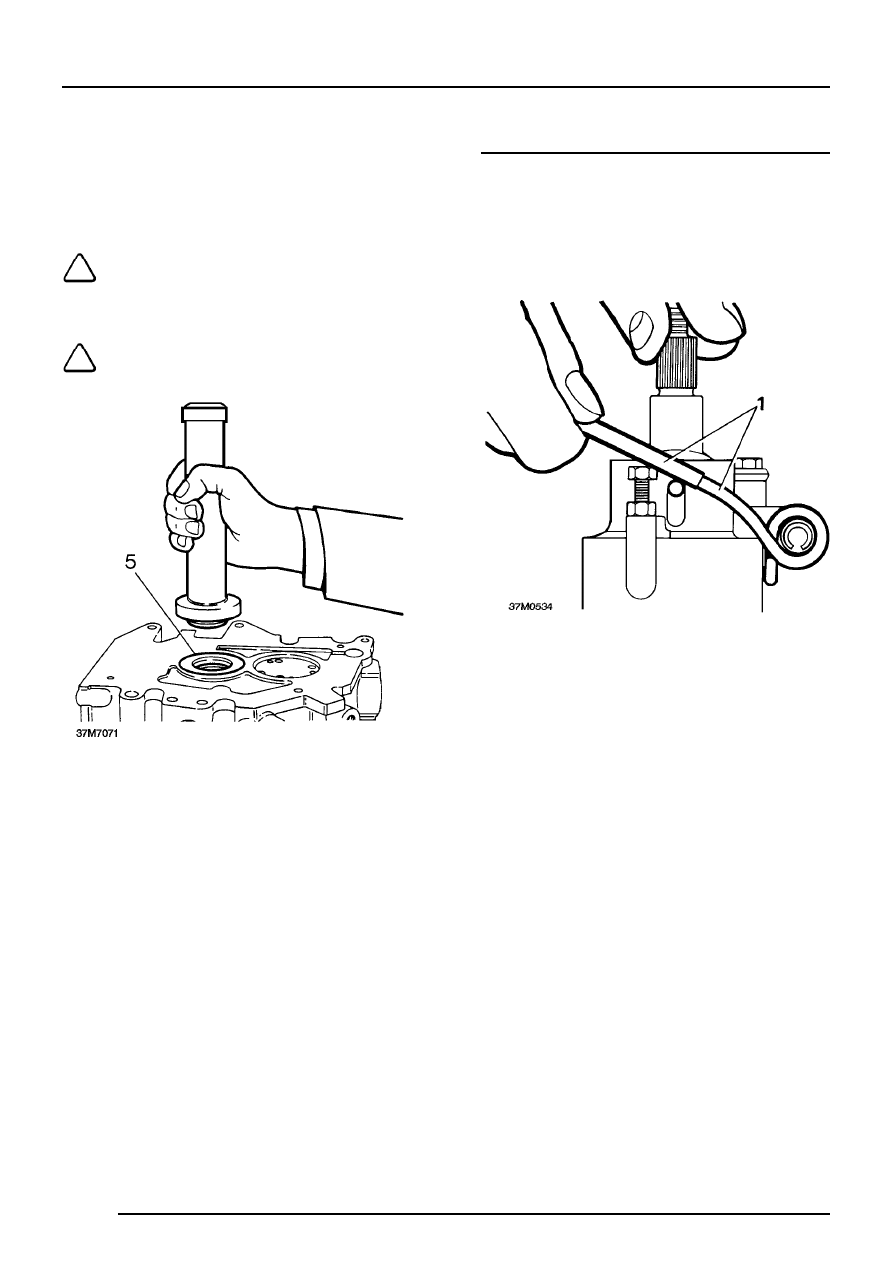

Reassembly

1. Smear a light coat of petroleum jelly into the

pump recess.

2. Renew ’O’ ring and press pump unit firmly into

recess.

NOTE: Ensure ’TOP’ marking on pump is
to top of casing.

3. Tap pump lightly at edges until fully home.

NOTE: Ensure good thread engagement
before tightening.

4. Fit new mainshaft support bearing.
5. Fit new mainshaft rear oil seal using tool

LRT-37-014.

6. Fit new Layshaft support bearing.
7. Fit new oil pick-up ring (Align tag with centre of

drain slot).

8. Examine gate plate and renew if worn or

damaged.

9. Refit reverse light switch with new copper

washer. Tighten to 24 Nm.

10. Refit reverse inhibition cam and spring.
11. Apply Hylogrip 640 and refit shaft.
12. Refit oil pipe, bend uppermost.

Gear change/selector housings - Overhaul

Gear change housing - Type A gearbox

Dismantle

1. Using a suitable piece of tubing, release both

ends of bias spring from ball pins.

2. Slacken locknuts and remove bias spring

adjusting screws.

3. Drift out roll pin, remove bias spring.
