R380 GEARBOX. Manual - part 2





MANUAL GEARBOX

SERVICE TOOLS

1

SERVICE TOOLS

NOTE: Where the use of special tools is specified, only these tools should be used to avoid the
possibility of personal injury and or damage to components.

Land Rover Number

Rover Number

Description

LRT-37-001

18G47BA

Adaptor input shaft

bearing

LRT-37-002

18G47BAX

Conversion kit

LRT-37-004

18G284AAH

Adaptor for input shaft

pilot bearing track

LRT-37-009

18G705

Puller, bearing and oil

seal collar remover

LRT-37-010

18G705-1A

Adaptor for mainshaft

oil seal collar

LRT-37-014

18G1422

Mainshaft rear oil seal

replacer

LRT-37-015

18G1431

Mainshaft rear support

bearing track and oil

seal collar replacer.

LRT-37-021

-

Adaptor for mainshaft

rear support bearing

track and oil seal

collar replacer.

LRT-37-022

-

Adaptor for layshaft

bearings

LRT-37-023

-

Layshaft holding tool

LRT-37-024

-

Rear mainshaft

bearing track remover

LRT-51-003

18G1205

Flange holder

LRT-99-002

M547

Hand press

LRT-99-004

18G284

Impulse extractor

Service tools must be obtained direct from the manufacturers:
V.L.Churchill,
P.O. Box No. 3,
London Road,
Daventry,
Northants, NN11.4NF
England

MANUAL GEARBOX

DESCRIPTION AND OPERATION

1

REVISED: 12/96

DESCRIPTION

The R380 5 speed all synchromesh gearbox
comprises an input shaft, output shaft, layshaft and
reverse idler shaft .

Gearbox casings consist of a front cover, gearcase,
centre plate and extension housing, all casings are
located by dowels and sealed.

Selector forks for 1st/2nd and 3rd/4th gears are
located on a single selector shaft inside the main
gearcase whilst the selector fork for fifth and reverse
gear is located on the same selector shaft inside the
extension housing.

The input shaft, output shaft and layshaft are
supported by taper roller bearings with all gears
running on caged needle roller bearings. Output
shaft and layshaft bearings end float is controlled by
selective thrust washers located in the centre plate.

Lubrication is by an oil pump located in the
extension housing which directs oil via internal
drillings in the output shaft to lubricate the
components.

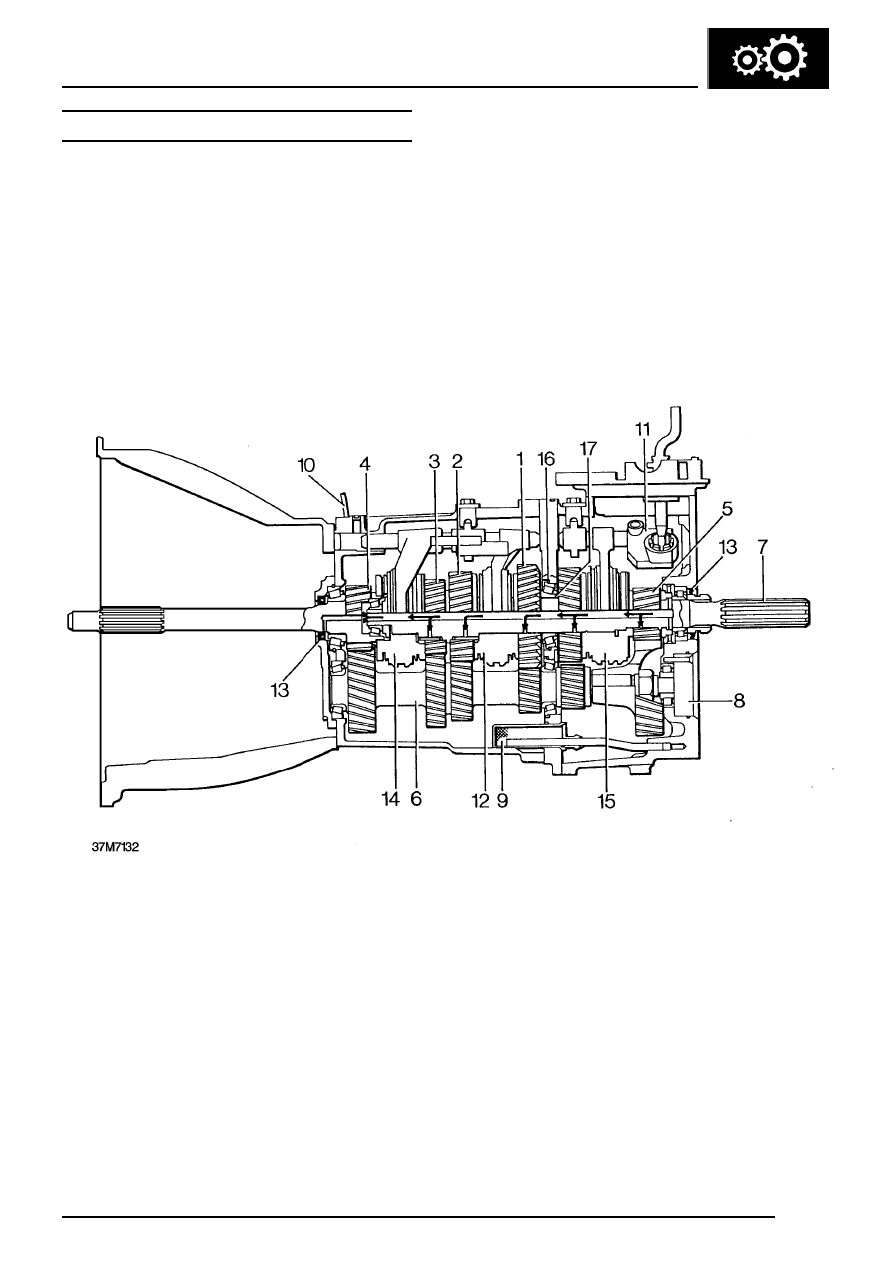

1. Mainshaft 1st gear
2. Mainshaft 2nd gear
3. Mainshaft 3rd gear
4. Primary input shaft/4th gear
5. Mainshaft 5th gear
6. Layshaft
7. Mainshaft
8. Lubrication pump
9. Oil filter

10. Breather
11. Single rail gear shift
12. 1st/2nd synchromesh
13. Oil seals
14. 3rd/4th gear synchromesh
15. 5th/reverse gear synchromesh
16. Selective spacers (mainshaft & layshaft end

float)

17. Selective spacer (5th gear/reverse hub) 12/96

MANUAL GEARBOX

2

DESCRIPTION AND OPERATION

REVISED: 12/96

MANUAL GEARBOX

DESCRIPTION AND OPERATION

3

REVISED: 12/96

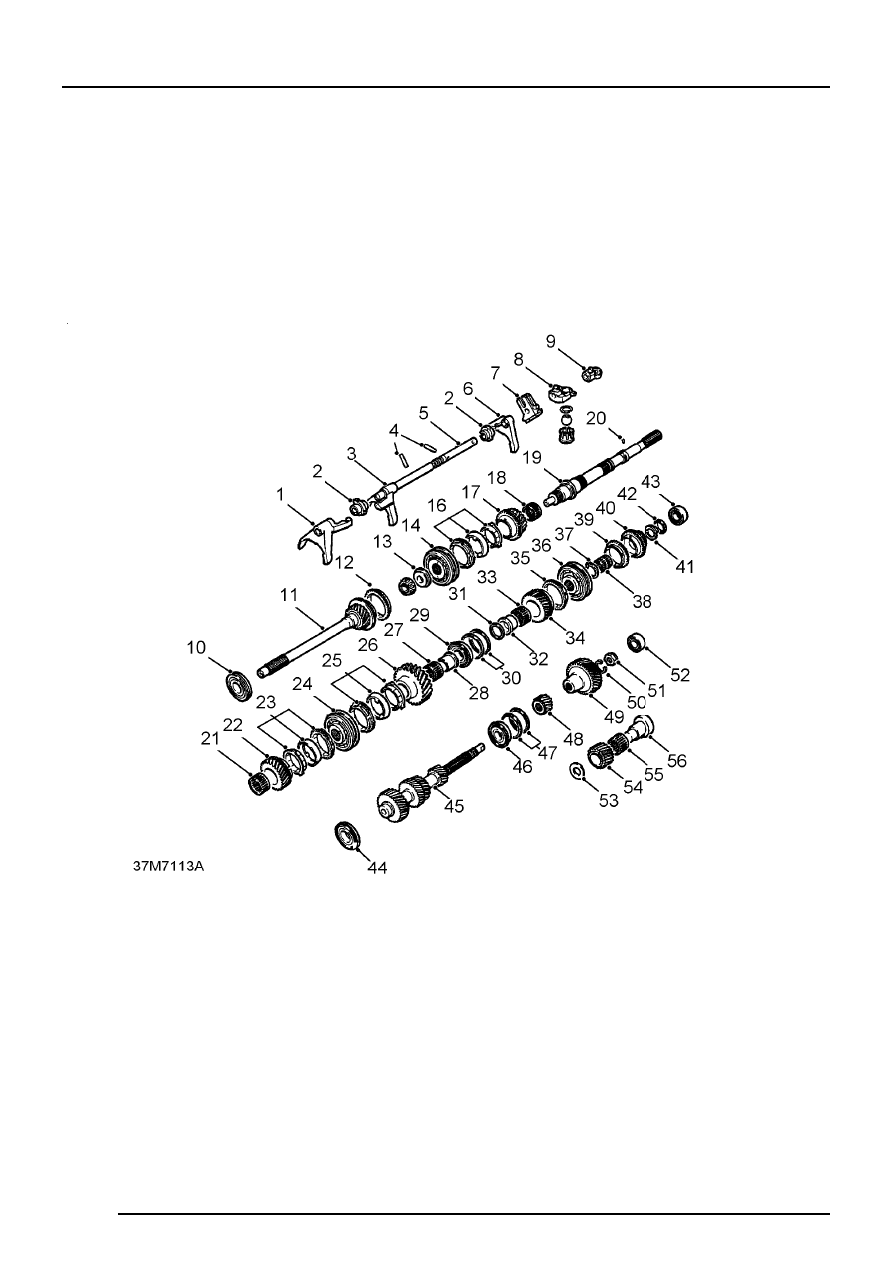

GEARBOX COMPONENTS - GEARS AND
SHAFTS

1. 3rd/4th gear selector fork
2. Interlock spool
3. 1st/2nd gear selector fork
4. Selector shaft yoke pins
5. Selector shaft
6. Reverse/5th gear selector fork
7. Selector quadrant - Type A gearbox
8. Selector yoke - Type B/D gearbox
9. Selector yoke - Type C gearbox

10. Input shaft front taper bearing
11. Input shaft
12. 4th gear synchro ring
13. Pilot taper bearing
14. Spacer
15. 3rd/4th gear synchro hub and sleeve
16. 3rd gear synchro rings
17. 3rd gear
18. Needle roller bearings
19. Mainshaft (output shaft)
20. Roll pin
21. Needle bearing
22. 2nd gear
23. 2nd gear synchro rings
24. 2nd/1st gear synchro hub and sleeve
25. 1st gear synchro rings
26. 1st gear
27. Needle roller bearing
28. Bush

29. Mainshaft taper bearing
30. Selectable shims
31. Selectable washer
32. Bush
33. Needle roller bearing
34. Reverse gear
35. Reverse gear synchro ring
36. Reverse/5th gear synchro hub and sleeve
37. Circlip
38. Needle roller bearings
39. 5th gear synchro ring
40. 5th gear
41. 5th gear segments
42. 5th gear segment retaining ring
43. Mainshaft rear support bearing
44. Layshaft support bearing
45. Layshaft
46. Layshaft support bearing
47. Selectable shims
48. Layshaft reverse gear
49. Layshaft 5th gear
50. Split washer - later gearboxes
51. 5th gear nut
52. Layshaft rear support bearing
53. Spacer
54. Reverse idler gear
55. Needle roller bearing
56. Reverse idler shaft
