TRANSFER BOX

OVERHAUL

43

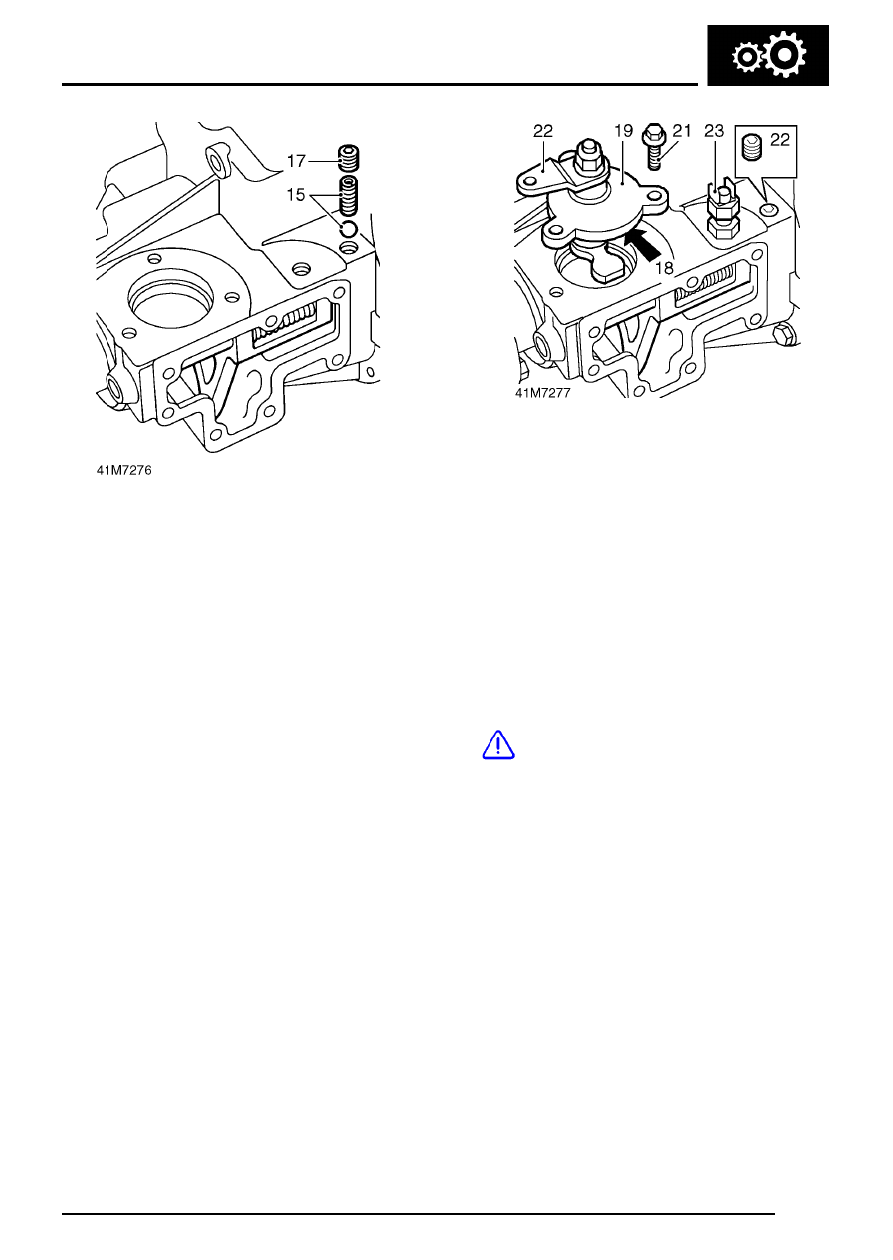

15. Fit differential lock detent ball and spring.
16. Apply Loctite 290 to threads of detent plug.
17. Fit and tighten detent plug then unscrew 2 full

turns.

18. Ensure ’O’ ring is correctly located on

differential lock selector housing.

19. Fit differential lock selector assembly ensuring

that selector finger is located in recess in
differential lock selector shaft.

20. Apply Loctite 290 to threads of bolts.
21. Fit bolts and tighten to 25 Nm (18 lbf.ft).
22. Operate differential lock selector lever and

check that differential lock detent ball can be
felt to positively engage and disengage with
grooves in selector shaft; screw detent plug in
or out until setting is correct.

23. Apply Hylomar PL32 sealant to threads of

differential lock warning lamp switch, fit switch.

CAUTION: Do not allow sealant to contact
switch plunger. Do not tighten locknut or
fit differential lock side cover until switch

has been adjusted.

TRANSFER BOX

44

OVERHAUL

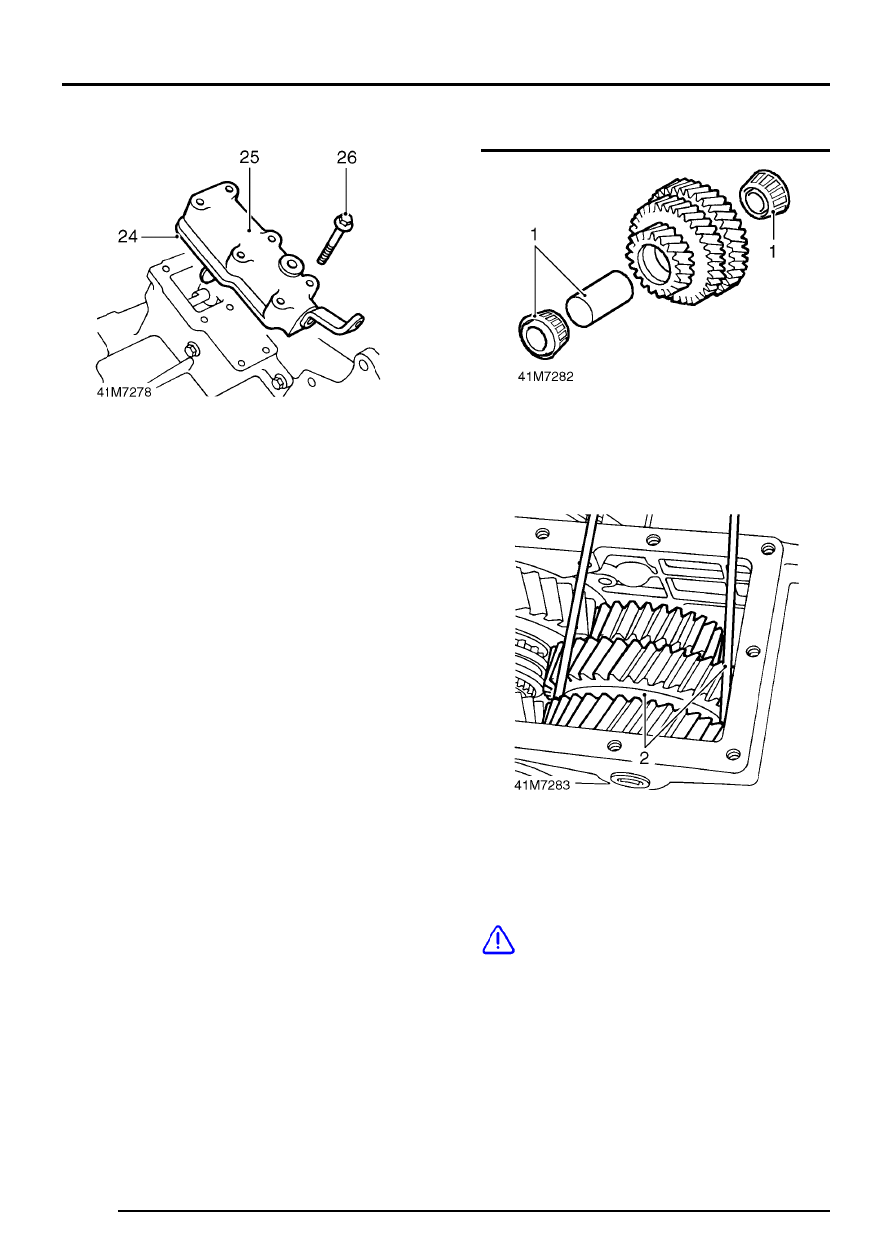

24. Apply Hylosil RTV 102 sealant to mating flange

of high/low selector housing.

25. Fit housing ensuring that high/low selector

finger is located in recess in high/low selector
shaft.

26. Fit 6 bolts and tighten to 25 Nm (18 lbf.ft).

Intermediate gears

1. Insert a new collapsible spacer into

intermediate gears, fit bearings into bearing
tracks.

2. Wrap a suitable length of wire around

intermediate gears and using assistance, lower
gears into main casing ensuring that they are
meshing with input and differential gears.

CAUTION: Do not remove wire at this
stage.

TRANSFER BOX

OVERHAUL

45

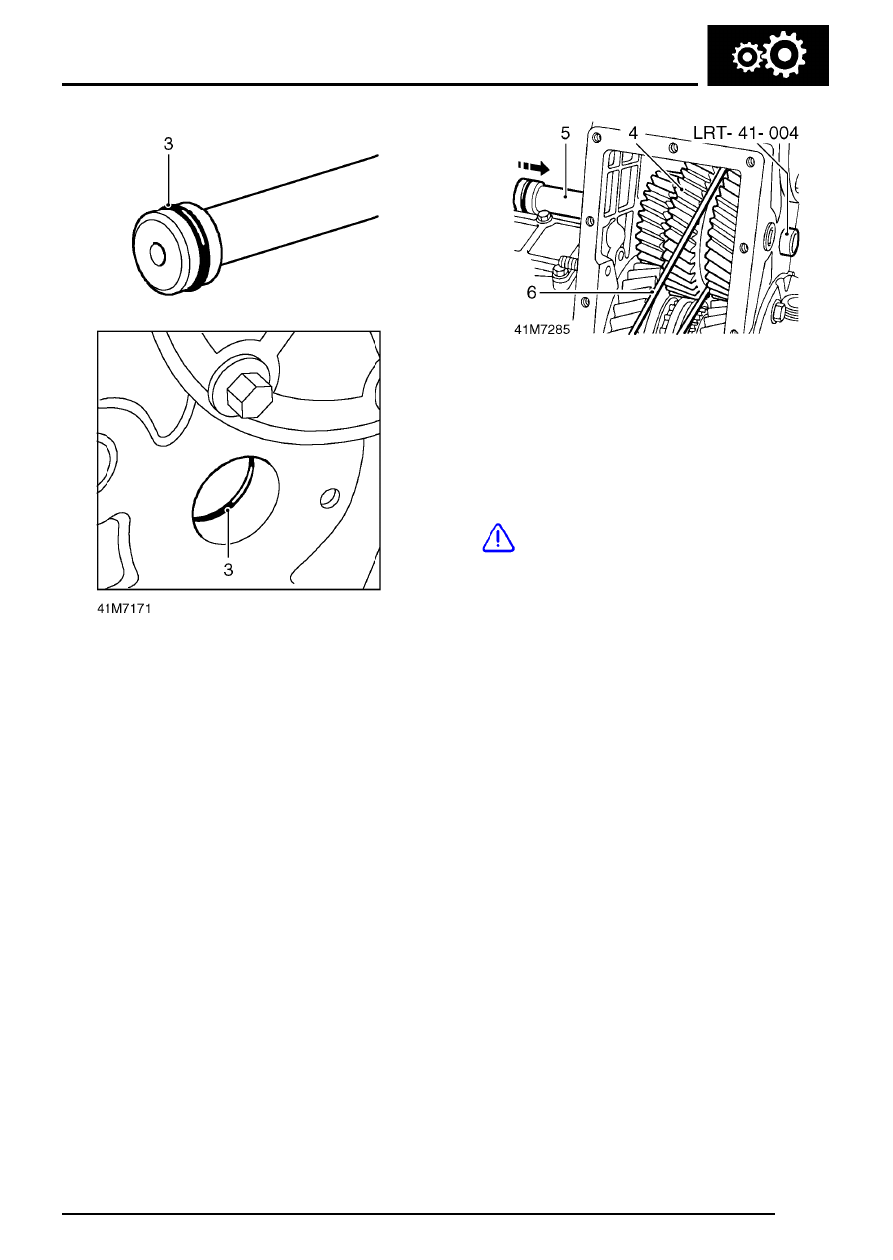

3. Lubricate new ’O’ rings with recommended oil

and fit to intermediate shaft and main casing.

4. Raise intermediate gears until dummy shaft

LRT-41-004 can be inserted from front output
housing side of main casing.

5. Fit intermediate shaft, drift shaft into position

whilst at the same time expelling dummy shaft
LRT-41-004 .

CAUTION: Ensure ’O’ ring is not displaced
from main casing.

TRANSFER BOX

46

OVERHAUL

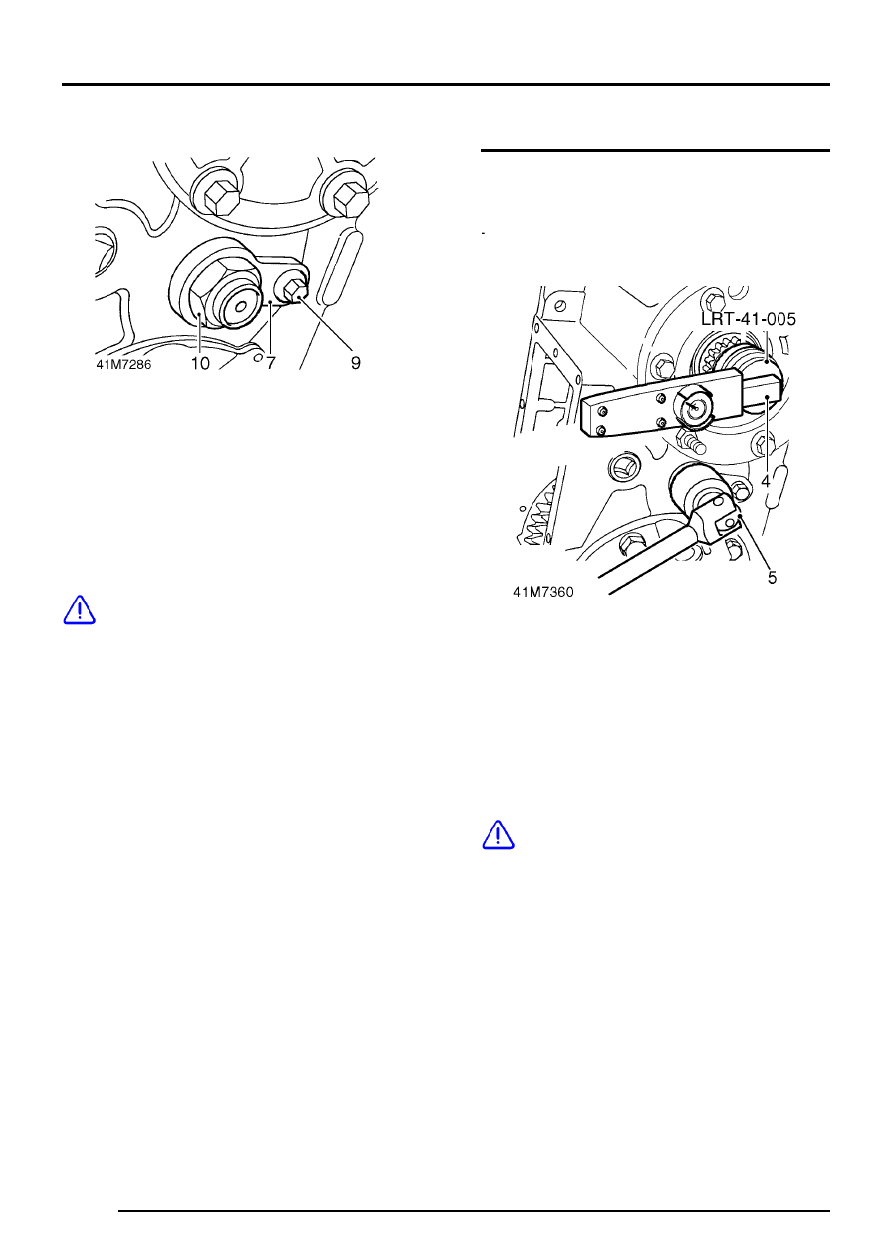

6. Remove wire from around intermediate gears.

7. Rotate intermediate shaft until retaining plate

can be located on flat on shaft.

8. Apply Loctite 290 to threads of retaining plate

bolt.

9. Fit bolt and tighten to 25 Nm (18 lbf.ft).

10. Fit a new intermediate shaft nut.
11. Tighten intermediate shaft nut in small stages

until all end-float is just removed from
intermediate gears.

CAUTION: Check end-float of intermediate
gears between each stage, do not
continue tightening nut after end-float is

removed. Do not stake nut at this stage.

12. Set intermediate gear bearing pre-load

- See

Intermediate gear bearing pre-load.

Intermediate gear bearing pre-load

1. Select neutral.
2. Screw a suitable bolt into tapped hole in end of

tool LRT-41-005.

3. Insert tool LRT-41-005 in end of mainshaft.
4. Using a suitable torque meter on tool

LRT-41-005, check and record torque to turn
mainshaft input gears.

5. Tighten the intermediate shaft nut in small

stages checking the torque to turn the gears
until the mainshaft input gear torque to turn
figure recorded in operation 4 has increased by
1.25 Nm (10 lbf.in ).

CAUTION: Take great care not to
overtighten nut as this will cause
excessive bearing pre-load. If torque to

turn figure is inadvertently exceeded, a new
collapsible spacer must be fitted.
