Range Rover Classic. Manual - part 114





REAR SUSPENSION

5

REPAIR

Renew bush

7. Press out rubber bushes.
8. Fit bush centrally in housing.

CAUTION: Apply pressure to outer edge of
bush, and not rubber inner.

Refit

9. Reverse removal procedure. 1 to 6. Do not fully

tighten fixings until all components are in
position.

10. Tighten fixings to correct torque.

See

Specifications, torque, Torque Values

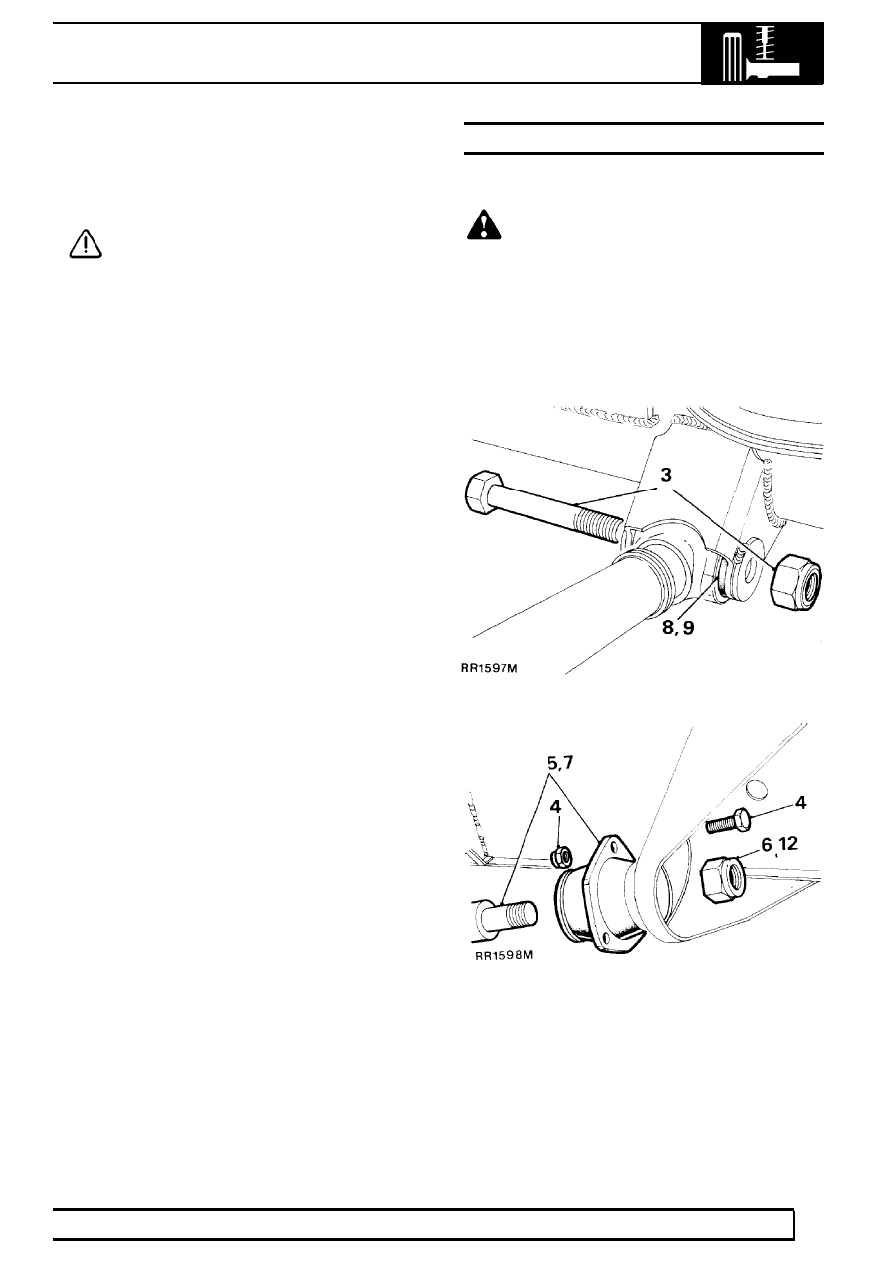

SUSPENSION LINK LOWER

Service repair no - 64.35.02

WARNING: Air suspension vehicles:
Depressurise system before commencing
work.

See AIR SUSPENSION, Adjustment,

Depressurise System

Remove

1. Site vehicle on a ramp [hoist].
2. Alternatively, support vehicle on stands under

rear axle.

3. Remove rear fixings.

4. Remove mounting bracket fixings at side

member bracket.

5. Remove lower link complete.
6. Remove locknut.
7. Remove mounting bracket from lower link.

64

REAR SUSPENSION

6

REPAIR

Renew bush

8. Press out rubber bushes.
9. Fit bush centrally in housing.

CAUTION: Apply pressure to outer edge of
bush, and not rubber inner.

Refit

10. Reverse removal procedure. 6 and 7. Do not

tighten locknut.

11. Reverse removal procedure. 3 to 5.
12. Lower vehicle, allow axle to take up static laden

position. Tighten to

175Nm

NOTE: Air suspension vehicles:
Repressurise system

REAR SUSPENSION

7

REPAIR

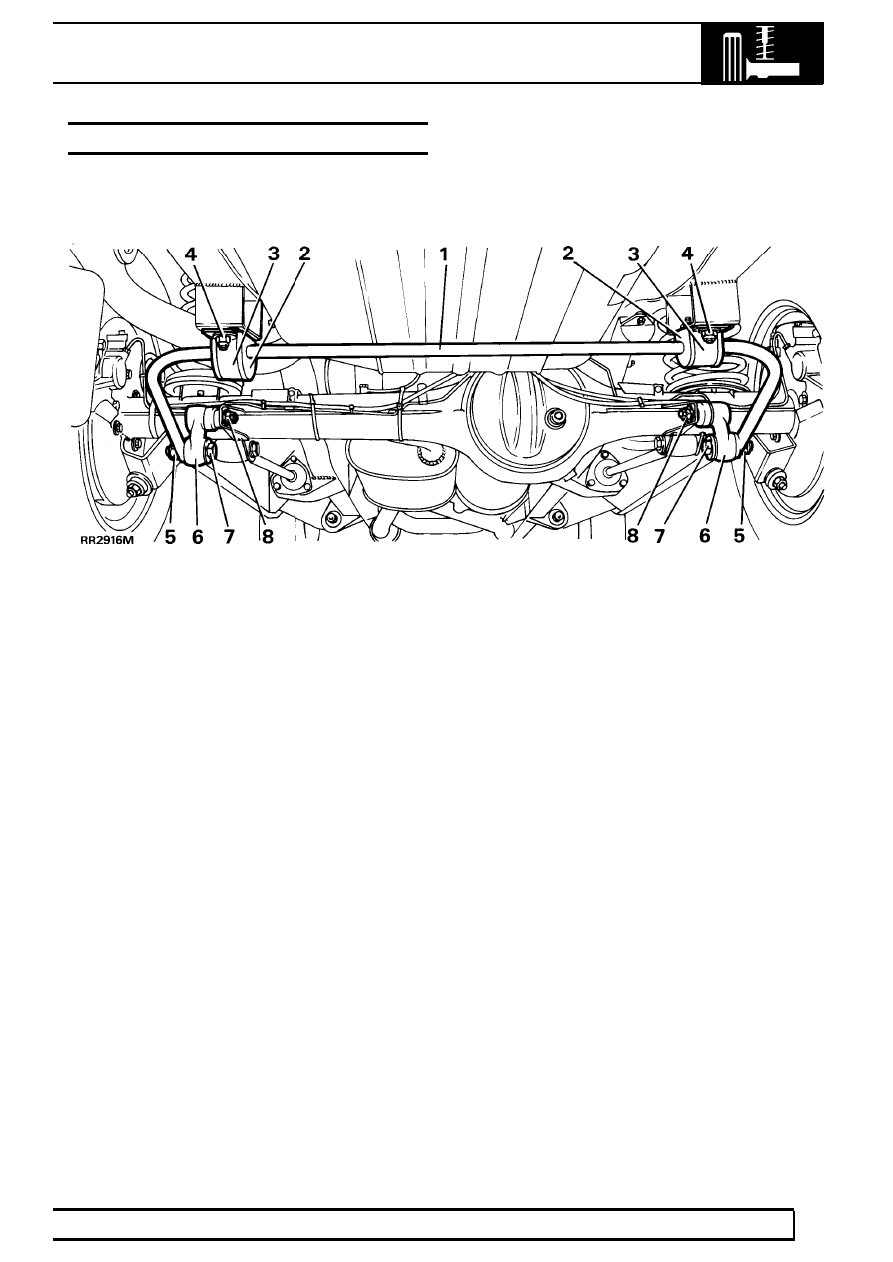

ANTI-ROLL BAR REAR

Service repair no - 64.35.08

KEY

1. Anti-roll[sway] bar
2. Rubber bush
3. Strap
4. Nut, bolt, washer

5. Nut and washer
6. Ball joint link arm
7. Bolt and washer
8. Castellated nut and cotter pin

Remove

1. Note for reassembly, position of rubber bushes

on anti-roll[sway] bar.

2. Remove four nuts, bolts and washers securing

two bush straps.

3. Remove nuts, bolts, washers and rubber bushes

from the ball joint links and remove
anti-roll[sway] bar.

Refit

4. Position rubber bushes on anti-roll[sway] bar. Fit

joint in bush towards axle.

5. Fit anti-roll[sway] bar with two straps. Ensure ball

joint link arms point down as shown. Loosely fit,
bolts, washers and new Nyloc nuts.

6. Fit bolt, washers and rubber bushes. Fit

anti-roll[sway] bar to ball joint links. Tighten to
68Nm

7. Tighten nuts securing straps to

30Nm.

64

REAR SUSPENSION

8

REPAIR

ANTI-ROLL BAR BALL JOINT LINKS

Service repair no - 64.35.24

Remove

1. Remove two nuts, bolts, washers and rubber

bushes from ball joint links and lower
anti-roll[sway] bar to clear links.

2. Remove cotter pin and loosen castellated nut a

few turns.

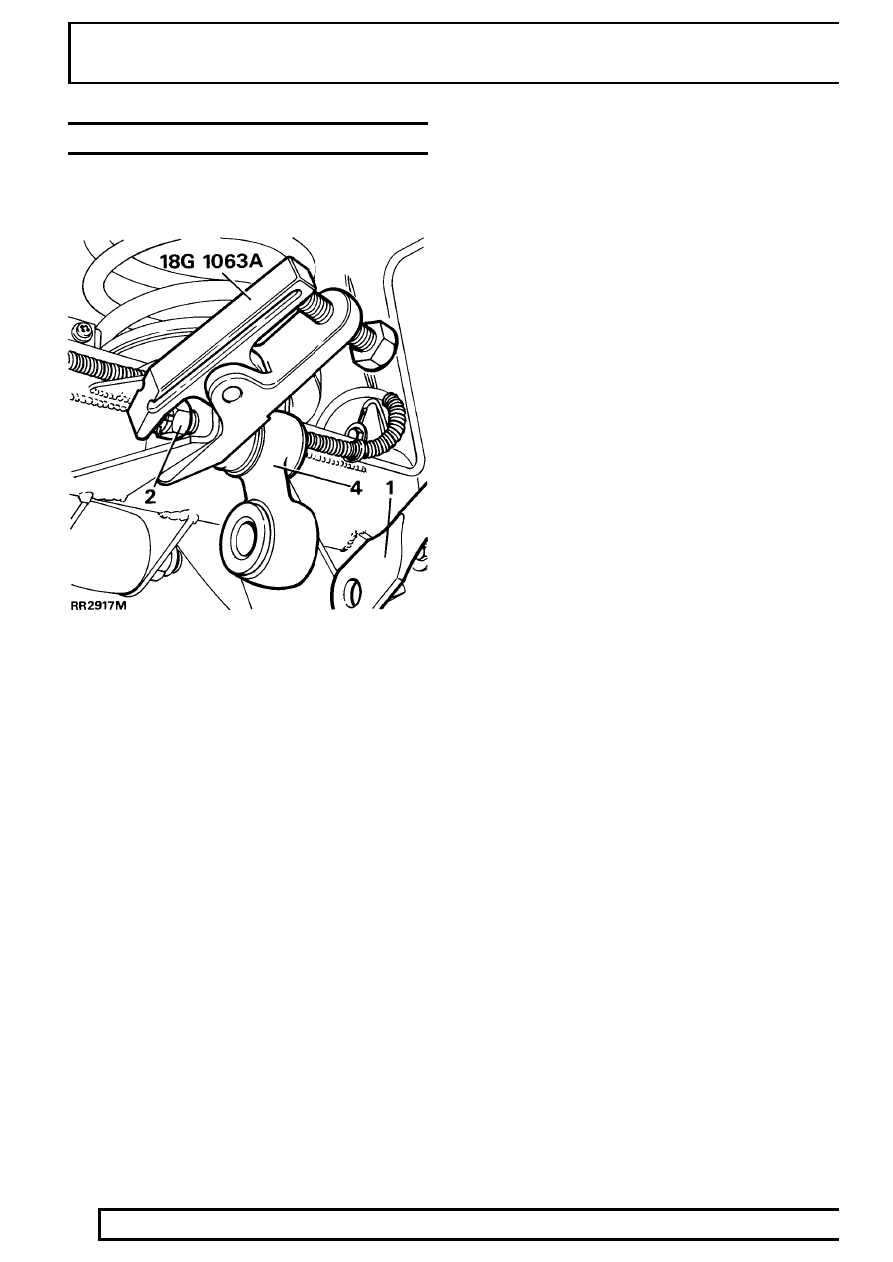

3. Release ball joint using special tool 18G 1063A

as shown.

4. Remove castellated nut and ball joint link.

Refit

5. Fit ball joint link arm and castellated nut. Point

ball joint link arm down as shown. Tighten to
40Nm and fit new cotter pin.

6. Align anti-roll[sway] bar to ball joint links.
7. Fit bolts, washers and rubber bushes using new

self locking nuts secure anti-roll[sway] bar to ball
joint links. Tighten to

68Nm.
