Range Rover Classic. Manual - part 105





57

STEERING

14

REPAIR

Refit

20. Manoeuvre upper column to position in footwell,

ensure splines in column and universal joint are
correctly engaged and rubber boot is fitted.

21. Fit but do not tighten universal joint pinch bolt.
22. Position upper column to upper mounting, fit

washers and nuts, do not tighten nuts.

23. Fit but do not tighten nuts and bolts securing

upper column to lower mounting.

24. Fit lower mounting steady bracket, fit but do not

tighten nuts and bolts.

25. Ensure upper column is aligned to mountings.
26. Tighten all nuts and bolts to

22 Nm.

27. Tighten universal joint pinch bolt to

25 Nm.

28. Connect column switch multiplug.
29. Connect ignition switch multiplugs.
30. Fit rotary coupler.

See SUPPLEMENTARY

RESTRAINT SYSTEM, Repair, Rotary
Coupler

31. Fit steering wheel.

See Steering Wheel

32. Reconnect battery negative lead.
33. Check steering column lock for correct

operation, tighten shear bolts until heads shear
off.

34. If fitted - position knee bolster, fit and tighten

screws.

35. Fit steering column shroud.

See Steering

Column Shroud

36. Fit driver’s access panel.

STEERING

15

REPAIR

STEERING COLUMN LOCK ASSEMBLY

Service repair no - 57.40.31

Remove

CAUTION: Before removing any parts of
steering linkage, it is imperative that road
wheels are positioned straight ahead.

Then steering wheel removed to prevent rotary
coupler being wound up or damaged.

CAUTION: After refitting steering linkage
parts follow correct procedure to ensure
that road wheels, steering box and

steering wheel are correctly positioned relative to
each other when in straight ahead condition. If
steering wheel requires repositioning, ensure that
drive pegs on rotary coupler are correctly
positioned before steering wheel is replaced.

This ensures drive pegs locate in their holes in
rear of steering wheel.

After final alignment connect rotary coupler
multiplug, tighten steering wheel securing nut and
fit airbag module - if fitted.

1. Disconnect battery negative lead.
2. Remove steering column shroud.

See Steering

Column Shroud

3. Release turnbuckles, lower driver’s access

panel.

4. If fitted, remove 4 screws securing knee pad,

remove bolster.

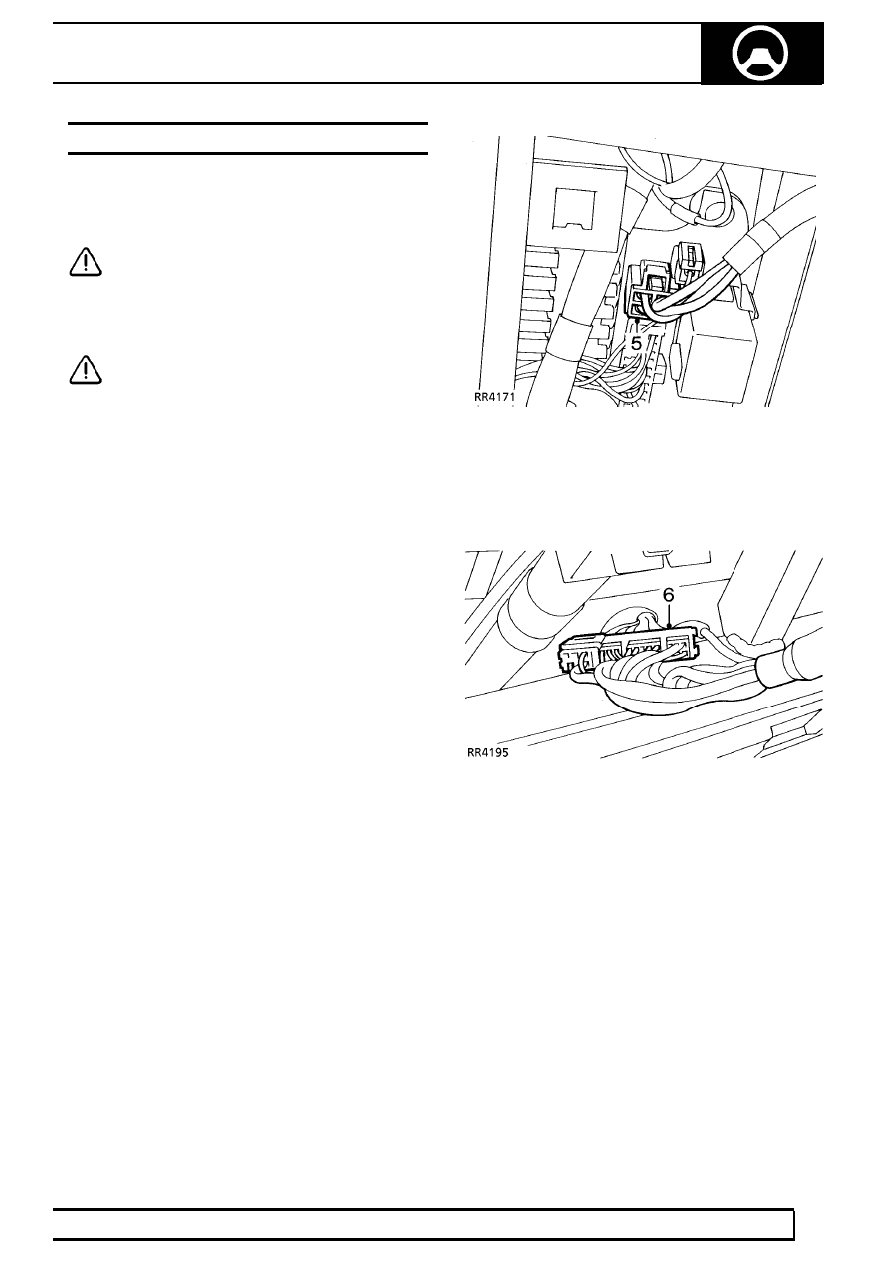

5. Disconnect ignition switch multiplug from fuse

box.

6. Disconnect ignition switch main feed multiplug.

57

STEERING

16

REPAIR

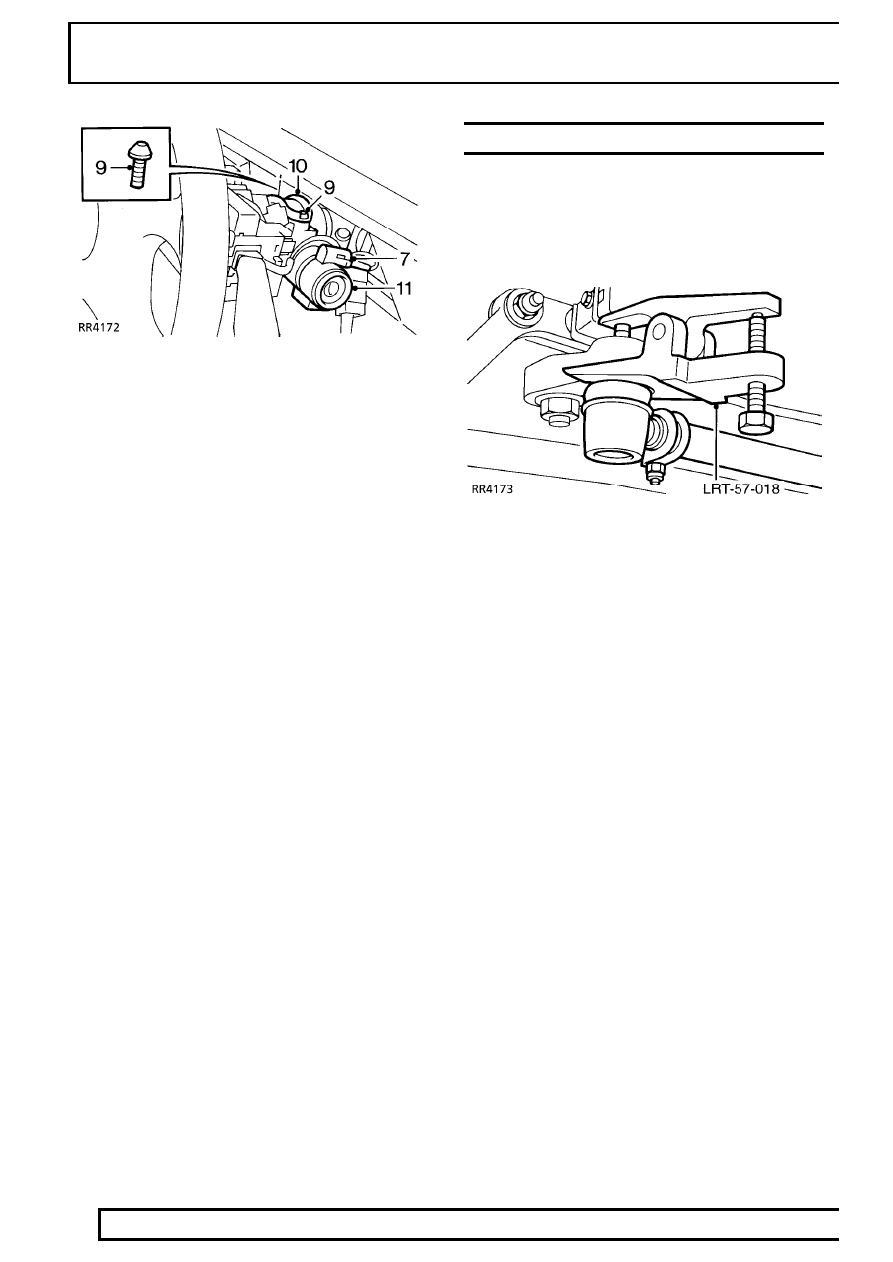

7. Remove bulb holder from steering column lock

shroud.

8. Tap head of shear bolts anti-clockwise to release

them.

9. Remove and discard shear bolts.

10. Detach saddle.
11. Remove steering column lock assembly.

Refit

12. Position steering lock saddle on column, locating

spigot in hole provided.

13. Place lower lock assembly into column.
14. Fit but do not fully tighten new shear bolts.
15. Connect multiplugs.
16. Insert bulb holder into steering column lock

shroud.

17. Reconnect battery negative lead.
18. Check steering column lock for correct

operation, tighten shear bolts until heads shear
off.

19. Fit steering column shroud.

See Steering

Column Shroud

20. If fitted - fit knee bolster, fit and tighten screws.
21. Raise driver’s access panel, secure turnbuckles.

DROP ARM

Service repair no - 57.50.14

Remove

1. Place vehicle on a hoist, or support front axle on

axle stands.

2. Disconnect drag link ball joint from drop arm,

using extractor LRT-57-018.

STEERING

17

REPAIR

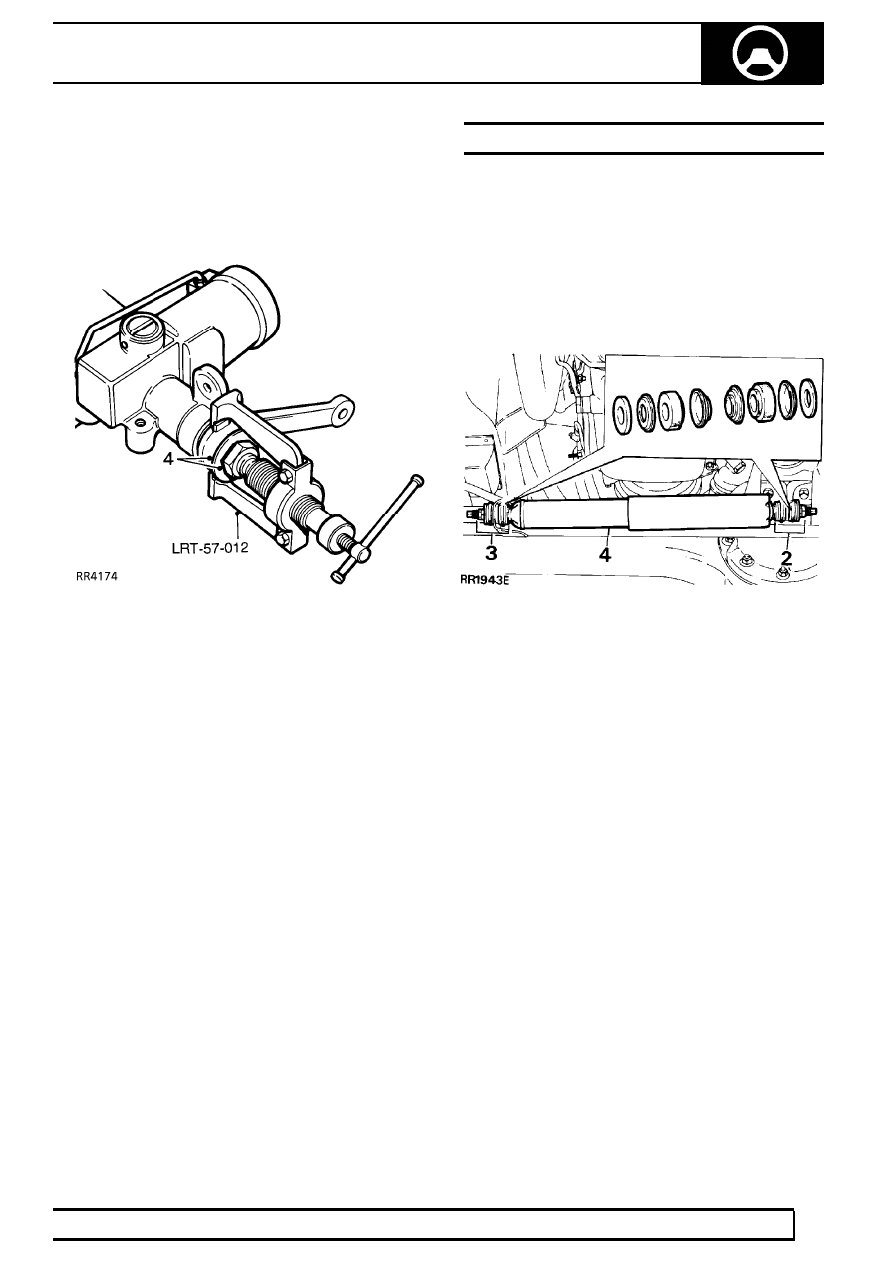

3. Bend back tabs on locking washer and remove

drop arm using extractor LRT-57-012. Loosen
drop arm securing nut, but do not remove before
using extractor.

4. Remove nut, discard locking washer.

Refit

5. Centralise steering box.

See Adjustment,

Centralise Steering Box

6. Fit drop arm, align master splines.
7. Fit a new tab washer and drop arm fixing nut.

Tighten to

176 Nm, bend over tab.

8. Fit drag link. Tighten ball joint nut

40 Nm.

STEERING DAMPER

Service repair no - 57.55.21

Remove

1. Site vehicle on a ramp [hoist].
2. Remove fixings at differential case bracket.
3. Remove fixings at track rod bracket.
4. Remove steering damper.

Refit

5. Reverse removal procedure. 1 to 4.
