HEATING AND VENTILATION

9

REPAIR

4. Lower glove box liner from fascia gaining access

to servo.

5. Drivers Side. Remove fascia closing panel.

See CHASSIS AND BODY, Repair.

6. Remove radio.

See ELECTRICAL, Repair.

7. Remove heater control panel.

See this section.

8. Release fascia switch pack. Position aside.

See

ELECTRICAL, Repair.

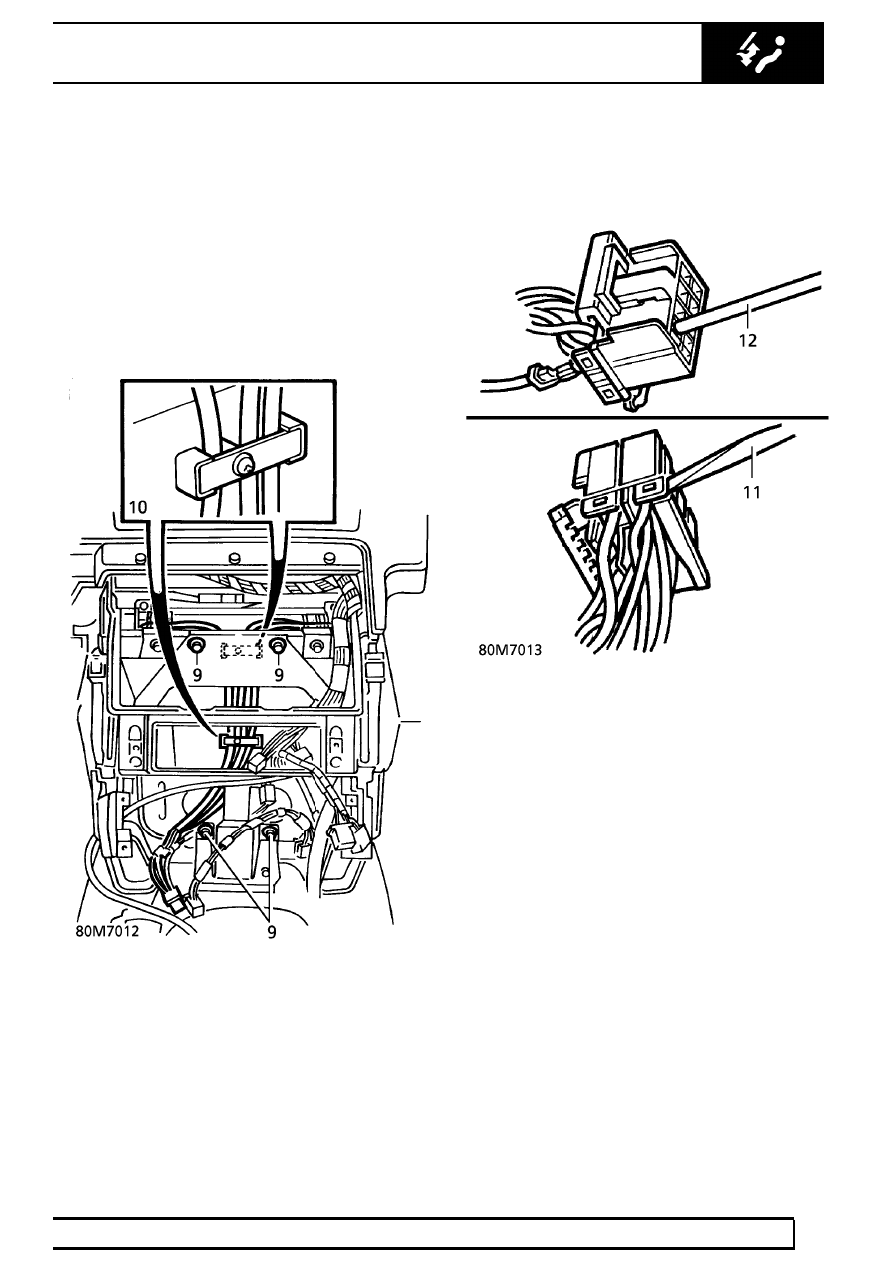

9. Remove 4 bolts securing fascia centre support

plate to transmission tunnel and fascia.

10. Remove 2 harness clamps.

11. Identify relevant pins in servo harness

connector. Release 2 locking tags on rear of
connector.

12. Release relevant pins from connector by

inserting thin probe into front face as shown.

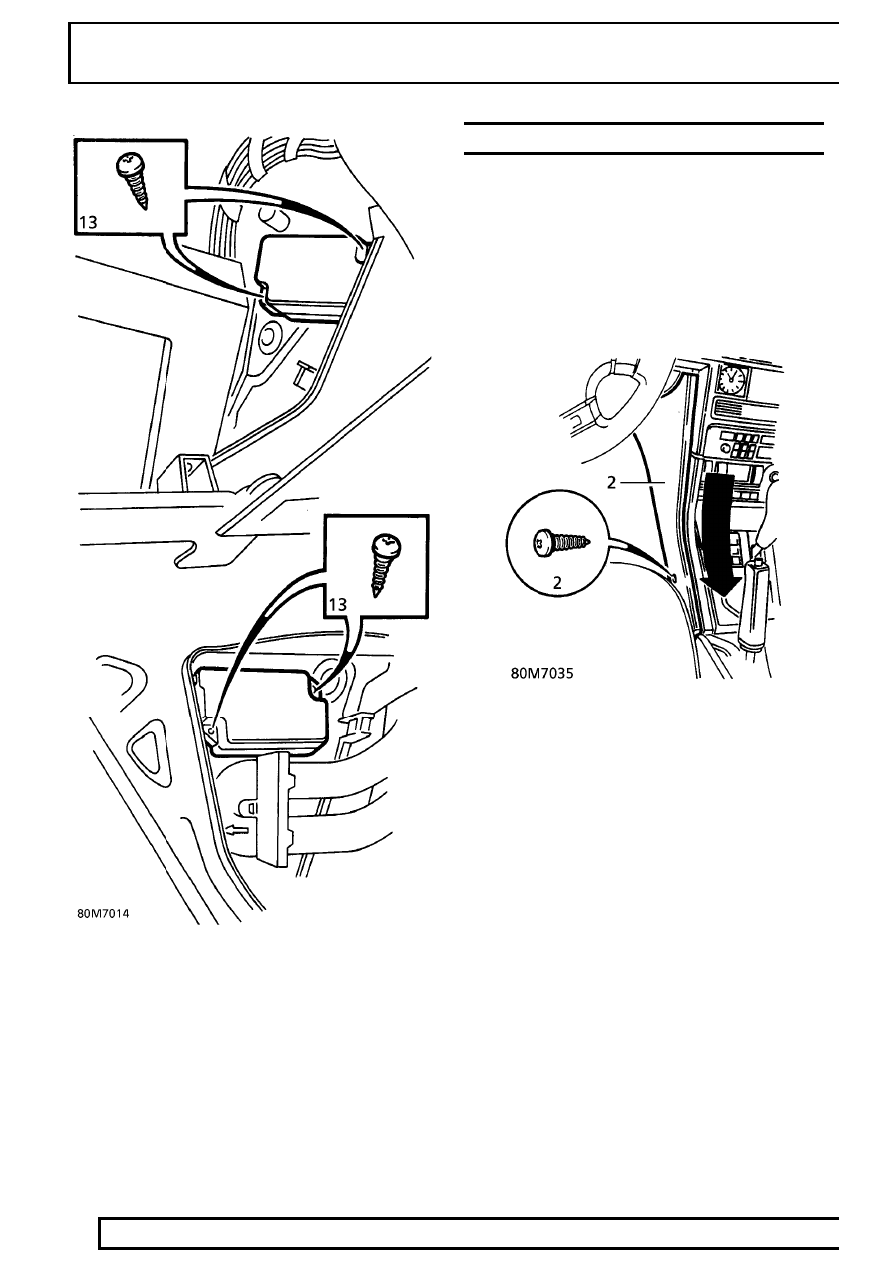

13. Remove 2 screws securing servo to heater

casing. Remove servo.

80

HEATING AND VENTILATION

NEW RANGE ROVER

10

REPAIR

Refit

14. Reverse removal procedure.

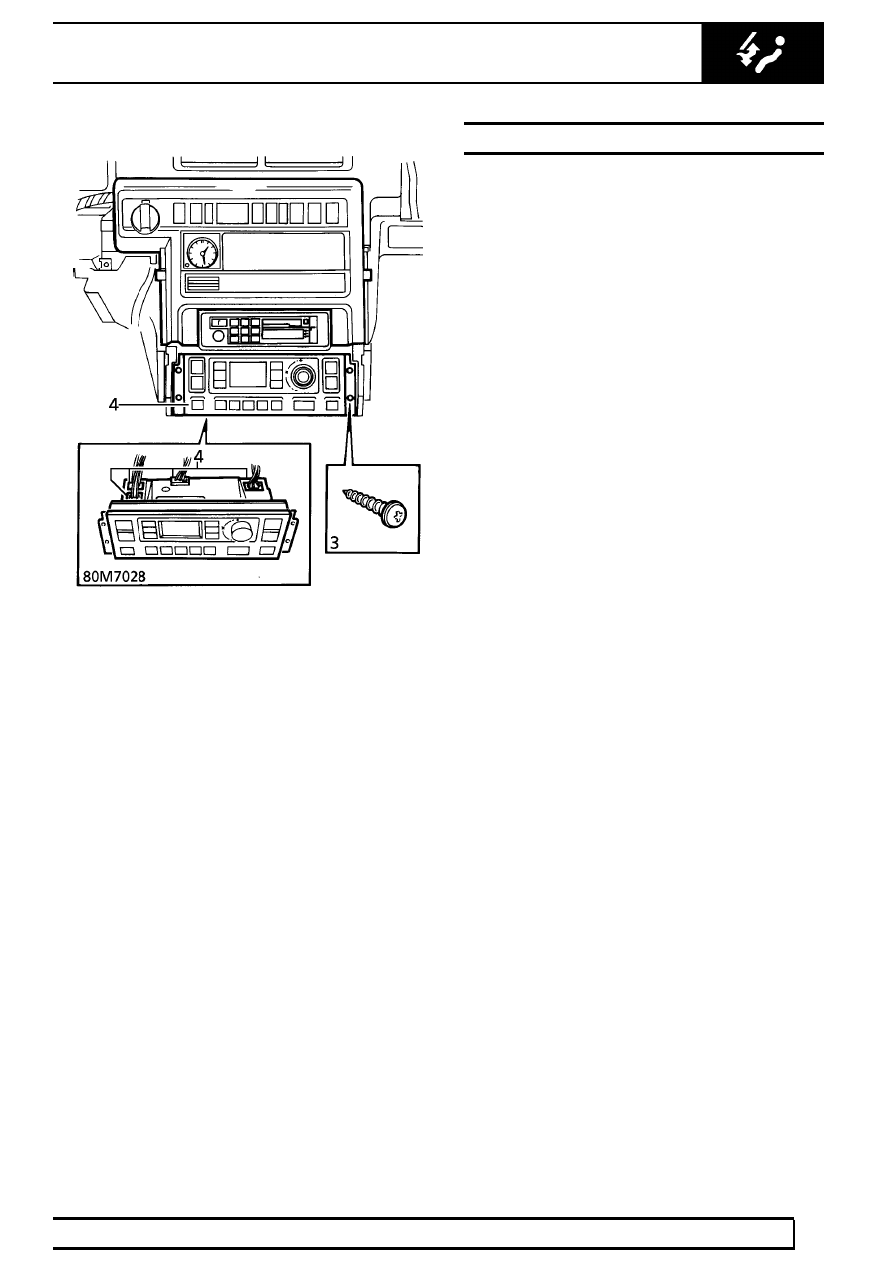

HEATER AND AIR CONDITIONING CONTROLS

Service repair no - 80.10.02

Remove

1. Move front seats to rearmost positions.
2. Remove 2 screws securing each side panel to

centre console. Release sprag clips from fascia
switch pack. Remove side panels.

3. Remove 4 screws securing control panel to

fascia. Release panel.

HEATING AND VENTILATION

11

REPAIR

4. Disconnect multiplugs. Remove control panel.

Refit

5. Reverse removal procedure.

PLENUM AIR INTAKE PANELS

Service repair no - 80.15.62

Remove

1. Remove windscreen lower finisher.

See

CHASSIS AND BODY, Repair.

2. Remove 3 screws securing each outer plenum

panel.

3. Remove RH plenum panel.
4. Raise LH plenum panel. Disconnect bonnet

harness multiplug.

5. Release harness sleeve from panel. Remove LH

plenum panel.

6. Remove 8 screws securing centre plenum panel.

Remove panel

Refit

7. Reverse removal procedure.

80

HEATING AND VENTILATION

NEW RANGE ROVER

12

REPAIR

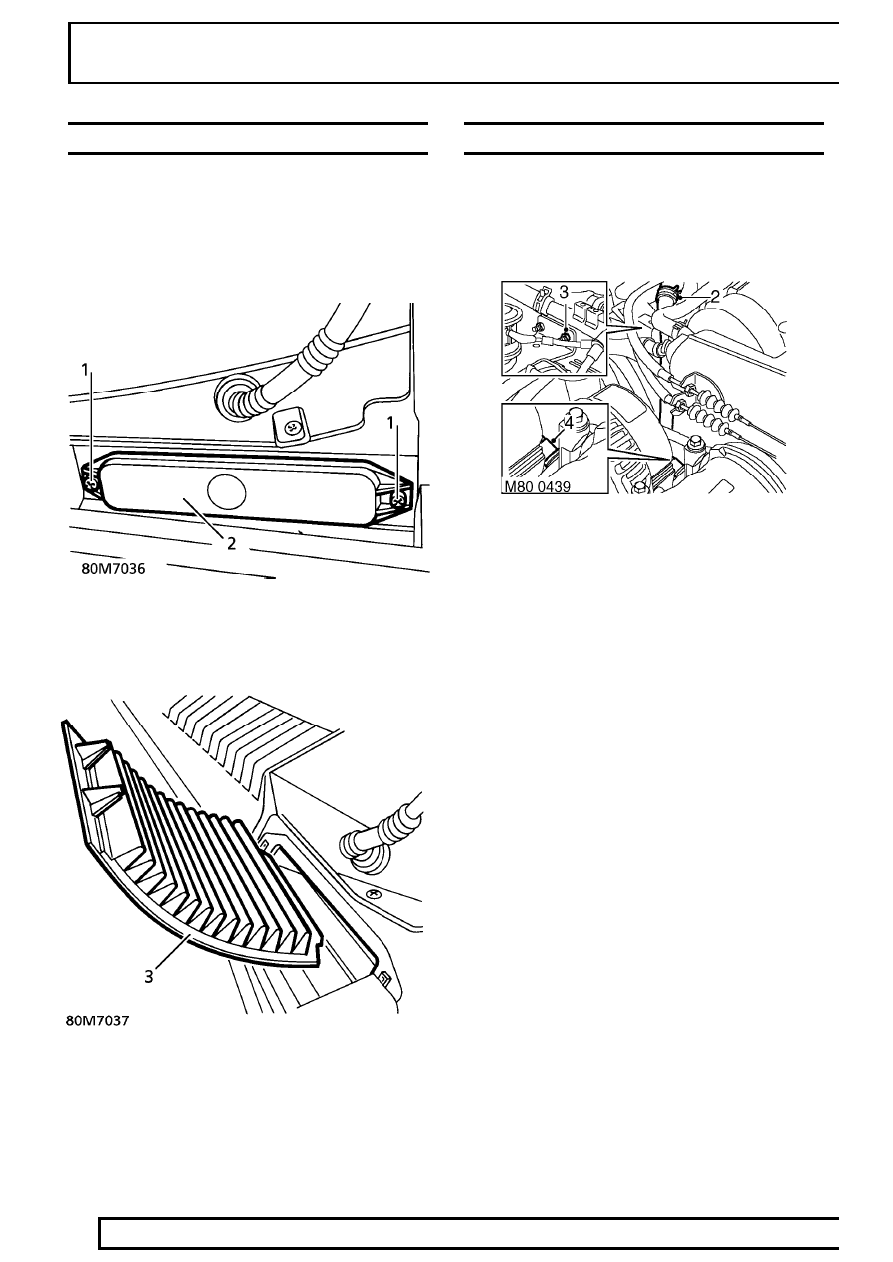

POLLEN FILTER

Service repair no - 80.15.42

Remove

1. Remove 2 screws securing each pollen filter

cover.

2. Remove pollen filter covers.
3. Remove pollen filters.

Refit

4. Reverse removal procedure.

PIPE - HEATER - FEED

Service repair no - 80.25.07

Remove

1. Remove heater return pipe.

See this section.

2. Release clip securing heater feed hose to heater

feed pipe and disconnect hose from pipe.

3. Remove nut securing heater feed pipe to plenum

chamber.

4. Press quick release connector and release

heater feed pipe from plenum chamber.

5. Remove and discard ’O’ ring from pipe.

Refit

6. Fit new ’O’ ring to heater feed pipe and lubricate

with castor oil.

7. Secure heater feed pipe to plenum chamber.
8. Fit and tighten nut securing heater feed pipe to

plenum chamber.

9. Connect heater feed hose to heater feed pipe

and secure with clip.

10. Fit heater return pipe.

See this section.
