SEATS

7

REPAIR

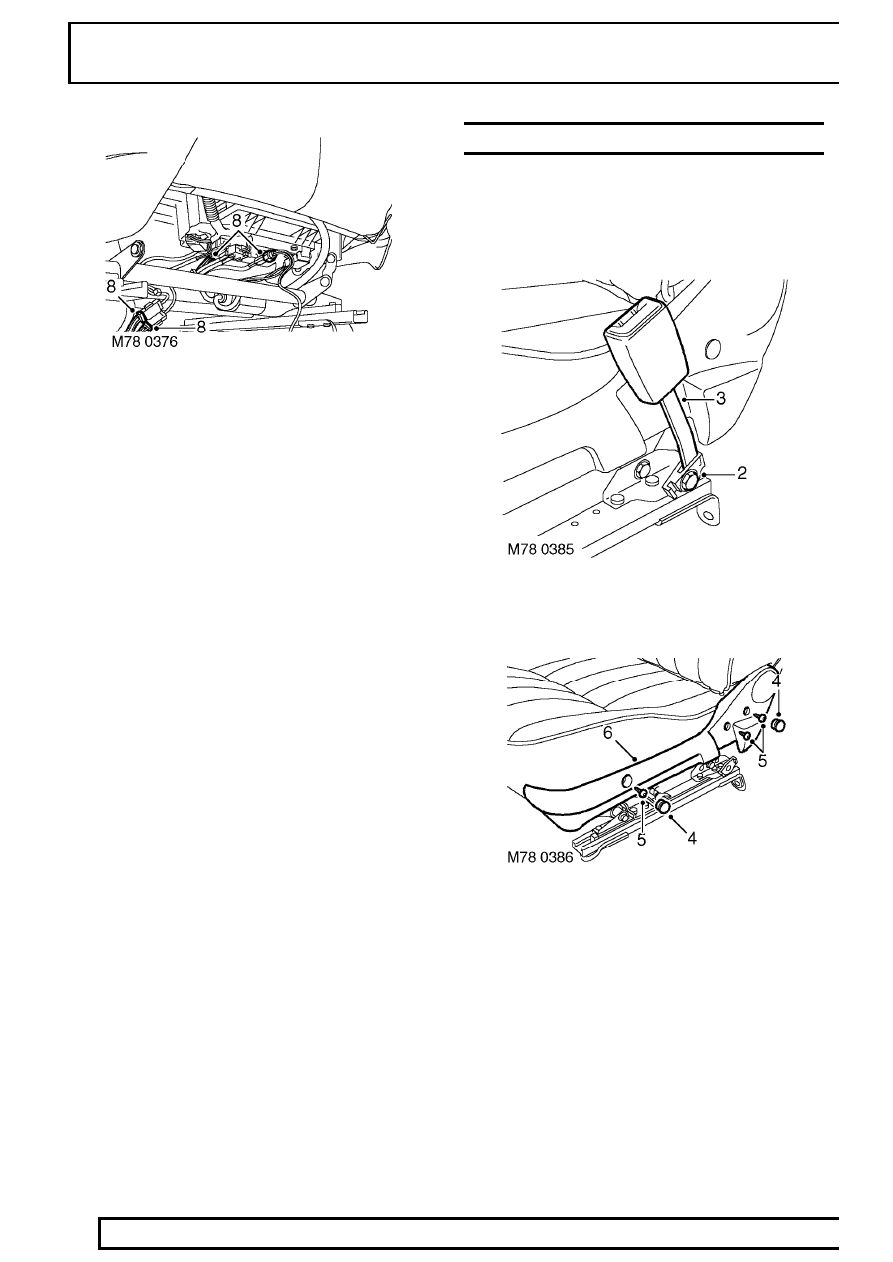

4. Remove seat base cover.
5. Remove bolt cover from seat belt lower

anchorage point.

6. Unclip seat belt from lower anchorage point.
7. Remove 4 bolts securing seat.

8. Raise seat for access. Disconnect multiplugs.

9. Remove seat.

78

SEATS

NEW RANGE ROVER

8

REPAIR

Refit

10. Reverse removal procedure.
11. Tighten seat fixings to

29 Nm (21 lbf.ft)

WARNING: Ensure that seat belt locates
correctly over mounting bolt before fitting
bolt cover.

FRONT SEAT - from 99MY

Service repair no - 78.10.43/99

Remove

WARNING: See SRS safety precautions
before commencement of repair. See
SUPPLEMENTARY RESTRAINT SYSTEM,

Precautions.

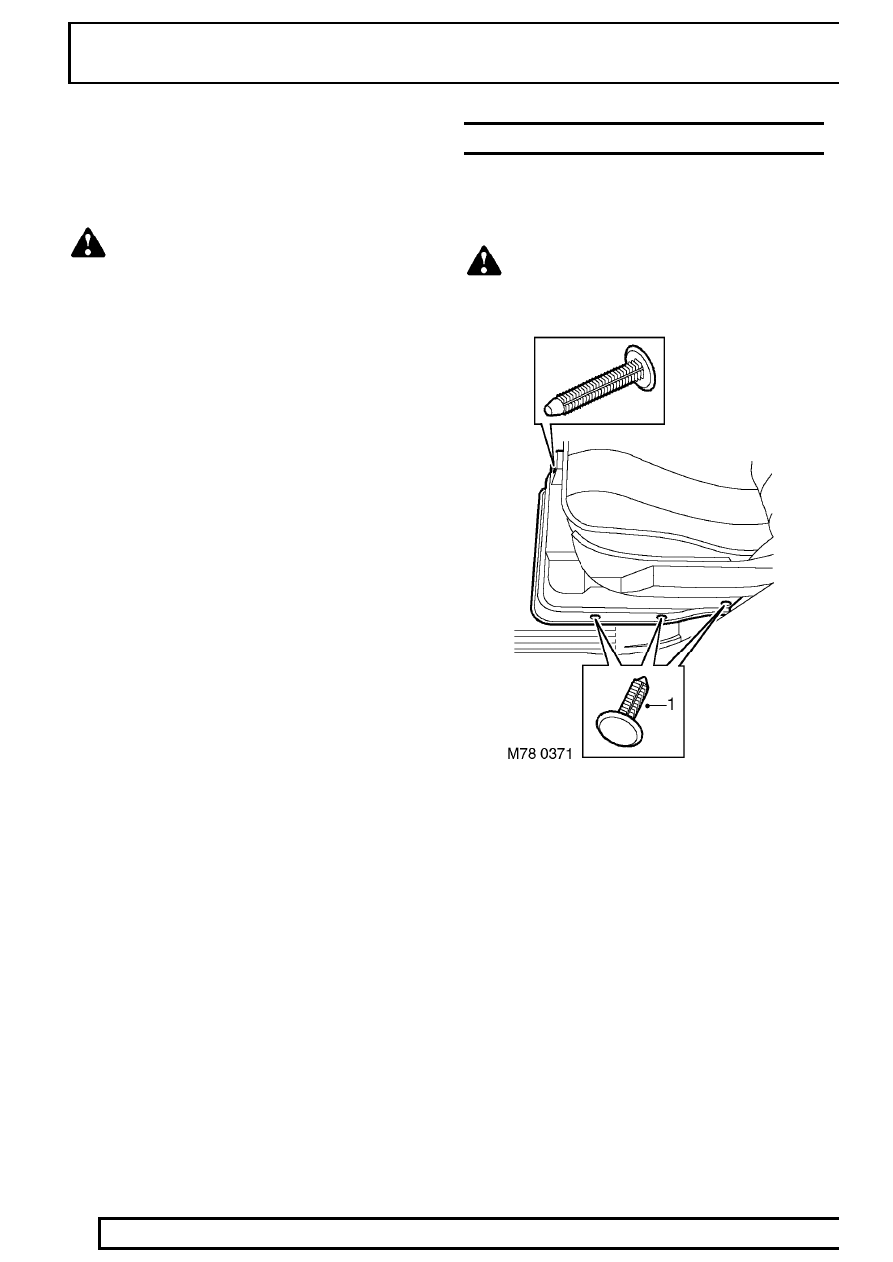

1. LH seat: Remove 4 fixings securing seat base

finisher. Remove finisher.

SEATS

9

REPAIR

2. RH seat: Remove fuse cover from seat base

finisher. Remove 3 fixings and 1 screw securing
finisher. Remove finisher.

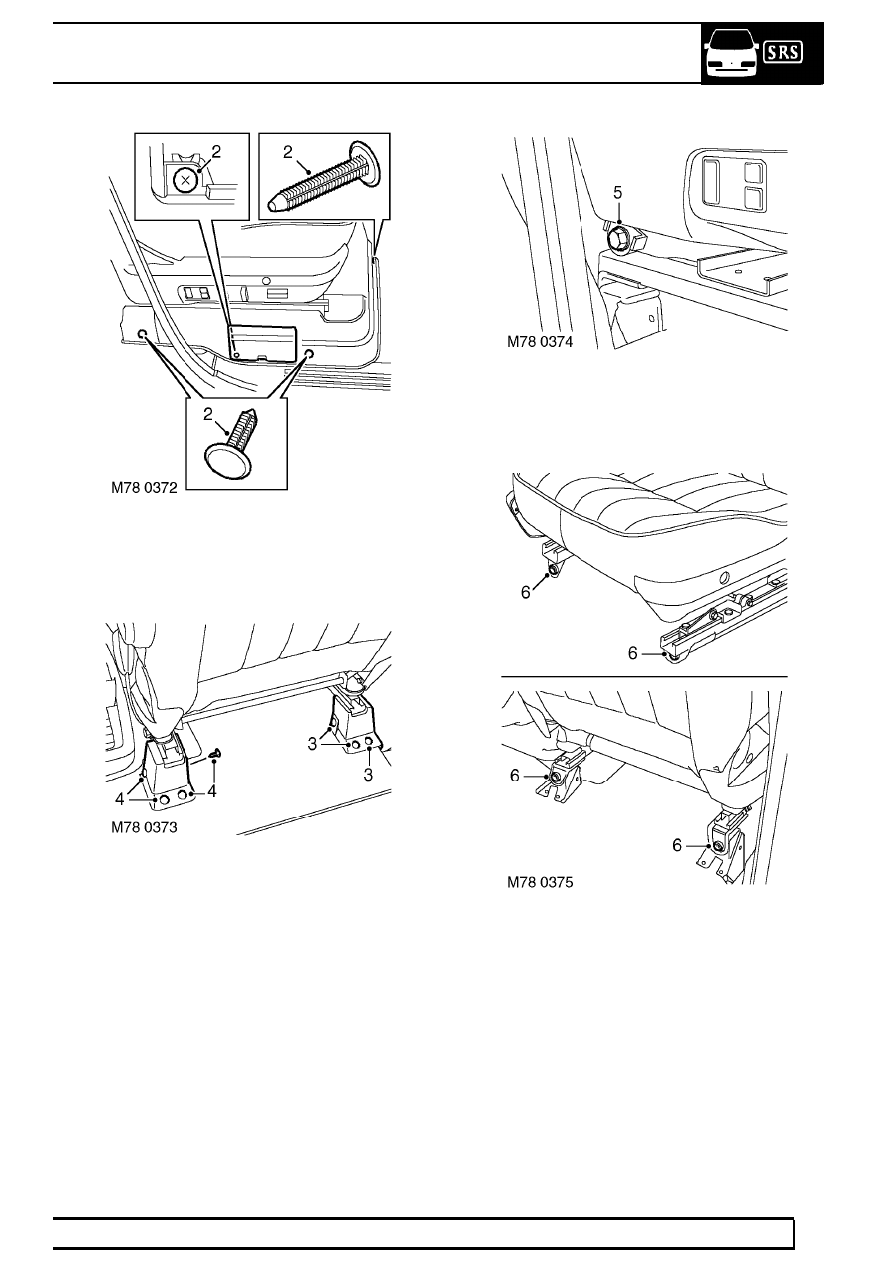

3. Remove 3 fixings securing rear outer base

finisher to seat mounting bracket. Remove
finisher.

4. Remove 4 fixings securing rear inner seat base

finisher to seat mounting bracket. Remove
finisher.

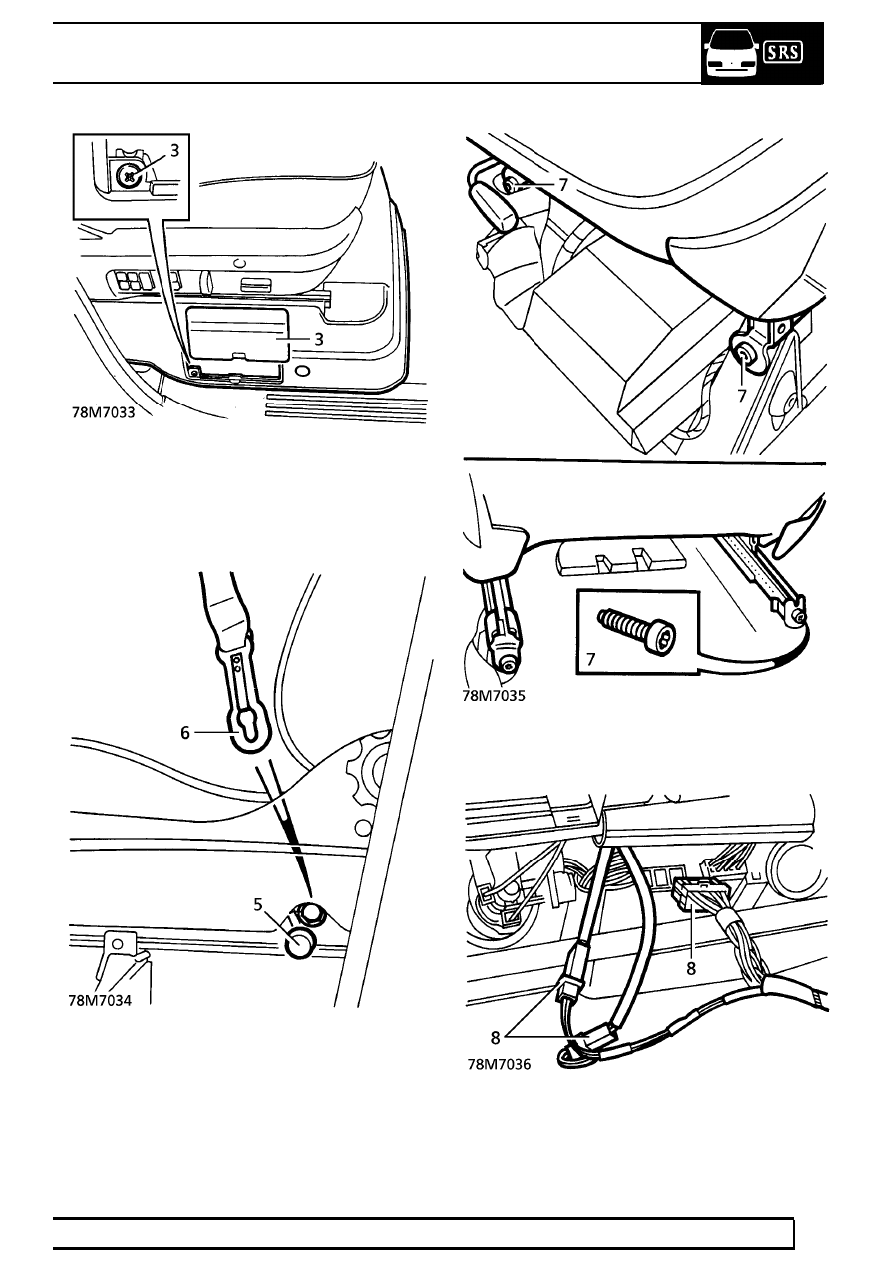

5. Remove bolt securing seat belt to seat. Release

seat belt from seat.

6. Remove 4 Torx bolts securing seat to seat

mounting brackets.

7. Release seat from mountings for access to seat

base.

78

SEATS

NEW RANGE ROVER

10

REPAIR

8. Disconnect 4 multiplugs underneath seat and

remove seat from vehicle.

Refit

9. Fit seat to vehicle, connect multiplugs, align seat

to mountings and tighten torx bolts to

29 Nm

(21 lbf.ft).

10. Position seat belt to seat and tighten bolt to

32 Nm (23 lbf.ft). Fit bolt cover.

11. Fit both rear seat base finishers and secure with

fixings.

12. LH seat: Fit seat base finisher and secure with

fixings.

13. RH seat: Fit screw securing finisher and fit fuse

box cover.

14. Connect battery, earth lead last.

COVER - CUSHION - FRONT SEAT - from 99MY

Service repair no - 78.30.01/81

Remove

1. Remove front seat.

See this section.

2. Remove bolt securing seat belt stalk.
3. Remove seat belt stalk.

4. Remove 2 screw covers.
5. Remove 3 screws securing inner side finisher.
6. Remove side finisher.
