SUPPLEMENTARY RESTRAINT SYSTEM

21

PRECAUTIONS

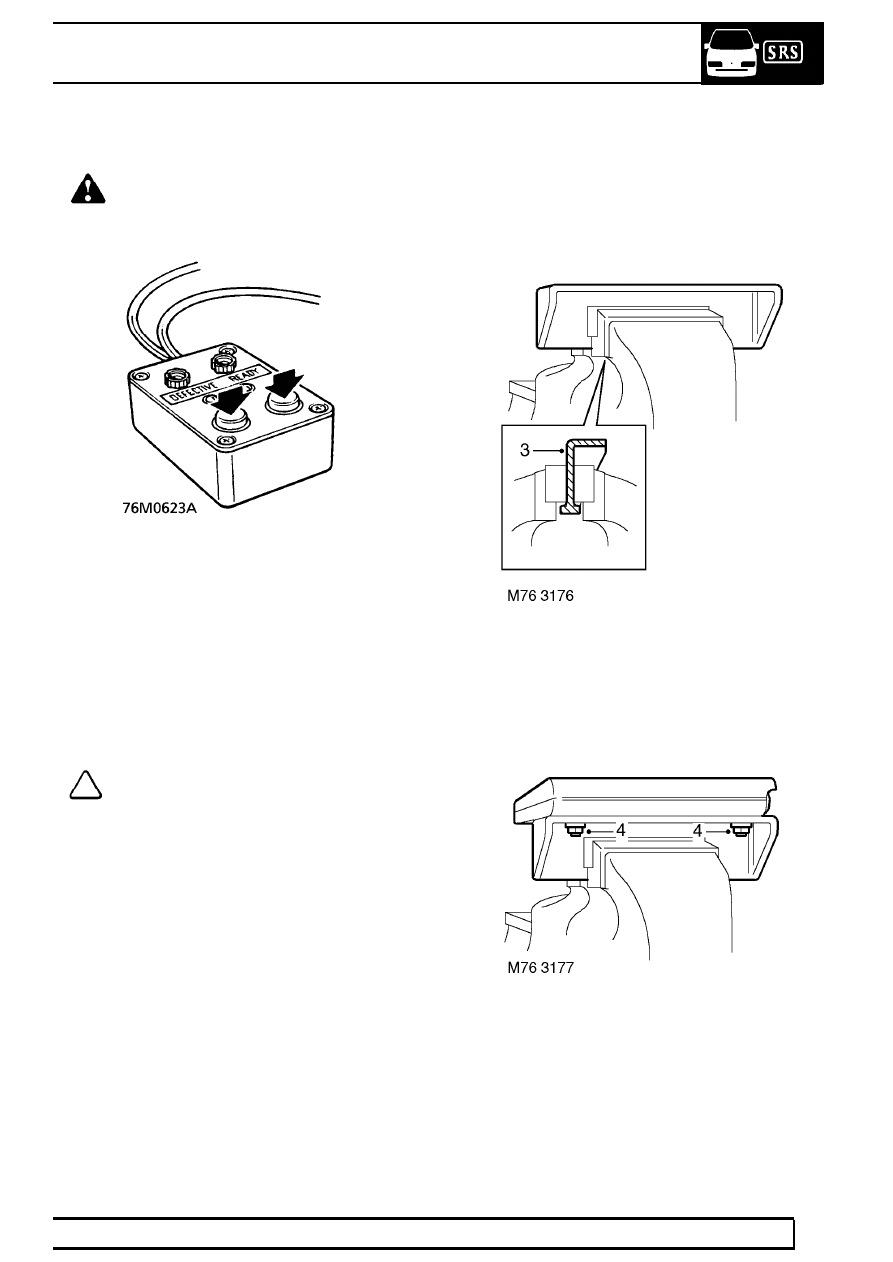

9. Connect tool SMD 4082/1 to battery.

WARNING: Ensure all personnel are
standing at least 15 metres away from
module.

10. Press both operating buttons to deploy airbag

module.

11. DO NOT return to airbag module for 30 minutes.
12. Using gloves and face mask, remove airbag

module from tool, place airbag module in plastic
bag and seal bag.

13. Wipe down tool SMD 4082/6 with a damp cloth.
14. Transport deployed airbag module to designated

area for incineration

NOTE: DO NOT transport airbag module in
the vehicle passenger compartment.

Side airbag modules

1. Carry out deployment tool self test.
2. Remove side airbag module from seat.

See

Repair.

3. Position tool SMD 4082/2 in vice, ensuring that

vice jaws grip tool above bottom flange to
prevent possibility of tool being forced upwards
from vice. Tighten vice.

4. Secure airbag module to tool SMD 4082/2.

Ensure side airbag module is correctly secured
using all fixings.

75

SUPPLEMENTARY RESTRAINT SYSTEM

NEW RANGE ROVER

22

PRECAUTIONS

WARNING: Ensure tool SMD 4082/1 is not
connected to battery.

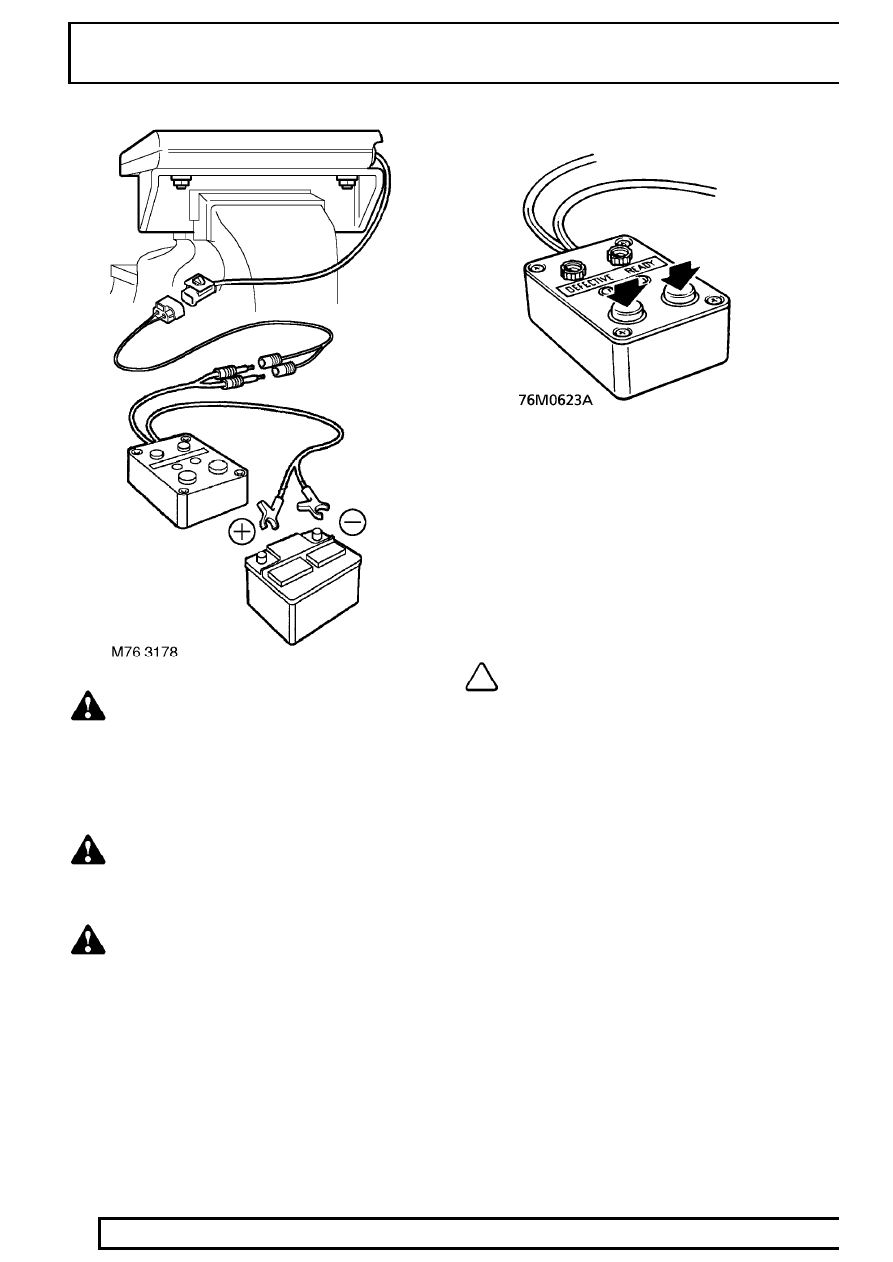

5. Connect deployment tool flylead to side airbag

module connector.

6. Connect deployment tool flylead to deployment

tool SMD 4082/1.

WARNING: Do not lean over module whilst
connecting.

7. Connect deployment tool SMD 4082/1 to battery.

WARNING: Ensure all personnel are
standing at least 15 metres away from
module.

8. Press both operating buttons to deploy airbag

module.

9. DO NOT return to airbag module for 30 minutes.

10. Using gloves and face mask, remove airbag

module from tool, place airbag module in plastic
bag and seal bag.

11. Wipe down tool SMD 4082/2 with a damp cloth.
12. Transport deployed airbag module to designated

area for incineration

NOTE: DO NOT transport airbag module in
the vehicle passenger compartment.

SUPPLEMENTARY RESTRAINT SYSTEM

23

PRECAUTIONS

SRS SYSTEM COMPONENT REPLACEMENT
POLICY

Impacts which do not deploy the airbags or seat
belt pre-tensioners

Check for structural damage in the area of the impact,
paying particular attention to bumper armatures,
longitudinals, crash cans and bracketry.

Impacts which deploy the airbags or seat belt
pre-tensioners

The replacement and inspection policy is dependent
on the type and severity of the crash condition. The
following guidelines are the minimum that should be
exercised as a result of specific SRS components.

Front airbag deployment (driver and passenger)

If the front airbags are deployed, the following parts
must be replaced:

Front impact sensors (NAS - distributed system
only),

Rotary coupler,

Driver airbag module,

Passenger airbag module,

Front seat belt pre-tensioners,

SRS diagnostic control unit (DCU),

Flyleads (where applicable) connecting front
airbags to SRS harness.

In addition, the following should be inspected for
damage and replaced as necessary:

Rear seat belt buckles (webbing, buckle covers,
body anchorage and tongue latching function)

Fascia moulding adjacent to passenger airbag
module.

Complete steering wheel assembly including
associated switches.

Front seat frames and head restraints (if there is
evidence of damage to the seat frame or cushion
pan).

Steering column (if adjustment is lost or there
are signs of collapse).

Side (Thorax) airbags

If the side (thorax) airbags are deployed, the following
parts must be replaced, on the side of the vehicle on
which deployment occurred:

Seat (thorax) airbag module

Seat squab foam

Seat squab cover

Front seat belt pre-tensioners

SRS diagnostic control unit (DCU)

In addition, the following should be inspected for
damage and replaced as necessary:

Front seat belt buckle and anchorage.

Rear seat belt buckles (webbing, buckle covers,
tongue latching and body anchorage)

Front seat frame (if there is evidence of external
or airbag deployment damage to seat frame)

’BC’ post internal finishers and fixings

Door casing

Periodic replacement of SRS components

The performance of the propellants within airbags and
pre-tensioners will deteriorate over a period of time.
As a result, it is essential that the airbags and
pre-tensioners are periodically replaced to maintain
occupant safety. Comply with the following periodic
replacement instructions:

Driver and Passenger airbag module - every 10
years

Side (thorax) airbag modules - every 15 years

Front seat belt pre-tensioners - every 15 years

75

SUPPLEMENTARY RESTRAINT SYSTEM

NEW RANGE ROVER

24

PRECAUTIONS

STEERING COLUMN PRECAUTIONS

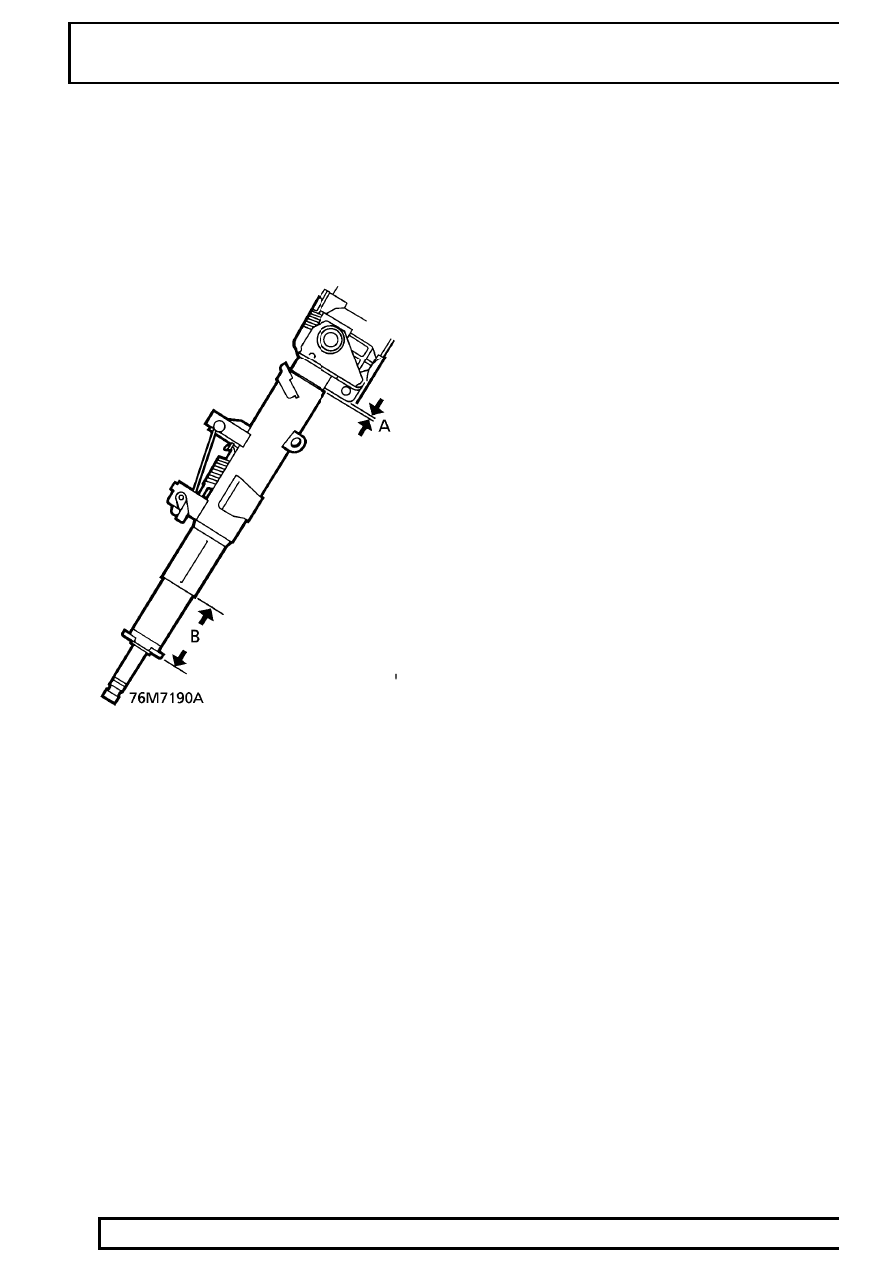

Dimensions ’A’ AND ’B’ on steering column must be
within tolerance.

Dimension ’A’: 3.5 mm

±

1.0 mm (0.14 in.

±

0.04 in.)

Dimension ’B’: 75.5 mm

±

1.0 mm (2.97 in.

±

0.04 in.)

If dimension ’A’ is incorrect replace steering column.

If dimension ’B’ is incorrect replace steering column,
and pedal box.
