Range Rover. Manual - part 209





ABS

23

REPAIR

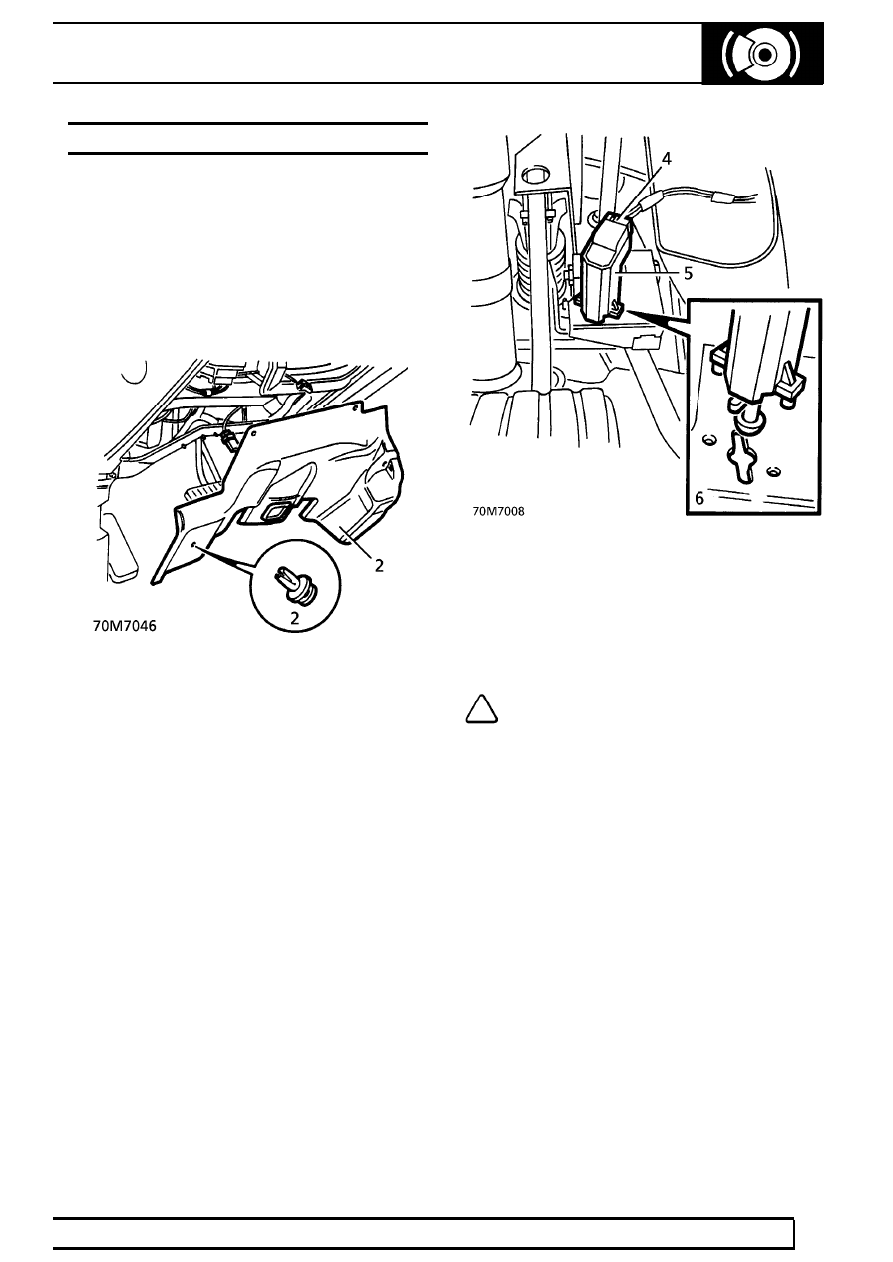

STOP LIGHT SWITCH - UP TO 99MY

Service repair no - 70.35.42

Remove

1. Remove driver side fascia closing panel.

See

CHASSIS AND BODY, Repair.

2. Remove 3 scrivet fasteners securing lower

closing panel. Release panel for access to
blower motor ducting.

3. Release ducting from blower motor housing and

heater. Remove blower motor ducting.

4. Release multiplug from stop light switch.

5. Remove stop light switch from pedal bracket.

Refit

6. Engage switch fully into pedal bracket location.
7. Connect multiplug.

NOTE: The stop light switch is factory set
and requires no adjustment in service.

8. Position blower ducting, fit to heater and blower

motor housing locations.

9. Position lower closing panel and secure with

scrivet fasteners.

10. Fit driver side fascia closing panel.

See

CHASSIS AND BODY, Repair.

70

BRAKES

NEW RANGE ROVER

24

REPAIR

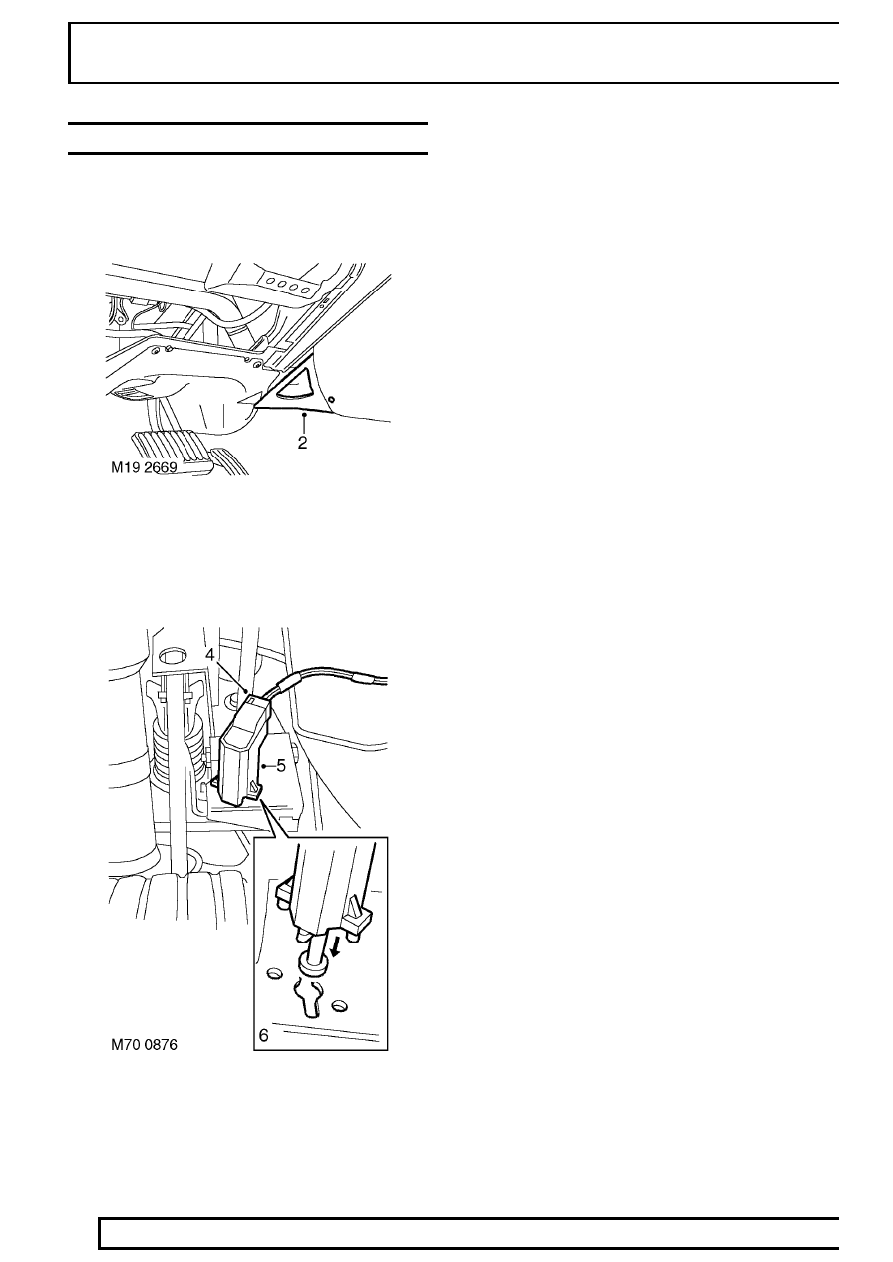

STOP LIGHT SWITCH - FROM 99MY

Service repair no - 70.35.42

1. Remove closing panel from fascia.

See

CHASSIS AND BODY, Repair.

2. Remove screw and remove heater outlet duct.
3. Remove 4 scrivets and remove access panel

from fascia.

4. Release and remove heater air duct for access

to stop light switch.

5. Disconnect multiplug from stop light switch.
6. Remove stop light switch from pedal bracket.

Refit

7. Ensure new stop light switch plunger is fully

extended for initial setting.

8. Fit stop light switch to pedal bracket and connect

multiplug.

9. Fit heater air duct.

10. Fit access panel and secure with scrivets.
11. Fit heater outlet duct and secure with screw.
12. Fit closing panel to fascia.

See CHASSIS AND

BODY, Repair.

75 - SUPPLEMENTARY RESTRAINT SYSTEM

CONTENTS

Page

SUPPLEMENTARY RESTRAINT SYSTEM

DESCRIPTION AND OPERATION

SYSTEM DESCRIPTION

1

.....................................................................................

SYSTEM COMPONENTS LOCATION

2

................................................................

SYSTEM SCHEMATIC

4

........................................................................................

SYSTEM COMPONENTS DESCRIPTION

6

..........................................................

OPERATION

17

......................................................................................................

PRECAUTIONS

GENERAL PRECAUTIONS

1

.................................................................................

CRASH SENSOR INSPECTION - DISTRIBUTED SRS SYSTEM ONLY

5

............

ROTARY COUPLER PRECAUTIONS

5

.................................................................

WARNING LABELS

6

.............................................................................................

VEHICLE RECOVERY

10

.......................................................................................

SRS COMPONENT DEPLOYMENT

10

..................................................................

SRS COMPONENT REPLACEMENT POLICY

23

..................................................

REPAIR

AIRBAG MODULE - PASSENGER SIDE

1

.............................................................

SRS DCU

2

.............................................................................................................

SRS HARNESS - SINGLE POINT SENSED SYSTEM

3

........................................

SRS HARNESS - DISTRIBUTED SYSTEM

3

.........................................................

SRS CRASH SENSOR

8

........................................................................................

AIRBAG MODULE - DRIVER SIDE

9

.....................................................................

PRE-TENSIONER - SEAT BELT - FRONT - from 99MY

10

...................................

AIRBAG - SIDE IMPACT - from 99MY

11

...............................................................
