ELECTRONIC AIR SUSPENSION

5

REPAIR

AIR COMPRESSOR

Service repair no - 60.50.10

Remove

WARNING: The air suspension is
pressurised to 10 bar (150 lbf/in

2

) . Dirt or

grease must not enter the system. Wear

hand, ear and eye safety standard protection
when servicing system.

1. Depressurise system.

See this section.

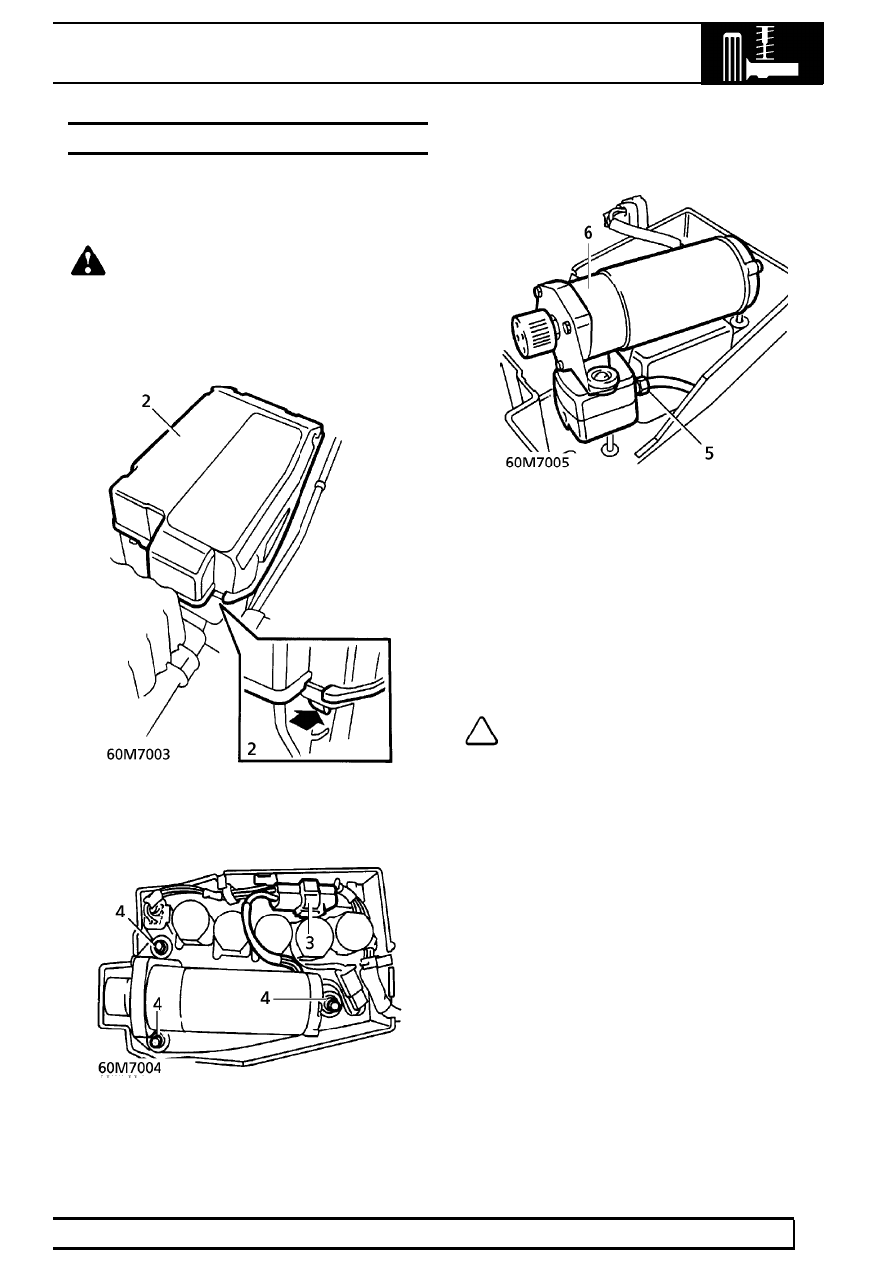

2. Remove cover from air supply unit.
3. Release compressor multiplug from casing and

disconnect plug.

4. Remove 3 nuts and dished washers securing

compressor. Note orientation of dished washers.

5. Remove compressor outlet pipe, seal exposed

ends.

6. Remove compressor.

Refit

7. Remove seals from air hose and compressor.

Connect air hose to compressor and tighten
union nut to

7 Nm. (5 lbf.ft)

8. Fit compressor ensuring correct orientation of

dished washers. Tighten fixings to

2 Nm.

(1.5 lbf.ft)

NOTE: Ensure compressor is mounted
centrally on mountings. Failure to align
mountings may result in excessive noise

and premature mounting rubber wear.

9. Connect compressor multiplug, secure to casing.

10. Leak test connection.

See this section.

11. Fit cover to air supply unit.

60

FRONT SUSPENSION

NEW RANGE ROVER

6

REPAIR

AIR RESERVOIR

Service repair no - 60.50.03

WARNING: Air suspension is pressurised
to 10 bar (150 lbf/in

2

). Dirt or grease must

not enter the system. Wear hand, ear and

eye safety standard protection when servicing
system.

Remove

1. Depressurise system.

See this section.

2. Raise the vehicle.

WARNING: Support on safety stands.

3. Clean air connection.

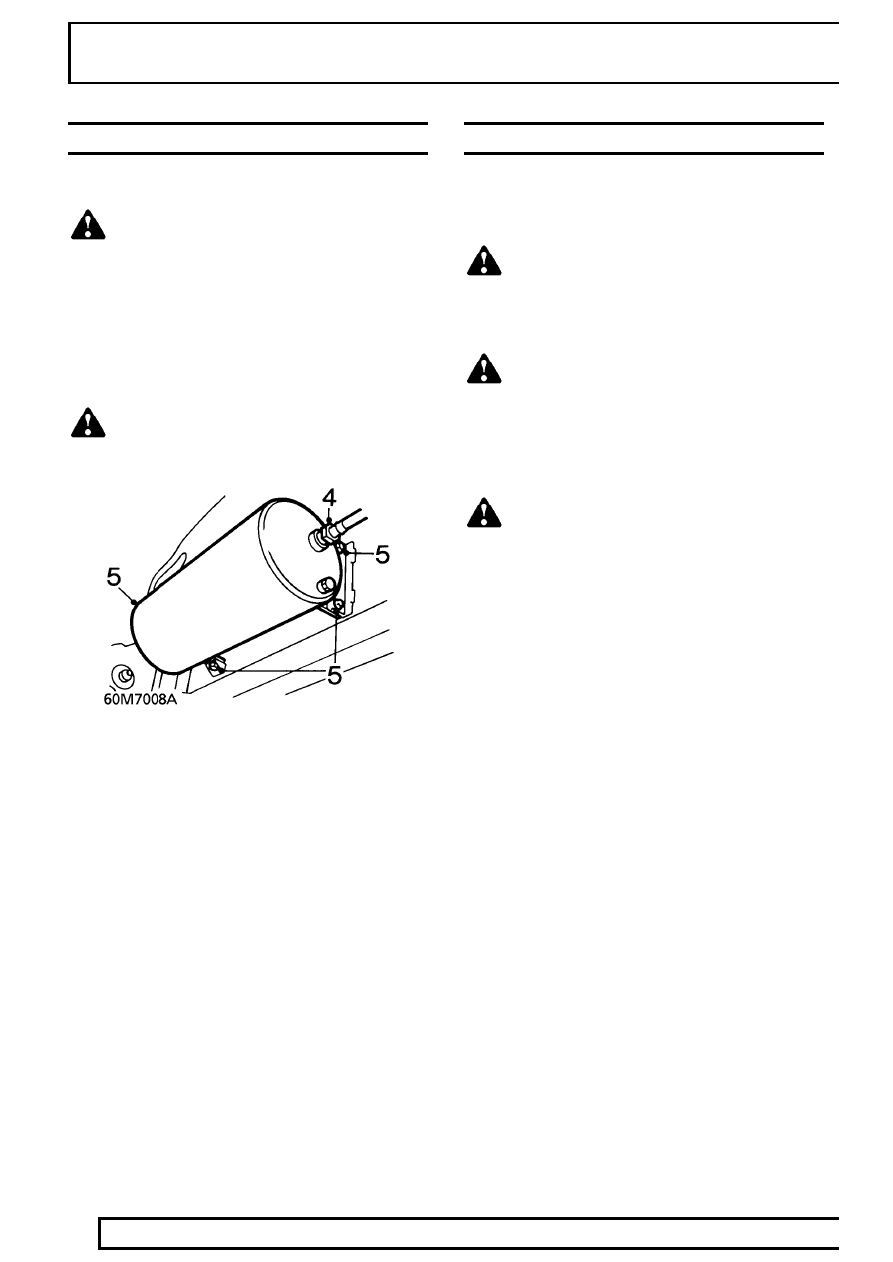

4. Release air pipe from reservoir, seal hose and

reservoir.

5. Remove 3 bolts securing reservoir. Remove

reservoir.

Refit

6. Fit reservoir, tighten bolts to

25 Nm. (18 lbf.ft)

7. Remove seals from air pipe and reservoir.
8. Connect air hose to reservoir.
9. Leak test reservoir.

See this section.

10. Fit rubber boot to connection.
11. Remove safety stands. Lower vehicle.

AIR SPRING

Service repair no - 60.21.01

Remove

WARNING: Air suspension is pressurised
up to 10 bar (150 lbf/in

2

). Dirt and grease

must not enter the system. Wear hand, ear

and eye standard protection when servicing the
system.

WARNING: Shock absorbers must be fitted
before inflating air springs. Failure to
observe this warning could cause air

spring damage. DO NOT ATTEMPT TO
DISMANTLE AIR SPRINGS.

1. Raise the vehicle.

WARNING: Support on safety stands.

2. Remove wheel arch liner.

See CHASSIS AND

BODY, Repair.

3. Support chassis under front cross member.
4. Depressurise system.

See this section.

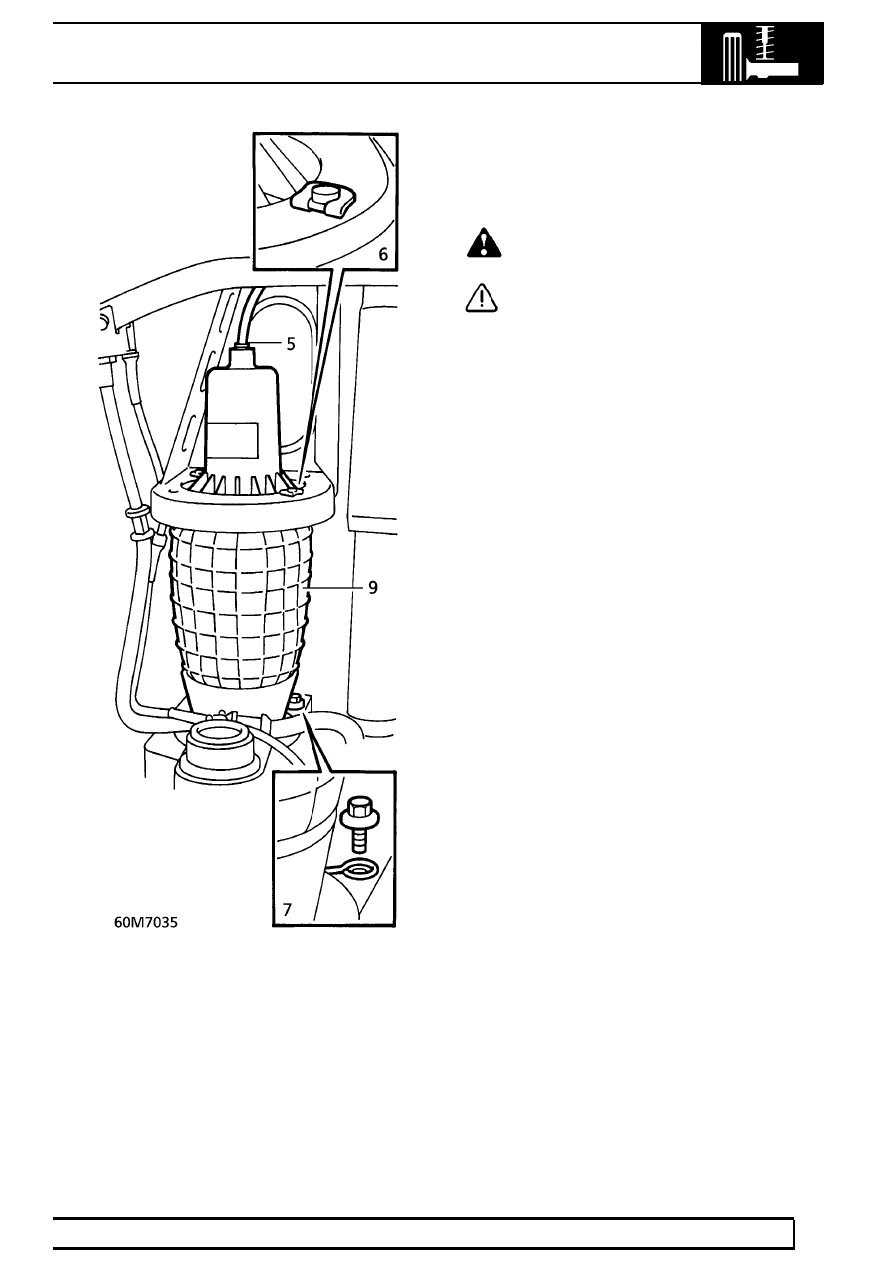

5. Clean area, disconnect hose from air spring.

Seal hose and spring.

6. Remove clips securing air spring.

ELECTRONIC AIR SUSPENSION

7

REPAIR

7. Remove bolt securing air spring retaining pin to

axle. Remove pin.

8. Raise chassis on jack for clearance to remove

air spring.

WARNING: Support on safety stands.

CAUTION: When refitting the air spring, do
not allow the vehicle to rest on the
deflated air spring.

The chassis must be supported until the air spring
is inflated.

9. Remove air spring.

Refit

10. Clean mating faces of axles chassis and air

spring.

11. Fit air spring to axle,fit retaining pin and secure

pin with bolt.

12. Remove support from under chassis, lower

chassis onto air spring. Fit clips to secure spring
to chassis.

13. Remove seals from spring and air pipe. Clean

hose, connect to spring.

14. Fit wheel arch liner.

See CHASSIS AND BODY,

Repair.

15. Remove safety stands. Lower vehicle.
16. Leak test air spring and connector.

See this

section.

60

FRONT SUSPENSION

NEW RANGE ROVER

8

REPAIR

ANTI-ROLL BAR AND BUSHES

Service repair no - 60.10.01 - Anti-roll bar
Service repair no - 60.10.05 - Bushes

Remove

1. Raise the vehicle.

WARNING: Support on safety stands.

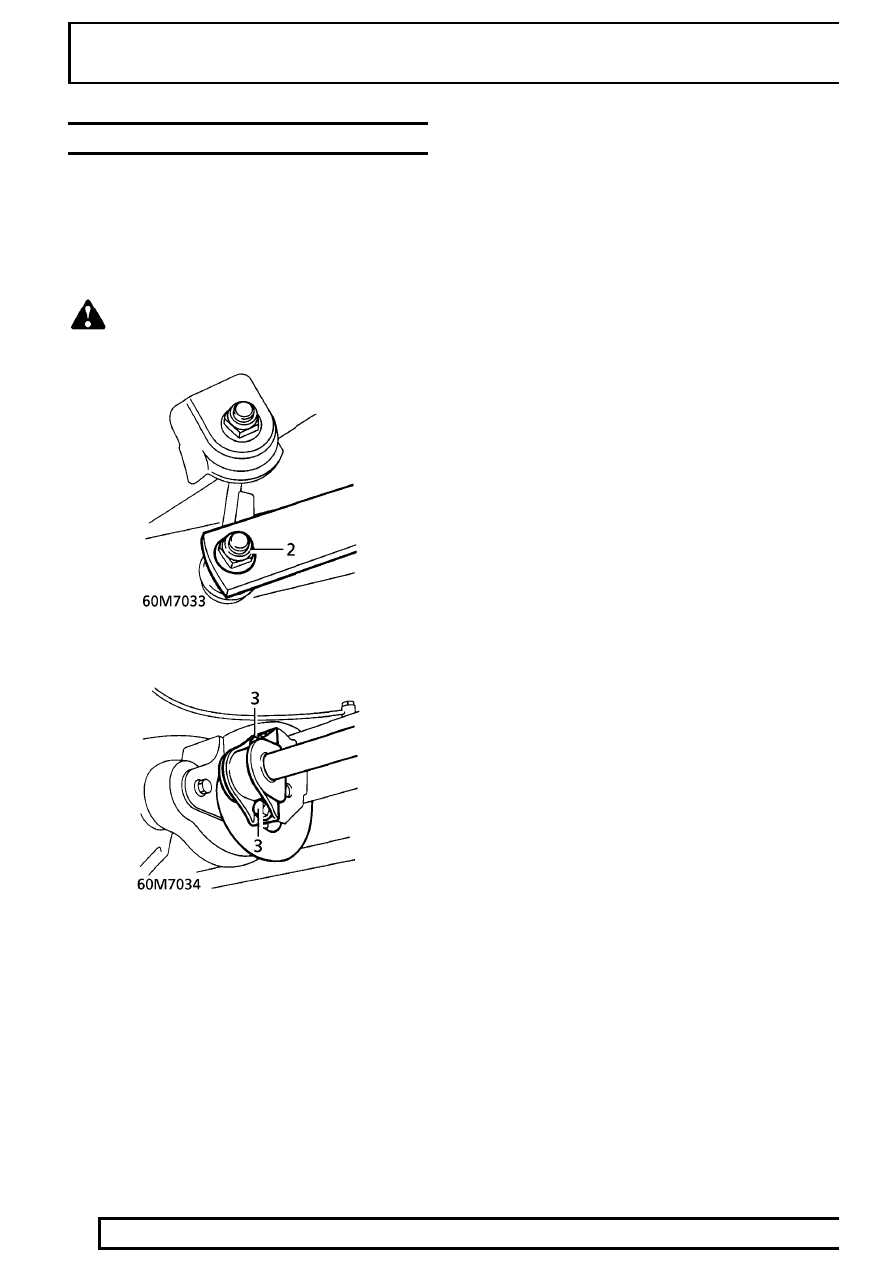

2. Remove nuts securing links to anti-roll bar.

3. Remove screws securing rubber bush clamps.

Remove clamps.

4. Release anti-roll bar from links.
5. Remove anti-roll bar.
6. Remove bushes.

Refit

7. Fit and align anti-roll bar.
8. Connect links to anti-roll bar.
9. Fit, do not tighten, link retaining nuts.

10. Clean anti-roll bar bush location.
11. Apply suitable lubricant to bushes
12. Fit bushes and clamps.
13. Fit clamp screws. Tighten to

to 125 Nm.

(92 lbf.ft)

14. Tighten link nuts to

125 Nm. (92 lbf.ft)

15. Remove safety stands. Lower vehicle.
