ZF AUTO

13

REPAIR

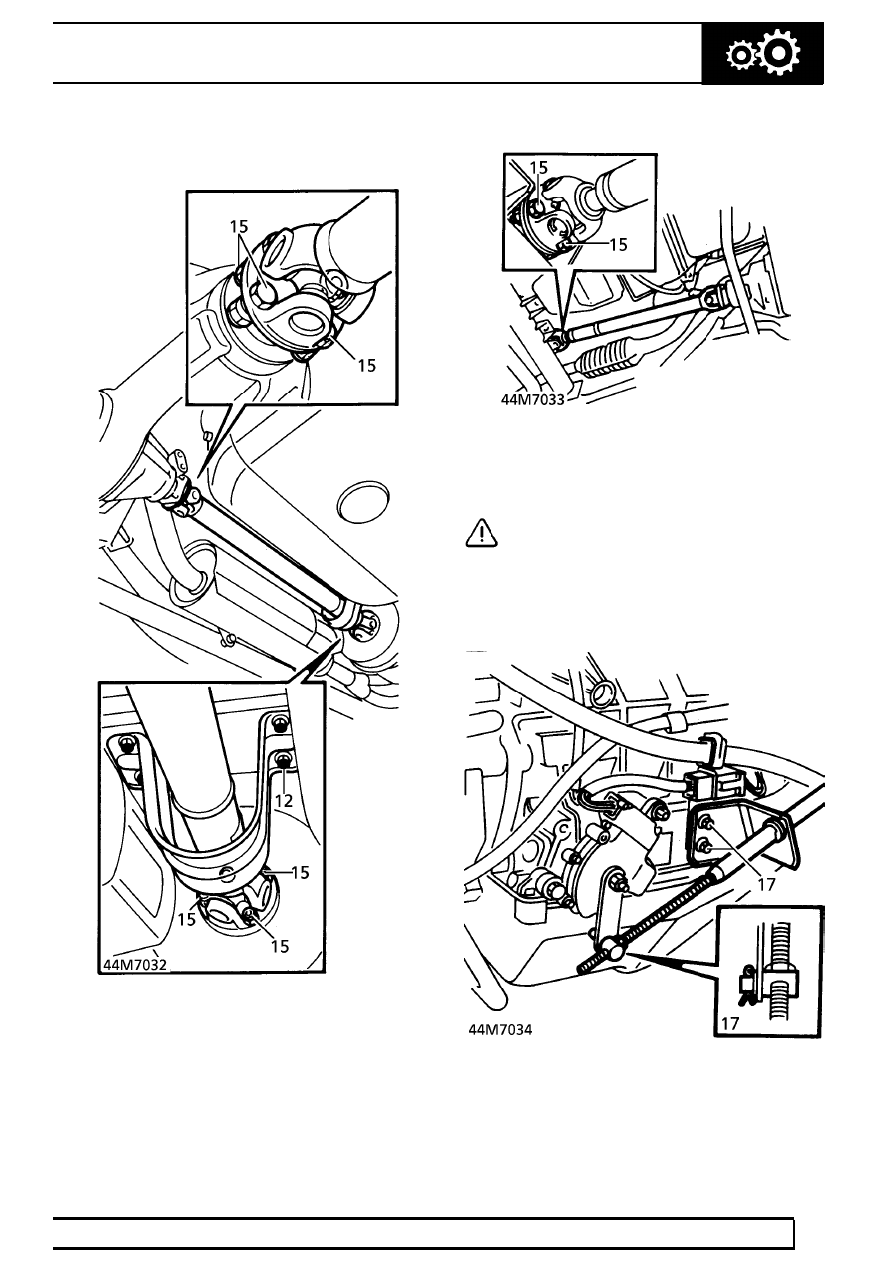

12. Remove 4 bolts securing rear propeller shaft

guard. Remove guard.

13. Mark transfer box and propeller shaft flanges to

aid re-assembly.

14. Raise one wheel on each axle to allow rotation

of propeller shafts.

15. Remove 4 bolts from each flange. Disconnect

propeller shafts. Tie aside.

16. Lower gearbox for access.

CAUTION: Place wooden block between
axle case and sump to support engine.

17. Disconnect gear selector cable trunnion from

gearbox lever. Remove 2 bolts securing selector
cable abutment bracket to gearbox. Place
selector cable aside.

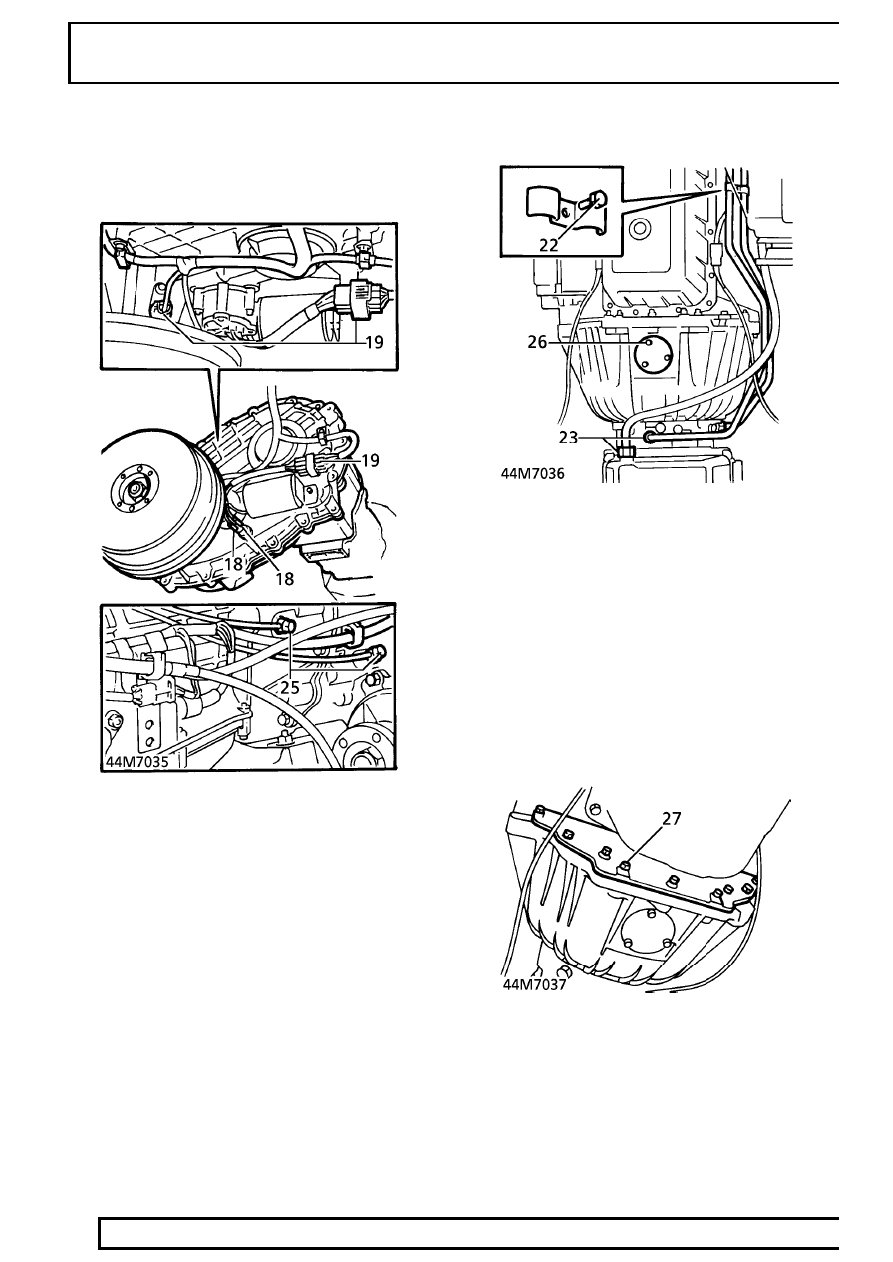

18. Disconnect 2 Lucars from transfer box fluid

temperature sensor.

44

AUTOMATIC GEARBOX

NEW RANGE ROVER

14

REPAIR

19. Disconnect multiplugs from High/Low motor and

output shaft speed sensor.

20. Disconnect multiplugs from gear selection

position switch and gearbox speed sensor.

21. Release harness from clips.
22. Remove bolt from clamp securing gearbox

cooler pipes to engine.

23. Disconnect transmission cooler pipes. Remove

’O’ rings and discard. Plug pipes and
connections.

24. Release fluid filler pipe from gearbox. Remove

’O’ ring and discard. Plug pipe and connection.

25. Disconnect breather pipes from gearbox and

transfer box. Plug Pipes and connections.

26. Remove 3 bolts securing converter housing

lower access cover. Remove cover. Collect
gasket.

27. Remove 9 bolts securing converter drive plate

access cover. Remove cover.

28. Mark drive plate and converter to aid

re-assembly.

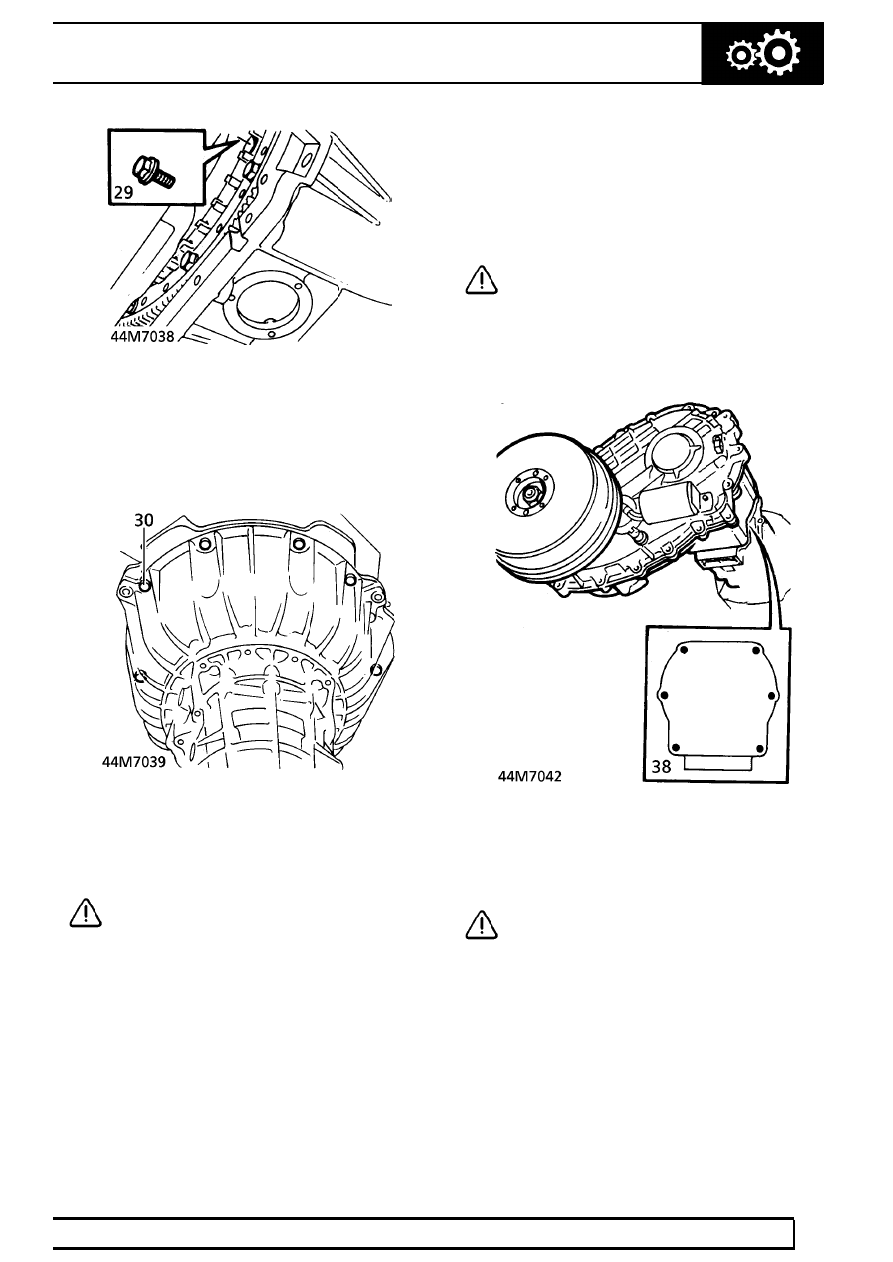

29. Remove 4 bolts securing drive plate to

converter.

ZF AUTO

15

REPAIR

30. Remove 8 bolts securing converter housing to

engine.

31. Remove transmission assembly.

CAUTION: Ensure converter does not
become detached from gearbox.

32. Fit retaining strap to converter. Secure with 2

nuts and bolts.

Do not carry out further dismantling if
component is removed for access only.

33. Lower transmission assembly from vehicle.
34. Attach lifting eyes to transmission.

35. Attach hoist to lifting eyes. Take weight of

transmission.

36. Remove lift adaptor. Hoist transmission

assembly onto bench.

37. Fit lifting eye to transmission brake drum. Raise

gearbox on end.

CAUTION: Position packers beneath bell
housing extension to provide clearance for
input shaft.

38. Remove 6 bolts securing transfer box to

gearbox. Release from 2 ring dowels. Remove
transfer box.

39. Ensure mating faces are clean.
40. Place gearbox on end. Position transfer box.
41. Engage transfer box to ring dowels. Secure to

gearbox with bolts. Tighten to

45 Nm (33 lbf.ft)

CAUTION: Ensure that gearbox is located
on both dowels, or transmission damage
may occur.

42. Place transmission on side. Fit lifting eyes.
43. Attach transmission to lift adaptor. Secure with

bolts.

44. Detach hoist. Remove lifting eyes.

44

AUTOMATIC GEARBOX

NEW RANGE ROVER

16

REPAIR

Refit

45. Ensure converter spigot and mating faces are

clean.

46. Remove converter retaining strap.
47. Position transmission to engine. Secure with

bolts. Tighten to

45 Nm (33 lbf.ft)

48. Position drive plate to converter. Align marks.

Secure with bolts. Tighten to

50 Nm (37 lbf.ft)

49. Position converter access panels. Use a new

gasket with lower panel. Secure panels with
bolts.

50. Remove plugs from breather pipes and

connections.

51. Using new sealing washers, secure breather

pipes to gearbox and transfer box with banjo
bolts.

52. Fit new seals to fluid filler and cooler pipes.

Connect pipes to transmission. Tighten to
22 Nm (16 lbf.ft)

53. Fit clamp to cooler pipes. Secure to engine with

bolt.

54. Route gearbox harness. Secure with clips.
55. Connect multiplugs to High/Low motor and

output shaft speed sensor.

56. Connect multiplugs to gear selection position

switch and gearbox speed sensor.

57. Connect Lucars to transfer box fluid temperature

sensor.

58. Align harness bracket to gearbox.
59. Position selector cable abutment bracket to

gearbox. Secure with bolts.

60. Raise transmission. Support under brake drum

with transmission jack.

61. Remove transmission lift adaptor. Remove lift.
62. Position transmission mounting assembly.

Secure with bolts. Tighten to

45 Nm (33 lbf.ft)

63. Adjust gear selector cable.

See Adjustment.

64. Raise one wheel on each axle to allow rotation

of propeller shafts.

65. Position shafts to transfer box flanges. Align

marks.

66. Secure shafts with nuts and bolts. Tighten to

48 Nm (35 lbf.ft)

67. Fit propeller shaft guard. Secure with bolts.
68. Guide hand brake cable through grommet in

transmission tunnel.

69. Diesel Vehicles:Fit chassis cross member.

See

CHASSIS AND BODY, Repair.

70. Fit exhaust front pipe.

See MANIFOLD AND

EXHAUST SYSTEM, Repair.

71. Fill transfer box with oil.

See LUBRICANTS,

FLUIDS AND CAPACITIES, Information.

72. Lower Vehicle
73. Connect handbrake cable to lever.
74. Fit window switch pack.

See ELECTRICAL,

Repair.

75. Position gearbox filler tube to engine. Secure

with bolt.

76. Petrol Engines:Position cooling fan cowl.

Secure with clips.

77. Fill gearbox with fluid.

See LUBRICANTS,

FLUIDS AND CAPACITIES, Information.

78. Reconnect battery negative lead.
