ZF AUTO

9

REPAIR

Refit

29. Clean shaft and seal housing.
30. Using a suitable adapter, fit new seal.
31. Fit selector quadrant and connecting rod.
32. Fit selector shaft and secure to quadrant using

new roll pin.

33. Fit valve block.

See this section.

34. Position selector switch and tighten nut and bolt.
35. Position selector shaft lever and tighten nut.
36. Fit selector switch multiplug to bracket and

connect harness to multiplug.

37. Align harness support bracket and gear selector

cable abutment bracket to gearbox and secure
with bolts.

38. Connect gear selector cable trunnion to lever

and fit split pin.

39. Adjust gear selector cable.

See this section.

40. Raise gearbox on transmission jack.
41. Fit handbrake cable through transmission tunnel.
42. Clean propeller shaft and transfer box flanges.
43. Fit shafts to transfer box flanges, align marks

and tighten nuts and bolts to

48 Nm (35 lbf.ft).

44. Fit rear propeller shaft guard and secure with

bolts.

45. Fit transmission mounting assembly and tighten

bolts to

45 Nm (33 lbf.ft).

46. Diesel models: Fit chassis crossmember.

See

CHASSIS AND BODY, Repair.

47. Petrol models: Fit exhaust front pipe.

See

MANIFOLD AND EXHAUST SYSTEM, Repair.

48. Connect handbrake cable to lever and fit clevis

pin and clip.

49. Fit window switch pack.

See ELECTRICAL,

Repair.

50. Petrol models: Fit engine RH lifting eye, align

earth strap and secure with bolts.

51. Petrol models: Fit cooling fan cowl and secure

with clips.

52. Connect battery earth lead.
53. Fit and secure battery cover.

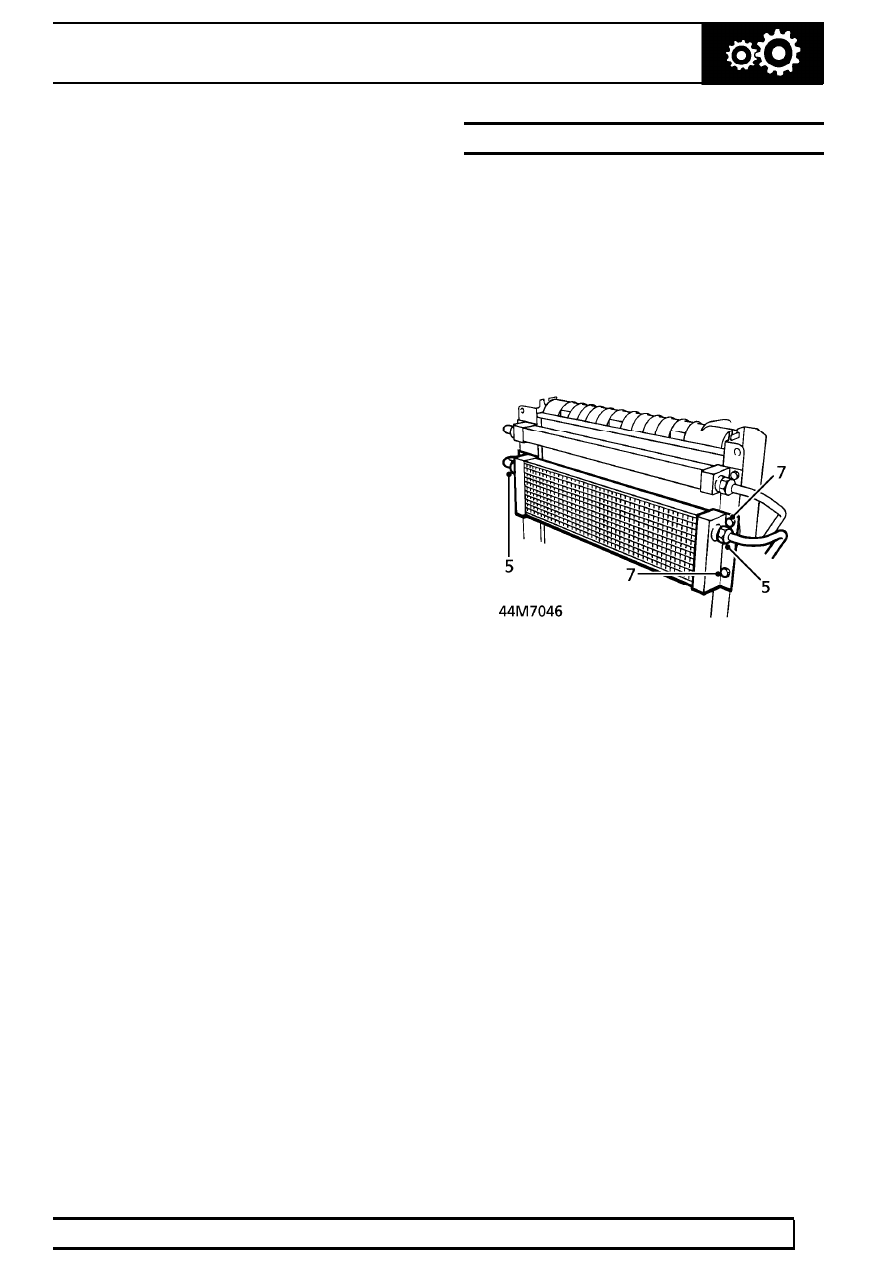

FLUID COOLER - V8 - UP TO 99MY

Service repair no - 44.24.10

Remove

1. Disconnect battery negative lead.
2. Remove engine oil cooler.

See ENGINE,

Repair.

3. Remove 4 trim studs securing air deflectors.

Remove deflectors.

4. Position container to collect fluid spillage.
5. Unscrew fluid cooler pipe union nuts and discard

’O’ rings.

6. Plug cooler and pipes.
7. Remove 4 bolts securing fluid cooler to radiator

mounting bracket.

8. Remove fluid cooler.

Refit

9. Fit fluid cooler.

10. Fit and tighten 4 bolts securing cooler to

mounting bracket.

11. Remove plugs from cooler and pipes.
12. Ensure pipe unions are clean.
13. Lubricate new ’O’rings with clean fluid and fit to

pipes.

14. Connect pipes to cooler. Tighten union nuts to

22 Nm (16 lbf.ft)

15. Remove container.
16. Fit air deflectors and secure with studs.
17. Fit engine oil cooler.

See ENGINE, Repair.

18. Reconnect battery negative lead.
19. Top up gearbox fluid.

See SECTION 10,

Maintenance.

44

AUTOMATIC GEARBOX

NEW RANGE ROVER

10

REPAIR

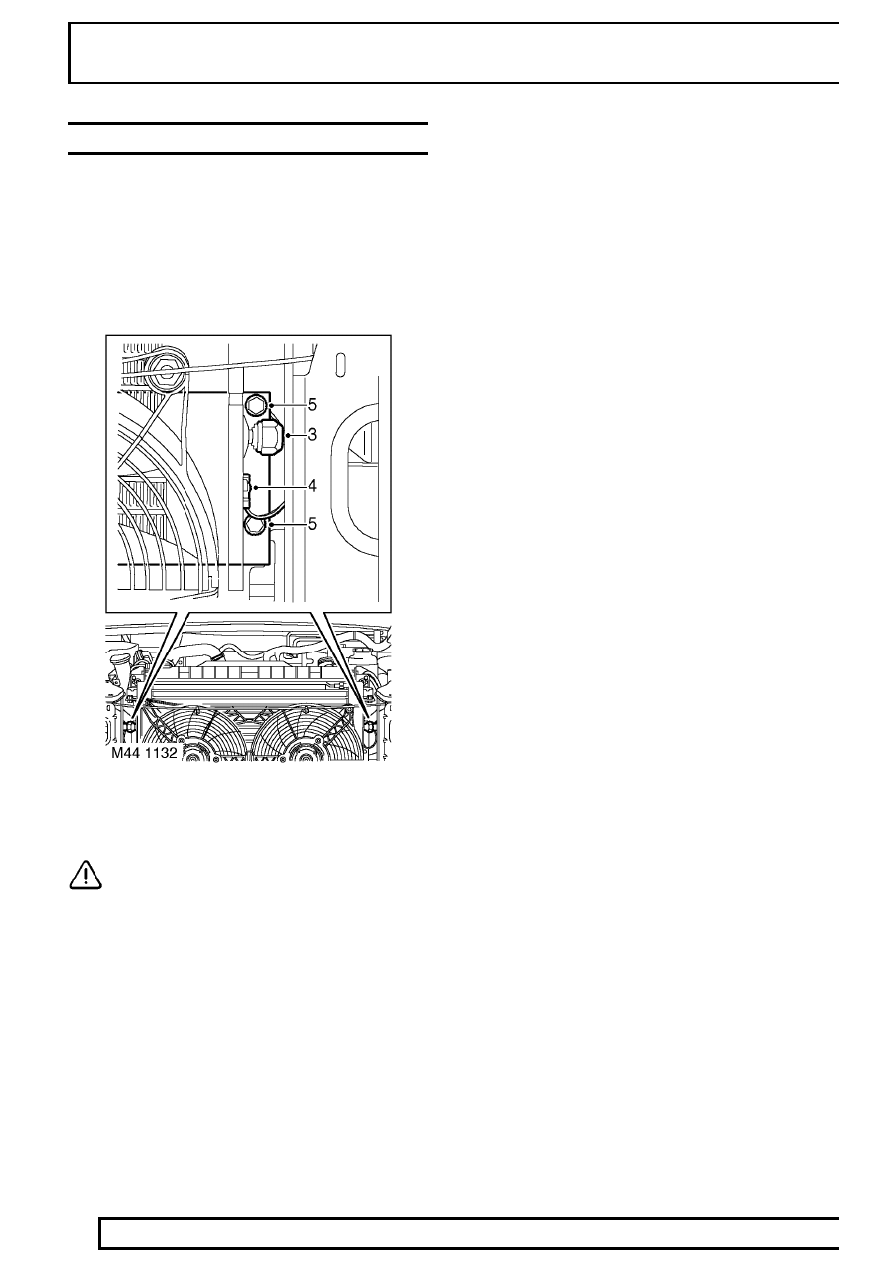

FLUID COOLER - V8 - FROM 99MY

Service repair no - 44.24.10

Remove

1. Remove engine oil cooler.

See ENGINE,

Repair.

2. Position absorbent cloth under each gearbox

cooler pipe connection to collect spillage.

3. Loosen unions and release pipes from cooler,

discard ’O’ rings.

CAUTION: Plug the connections.

4. Remove 2 screws securing fluid temperature

sensor to cooler.

5. Remove 4 bolts securing fluid cooler to radiator

mounting brackets and remove cooler.

Refit

6. Clean fluid cooler and pipe connections.
7. Fit new fluid cooler to radiator, engage in

locations, fit and tighten bolts.

8. Position fluid temperature sensor and secure

with screws.

9. Using new ’O’ rings connect pipes to cooler and

tighten unions to

22 Nm (16 lbf.ft).

10. Top up gearbox fluid.
11. Fit engine oil cooler.

See ENGINE, Repair.

ZF AUTO

11

REPAIR

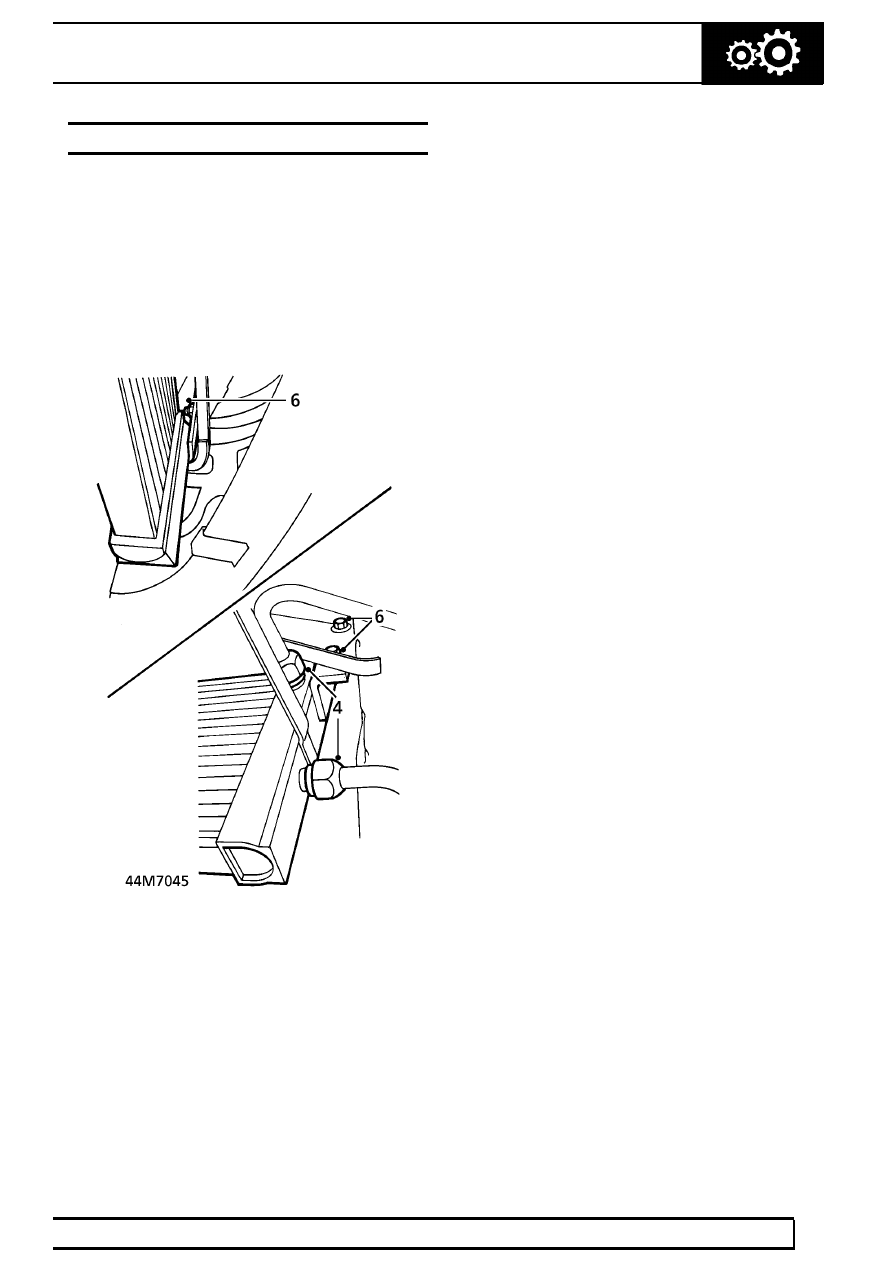

FLUID COOLER - DIESEL

Service repair no - 44.24.10

Remove

1. Disconnect battery negative lead.
2. Raise vehicle on four post lift.
3. Position container to collect fluid spillage.
4. Unscrew fluid pipe union nuts and discard ’O’

rings.

5. Plug cooler and pipes.
6. Remove 3 bolts securing fluid cooler to chassis

bracket.

7. Remove fluid cooler.

Refit

8. Fit fluid cooler.
9. Fit and tighten 3 bolts securing cooler to chassis

bracket.

10. Remove plugs from cooler and pipes.
11. Ensure pipe unions are clean.
12. Lubricate new ’O’ rings with clean fluid and fit to

pipes.

13. Connect pipes to cooler. Tighten union nuts to

22 Nm (16 lb.ft).

14. Remove container.
15. Lower vehicle.
16. Reconnect battery negative lead.
17. Top up gearbox fluid,

See SECTION 10,

Maintenance.

44

AUTOMATIC GEARBOX

NEW RANGE ROVER

12

REPAIR

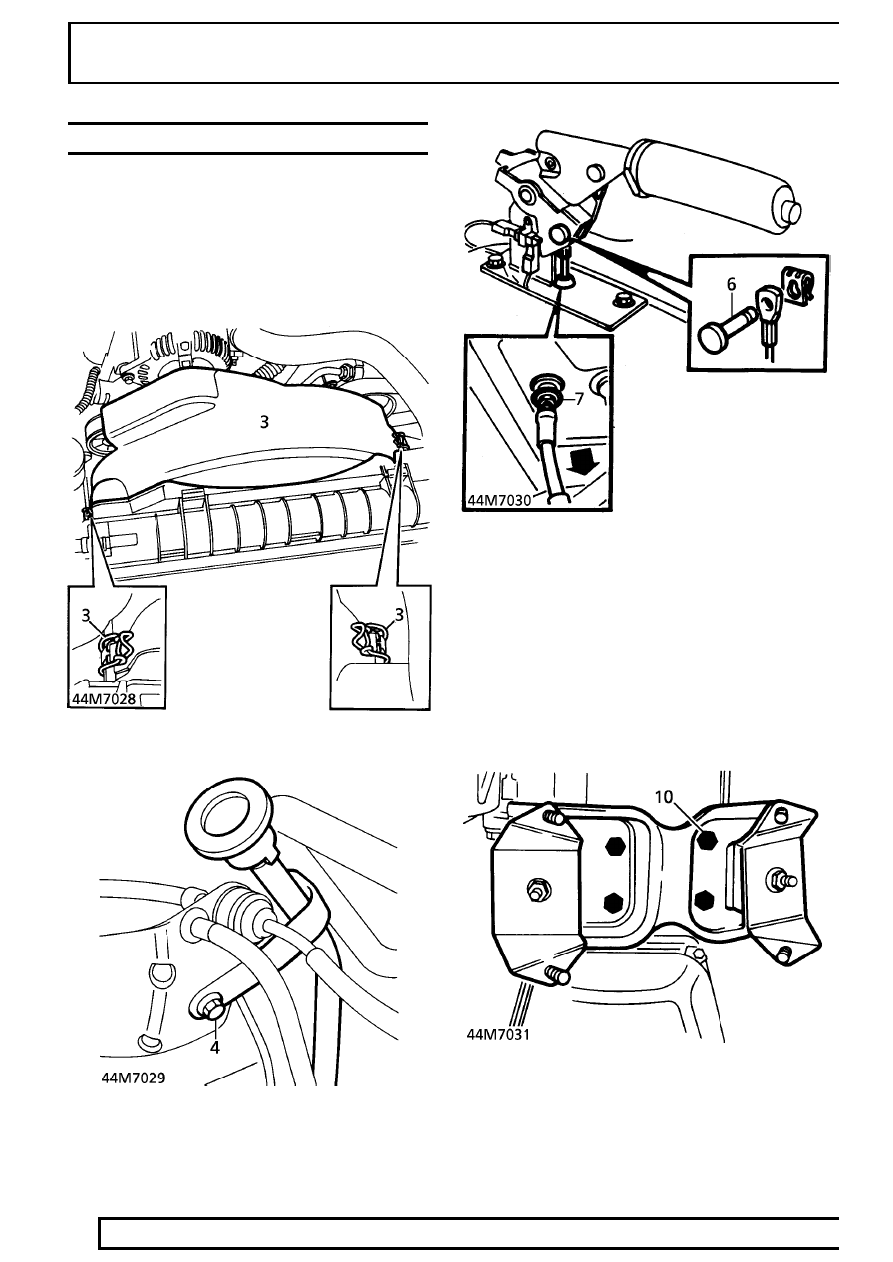

AUTOMATIC GEARBOX - UP TO 99MY

Service repair no - 44.20.02/99

Remove

1. Position vehicle on four post lift.
2. Disconnect battery negative lead.
3. Petrol Vehicles: Release clips securing cooling

fan cowling. Remove cowling.

4. Remove bolt securing gearbox filler tube to

engine.

5. Remove window switch pack.

See

ELECTRICAL, Repair.

6. Release handbrake. Remove handbrake cable

clevis pin.

7. Release hand brake cable from grommet in

tunnel.

8. Raise lift. Drain gearbox and transfer box fluids.

See SECTION 10, Maintenance.

9. Remove exhaust front pipe.

See MANIFOLD

AND EXHAUST SYSTEM, Repair.
Diesel Vehicles:
Remove chassis cross
member. See CHASSIS AND BODY, Repair.

10. Remove 4 bolts securing transmission mounting

assembly. Remove assembly.

11. Position transmission lift adaptor LRT-99-007.

Secure to transmission mounting bracket
location with bolts. Remove transmission jack
from under brake drum.
