MANIFOLD AND EXHAUST SYSTEM

11

REPAIR

Refit

17. Ensure all mating faces are clean.
18. Using assistance, position front pipe and NEW

gaskets to manifold.

19. Fit but do not tighten nuts securing front pipe to

manifolds.

20. Align front pipe to intermediate pipe, fit nuts and

tighten to

25 Nm (18 lbf.ft)

21. Tighten front pipe to manifold nuts to

50 Nm

(37 lbf.ft)

22. Connect heated oxygen sensor multiplugs to

brackets.

23. Connect oxygen sensor multiplugs.
24. Connect oxygen sensor fly leads to clips.
25. Using assistance, fit crossmember to chassis.
26. Fit nuts and bolts and tighten to

45 Nm

(33 lbf.ft)

27. Fit transmission snubber bar.
28. Fit bolts and NEW flange nuts securing

transmission mount to crossmember and tighten
to

45 Nm (33 lbf.ft)

29. Remove transmission stand.
30. Align rear of side acoustic covers to

crossmember and secure with threaded
fasteners.

EXHAUST FRONT PIPE - V8 - FROM 99MY

Service repair no - 30.10.09

Remove

1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.
3. Remove chassis crossmember.

See CHASSIS

AND BODY, Repair.

4. Disconnect 2 front HO2S multiplugs and release

RH HO2S harness from clip on sump.

5. Release 2 rear HO2S multiplugs from brackets,

disconnect from harness and release harness
from 2 clips.

6. Remove 2 nuts securing exhaust front pipe to

intermediate flange.

7. Remove 6 nuts securing front exhaust pipe to

exhaust manifold down pipe flanges.

30

MANIFOLD AND EXHAUST SYSTEM

NEW RANGE ROVER

12

REPAIR

8. With assistance, remove exhaust front pipe and

collect 2 front pipe to manifold gaskets.

9. Remove 4 HO2S from exhaust manifold and

discard sealing washers.

Refit

10. Clean mating faces of exhaust front pipe,

manifolds and intermediate pipe.

11. Use new sealing washers and fit and tighten

HO2S to

20 Nm (15 lbf.ft).

12. Use new flange gaskets and with assistance, fit

exhaust front pipe to manifolds. Fit nuts but do
not tighten at this stage.

13. Align intermediate pipe to front pipe and tighten

clamp nuts to

25 Nm (18 lbf.ft)

14. Tighten front pipe to manifold nuts to

50 Nm

(37 lbf.ft).

15. Connect HO2S multiplugs to harness and

secure multiplugs to brackets.

16. Secure RH front and rear HO2S harness to clips.
17. Fit chassis crossmember.

See CHASSIS AND

BODY, Repair.

18. Connect battery earth lead.
19. Fit battery cover and secure with fixings.

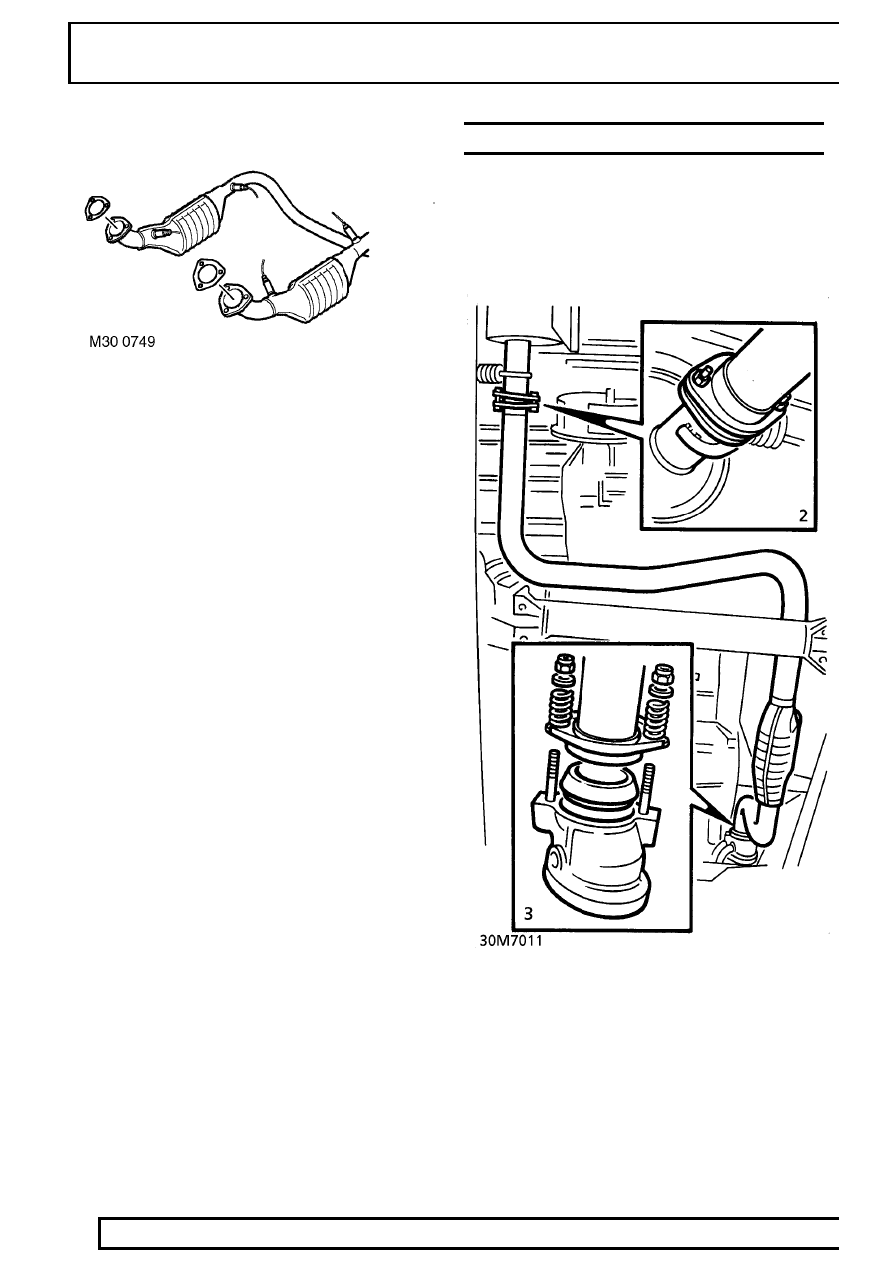

EXHAUST FRONT PIPE - DIESEL

Service repair no - 30.10.09

Remove

1. Raise vehicle on four post lift.
2. Remove 2 nuts and bolts securing front pipe to

intermediate pipe flange.

3. Remove 2 nuts securing front pipe flange to

turbocharger oulet. Collect springs and flat
washers.

MANIFOLD AND EXHAUST SYSTEM

13

REPAIR

4. With assistance, manoeuvre front pipe

rearwards over chassis crossmember.

5. Remove front pipe.
6. Collect olive.

Refit

7. Ensure mating faces are clean.
8. With assistance, manoeuvre pipe forwards over

chassis crossmember into position.

9. Position olive. Fit front pipe flange over

turbocharger studs. Secure with nuts, springs
and washers.

10. Tighten nuts to

14 Nm (10 lbf.ft). Back off by

2.5 turns.

11. Position rear flange to intermediate pipe. Secure

with nuts. Tighten to

25 Nm (18 lbf.ft)

12. Lower lift.

30

MANIFOLD AND EXHAUST SYSTEM

NEW RANGE ROVER

14

REPAIR

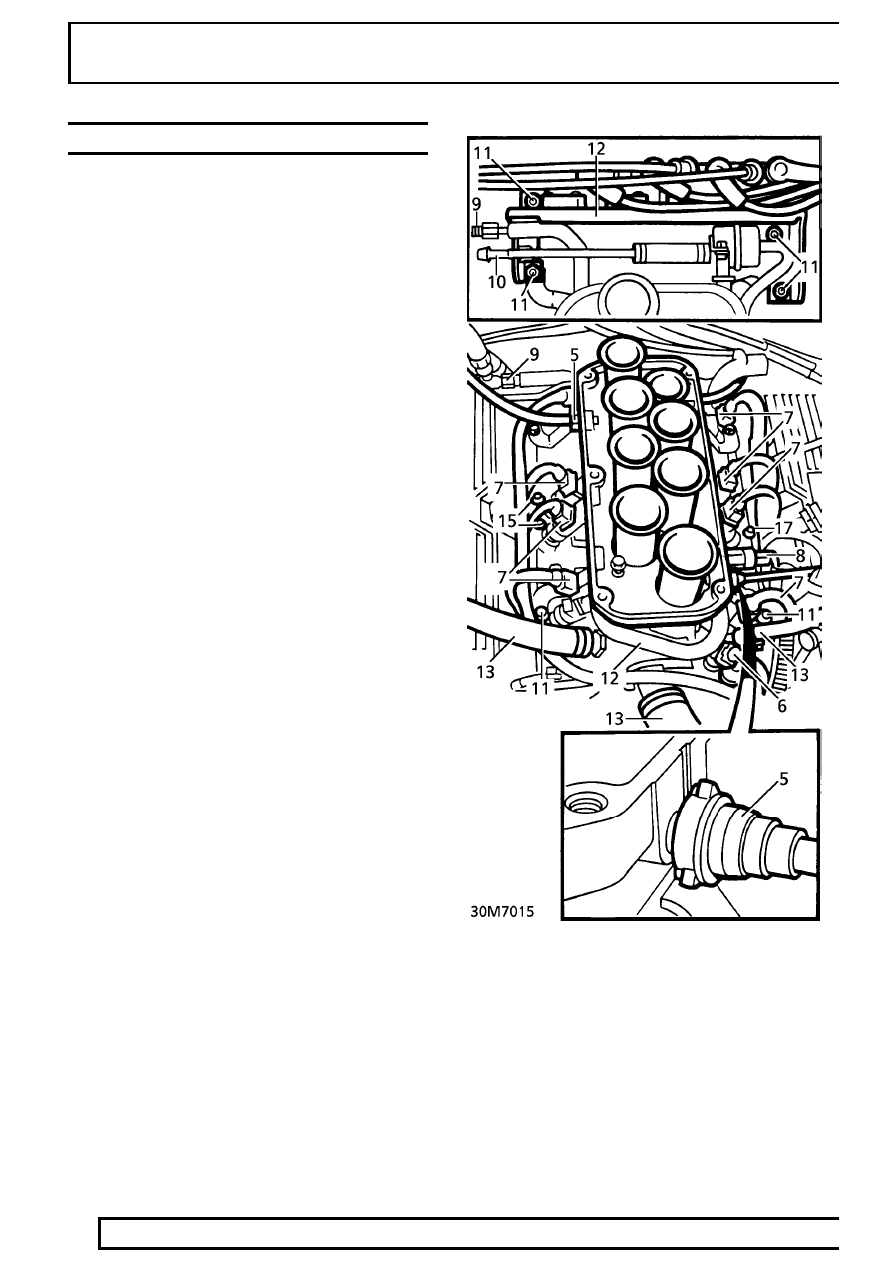

INLET MANIFOLD GASKET - V8 - UP TO 99MY

Service repair no - 30.15.08

Remove

1. Depressurise fuel system.

See FUEL SYSTEM,

Repair.

2. Drain cooling system.

See COOLING SYSTEM,

Repair.

3. Remove alternator.

See ELECTRICAL, Repair.

4. Remove plenum chamber.

See FUEL SYSTEM,

Repair.

5. Release purge and crankcase breather hoses

from ram pipe housing.

6. Disconnect coolant temperature and

temperature gauge sensors.

7. Disconnect 8 injector multiplugs.
8. Disconnect fuel temperature sensor multiplug.
9. Disconnect fuel feed hose from fuel rail.

10. Disconnect fuel return hose from pressure

regulator pipe.

11. Remove 6 nuts securing fuel rail and ignition coil

bracket to inlet manifold.

12. Lift fuel rail slightly for access. Release ignition

coil bracket from inlet manifold studs. Place
aside.

13. Disconnect coolant hoses from inlet manifold
14. Disconnect plenum chamber coolant hose from

inlet manifold.

15. Remove 2 bolts securing harness to RH side of

inlet manifold.

16. Place harness and heater hose aside.
17. Remove bolt securing harness to LH side of inlet

manifold.
