CRUISE CONTROL

5

REPAIR

CABLE - CRUISE CONTROL - UP TO 99MY

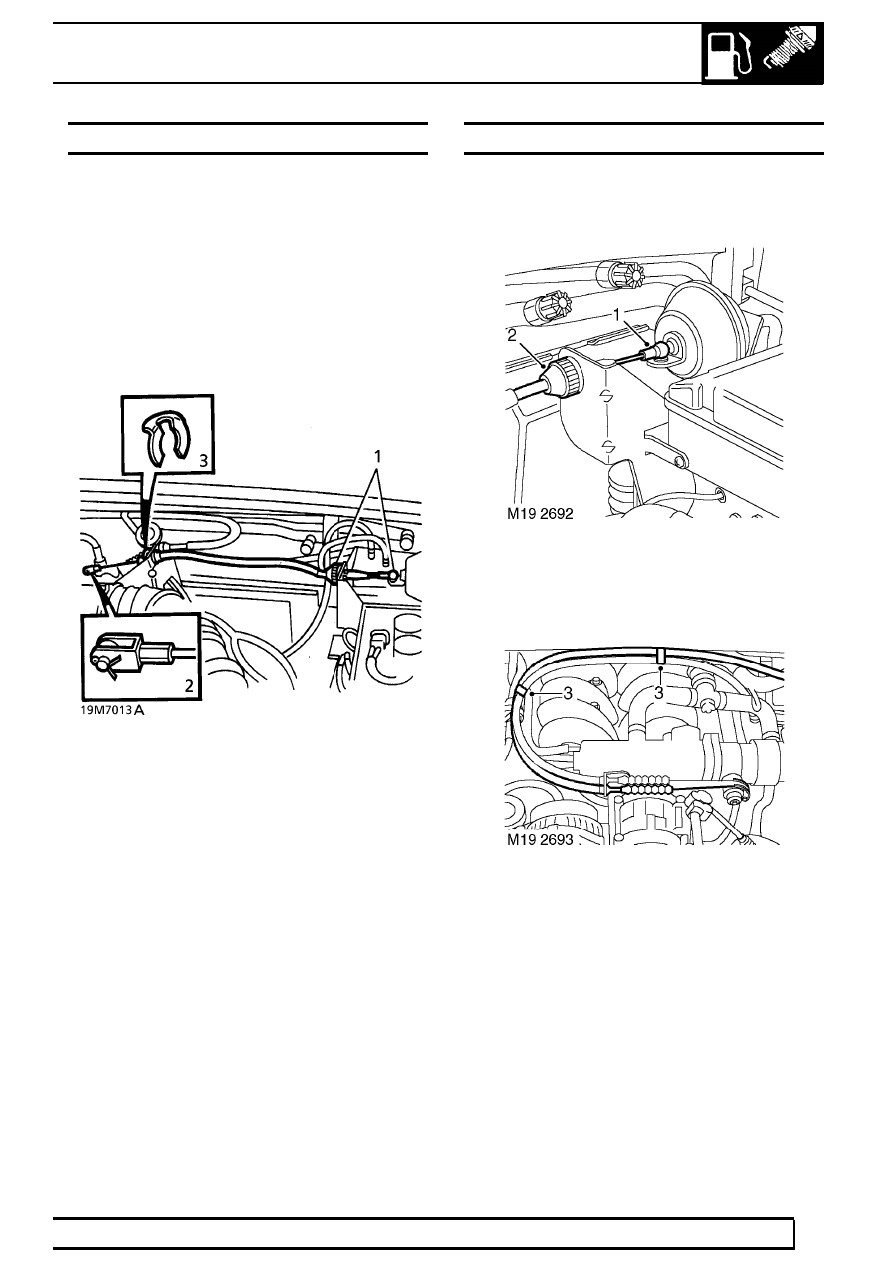

Service repair no - 19.75.10

Remove

1. Release cable from actuator. Disengage adjuster

from actuator abutment bracket.

2. Remove split pin and clevis pin from cable

trunnion.

3. Remove ’C’ clip securing cable to abutment

bracket. Remove cable.

Refit

4. Position cable through abutment bracket. Secure

with ’C’ clip.

5. Position cable trunnion to throttle linkage.

Secure with clevis pin and split pin.

6. Engage cable adjuster to actuator abutment

bracket. Connect cable to actuator diaphragm.

7. Adjust cruise control cable.

See CRUISE

CONTROL, Adjustment.

CABLE - CRUISE CONTROL - FROM 99MY

Service repair no - 19.75.10

Remove

1. Disconnect inner cable from actuator.
2. Release cable from actuator mounting bracket.

3. Release cable from 2 support clips.

19

FUEL SYSTEM

NEW RANGE ROVER

6

REPAIR

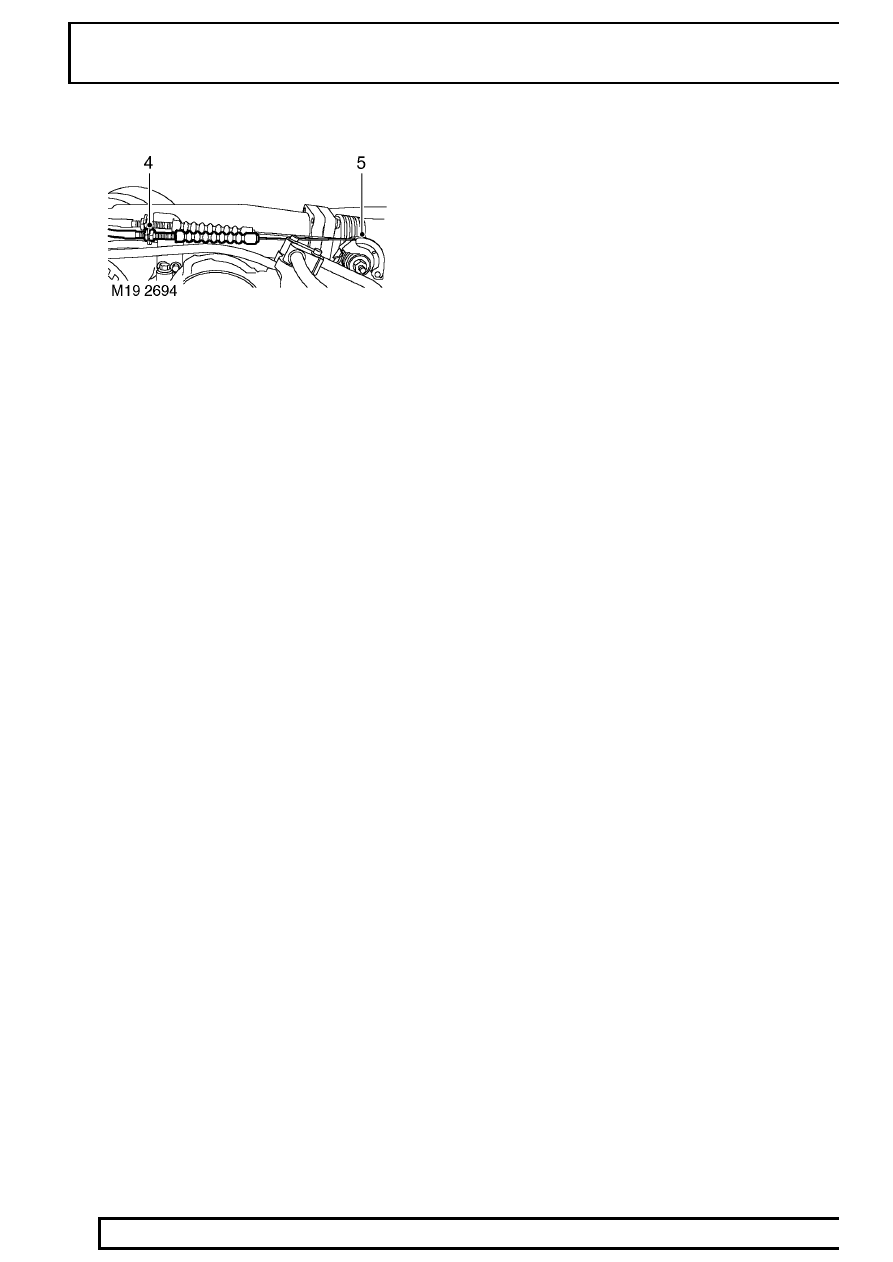

4. Loosen cable locknuts, release cable from

abutment bracket.

5. Release inner cable from operating lever and

remove cable.

Refit

6. Position cable and connect to operating lever.
7. Position cable to abutment bracket.
8. Fit cable to support clips.
9. Fit cable to actuator mounting bracket and

connect inner cable to actuator.

10. Adjust cruise control cable.

See Adjustment.
