BMW DIESEL

13

REPAIR

TURBOCHARGER

Service repair no - 19.42.01

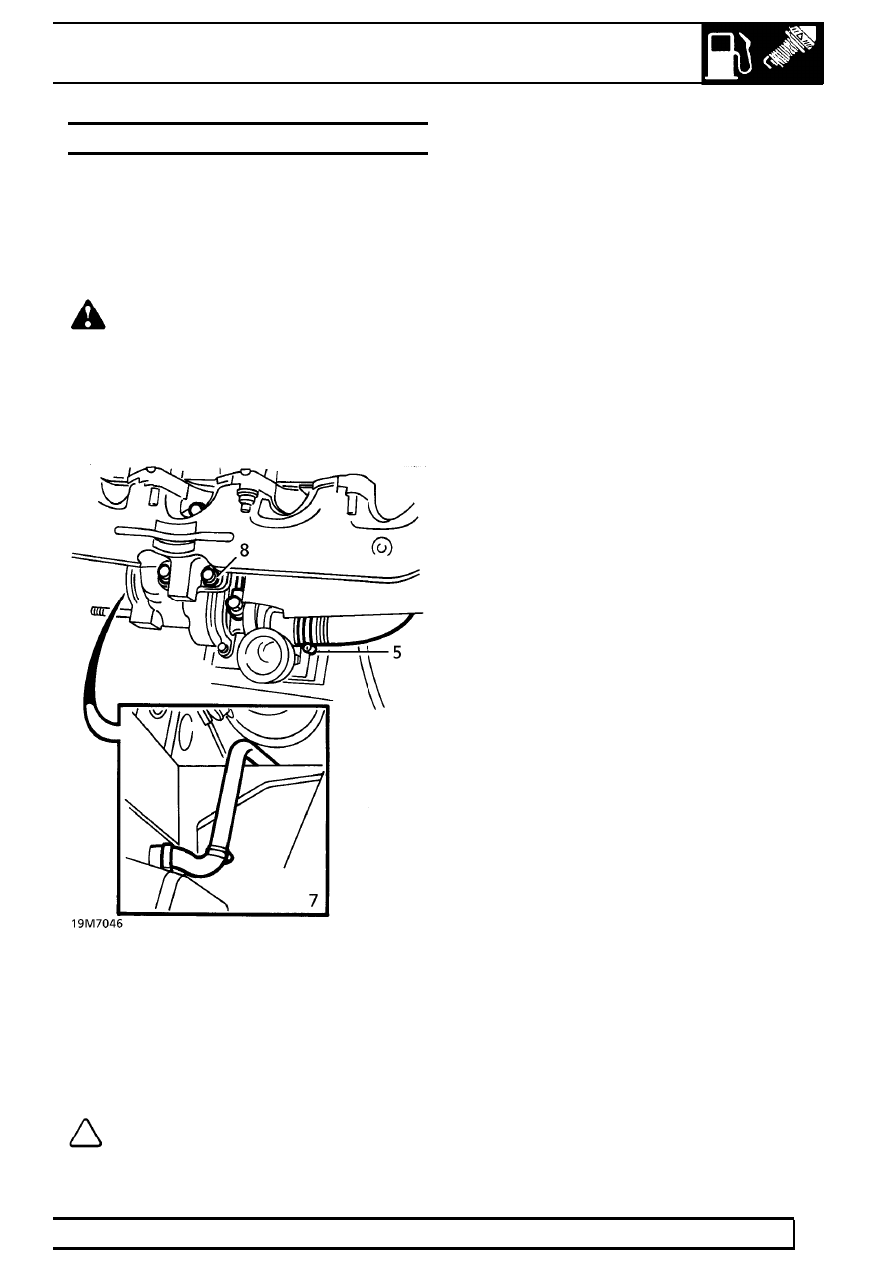

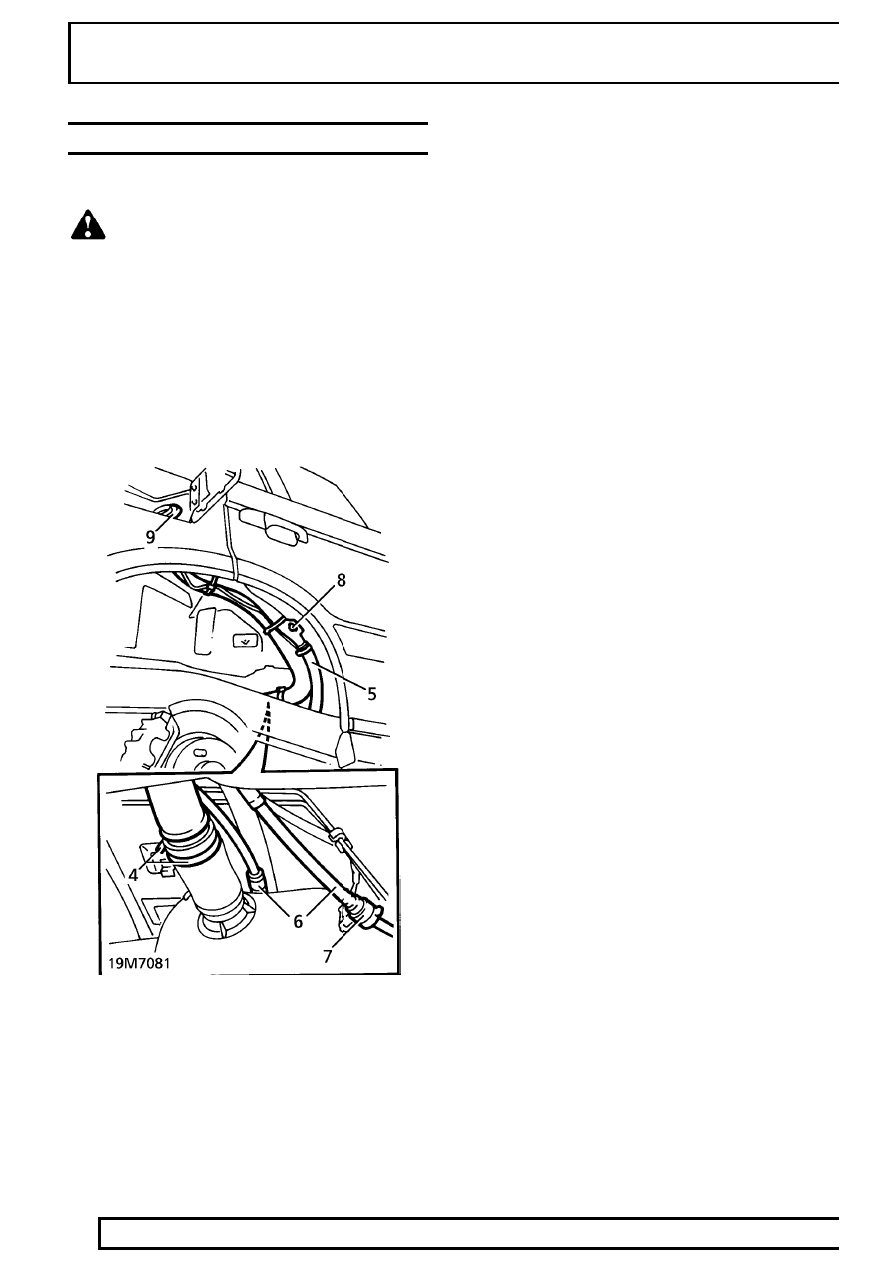

Remove

1. Disconnect battery negative lead.
2. Raise the vehicle.

WARNING: Support on safety stands.

3. Remove exhaust system front pipe.

See

MANIFOLD AND EXHAUST SYSTEM, Repair.

4. Remove heat shield.

See MANIFOLD AND

EXHAUST SYSTEM, Repair.

5. Disconnect intake hose from turbocharger.

6. Disconnect oil feed pipe from turbocharger.

Collect sealing washers and discard.

7. Disconnect oil drain hose from turbocharger.
8. Remove 3 bolts securing turbocharger to

exhaust manifold.

9. Remove turbocharger. Collect gasket and

discard.

NOTE: Plug all connections to prevent
ingress of dirt.

Refit

10. Ensure all mating faces are clean.
11. Remove plugs. Position new gasket on manifold.

Position turbocharger.

12. Secure turbocharger with bolts. Tighten to

45

Nm (33 lbf.ft)

13. Connect oil drain hose to turbocharger. Secure

with clip.

14. Position oil feed pipe with new washers. Secure

with banjo bolt. Tighten to

25 Nm (18 lbf.ft)

15. Connect intake hose to turbocharger. Secure

with clip.

16. Fit exhaust system front pipe.

See MANIFOLD

AND EXHAUST SYSTEM, Repair.

17. Fit heat shield.

See MANIFOLD AND

EXHAUST SYSTEM, Repair.

18. Remove safety stands. Lower vehicle.
19. Reconnect battery negative lead.

19

FUEL SYSTEM

NEW RANGE ROVER

14

REPAIR

INTERCOOLER

Service repair no - 19.42.15

Remove

1. Remove battery.

See ELECTRICAL, Repair.

2. Remove 2 screws securing fuel ECM cover.

Remove cover.

3. Remove 2 screws securing ECM harness clamp.

Remove clamp.

4. Remove ECM from battery box. Position ECM

and battery harness aside.

5. Remove 4 bolts securing battery box. Remove

battery box.

6. Remove front grille.

See CHASSIS AND BODY,

Repair.

7. Remove 4 bolts securing bonnet platform.

8. Release bonnet release cable clips from

platform. Remove platform.

BMW DIESEL

15

REPAIR

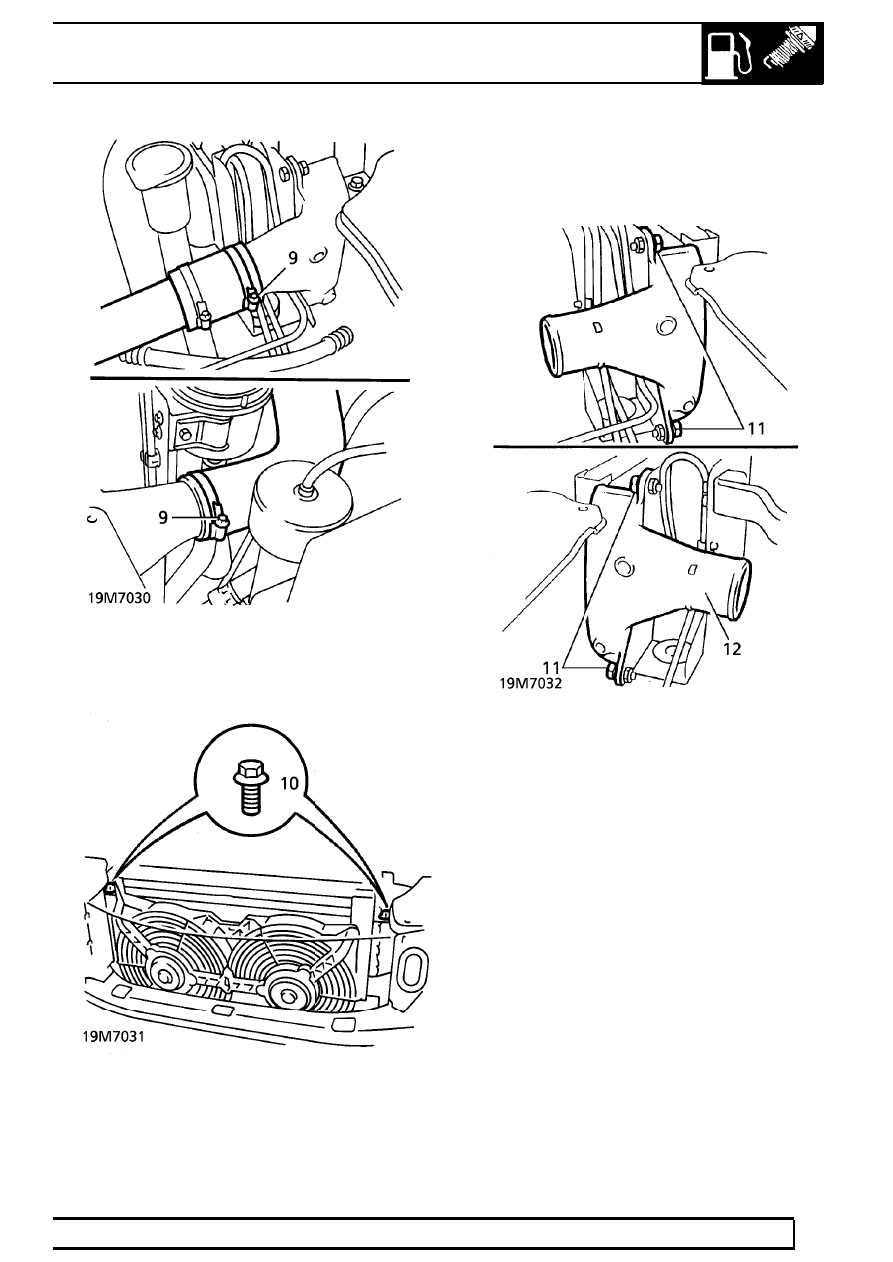

9. Disconnect hoses from intercooler.

10. Remove 2 bolts securing intercooler to air

conditioning condenser.

11. Remove 4 bolts securing intercooler to radiator

bracket.

12. Remove intercooler.

Refit

13. Reverse removal procedure.

19

FUEL SYSTEM

NEW RANGE ROVER

16

REPAIR

FILLER NECK ASSEMBLY

Service repair no - 19.55.07

WARNING: If fuel tank is full, fuel level will
be above filler neck aperture in the tank. If
gauge indicates over 75%, drain a

minimum 10 litres of fuel from tank.

Remove

1. Disconnect battery negative lead.
2. Remove rear wheel arch liner.

See CHASSIS

AND BODY, Repair.

3. Remove fuel filler cap.
4. Slacken clips securing hoses to filler neck.

5. Release fill breather hose from filler neck.
6. Petrol Models Only: Disconnect fuel tank and

charcoal canister hoses from vapour separator.

7. Diesel Models Only: Release cap from quick

release connector. Disconnect breather hose.

8. Remove nut securing filler neck to wheel arch.

9. Release filler neck from fuel tank hose and

grommet in body aperture.

10. Remove filler neck assembly.

Refit

11. Apply liquid soap to grommet and mating surface

of filler neck.

12. Reverse removal procedure.
