BMW DIESEL

35

REPAIR

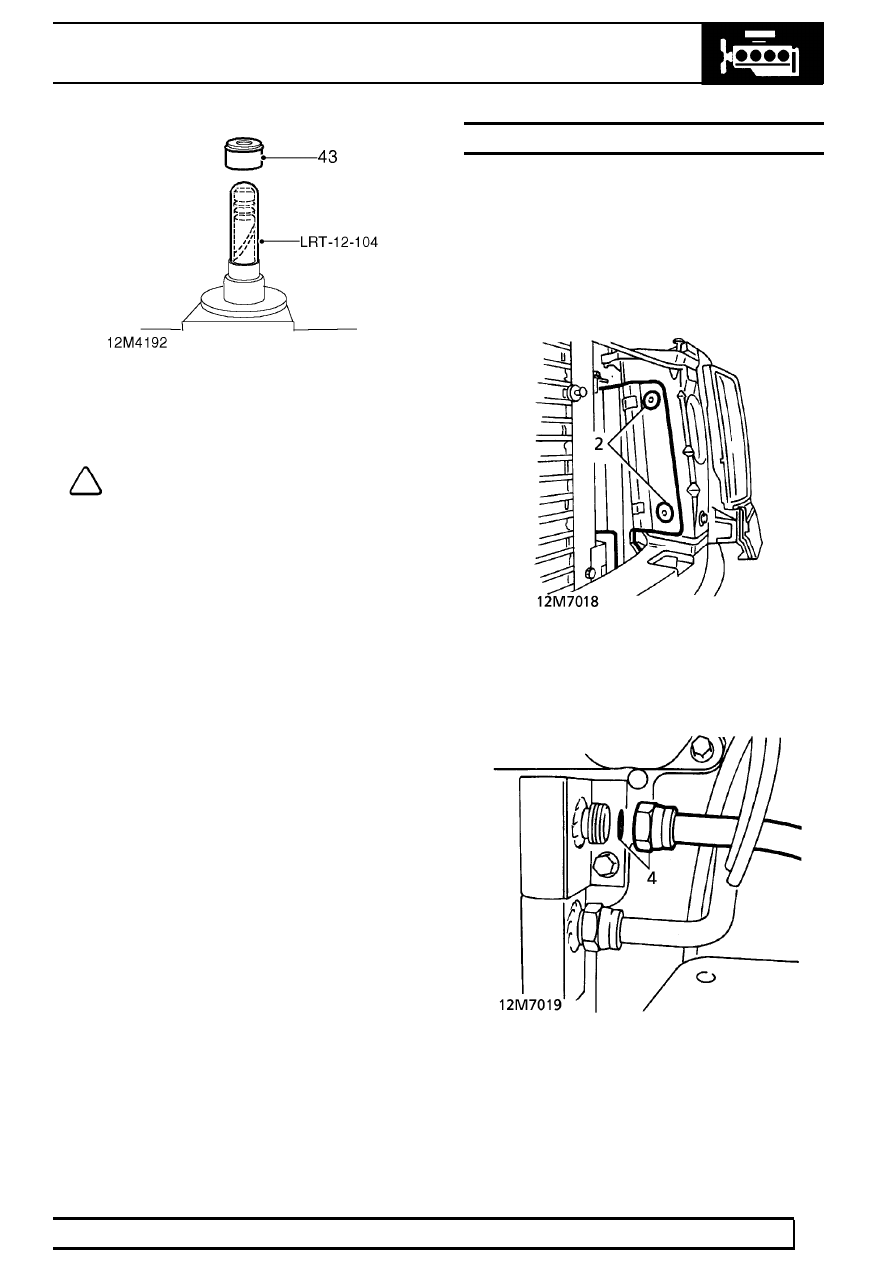

42. Fit protection sleeve LRT-12-104 on valve stem.
43. Fit new valve stem oil seal.

NOTE: Inlet valve stem oil seals are
coloured RED whilst exhaust valve stem
oil seals are coloured GREEN.

44. Press valve stem oil seal into position using tool

LRT-12-071, remove protection sleeve
LRT-12-104.

45. Fit valve spring seat, new valve spring and

spring cup.

46. Compress valve spring using tool LRT-12-034, fit

2 collets.

47. Remove protection sleeve LRT-12-101.
48. Repeat procedures for remaining valves.
49. Lubricate tappet bores and tappets with engine

oil, fit tappets to their original locations.

50. Fit cylinder head.

See this section.

51. Fit exhaust manifolds.

See MANIFOLD AND

EXHAUST SYSTEM, Repair.

52. Fit glow plugs.

See FUEL SYSTEM, Repair.

53. Fit injectors.

See FUEL SYSTEM, Repair.

54. Fit inlet manifolds.

See MANIFOLD AND

EXHAUST SYSTEM, Repair.

55. Fit camshaft.

See this section.

OIL COOLER

Service repair no - 12.60.68

Remove

1. Remove intercooler.

See FUEL SYSTEM,

Repair.

2. Remove 2 trim fixing studs securing LH deflector

panel. Remove panel.

3. Position container to catch oil spillage.
4. Disconnect oil cooler upper hose. Remove ’O’

ring and discard.

5. Plug hose and cooler.

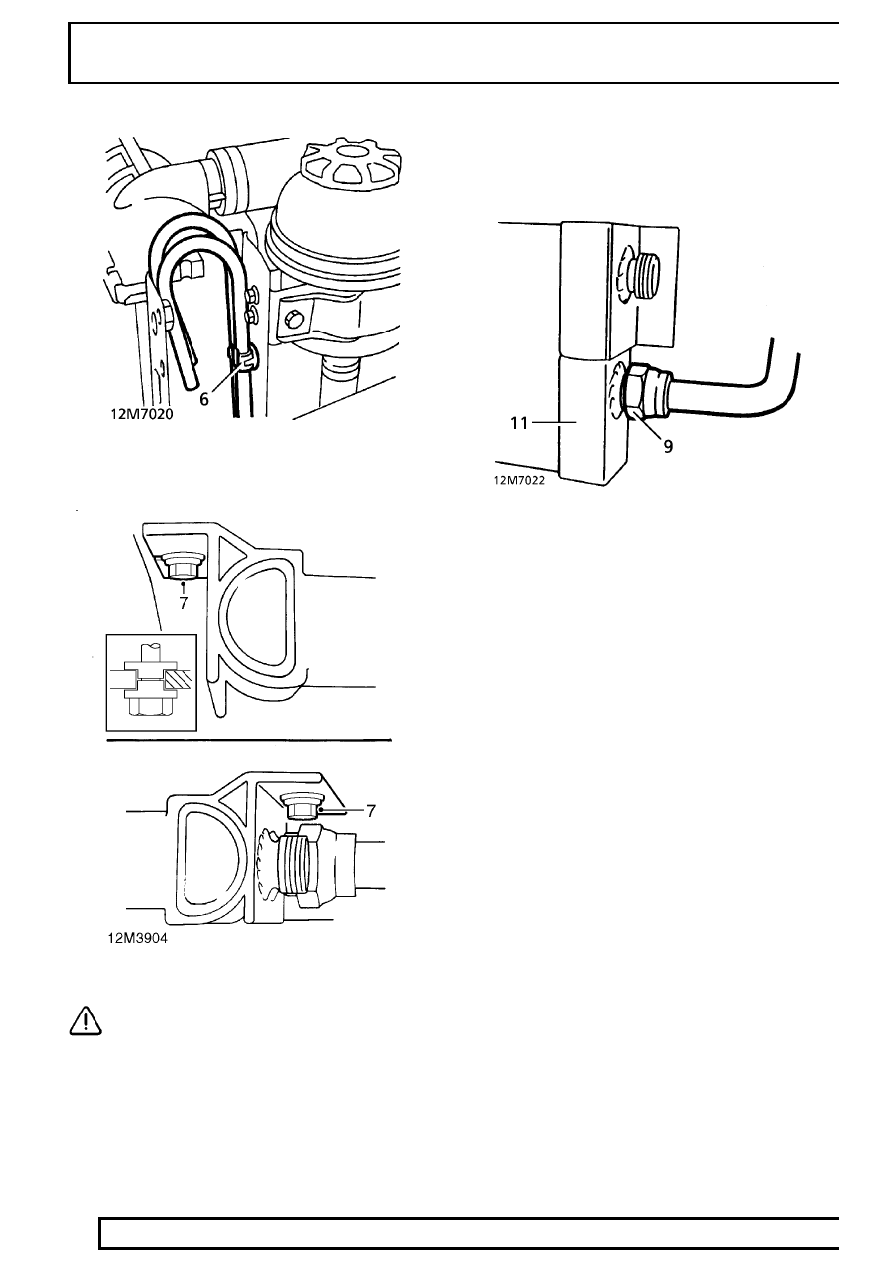

6. Release left hand fog lamp breather tubes from

radiator bracket clips.

12

ENGINE

NEW RANGE ROVER

36

REPAIR

7. Remove 2 bolts securing oil cooler to radiator

bracket.

CAUTION: The RH side of the oil cooler
has a sliding mount which allows the
cooler to expand and contact with

changes in temperature. Incorrect tightening
torque of the RH fixing will lead to cooler damage.

8. Raise oil cooler for access.
9. Disconnect lower hose. Remove ’O’ ring and

discard.

10. Plug hose and cooler.
11. Remove oil cooler.

Refit

12. Position oil cooler. Remove plugs.
13. Using new ’O’ ring, connect lower hose to oil

cooler. Tighten to

30 Nm (22 lbf.ft).

14. Lower cooler to radiator bracket.
15. Apply Loctite 270 Stud Lock to threads of RH

fixing.

16. Assemble spacers to fixing and secure fixing to

radiator bracket, finger tight.

17. Engage slot in RH side of cooler to spacers.
18. RH fixing Tighten to

5 Nm (4 lbf.ft).

LH fixing Tighten to 25 Nm (19 lbf.ft).

19. Using new ’O’ ring, connect upper pipe to oil

cooler. Tighten to

30 Nm (22 lbf.ft)

20. Remove container.
21. Secure fog lamp breather tubes to radiator

bracket clips.

22. Fit deflector panel. Secure with studs.
23. Fit intercooler.

See FUEL SYSTEM, Repair.

24. Check engine oil level. Top-up if necessary.

BMW DIESEL

37

REPAIR

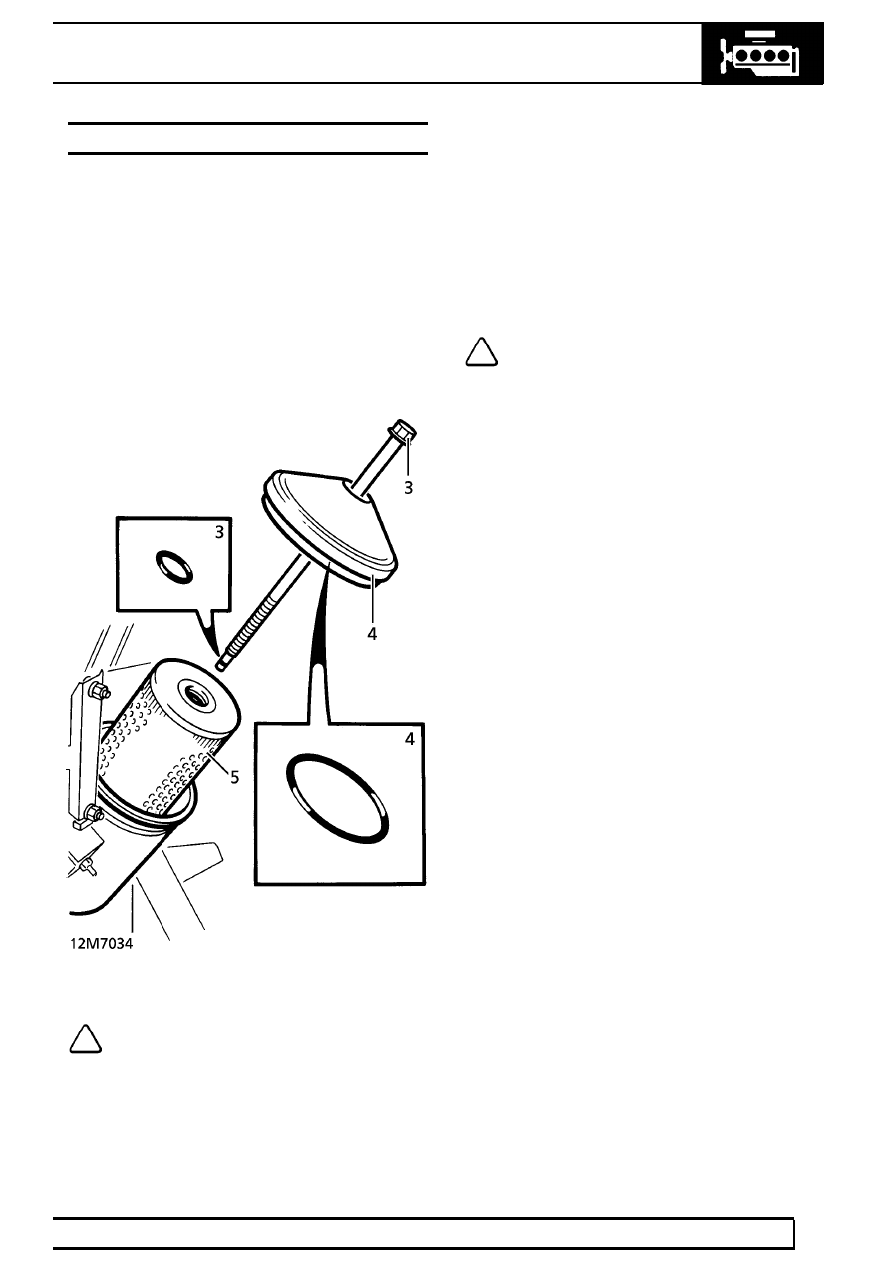

OIL FILTER - UP TO 1998MY

Service repair no - 12.60.02

Remove

1. Drain engine oil.

See SECTION 10,

Maintenance.

2. Position cloth beneath oil filter casing to catch

spillage.

3. Remove bolt securing cover to filter casing.

Collect ’O’ ring and discard .

4. Remove cap. Collect ’O’ ring and discard.
5. Remove filter element and discard.

NOTE: Oil in filter casing will run back into
sump once cover is removed.

Refit

6. Clean filter casing and cap.
7. Fit filter element.
8. Using new ’O’ rings, position cap. Secure with

bolt. Tighten to

33 Nm (24 lbf.ft)

9. Replenish engine oil.

See LUBRICANTS,

FLUIDS AND CAPACITIES, Information.

10. Start engine. Run at 2500 rev/min until oil

pressure warning light extinguishes.

NOTE: Oil pressure warning light will
extinguish after approximately 5 seconds.

11. Stop engine. Recheck oil level.

12

ENGINE

NEW RANGE ROVER

38

REPAIR

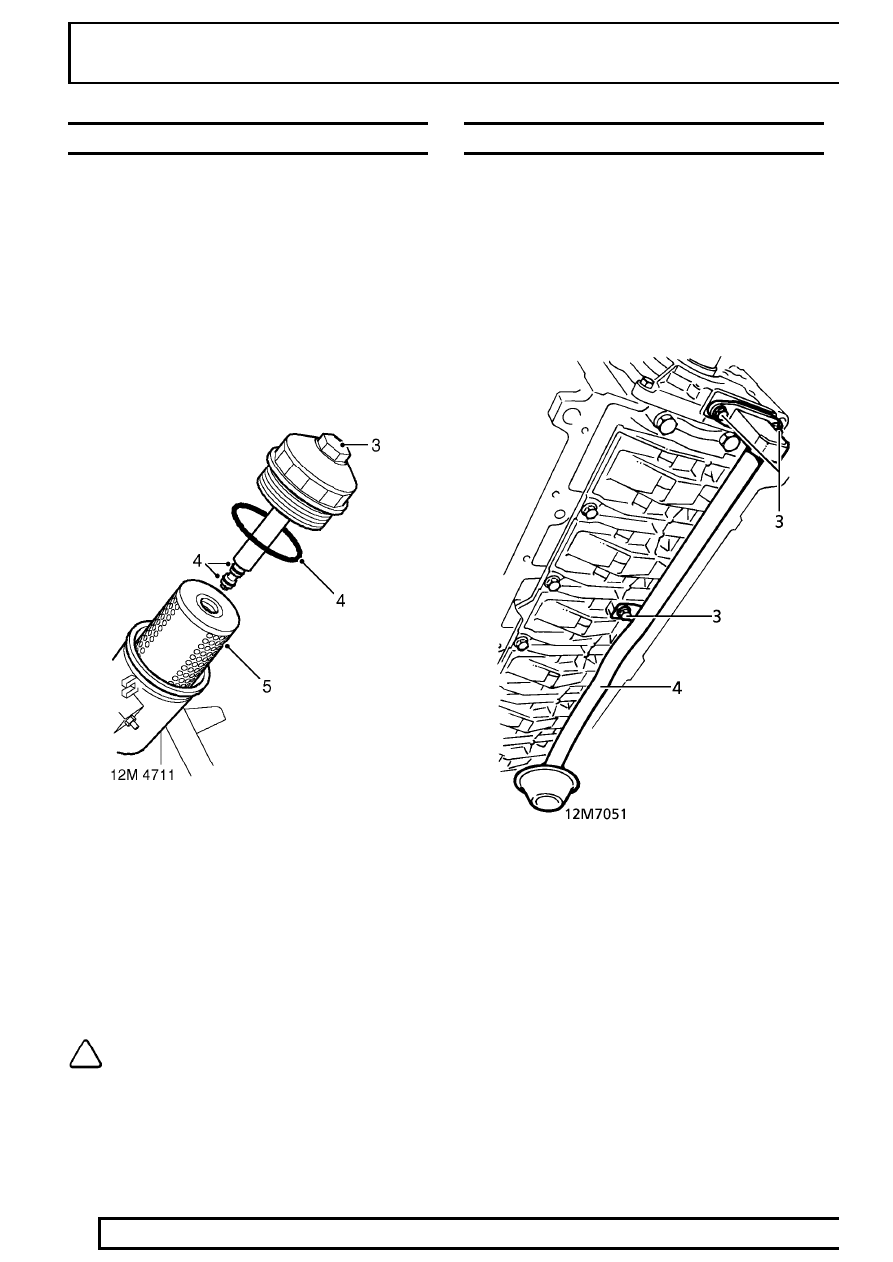

OIL FILTER 1998MY ONWARDS

Service repair no - 12.60.02

Remove

1. Drain engine oil.

See SECTION 10,

Maintenance.

2. Position cloth beneath oil filter casing to catch

spillage.

3. Using a socket wrench, carefully loosen cap and

allow oil to drain back into sump.

4. Remove cap and collect 3 ’O’ ring seals. Discard

seals.

5. Remove filter element and discard.

Refit

6. Clean filter casing and cap.
7. Fit filter element.
8. Lubricate new ’O’ ring seals using engine oil.
9. Fit cap and tighten to

25 Nm (18 lbf.ft)

10. Replenish engine oil.

See LUBRICANTS,

FLUIDS AND CAPACITIES, Information.

11. Start engine. Run at 2500 rev/min until oil

pressure warning light extinguishes.

NOTE: Oil pressure warning light will
extinguish after approximately 5 seconds.

12. Stop engine. Recheck oil level.

OIL PUMP

Service repair no - 12.60.26

Remove

1. Remove timing chains and sprockets.

See this

section.

2. Remove sump.

See this section.

3. Remove 3 bolts securing oil pick-up strainer to

oil pump and deflector plate.

4. Remove pick-up strainer. Collect gasket.
