3. Clean the filler cap before removing to

prevent dirt from entering the reservoir.

4. Remove the filler cap.

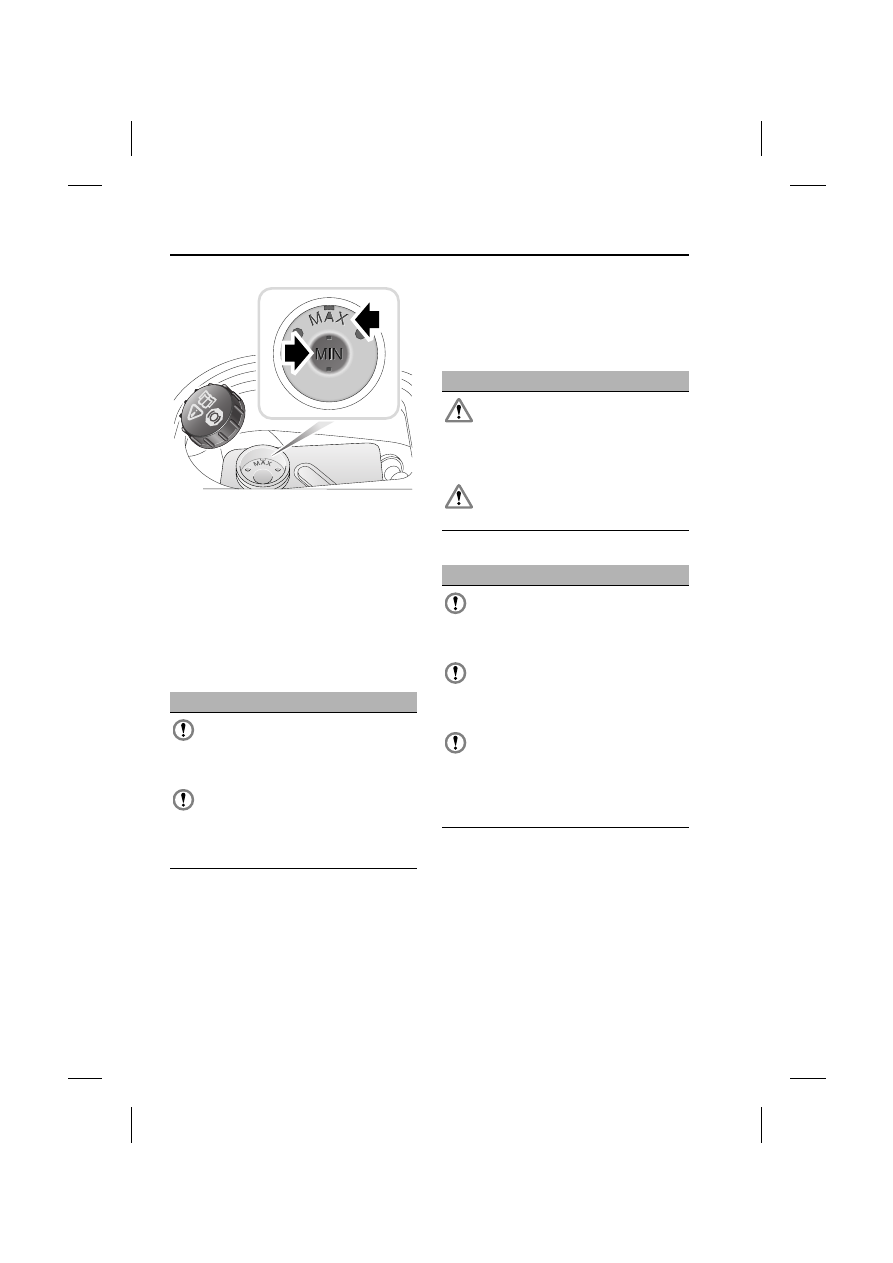

5. The brake fluid level should be between the

MIN and the MAX marks.

The fluid level may drop slightly during normal
use as a result of brake pad wear but should
not be allowed to drop below the MIN mark.

Topping up the fluid

1. Top-up the reservoir to the MAX mark

using Shell DOT4 ESL brake fluid. If Shell
DOT4 ESL is not available, a low viscosity
DOT4 brake fluid that meets ISO 4925
class 6 and Land Rover LRES22BF03
requirements may be used.

2. Replace the cap.

3. Fit the reservoir cover in the reverse order

of removal.

POWER STEERING FLUID CHECK

Checking the fluid level

Check and top-up the fluid with the vehicle on
level ground, engine switched off, and the
system cold. Ensure that the steering wheel is
not turned after stopping the engine.

CAUTIONS

Brake fluid will damage painted surfaces.
Soak up any spillage with an absorbent

cloth immediately and wash the area with a
mixture of car shampoo and water.

Only use new fluid from an airtight
container (fluid from opened containers

or fluid previously bled from the system will
have absorbed moisture, which will adversely
affect performance, and must not be used).

E84162

WARNINGS

Power steering fluid is highly toxic.
Keep containers sealed and out of reach

of children. If accidental consumption of fluid
is suspected, seek medical attention
immediately.

If the fluid comes into contact with the
skin or eyes, rinse immediately with

plenty of water.

CAUTIONS

The engine must not be started if the fluid
level has dropped below the MIN mark.

Severe damage to the steering pump could
result.

Seek qualified assistance immediately if
there is a noticeable drop in the fluid

level. Severe damage to the steering pump
could result.

If fluid loss is slow, the reservoir may be
topped-up to the upper level mark to

enable the vehicle to be driven to a repair
facility for examination. However, it is
recommended that you seek qualified
assistance before driving the vehicle.

167

Maintenance

R

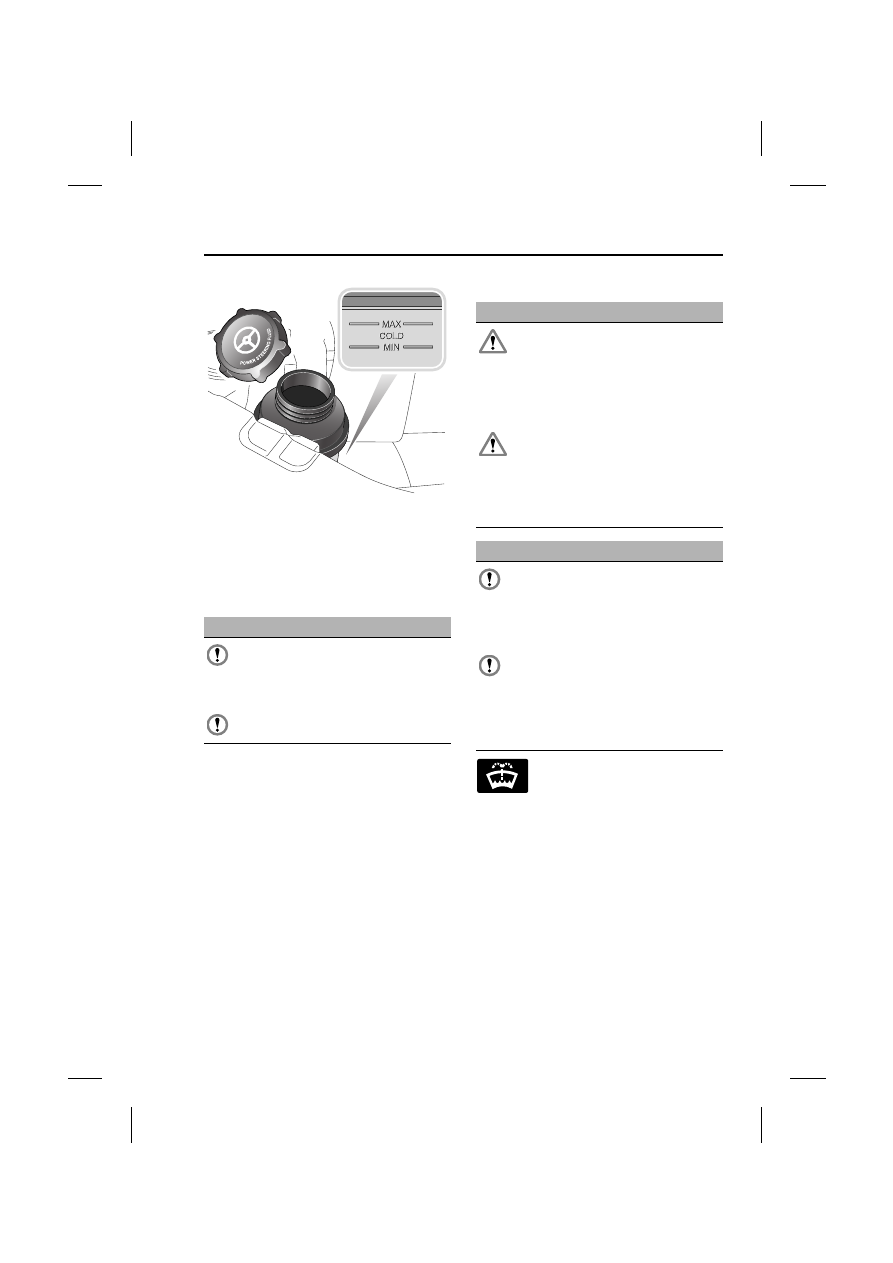

The level of fluid can be seen through the
translucent body of the reservoir.

The fluid level should be between the MIN and
the MAX marks.

Topping up the fluid

1. Clean the filler cap before removing to

prevent dirt from entering the reservoir.

2. Remove filler cap.

3. Using Pentosin CHF202 fluid, top-up the

reservoir until the fluid level is between the
MIN and MAX marks.

4. Replace filler cap.

WASHER FLUID CHECK

If the quantity of fluid remaining in
the washer reservoir drops to less
than one litre, an amber warning

indicator in the instrument pack will illuminate
or the message LOW WASHER FLUID will be
displayed in the message centre.

CAUTIONS

Power steering fluid will damage painted
surfaces. Soak up any spillage with an

absorbent cloth immediately and wash the
area with a mixture of car shampoo and water.

Do not fill the reservoir above the MAX
mark.

E83619

WARNINGS

Some screen washer products are
inflammable, particularly if high or

undiluted concentrations are exposed to
sparking. Do not allow screen washer fluid to
come into contact with naked flames or
sources of ignition.

If the vehicle is operated in
temperatures below 4°C (40°F), use a

washer fluid with frost protection. In cold
weather, failure to use a washer fluid with frost
protection, could result in impaired vision and
increase the risk of a vehicle crash.

CAUTIONS

Do not use an antifreeze or vinegar/water
solution in the washer reservoir -

antifreeze will damage painted surfaces, while
vinegar can damage the windscreen washer
pump.

Body panels may suffer discolouration as
a result of screen washer fluid spillage.

Take care to avoid spillage, particularly if an
undiluted or high concentration is being used.
If spillage occurs, wash the affected area
immediately with water.

Maintenance

168

L

The washer reservoir supplies both front and
rear screen washer jets and headlamp washer
jets.

Check and top-up the reservoir level at least
every week. Always top-up with screen washer
fluid to prevent freezing.

Operate the washer switches periodically to
check that the nozzles are clear and properly
directed.

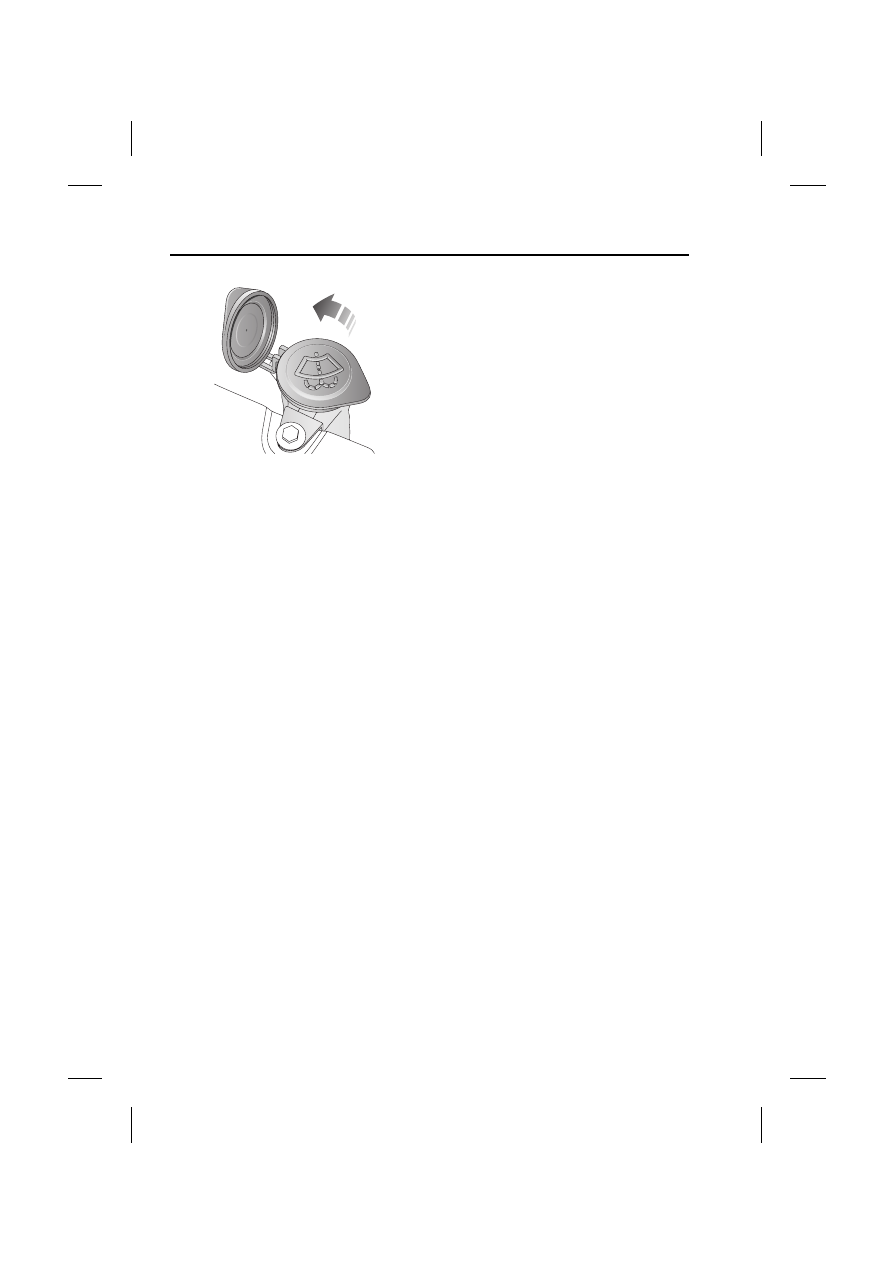

Topping up the fluid

1. Clean the filler cap before removing to

prevent dirt from entering the reservoir.

2. Remove filler cap.

3. Top-up the reservoir until the fluid is

visible in the filler neck.

4. Replace filler cap.

Washer reservoir capacity
• Models without headlamp wash - 3.1 litres

(5.45 pints).

• Models with headlamp wash - 5.8 litres

(10.2 pints).

E83620

169

Maintenance

R

TECHNICAL SPECIFICATIONS

Lubricants and fluids

 ¹ If Shell DOT4 ESL is not available, a low
viscosity DOT4 brake fluid that meets ISO 4925
class 6 and Land Rover LRES22BF03
requirements may be used.

Part

Variant

Specification

Engine oil

Diesel vehicles

SAE 5W-30 meeting Ford
913-B specification.

Engine oil

Petrol vehicles

SAE 0W-30 meeting ACEA A5
or B5 specification.

Main gearbox oil

Manual transmission

Castrol MTF 97309

Main gearbox oil

Automatic transmission

Esso JWS3309US

Power transfer unit fluid

Diesel vehicles

Castrol BOT119

Power transfer unit fluid

Petrol vehicles

Castrol BOT118

Rear differential oil

All vehicles

Castrol EPX

Rear differential on demand
coupler fluid

All vehicles

STAT OIL SL01-301

Power steering fluid

All vehicles

Pentosin CHF202 PAS fluid

Brake fluid

All vehicles

Shell DOT4 ESL ¹

Screen washer

All vehicles

Screen wash with frost
protection

Coolant

All vehicles

50% mixture of Texaco XLC
antifreeze and water.
