Windows and mirrors

94

L

Window reset

The windows will need to be reset if the battery
is disconnected, becomes discharged, or
power supply is interrupted.

Reset as follows :-

1. Close the window fully.

2. Release the switch, then lift it to the close

position and hold for two seconds.

3. Open the window fully.

4. Release the switch, then push it to the

open position and hold for two seconds.

5. Lift and release the switch to operate the

one touch function.

6. Repeat the procedure on each window.

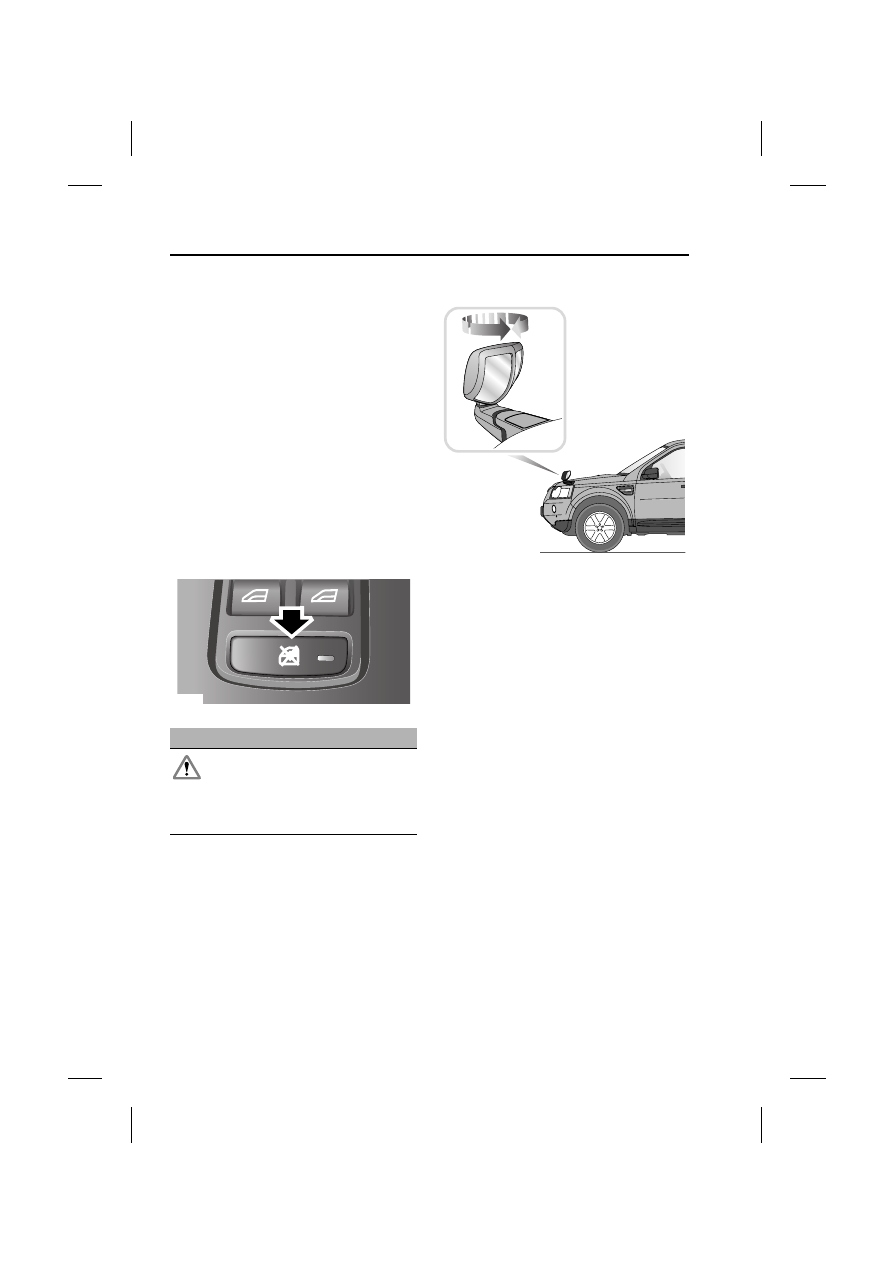

Window isolator

To prevent operation of the rear windows,
press the inhibitor switch. To allow passengers
control of the windows, press the switch again.

EXTERIOR MIRRORS

Note: Depending on the type of lens used,
distances may be difficult to judge accurately
when only using the mirrors.

Proximity mirror (Japan only)

Rotate the mirror as required to give the best
view of the areas in front of and beside the
vehicle.

WARNING

If children are carried in the rear seats,
the isolator switch should be used to

prevent operation of the windows. If the
windows are operated by young children there
is a risk of serious injury or death.

E81162

E83691

95

Windows and mirrors

R

ELECTRIC EXTERIOR MIRRORS

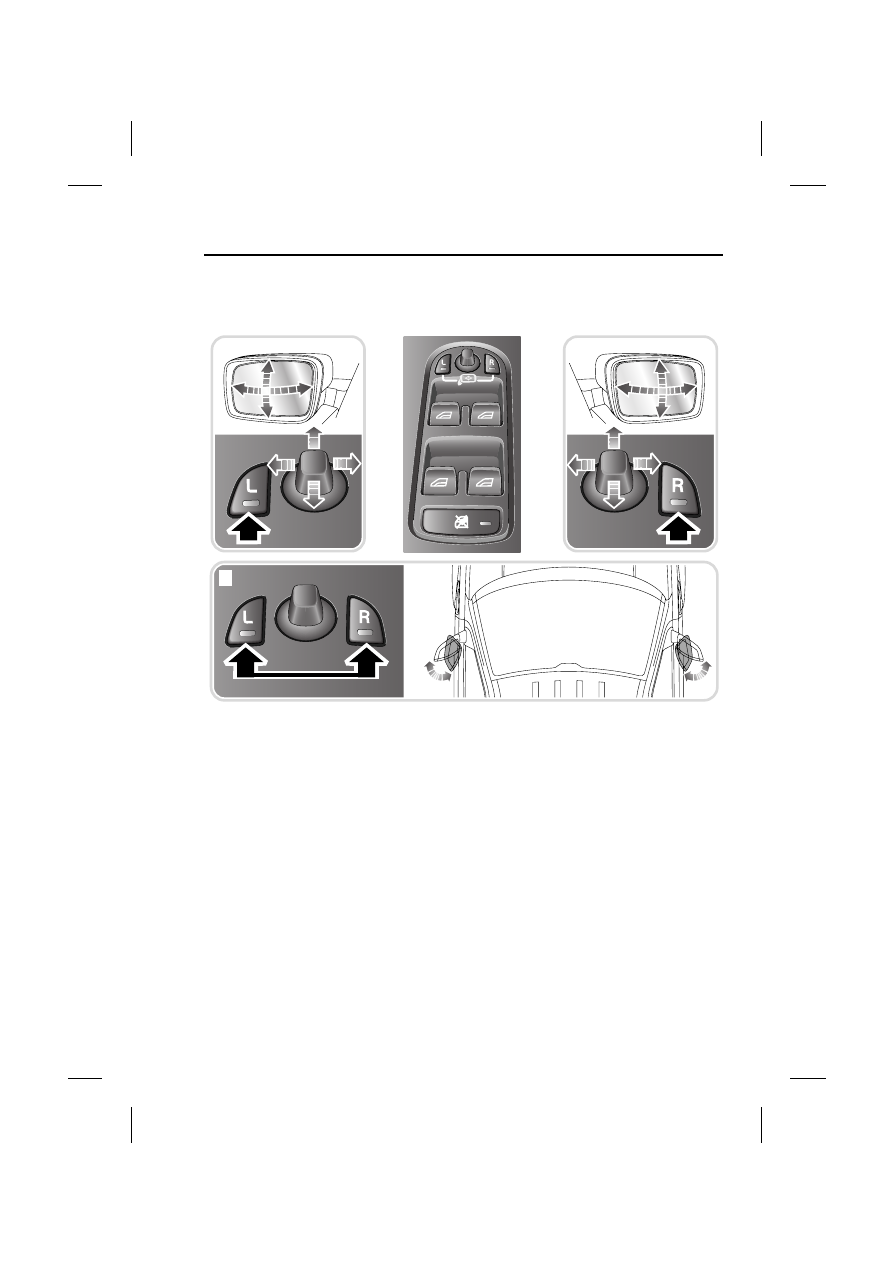

Adjusting and folding

1. Left mirror adjustment.

2. Right mirror adjustment.

3. Powerfold.

Adjusting

1. Press the left or right mirror button as

required. The green tell-tale light will
illuminate in the button to indicate that it
has been selected.

2. Move the toggle switch to adjust the mirror

as required.

Folding

To fold the mirrors back press both left and
right buttons at the same time. To unfold the
mirrors, press both left and right buttons
again.

1

2

3

E80504

Windows and mirrors

96

L

Note: If the mirrors are folded manually, or
knocked into the folded position accidentally,
the mirror head will be loose. To re-engage the
mechanism, fold, then unfold the mirrors using
the switches.

The system is protected by a thermal cut-out
which will temporarily disable the powerfold
feature if the switches are operated repeatedly.
If the cut-out operates when the mirrors are
folded, they can be unfolded manually.

Powerfold will only operate if the vehicle is
stationary, or travelling at 20 km/h (12 mph) or
less.

Automatic folding

The mirrors can be configured by
your land Rover Dealer/Authorised
repairer to automatically fold when

the vehicle is locked, and unfold when it is
unlocked.

Note: If the mirrors were folded using the
switches, they will not unfold when the vehicle
is unlocked.

Mirror dip when reversing

When reverse gear is selected the driver and
passenger door mirrors are automatically
adjusted to provide an improved viewing angle
for reversing.

The exact dipped position can be adjusted
when the mirrors are dipped. The next time
reverse is selected, the newly adjusted position
will be selected.

When the gear selector is moved out of
reverse, the mirrors will return to their previous
position.

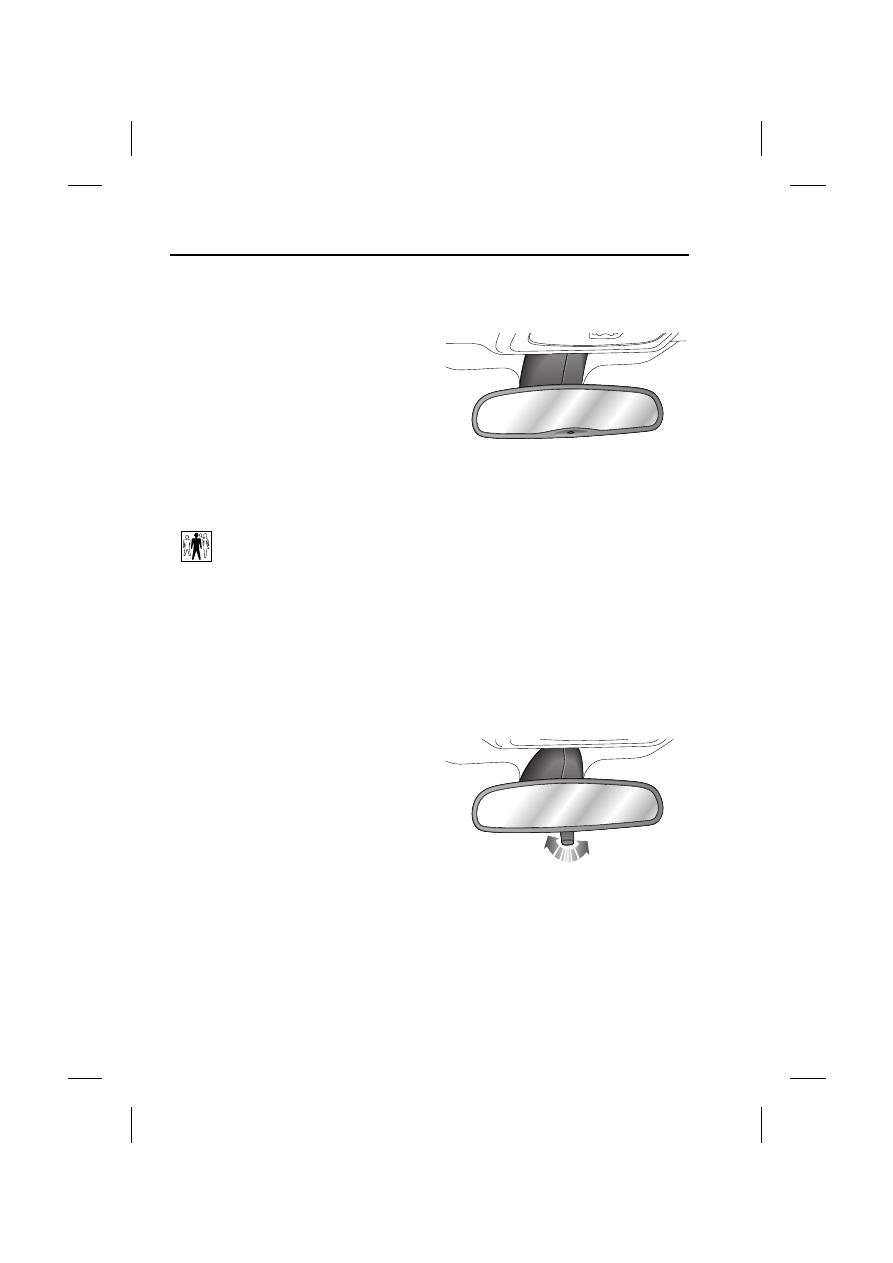

INTERIOR MIRROR

Auto dimming

The interior mirror dimming is adjusted
automatically according to the amount of
ambient light when the ignition is on. If reverse
gear is selected, the automatic dimming
feature is turned off to allow maximum
visibility for reversing.

Note: If the mirror becomes detached from the
windscreen it should be reattached by a Land
Rover Dealer/Authorised Repairer.

Note: If the rear screen is obscured, or the light
falling on the mirror is reduced by an
obstruction, the automatic dimming feature
may not operate correctly.

Manual dimming

To dim the light levels reflected by the mirror,
push the lever forward. To return it to normal
light levels, pull the lever back.

E80553

E80554

97

Instruments

R

Instruments

INSTRUMENT PANEL OVERVIEW

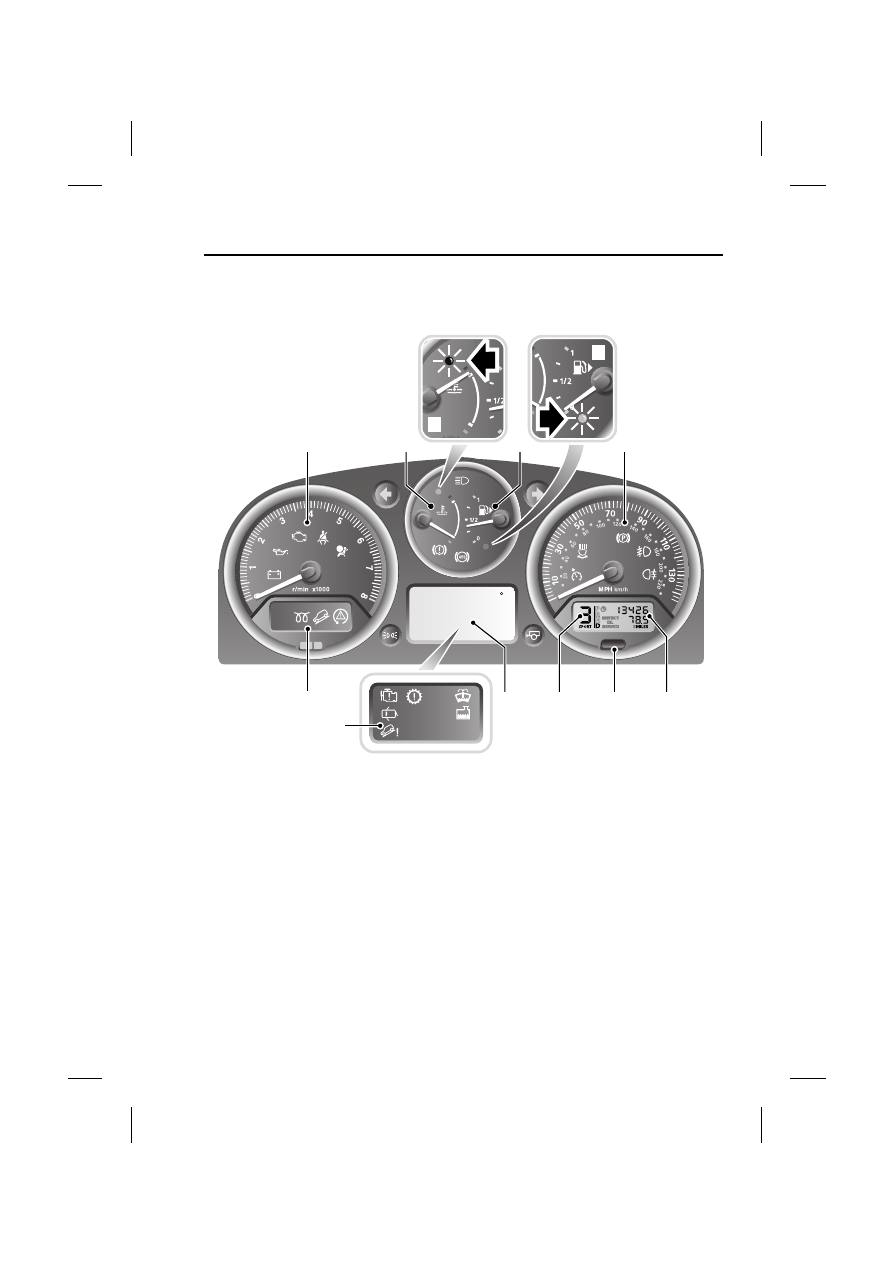

Instrument panel

1. Tachometer.

2. Temperature gauge.

3. Fuel gauge.

4. Speedometer.

5. Odometer and trip recorder.

6. Trip recorder reset button.

7. Gear selector mode and position display.

8. Main message centre.

9. Warning indicator panel (fitted in place of

main message centre).

10. Warning indicator panel.

EXT

C

21

E83004

5

6

7

10

8

9

1

4

2

3

2

3
