Frelander 2. Manual - part 702

Lighting

86

L

BULB SPECIFICATION CHART

CAUTION

Before attempting to replace a bulb,
ensure that both the affected lamp, and
the vehicle's ignition, are turned off. If

the circuit is live a short circuit can occur
which may damage the vehicle's electrical
system.

Lamp

Specification

Power (Watts)

Halogen headlamp (Dip and Main

beam).

H7

55

Xenon headlamp (Dip and Main

beam).

D1S

35

Front side lamps.

W5W

5

Front direction indicators.

PY21W

21

Rear direction indicators.

PY21W

21

Front fog lamps.

H11

55

Side repeater lamps.

W5W

5

Reverse lamps.

P21W

21

Rear fog lamps.

P21W

21

Stop/tail lamps.

P21/5W

21/5

High mounted stop lamp

W16W

16

Number plate lamps.

W5W

5

Puddle lamps.

W5W

5

Interior lamps.

W5W

5

Luggage/footwell lamps.

W5W

5

Luggage/tailgate lamps.

W5W

5

Glovebox lamp.

W5W

5

Vanity mirror lamp.

W5W

5

87

Wipers and washers

R

Wipers and washers

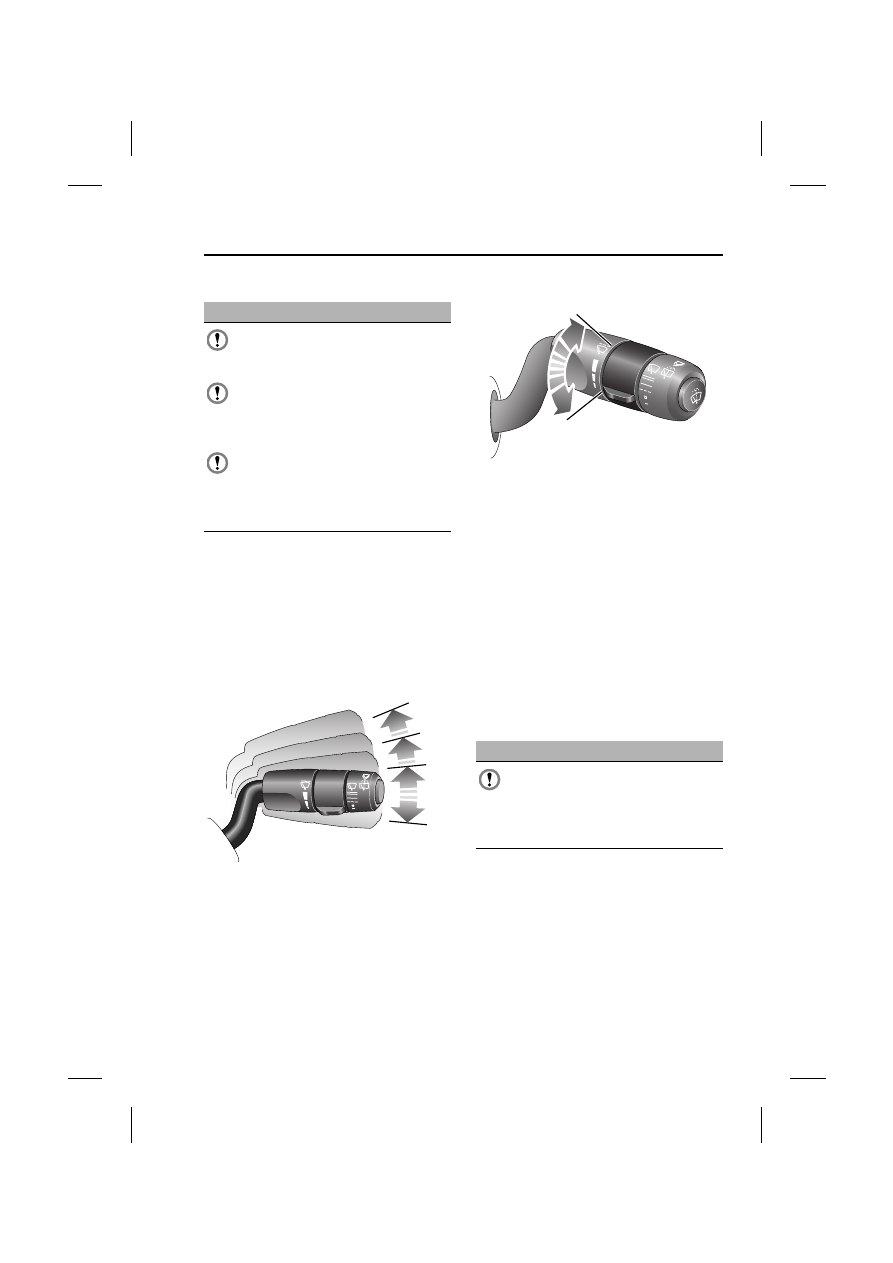

WINDSCREEN WIPERS

Note: If the wiper blades do become stuck, or
jammed, an electronic cut-out may temporarily
halt the operation of the wipers. If this
happens, switch off the wipers and the ignition.
Clear any obstructions, and free the wiper
blades before attempting to switch on the
ignition.

Wiper operation

1. Rain sensor/intermittent variable delay.

2. Low speed wipe.

3. High speed wipe.

4. Single wipe, pull down and release to

operate.

Intermittent variable delay

The interval in between wipes can be adjusted
to suit the conditions. Rotate the control
upwards to increase the time between wipes,
and down to decrease the time between wipes.

Speed-dependent mode

If the vehicle’s speed drops below 2 km/h (1.2
mph) with the wipers operating, the wiper
frequency automatically reduces. The wipers
will switch to the next lowest speed. When the
vehicle’s speed increases to over 8 km/h (5
mph), the original wiper speed setting is
restored automatically.

RAIN SENSOR

CAUTIONS

Do not operate the windscreen wipers on
a dry screen. The drag on the wiper

mechanism may cause damage.

In freezing, or very hot conditions ensure
that the wipers have not stuck to the

windscreen before operating. The drag on the
wiper mechanism may cause damage.

Remove any snow, ice, or frost, from the
windscreen, around the wiper arms and

blades, and the screen scuttle before operating
the wipers. Snow and ice can cause damage to
the wiper mechanism if left uncleared.

3

2

1

4

E80683

CAUTION

Ensure that the wipers are switched off
before entering a car wash. If the rain

sensitive wipers operate during the car
washing process damage may occur to the
wiper mechanism.

E80684

Wipers and washers

88

L

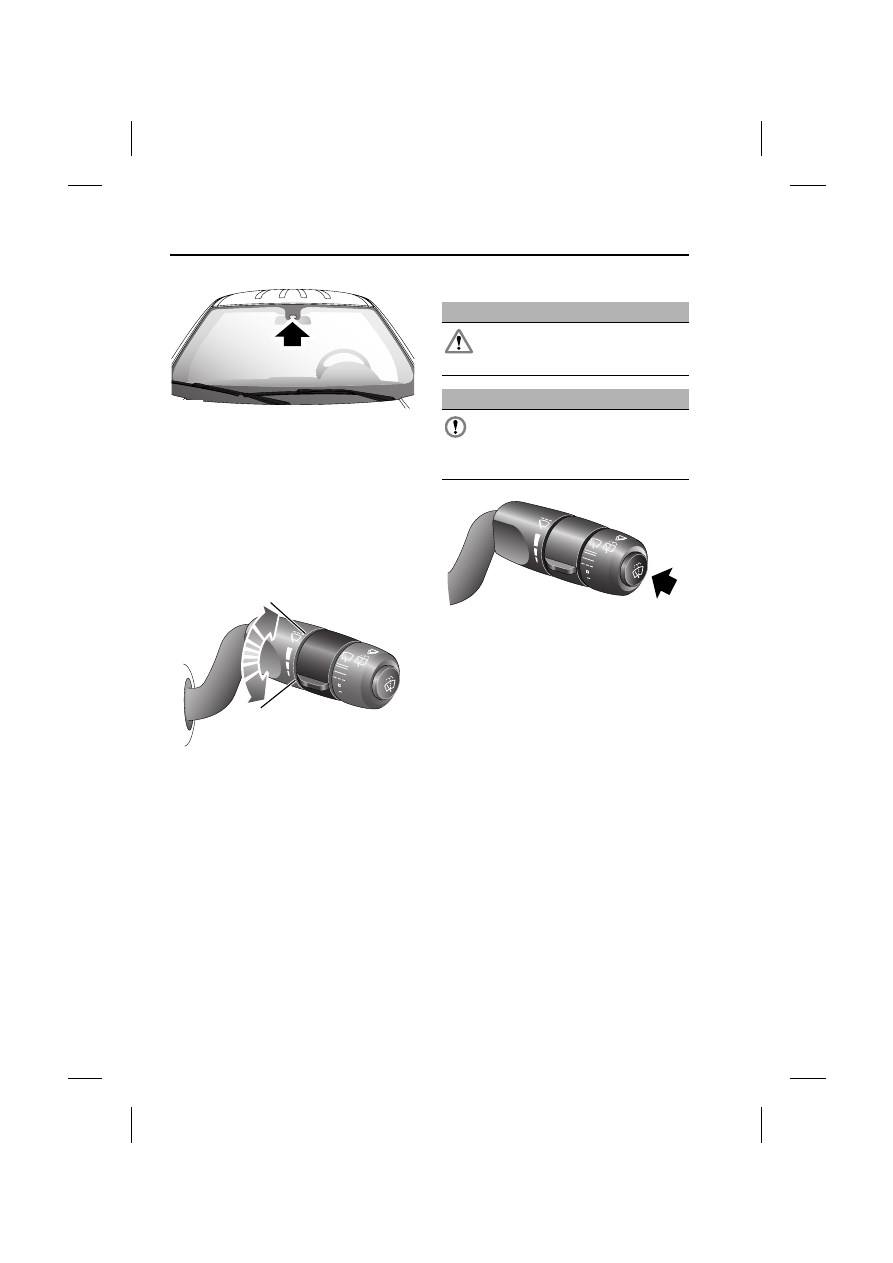

The rain sensor is able to detect the presence
and amount of rain/dirt/snow on the
windscreen.

Operation

To use the rain sensitive wipers, move the
wiper stalk to position 1 rain
sensor/intermittent variable delay.

Adjusting the sensitivity

Rotate the control upwards to increase the
sensitivity, and down to reduce the sensitivity.

If the sensor detects constant rain the wipers
will operate continuously.

WINDSCREEN WASHERS

To operate the windscreen wash press the
button on the end of the wiper stalk. When the
button is released, the wipers will complete two
additional strokes, and then park.

HEADLAMP WASHERS

Headlamp power wash operates automatically
with the windscreen wash, and will only
operate if the headlamps are switched on and
there is sufficient washer fluid in the reservoir.

Headlamp wash operates with every fifth
operation of the screen washers, or if ten
minutes have elapsed since the last operation
of the screen washers, they will operate again
immediately.

Note:  The headlamps are washed alternately
to prevent the washer fluid from reducing the
light output for both headlamps at the same
time.

E80687

E80684

WARNING

Some screenwash products are
flammable, do not allow screenwash to

come into contact with sources of ignition.

CAUTION

Only screenwash products which are
approved for automotive use should be

used, and only in accordance with the
manufacturers instructions.

E80679

89

Wipers and washers

R

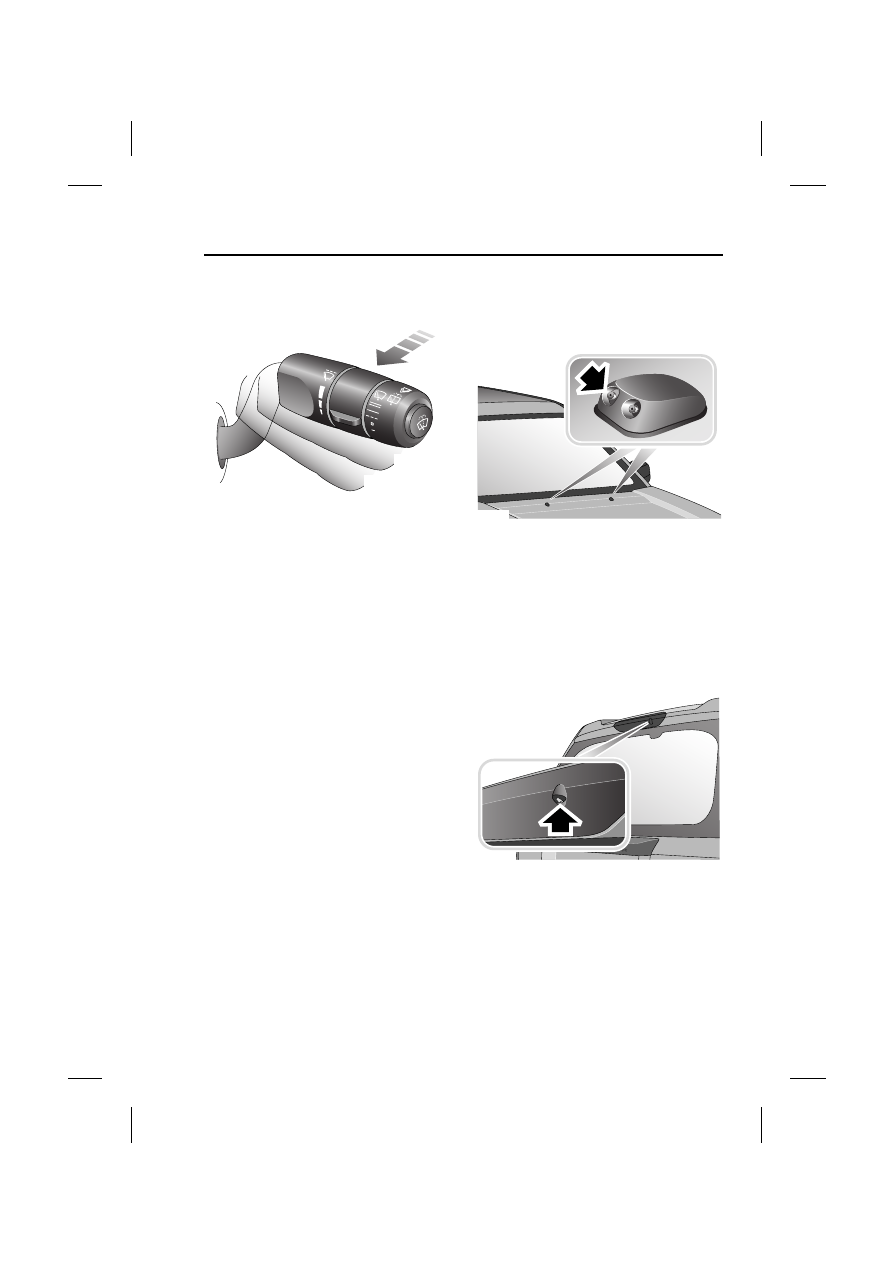

REAR WINDOW WIPER AND
WASHERS

1. Intermittent wiper operation.

2. Wash wipe.

Wiper

Pull the wiper stalk back to position 1 to turn on
the rear screen wiper. The wipe interval is set
to six seconds.

Wash/wipe

Pull the wiper stalk to position 2 and hold it
there for as long as the wash is required. The
wiper will operate at the same time, and carry
out two additional wiper sweeps when the lever
is released.

Reversing

If reverse gear is selected while the front
wipers are operating, the rear wiper will begin
automatically and continue as long as reverse
gear is selected.

If the rain sensor is operating the front wipers
and reverse gear is selected, the rear wiper will
operate automatically.

ADJUSTING THE WINDSCREEN
WASHER JETS

Front

If it is necessary to adjust the direction of the
front washer jets, insert the end of a needle into
the jet and gently reposition it.

Note: Direct the water jet towards the centre of
the windscreen. Take into account that when
the vehicle is moving at speed the air flow over
the bonnet will lower the jet.

Rear

The rear washer jet is set at the factory, and
cannot be adjusted.

1

2

E80730

E80746

E80747
