Rear End Sheet Metal Repairs - Rear Side Member Section

Removal and Installation

Removal

• NOTE: The rear side member section is cut from the rear side member service panel. The section is approximately

410mm in length and is serviced with the rear side member lower extension.

• NOTE: It is necessary to remove the spare wheel well to allow access to the rear side member section.

1. The rear side member section is replaced in conjunction with:

Rear bumper cover

Rear bumper armature

Back panel

Rear bumper mounting

Inner back panel assembly

Rear side member closing panel.

Spare wheel well

Fuel tank

Rear subframe and suspension assembly

2. For additional information relating to this repair procedure

please see the following:

For additional information, refer to:

Body and Frame

 (501-26

Body Repairs - Vehicle Specific Information and Tolerance

Checks, Description and Operation) /

Standard Workshop Practices

 (100-00 General Information,

Description and Operation).

3. Remove the rear side member closing panel.

For additional information, refer to:

Rear Side Member Closing

Panel

 (501-30 Rear End Sheet Metal Repairs, Removal and

Installation).

4. Remove the rear subframe / suspension as an assembly.

For additional information, refer to:

Rear Subframe

 (502-00

Uni-Body, Subframe and Mounting System, Removal and

Installation).

5. Remove the fuel tank.

For additional information, refer to:

Fuel Tank

 (310-01A Fuel

Tank and Lines - I6 3.2L Petrol, Removal and Installation).

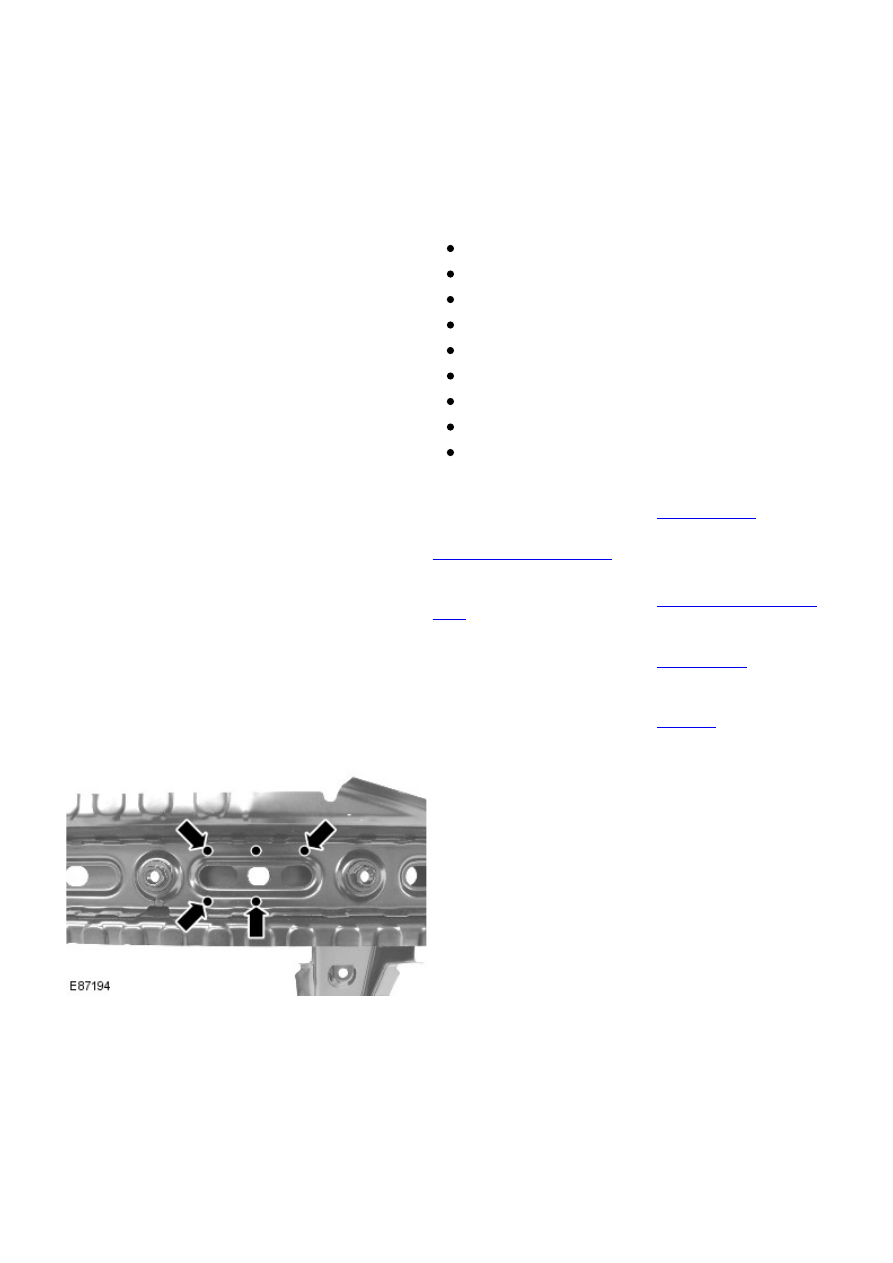

6. Mill out the spot welds.

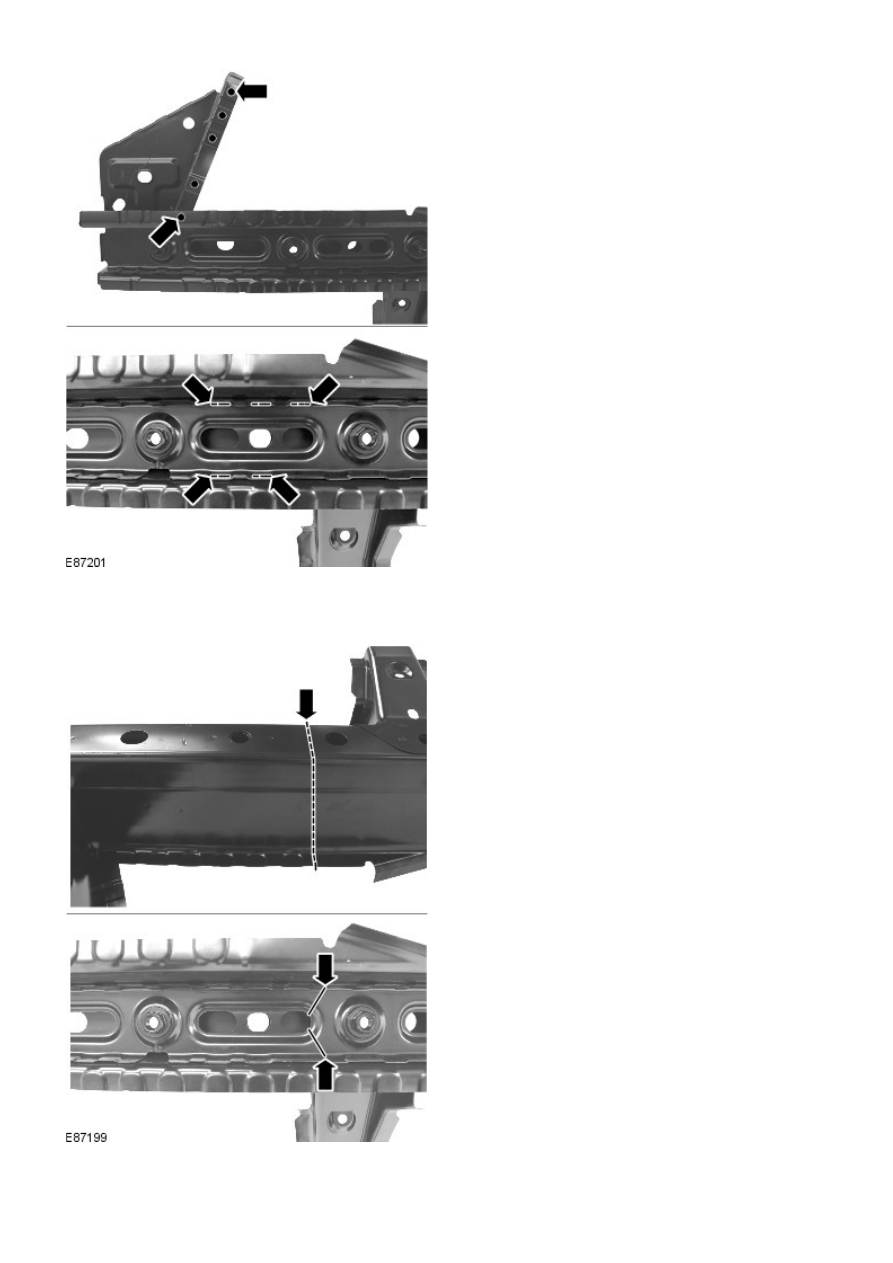

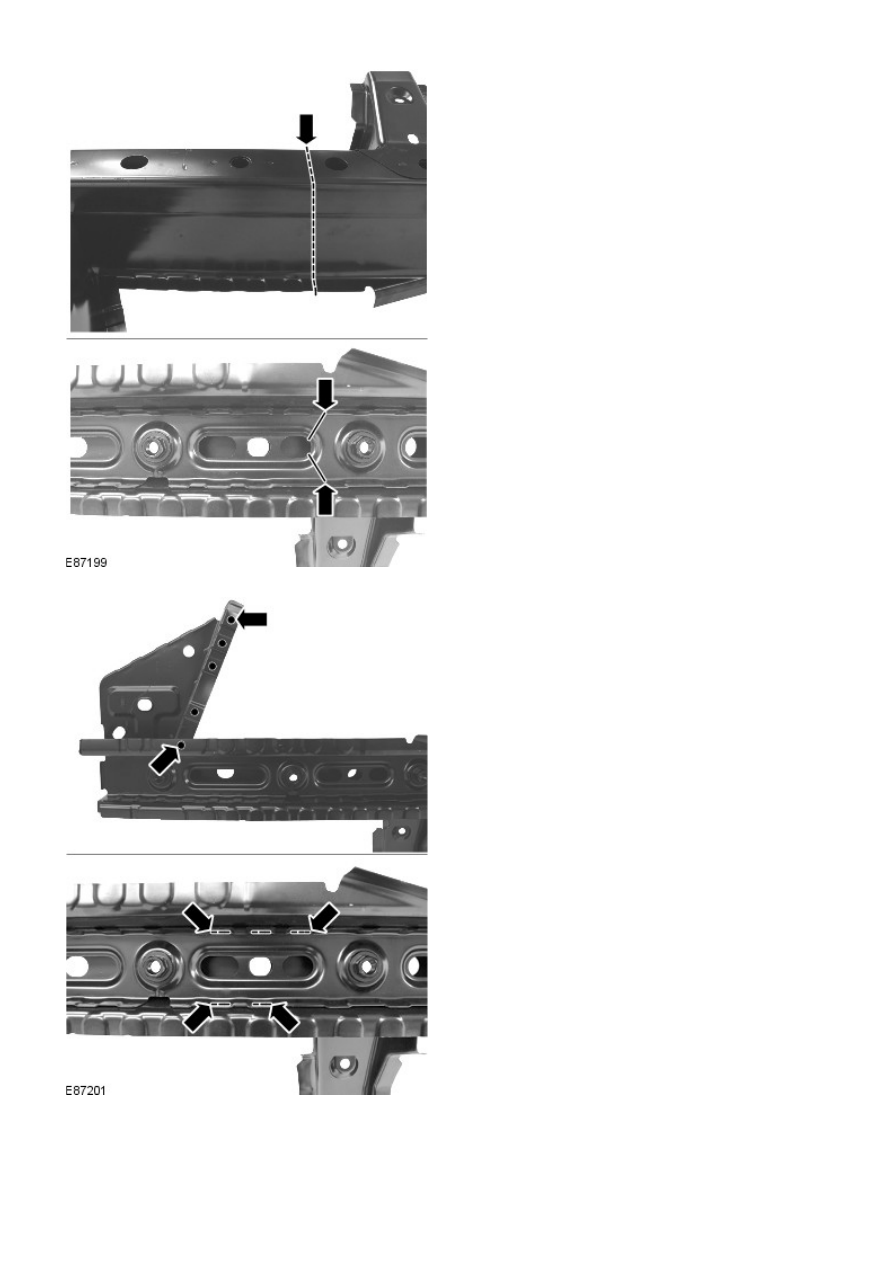

7. Saw cut the old panel at the point illustrated.

8. Separate the joints and remove the old panel.

Installation

1. NOTE: Ensure there is a 50mm minimum stagger between

the old side member and the new reinforcement section cuts.

Remove a section of reinforcement from the old panel:

1. Saw cut the reinforcement at the point illustrated,

do not cut through the side member.

2. Mill out 5 spot welds.

3. Separate and remove the reinforcement remnant.

2. NOTE: Ensure there is a 50mm minimum stagger between

the old side member and the new reinforcement section

cuts.

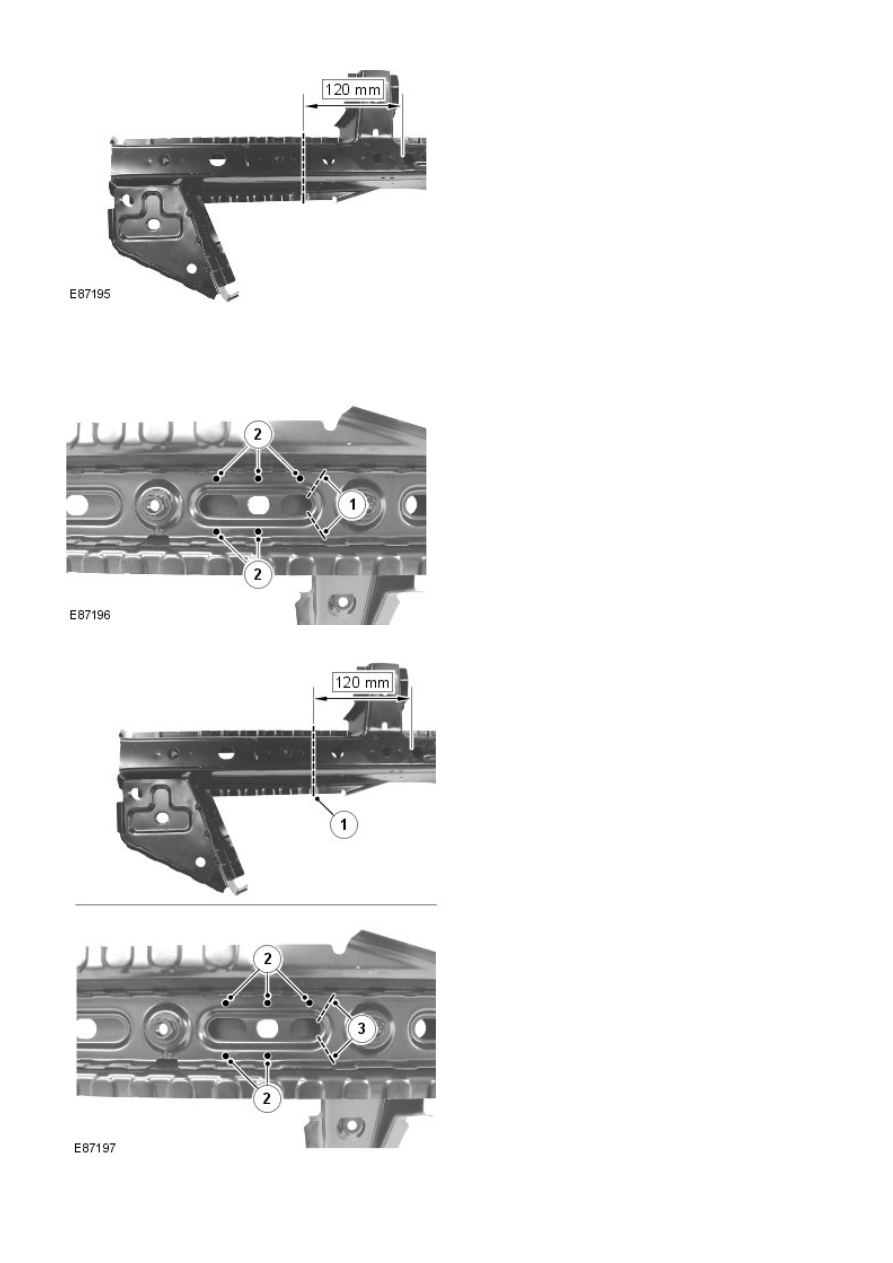

Remove the rear side member section from the service

panel:

1. Saw cut the side member at the point

illustrated, do not cut through the

reinforcement.

2. Mill out 5 spot welds.

3. Saw cut the reinforcement at the point

illustrated.

4. Separate and remove the side member section.

3. Prepare the old and new panel joint surfaces.

4. Drill holes in the new panel ready for MIG plug welding.

5. Offer up the new panel and clamp into position. Check

alignment, if correct, proceed to next step, if not, rectify and

recheck before proceeding.

6. With panels clamped into position, tack weld the butt

joints.

7. Dress the tack welds.

8. MIG weld the butt joints.

9. MIG plug weld.

10. Dress all welded joints.
11. The installation of associated panels and mechanical

components is the reverse of removal.
