Frelander 2. Manual - part 596

1

1

GO to D5

.

No

GO to D5

.

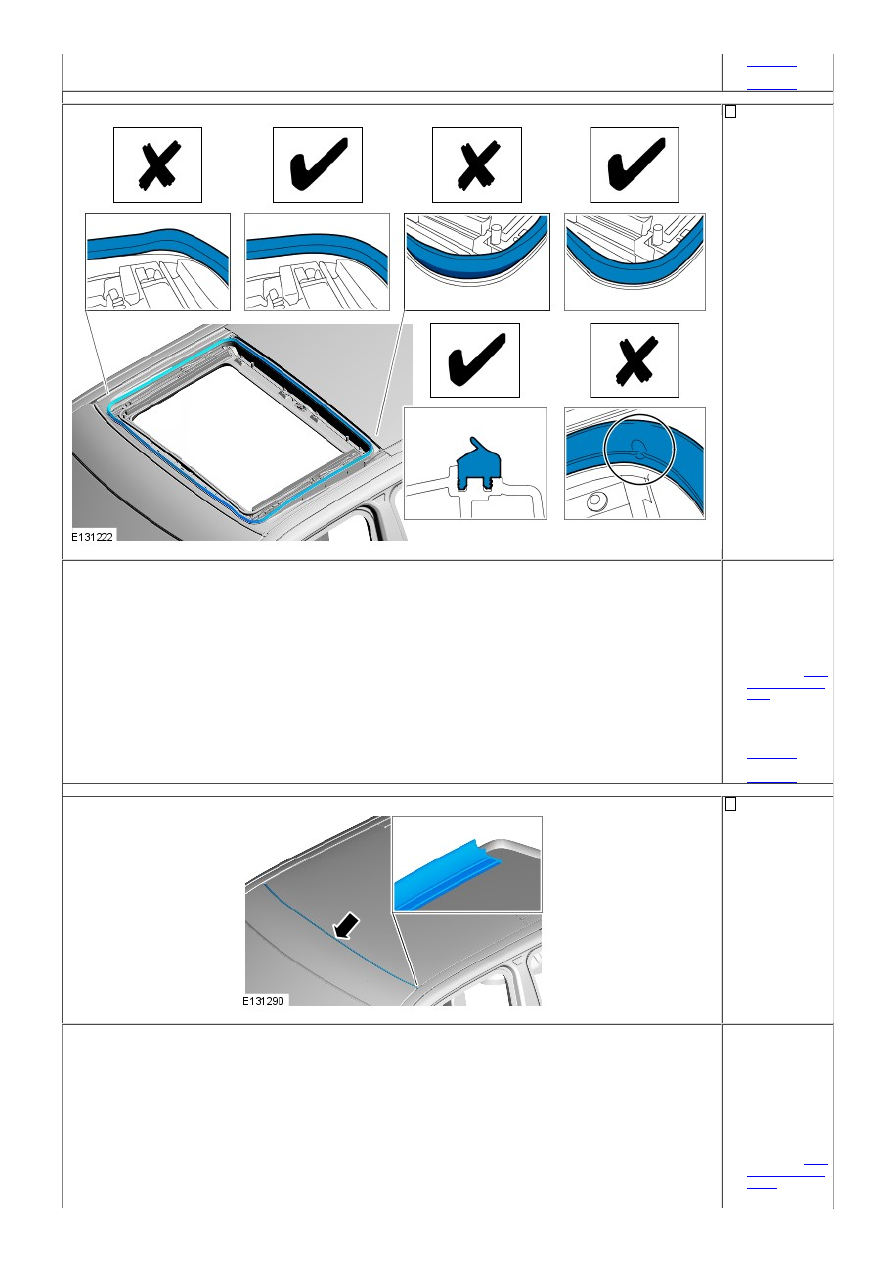

D5: GLASS SEAL - LOCATION

Visually inspect
the roof
opening panel
glass seal.

Is the bounce back
caused by the roof
opening panel glass
seal?
Yes

Install a new
roof opening
panel glass
seal.
REFER to:

Roof

Opening Panel
Seal

 (501-17

Roof Opening
Panel, Removal
and
Installation).

GO to D6

.

No

GO to D6

.

D6: DRIP LIP ON THE GLASS PANEL - LOCATION

Visually inspect
the roof
opening panel
glass drip lip.

Is the bounce back
caused by the roof
opening panel glass
drip lip?
Yes

Replace the
glass panel
(The drip lip is
not a
serviceable
item).
REFER to:

Roof

Opening Panel
Glass

 (501-17

Roof Opening

1

2

3

1

Panel, Removal
and
Installation).

GO to D7

.

No

GO to D7

.

D7: CORRECT OPERATION

Perform the
manual roof
opening panel
initialization
procedure.
REFER to:

Motor
Synchronization

(501-17 Roof
Opening Panel,
General
Procedures).
Operate the
roof opening
panel through
all possible
positions (slide
open / slide
close / tilt open
/ tilt close)
using the roof
mounted
switch.
Operate the
roof opening
panel one
touch function
five times in
succession
using the roof
mounted
switch.

Does the roof
opening panel
operate correctly
five times in
succession?
Yes

No further
action required.

No

GO to D8

.

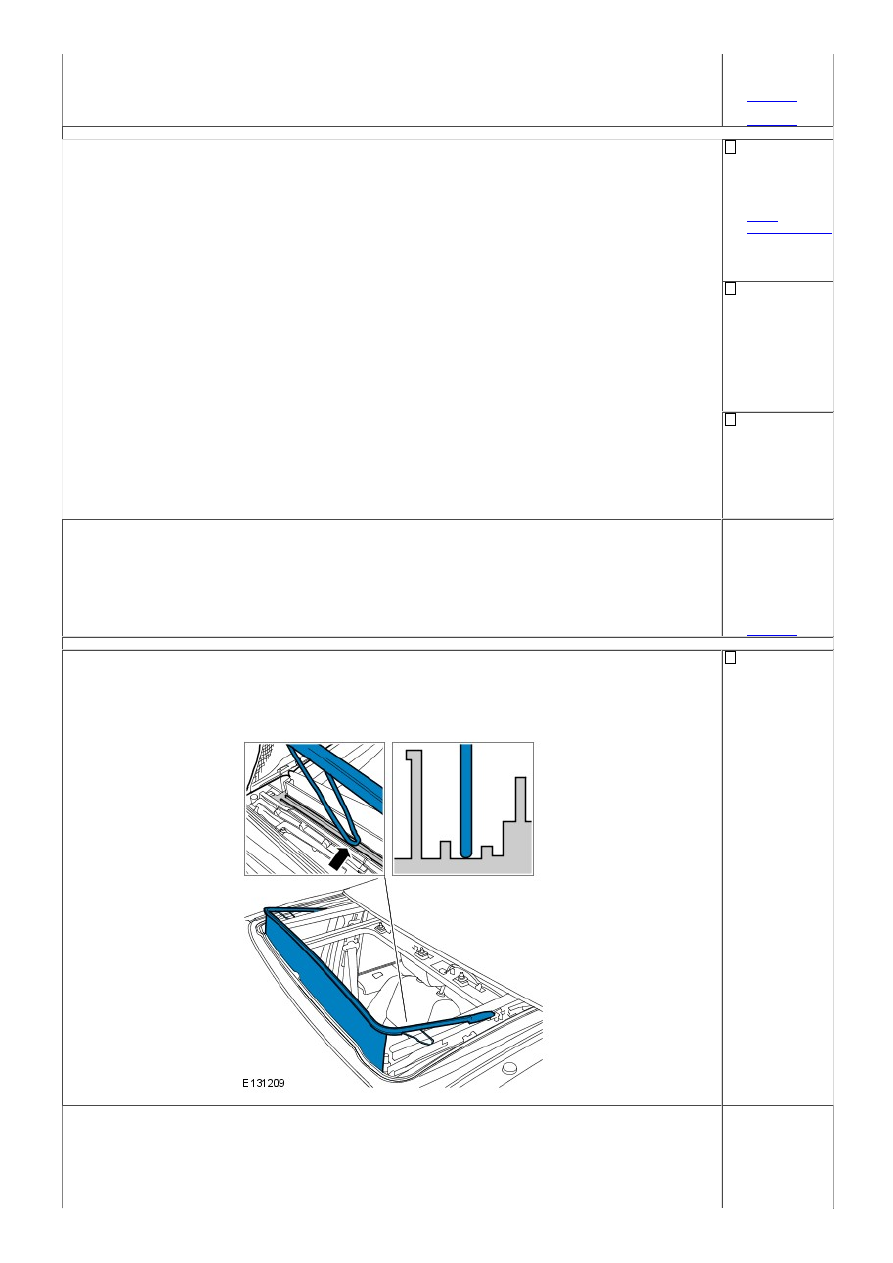

D8: AIR DEFLECTOR - LOCATION

Visually inspect
the roof
opening panel
air deflector.

Is the bounce back
caused by the roof
opening panel air
deflector?
Yes

Correctly
relocate and
secure, or

1

1

replace if
required the
roof opening
panel air
deflector.
REFER to:

Air

Deflector

(501-17 Roof
Opening Panel,
Removal and
Installation).

GO to D7

.

No

GO to D9

.

D9: GLASS PANEL - REMOVED

Carry out visual
and manual
inspection of
the glass panel
guides for
debris.

Are the guide(s)
obstructed by
debris?
Yes

Clear any
obstruction
from the glass
panel
guide(s).

GO to

D10

.

No

GO to D10

.

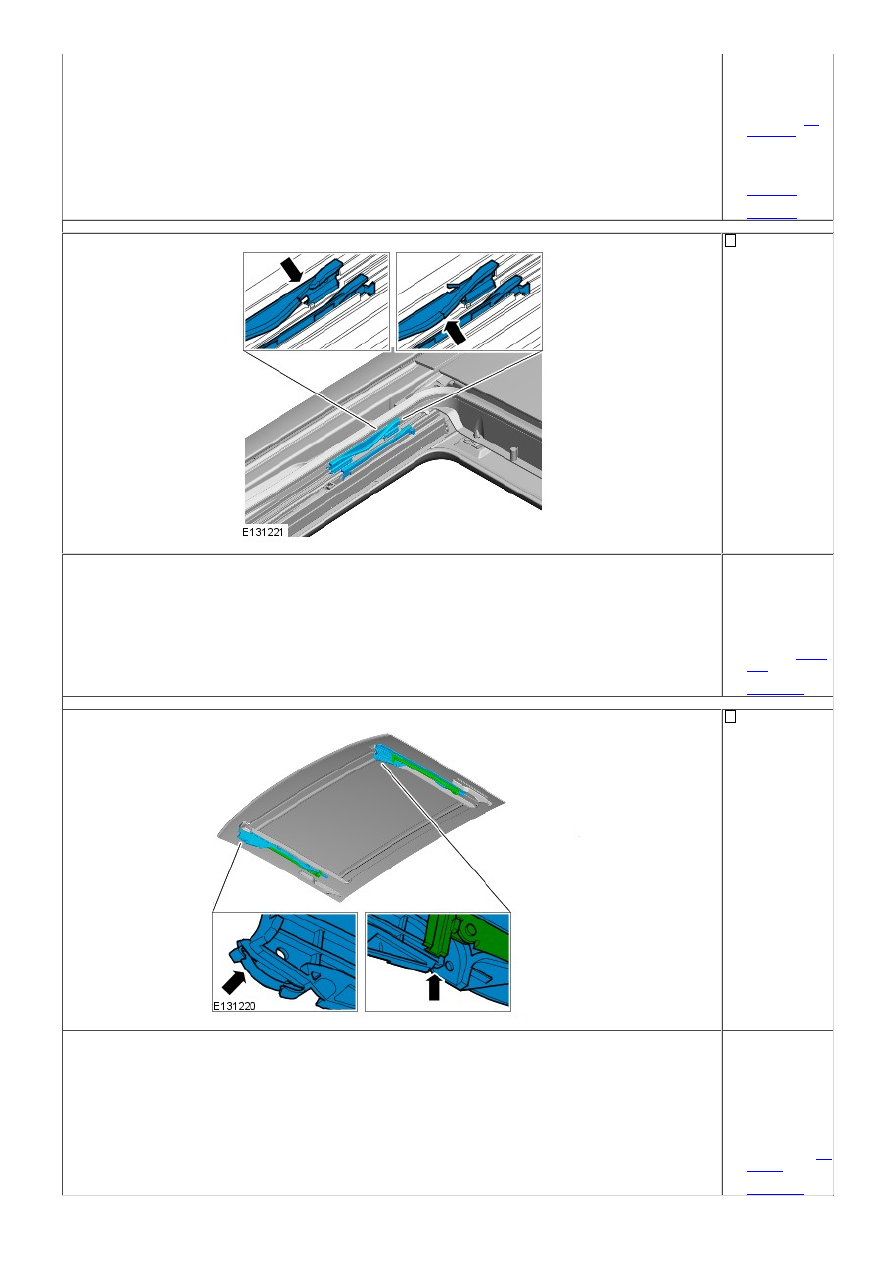

D10: GLASS MOUNTED GUIDE BRACKETS - CONDITION

Carry out visual
and manual
inspection of
the glass
mounted guide
brackets for
cracks or
damage.

Are the glass
mounted guide
brackets cracked or
damaged?
Yes

Replace the
glass panel
(The guide
brackets are
non
serviceable).

GO

to D11

.

No

GO to D11

.

1

1

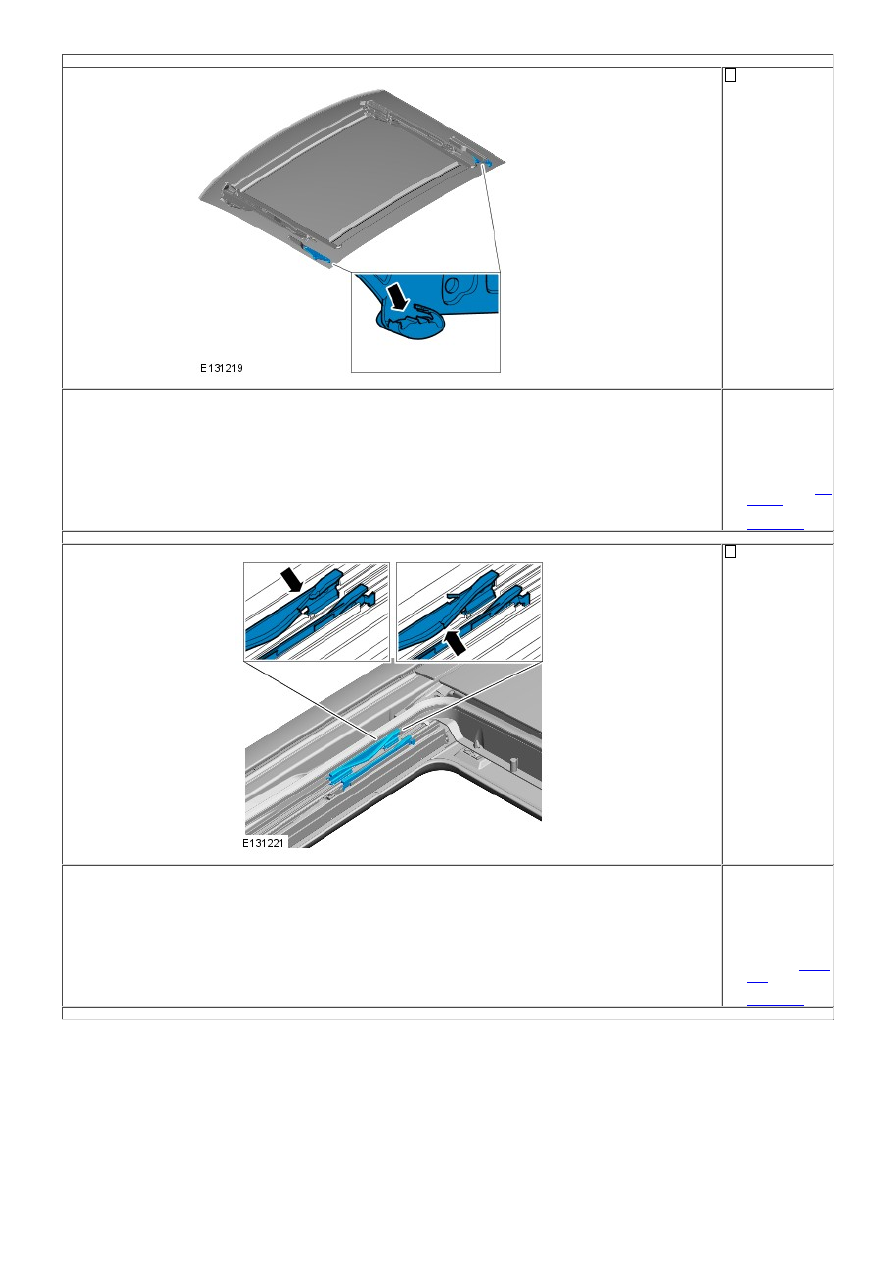

D11: REAR SLIDERS - CONDITION

Carry out visual
and manual
inspection of
the rear sliders
and the
connecting bar
for damage
(pieces broken)
and correct
location.

Are the rear sliders
or connecting bar
damaged / jammed?
Yes

Replace the
damaged rear
slider(s) or
connecting bar
as required.

GO

to D12

.

No

GO to D12

.

D12: RAIL MOUNTED GUIDE BRACKETS - CONDITION

Carry out visual
and manual
inspection of
the rail
mounted guide
brackets for
cracks or
damage (pieces
broken).

Are the rail
mounted guide
brackets cracked or
damaged?
Yes

Replace the rail
mounted guide
bracket(s) as
required.

GO to

D13

.

No

GO to D13

.

D13: RAIL MOUNTED GUIDE BRACKETS - LOCATION
