Roof Opening Panel -

Torque Specifications

Description

Nm

lb-ft

Roof opening panel motor Torx screws

5

4

Roof opening panel alignment Torx screws

3

2

Roof opening panel bolts

3

2

Roof opening panel motor tether

4

4

Roof Opening Panel - Roof Opening Panel

Description and Operation

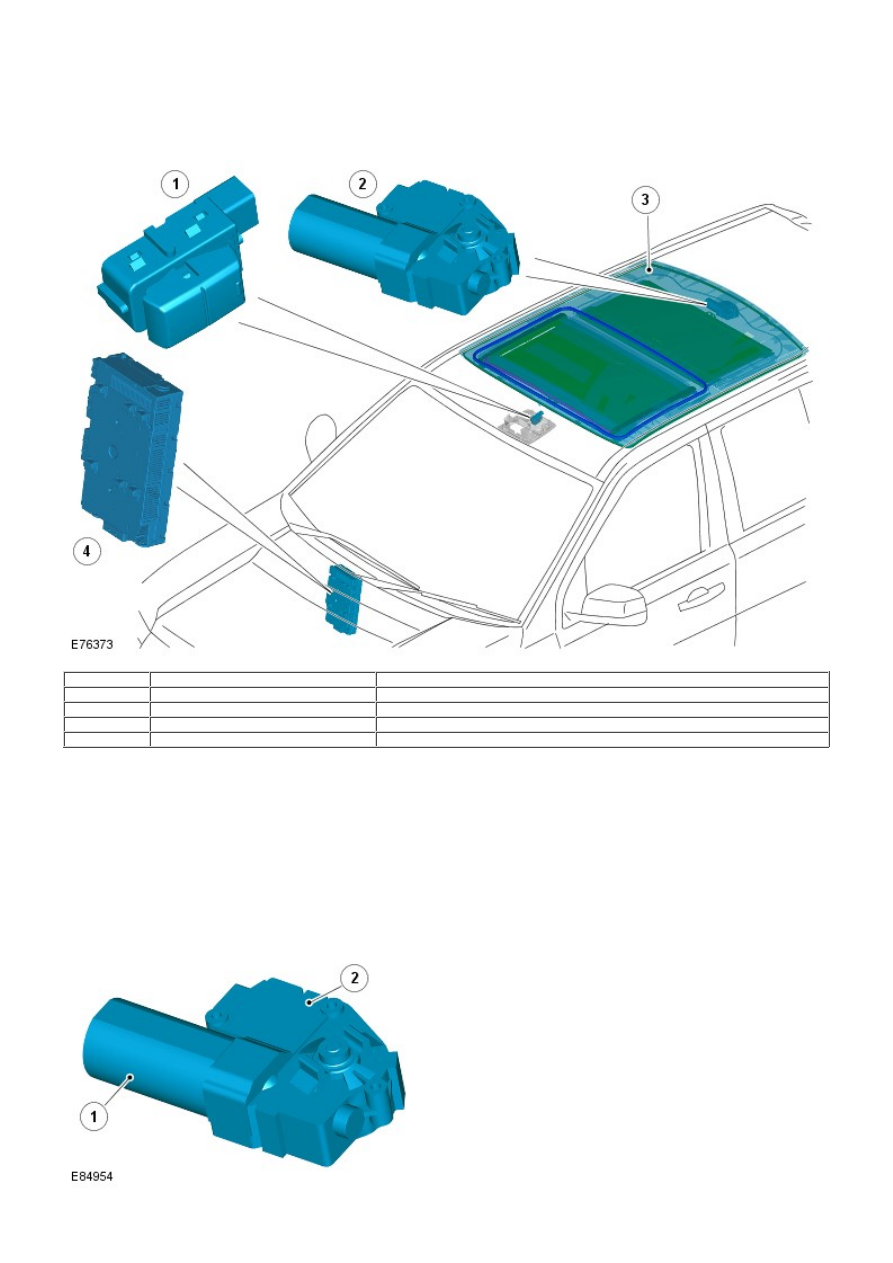

COMPONENT LOCATION

Item

Part Number

Description

1

-

Switch

2

-

Control unit/motor

3

-

Roof opening panel

4

-

Central Junction Box (CJB)

OVERVIEW

The roof opening panel is a double length glass unit, with the rear half being fixed in position.

The front half of the roof opening panel is electrically operated through a 2 way rocker switch located in the roof console.
An electric motor, attached to the rear of the roof opening panel frame, drives the front glass panel to the tilt, open or
closed position. The glass panel is operated by 2 cables, which are driven by the motor.

Operation of the roof opening panel is controlled by the roof opening panel control unit, which is integral with the motor.
The control unit receives inputs from the CJB and the switch to control roof opening panel operation accordingly. The CJB
also provides a vehicle speed signal to the control unit, which is used to calibrate the anti-trap feature.

CONTROL UNIT/MOTOR

Item

Part Number

Description

1

-

Motor

2

-

Control unit

The combined control unit and motor assembly is mounted behind the headlining, to the rear of the roof opening panel.
The control unit uses inputs from the CJB and the roof opening panel switch to control operation of the motor.

The end of the motor armature is formed as a worm drive, which drives a gear attached to the end of the motor assembly.
The gear engages with helixed cables in the roof opening panel frame to form a rack and pinion drive.

The control unit incorporates a Hall effect sensor which is used to count the revolutions made by the motor armature. By
counting the revolutions the control unit can accurately determine when the glass panel has reached its fully open, closed
or tilt position by comparing the armature rotation value against values stored in its memory. The values are stored in the
control unit's memory when the initialization routine has been carried out.

The control unit also monitors the temperature of the motor and will suspend operation if an overheat situation is likely to
occur. The thermal protection function has 2 levels of operation.

Level 1 - The control unit will only allow the roof opening panel to be closed
Level 2 - All operation is suspended except 'Anti-Trap'.

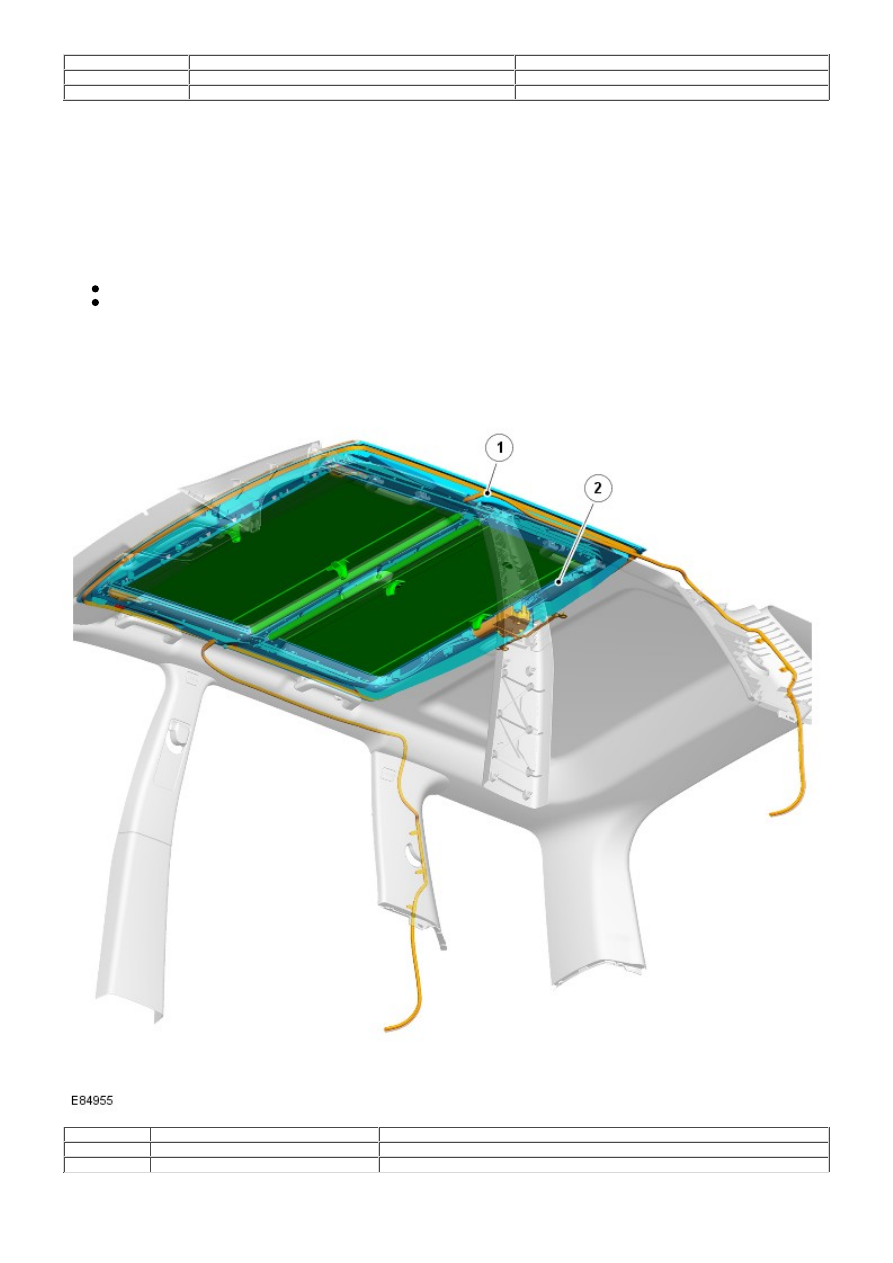

ROOF OPENING PANEL

Item

Part Number

Description

1

-

Drain hose (2 off)

2

-

Helixed drive cable (2 off)

The roof opening panel is attached to the outside of the body side panels, the front roof panel and the rear roof panel with
a Polyurethane (PU) adhesive. The roof panel comprises a plastic one piece frame housing 2 glass panels.

The rear glass panel is fixed in position and bonded to the roof opening panel frame using a PU adhesive. The forward
glass panel is driven into position by a pair of helixed cables. The helixed cables are able to push or pull the forward glass
panel into the required position.

The roof opening panel also contains 2 integral, manually operated sunblinds and 2 drain hoses. The drain hoses are
connected to the center of the frame above the B pillars. The drain hoses run through the cant rails and down the C pillars
to allow water collected in the frame to escape.

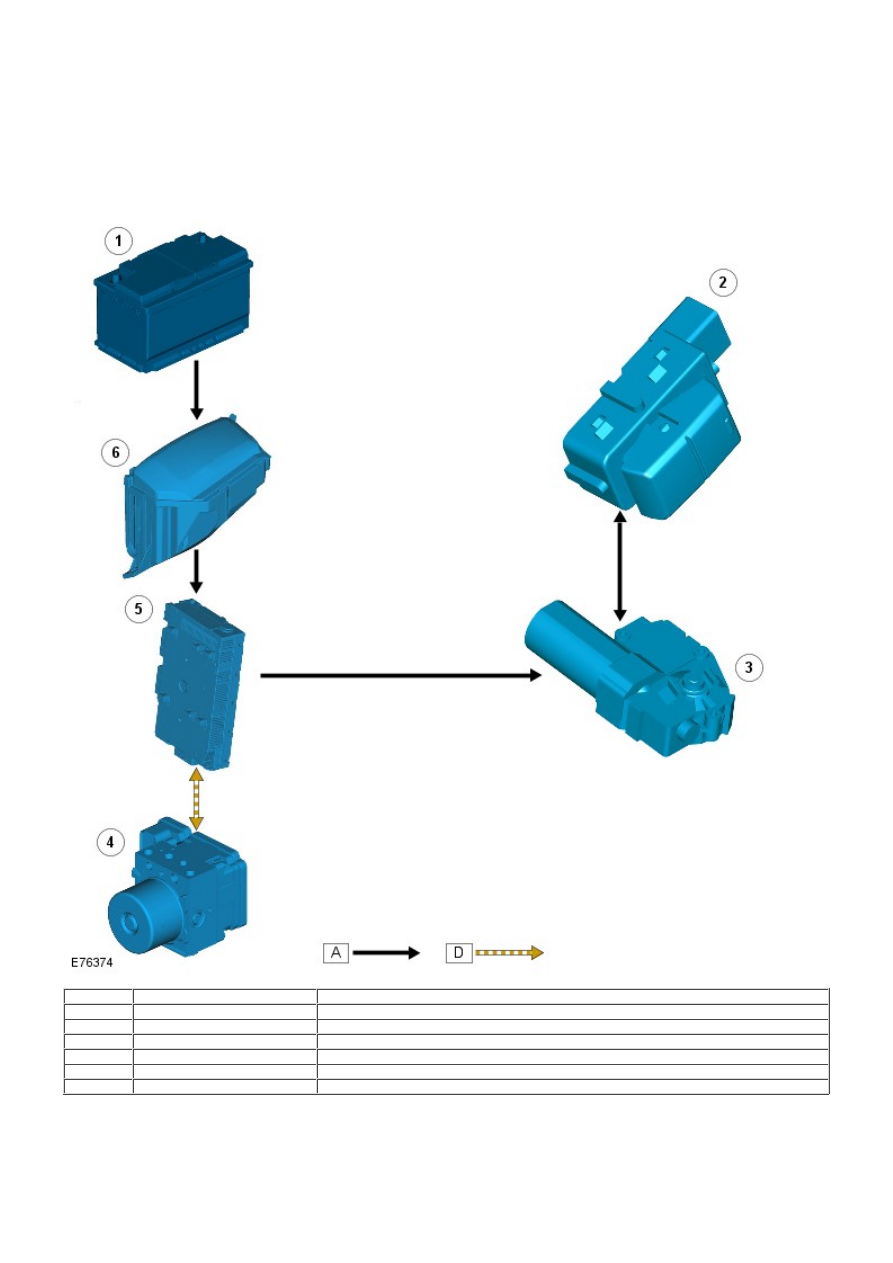

CONTROL DIAGRAM

• NOTE: = Hardwired; = High speed Controller Area Network (CAN) bus

Item

Part Number

Description

1

-

Battery

2

-

Switch

3

-

Control unit/motor

4

-

Anti-lock Brake System (ABS) module

5

-

CJB

6

-

Battery Junction Box (BJB)

PRINCIPLES OF OPERATION

The roof opening panel will only operate when the vehicle is in power mode 6 (ignition on). Power is supplied to the roof
opening panel control unit/motor by the CJB, which supplies both a permanent battery and ignition power supply. The CJB
also provides a vehicle speed signal to the control unit.

For details on how to operate the roof opening panel, refer to the 'Owners Handbook'.
