DTC

Description

Possible Cause

Action

B1C8214 Headlamp Washer Relay Coil

Circuit - circuit short to ground
or open

Headlamp washer relay control
circuit - short to ground, open
circuit

Refer to electrical circuit diagrams and
check headlamp washer relay control circuit
for short to ground, open circuit

C200412 Headlamp washer relay B -

circuit short to power

Headlamp washer relay B
circuit - short to power

Refer to electrical circuit diagrams and
check headlamp washer relay B circuit for
short to power

C200414 Headlamp washer relay B -

circuit short to ground or open

Headlamp washer relay B
circuit - short to ground, open
circuit

Refer to electrical circuit diagrams and
check headlamp washer relay B circuit for
short to ground, open circuit

U023100 Lost Communication With Rain

Sensing Module

Lost communication with rain
sensing module

Carry out the associated network test for
this DTC using the manufacturer approved
diagnostic system

Wipers and Washers - Windshield Wiper Motor

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Remove the plenum chamber panel.

Refer to:

Plenum Chamber

 (412-01 Climate Control, Removal and

Installation).

1.

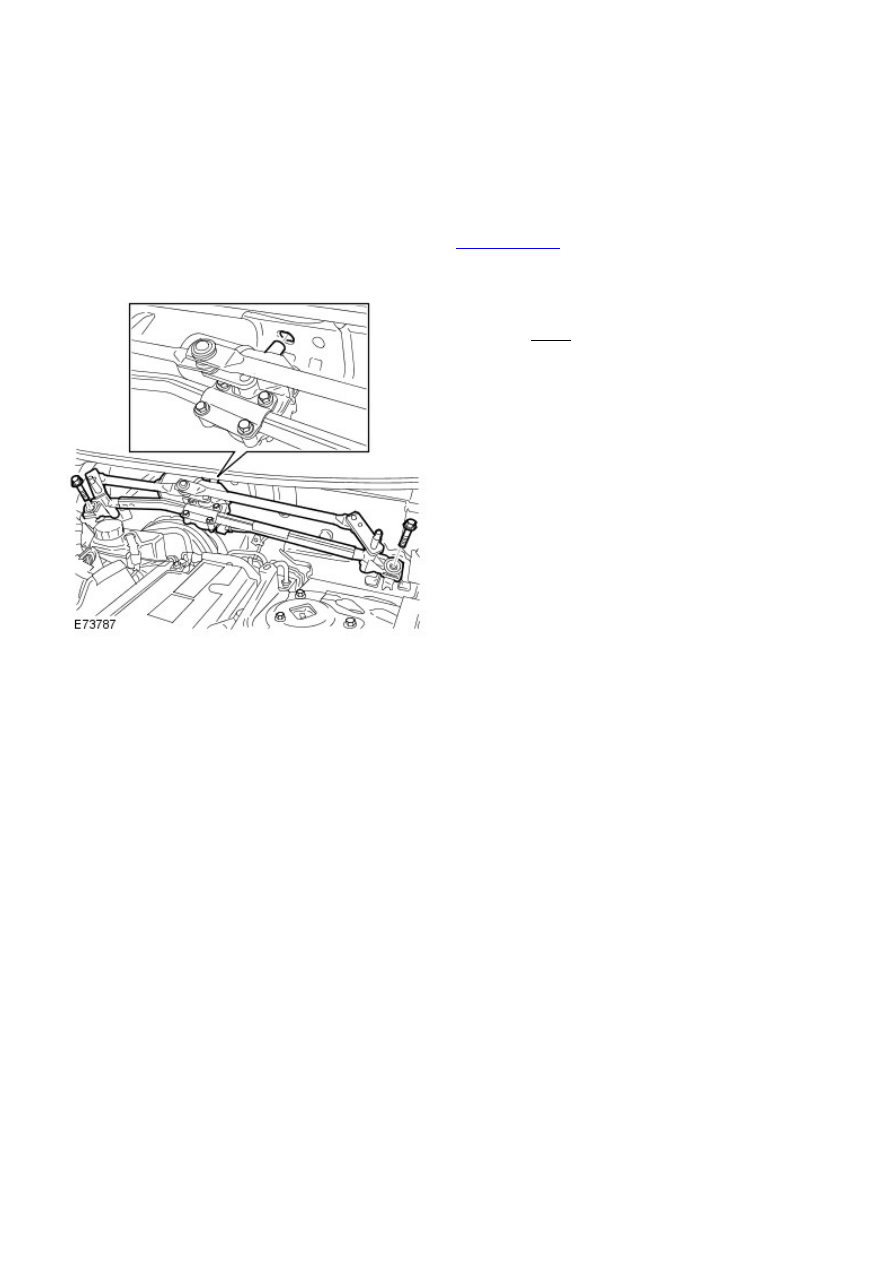

Remove the windshield wiper motor.

Torque: 10 Nm

2.

Installation

To install, reverse the removal procedure.

1.

Wipers and Washers - Rear Window Wiper Motor

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Remove the rear window wiper pivot arm.

1.

Remove the liftgate trim panel.

Refer to:

Liftgate Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

2.

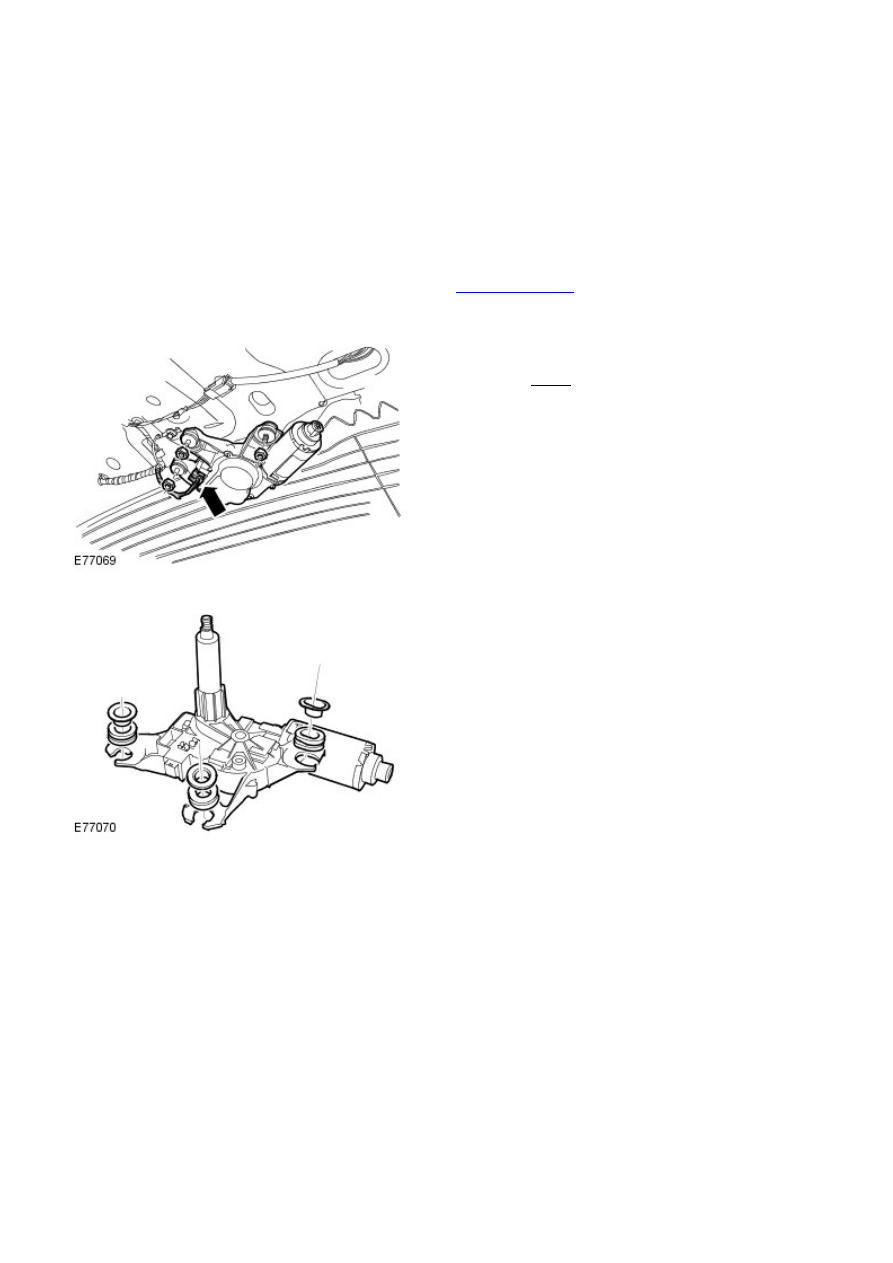

Remove the rear window wiper motor.

Torque: 10 Nm

3.

4. NOTE: Do not disassemble further if the component
is removed for access only.

4.

Installation

To install, reverse the removal procedure.

1.

Wipers and Washers - Rain Sensor

Removal and Installation

Removal

Remove the interior mirror.

Refer to:

Interior Rear View Mirror

 (501-09 Rear View Mirrors,

Removal and Installation).

1.

2.

Installation

To install, reverse the removal procedure.

1.
