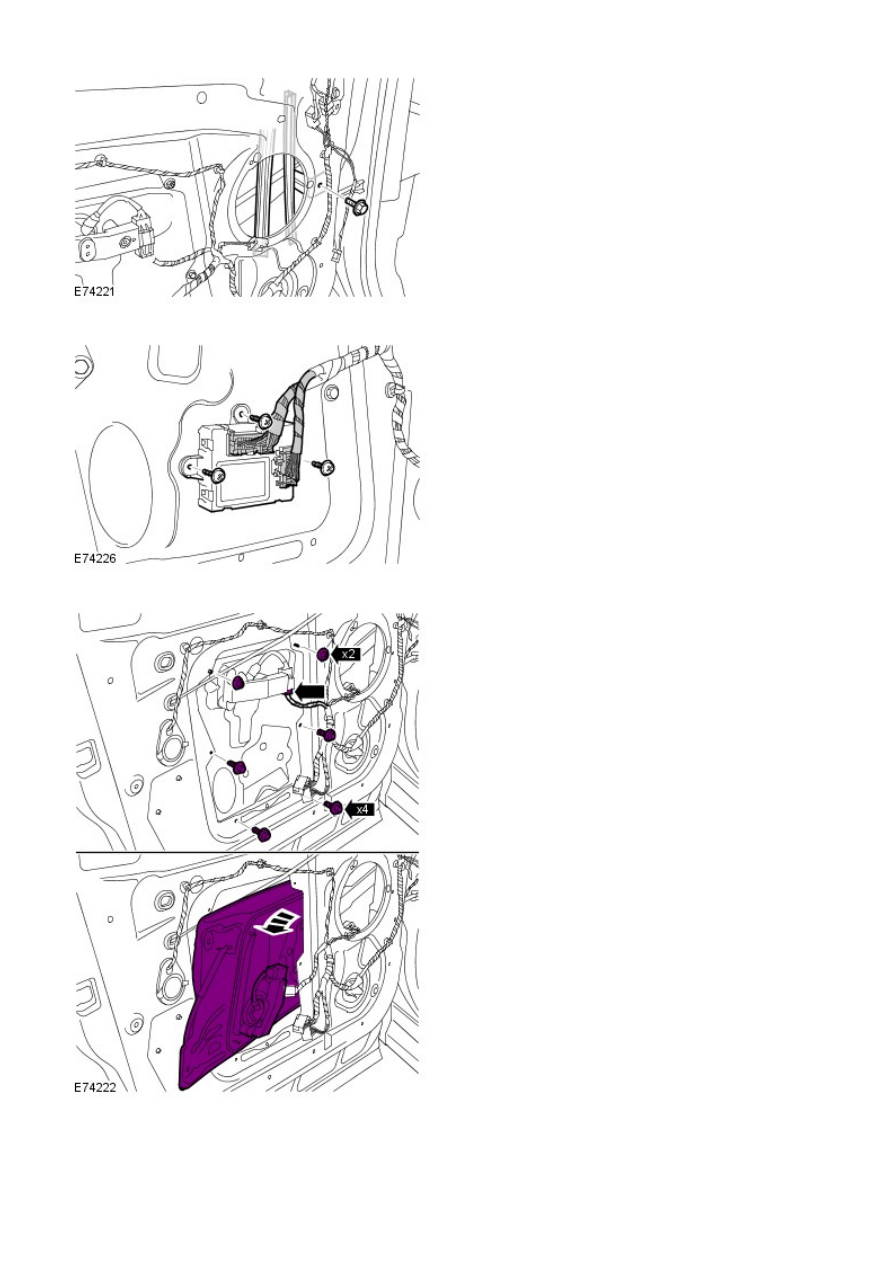

Remove the glass guide channel.

5.

Remove the front door control module.

6.

Remove the window motor and regulator assembly.

7.

Installation

Install the window motor and regulator assembly. Tighten the nuts
and the bolts.

1.

Torque: 10 Nm

Install the door control module.

2.

Install the glass guide channel and lining. Tighten the bolt.

Torque: 10 Nm

3.

Secure the door window glass to the window lift mechanism.

4.

Install the outer waist seal and secure with the Torx screw.

5.

Install the front door speaker.

Refer to:

Front Door Speaker

 (415-01 Information and Entertainment

System, Removal and Installation).

6.

Connect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

7.

Glass, Frames and Mechanisms - Rear Door Window Regulator and Motor

Removal and Installation

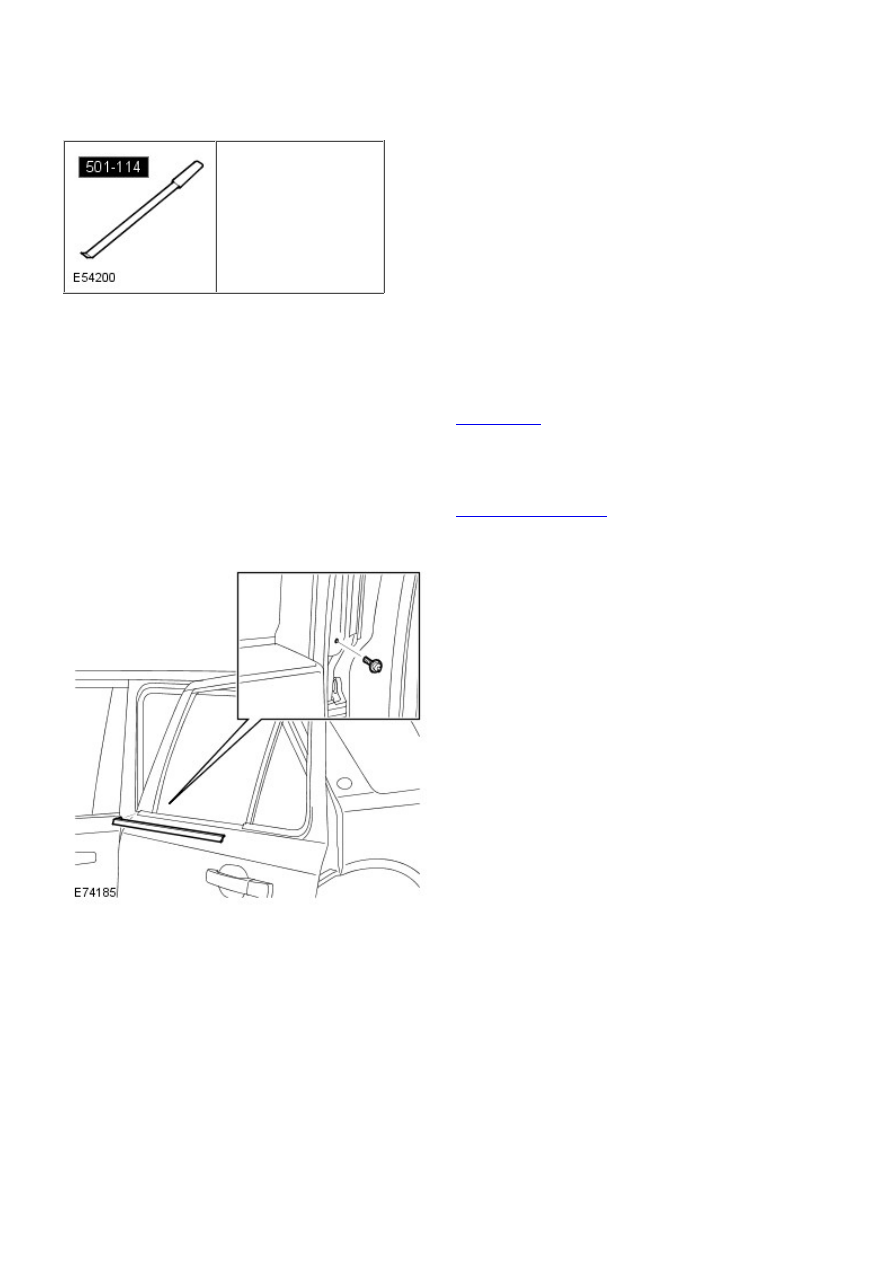

Special Tool(s)

501-114
Release Lever, Door Glass

Removal

• NOTE: If possible, lower the window glass by approximately one third of its travel.

Disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

Remove the rear door module.

Refer to:

Rear Door Module (RDM)

 (419-10 Multifunction Electronic

Modules, Removal and Installation).

2.

Carefully remove the outer waist seal.

3.

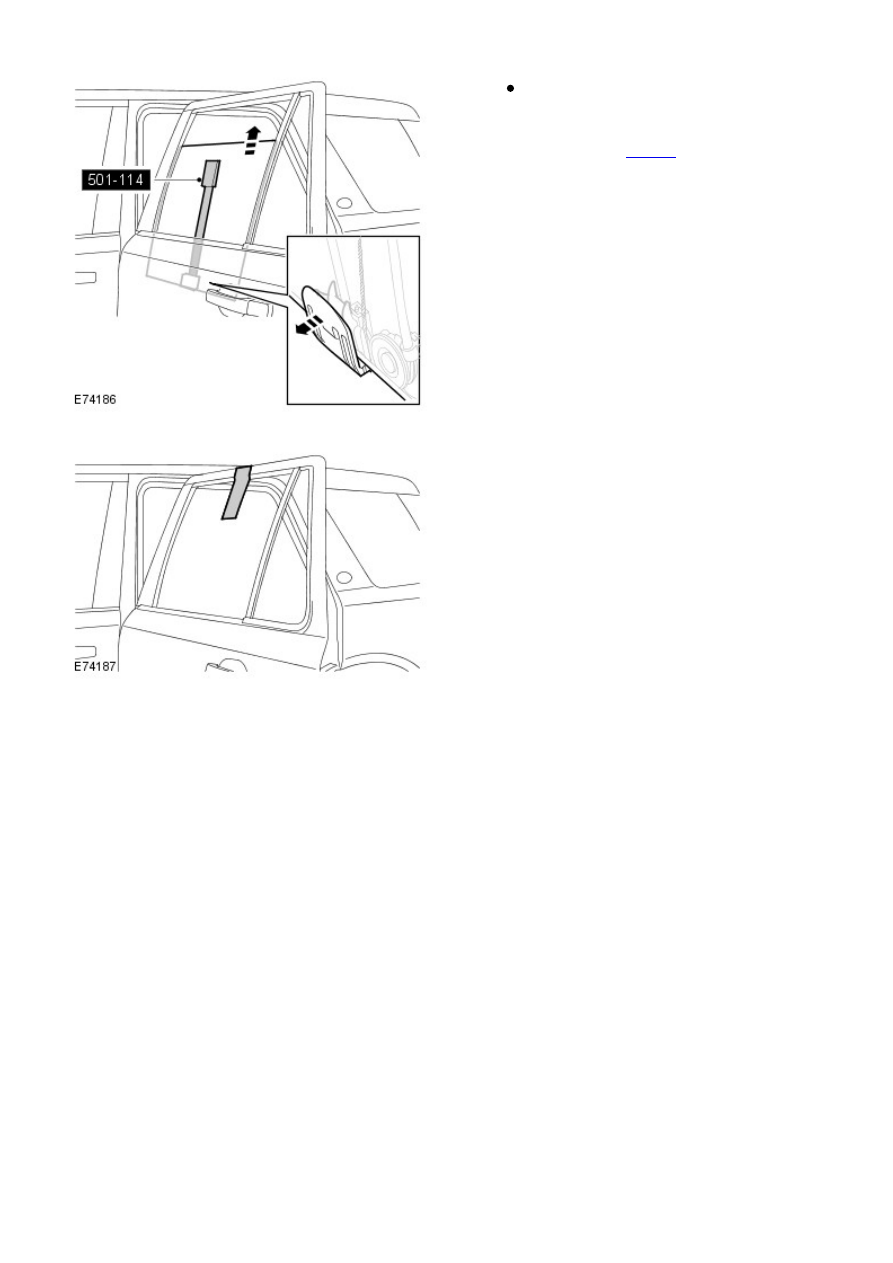

Release the door window glass from the window
lift mechanism. Raise the glass and secure it to
the top of the door frame.

Special Tool(s):

501-114

4.

Secure the glass to the top of the frame.

5.
