Glass, Frames and Mechanisms - Rear Quarter Window Glass

Removal and Installation

Removal

Remove the rear quarter trim panel.

Refer to:

Rear Quarter Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

1.

2.

WARNING: Make sure that a new bolt is

installed.

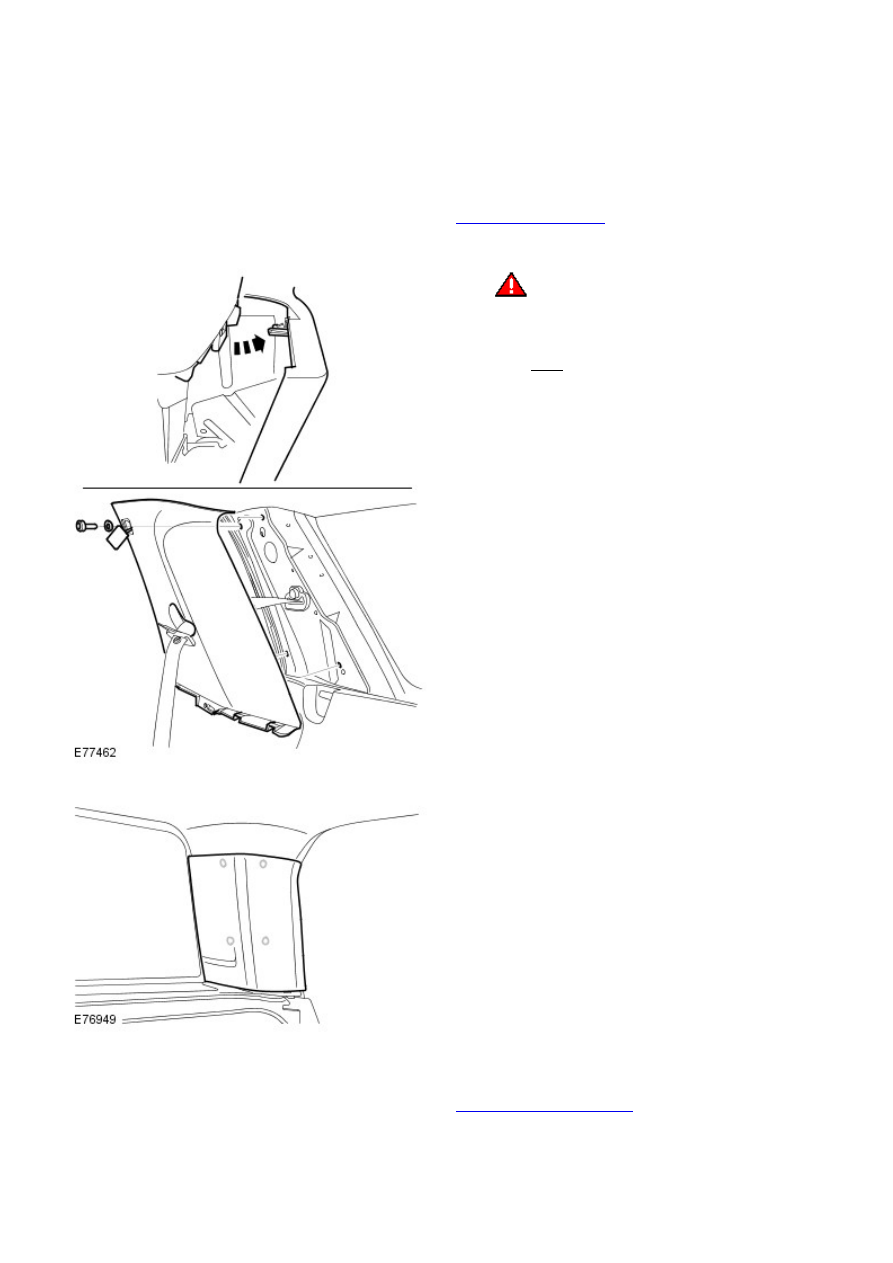

Remove the C-pillar trim panel.

Torque: 3 Nm

2.

Remove the D-pillar trim panel.

3.

Remove the rear quarter panel moulding.

Refer to:

Rear Quarter Panel Moulding

 (501-08 Exterior Trim and

Ornamentation, Removal and Installation).

4.

Cut the seal from the rear quarter glass.

5.



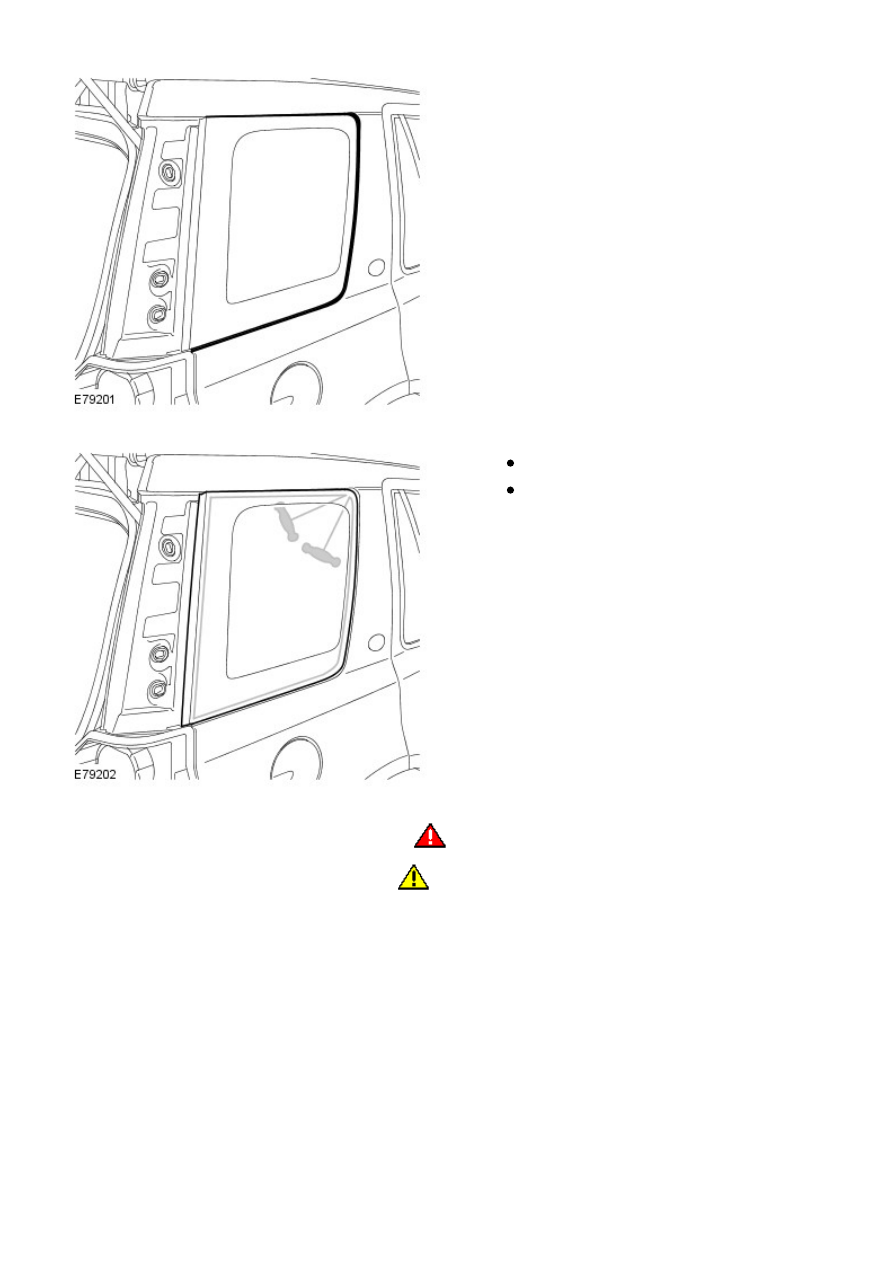

Feed the glazing cutting wire around all the
glass.
Pull glazing wire through windshield sealant to
the inside of the vehicle.

6.

7.

WARNING: Wear safety goggles and protective gloves.

CAUTION: Protect the surrounding paintwork to avoid damage.

Use the glazing cutting wire to cut the sealant.

7.

Installation

Apply etch primer to any bare metal.

1.

Apply primer over the etch primer.

2.

Apply glass primer to the sealant face on the rear quarter window
glass and allow to cure.

3.

Apply activator over the old sealant on the rear quarter window
glass and allow to cure.

4.



Fit a pre-cut nozzle to the sealer cartridge, remove the lid,
shake out the crystals and fit the cartridge to the applicator
gun.

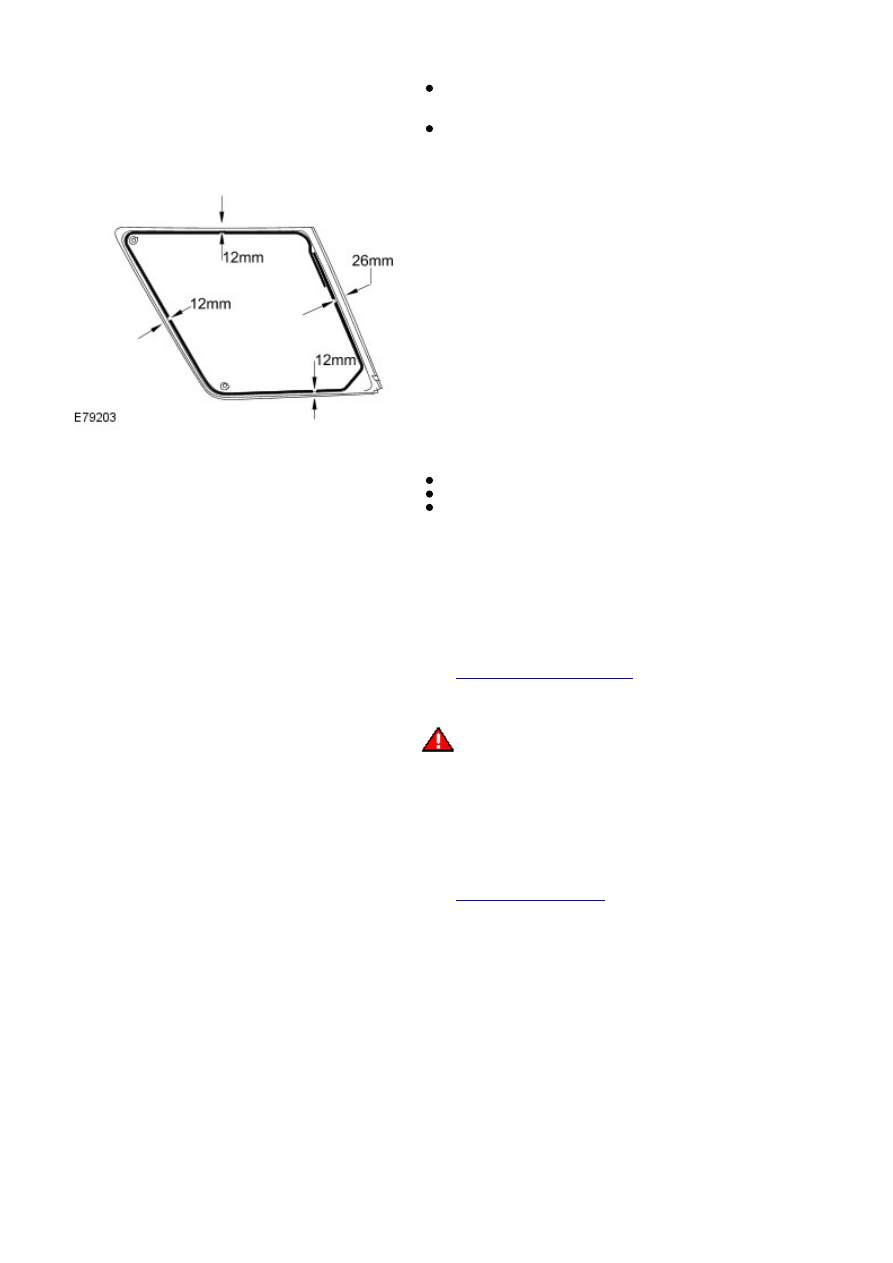

Modify the nozzle to achieve a bead section in the shape of a
right angle triangle with a base of 8 mm and a vertical height
of 12 mm.

5.

Apply a continuous bead of sealant to the glass.

6.



W ith assistance, install the window glass.
Lightly press the window glass to seat the sealer.
Secure the rear quarter window glass in position using tape.

7.

Test the sealer for leaks, apply additional sealer if necessary. If
water is used, allow sealer to dry before testing. Spray water around
the glass and check for leaks. Mark any area that leaks. Dry the
glass and sealer then apply additional sealer.

8.

Install the rear quarter panel moulding.

Refer to:

Rear Quarter Panel Moulding

 (501-08 Exterior Trim and

Ornamentation, Removal and Installation).

9.

10.

WARNING: Make sure that a new bolt is installed.

Install the C-Pillar trim panel.

10.

Install the D-pillar trim panel.

11.

Install the rear quarter trim panel.

Refer to:

Rear Quarter Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

12.

Glass, Frames and Mechanisms - Liftgate Window Glass

Removal and Installation

Removal

Remove the rear window wiper motor.

Refer to:

Rear W indow W iper Motor

 (501-16 Wipers and W ashers,

Removal and Installation).

1.

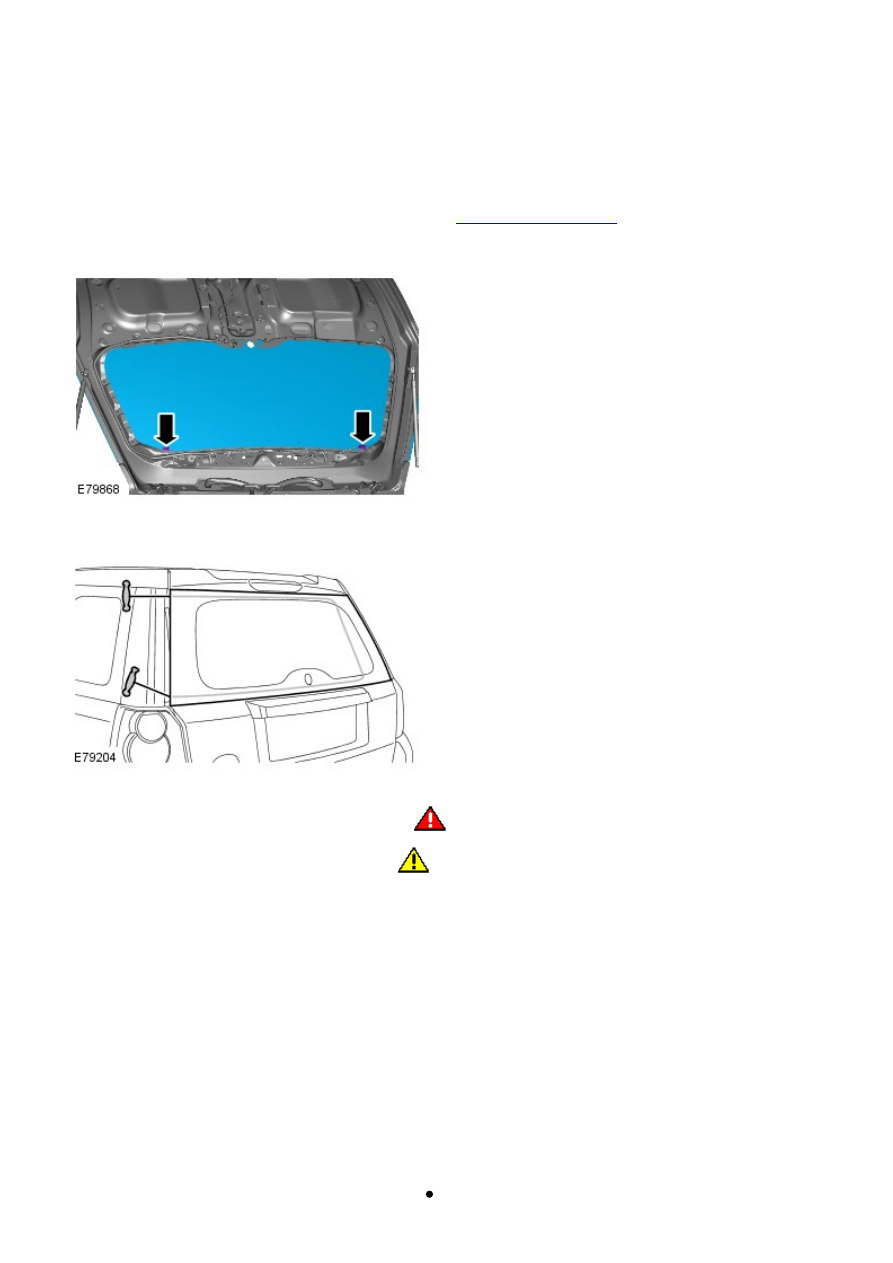

Disconnect the heated rear window electrical
connectors.

2.

Feed the glazing cutting wire around the glass.

3.

4.

WARNING: Wear safety goggles and protective gloves.

CAUTION: Protect the surrounding paintwork to avoid damage.

Use the glazing cutting wire to cut the sealant.

4.

Installation

Apply etch primer to any bare metal.

1.

Apply primer over the etch primer.

2.

Apply glass primer to the sealant face on the liftgate window glass
and allow to cure.

3.

Apply activator over the old sealant on the liftgate window glass and
allow to cure.

4.



Fit a pre-cut nozzle to the sealer cartridge, remove the lid,

5.
