Frelander 2. Manual - part 552





Remove and discard the hog rings.

26.

Installation

1. NOTE: If a replacement rear seat backrest cover is to
be installed, cut out holes for the head restraint guide
tubes and center safety belt trim panel. Use the
existing rear seat backrest cover as a template. This
also applies to the backrest squab foam.

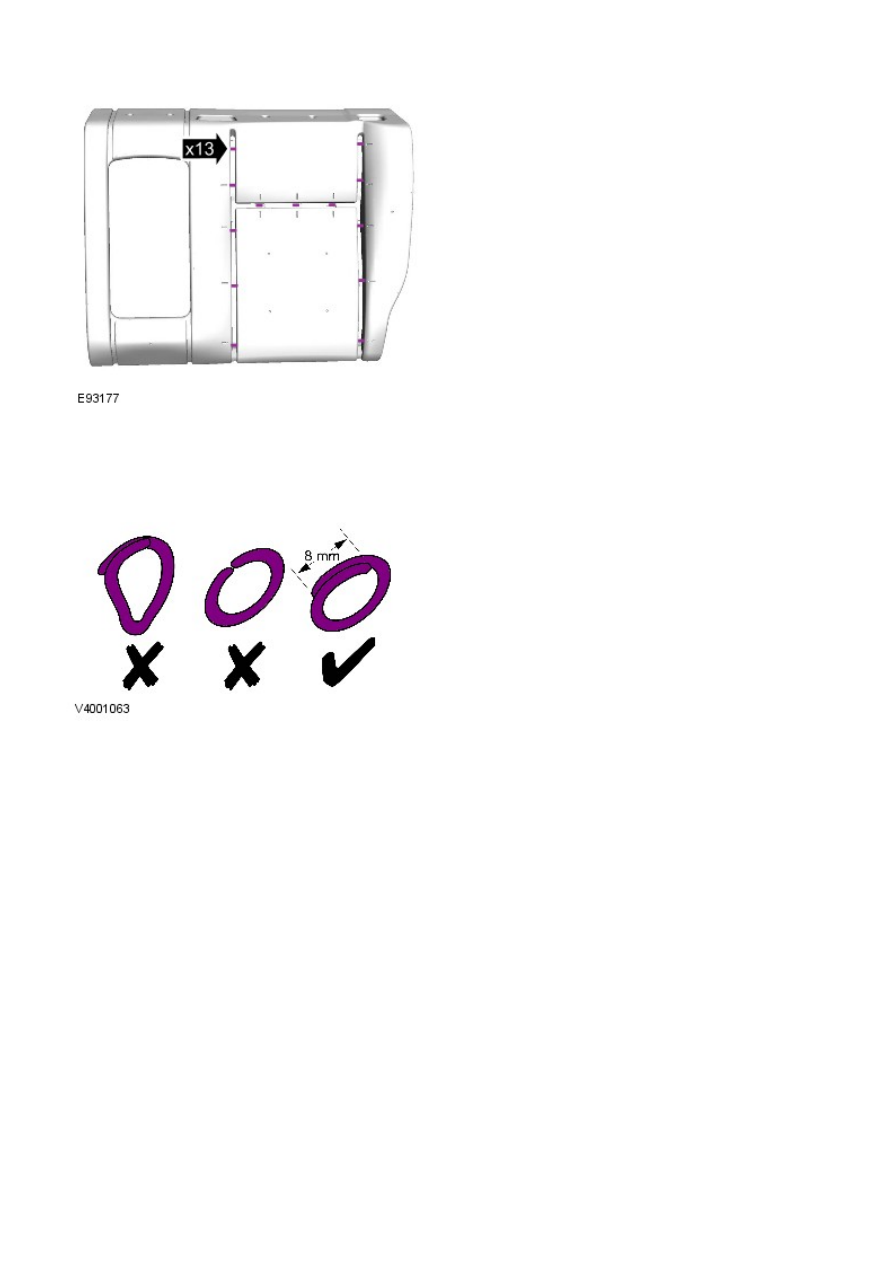

• NOTE: Use hog ring pliers to close the hog rings. Do
not use any other tool. The hog rings must be closed to
overlap as illustrated.

• NOTE: Make sure that new hog rings are installed.

Using hog ring pliers, install the 13 hog rings.

1.

Guide the rear center safety belt and lower anchor through the
backrest cover.

2.

Install the rear seat backrest cover and pad assembly.

3.

Secure the rear seat backrest cover and pad assembly around the
rear seat backrest release button.

4.

Secure the rear seat backrest cover to the rear seat backrest frame.

5.

Install new head restraint guide tubes.

6.

Install the rear seat backrest release button trim panel.

7.

Install the center safety belt trim panel.

8.

Install the head restraints.

9.

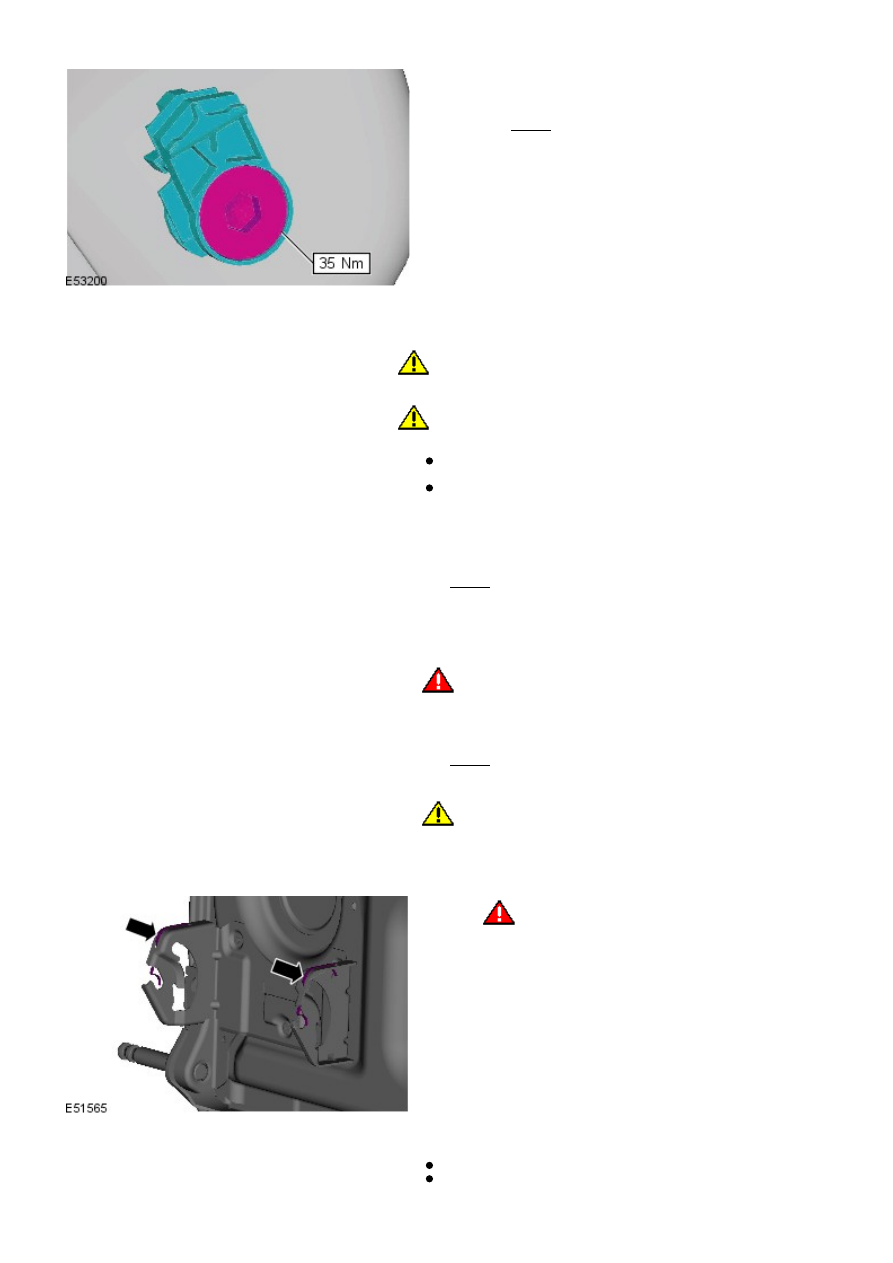

Install a new LH rear seat backrest outer pivot pin
bushing.

Torque: 35 Nm

10.

11. CAUTIONS:

 The center hinge pivot bushing must be replaced if excessive

damage or wear is present.

 The left-hand rear seat backrest inner pivot pin has radial

grooves. Take care not to damage the center hinge pivot bushing.

Install the LH rear seat backrest inner pivot pin to the center
hinge pivot bushing.
Carefully lower the LH rear seat backrest outer pivot pin
bushing into the mounting bracket.

11.

Install a new bolt to the outer pivot pin bushing locking arm.

Torque: 23 Nm

12.

Install the LH rear quarter trim access panel.

13.

14.

WARNING: Make sure that the safety belt anchor is

correctly installed.

Secure the rear center safety belt lower anchor.

Torque: 40 Nm

14.

15.

CAUTION: Check for correct operation of the rear center

safety belt retractor.

Remove the safety belt webbing retainer.

15.

16.

W ARNING: New armrest pivot bushing spring

clips must be installed. Failure to follow this instruction
may result in personal injury.

If installed with armrest, install new armrest pivot bushing
spring clips.

16.



Install 4 new fir tree clips to the armrest backing plate.
Install the armrest backing plate.

17.

18. NOTE: Make sure that the armrest pivot bushing spring
clips locate in the armrest pivot bushing grooves.

Install the armrest.

18.

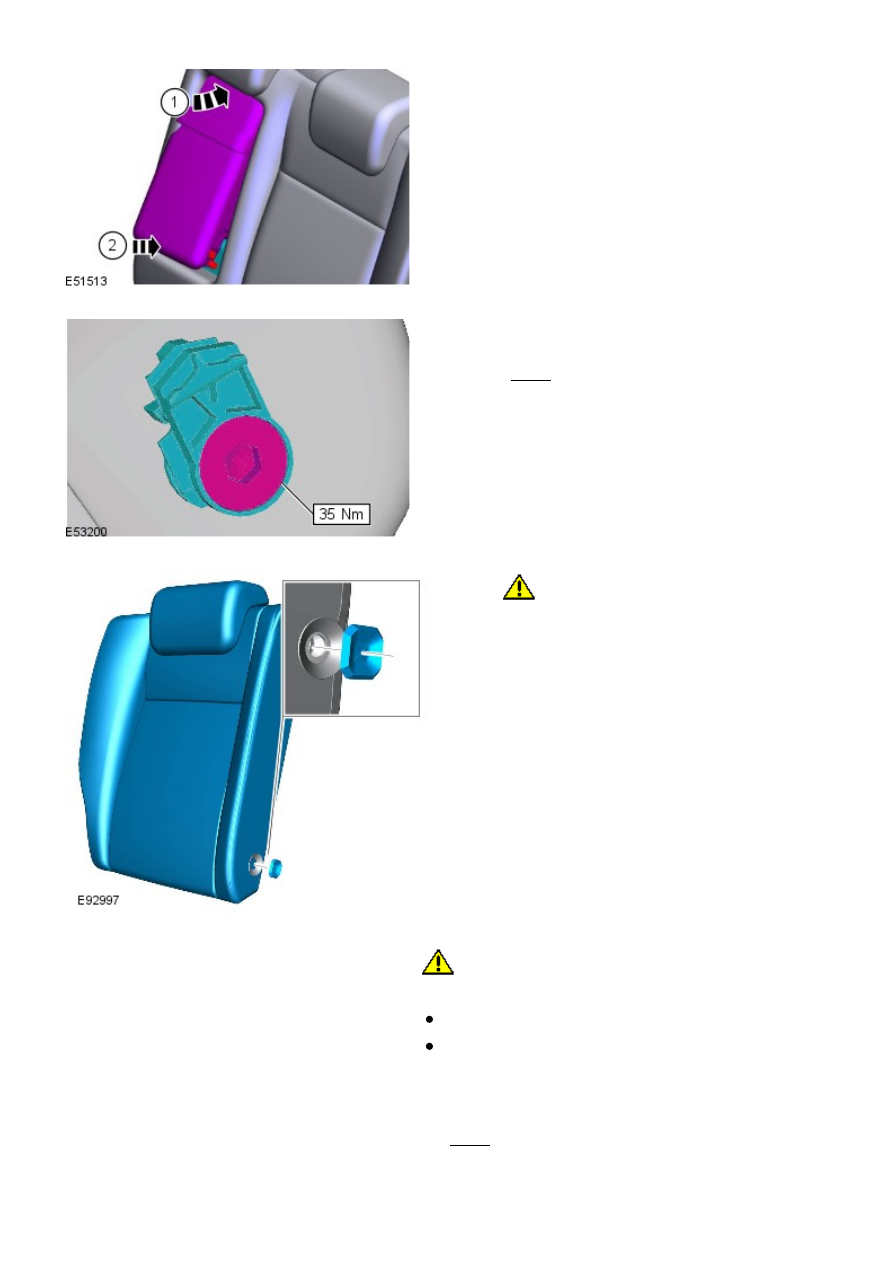

Install a new RH rear seat backrest outer pivot pin
bushing.

Torque: 35 Nm

19.

20.

CAUTION: If the existing right-hand rear seat

backrest is to be installed, the condition of the inner
pivot bushing must be checked and a service pad
installed. If excessive damage is present to the inner
pivot bushing the right-hand rear seat backrest frame
must be replaced.

• NOTE: This step is not necessary if a new right-hand
rear seat backrest is to be installed.

Install the service pad to the RH rear seat backrest
inner pivot bushing.

20.

21.

CAUTION: The left-hand rear seat backrest inner pivot pin

has radial grooves. When installing the RH backrest, take care not
to damage the inner pivot bushing.

Carefully guide the RH rear seat backrest inner pivot bushing
onto the LH rear seat backrest inner pivot pin.
Carefully lower the RH rear seat backrest outer pivot pin
bushing into the mounting bracket.

21.

Install a new bolt to the outer pivot pin bushing locking arm.

Torque: 23 Nm

22.

Install the RH rear quarter trim access panel.

23.

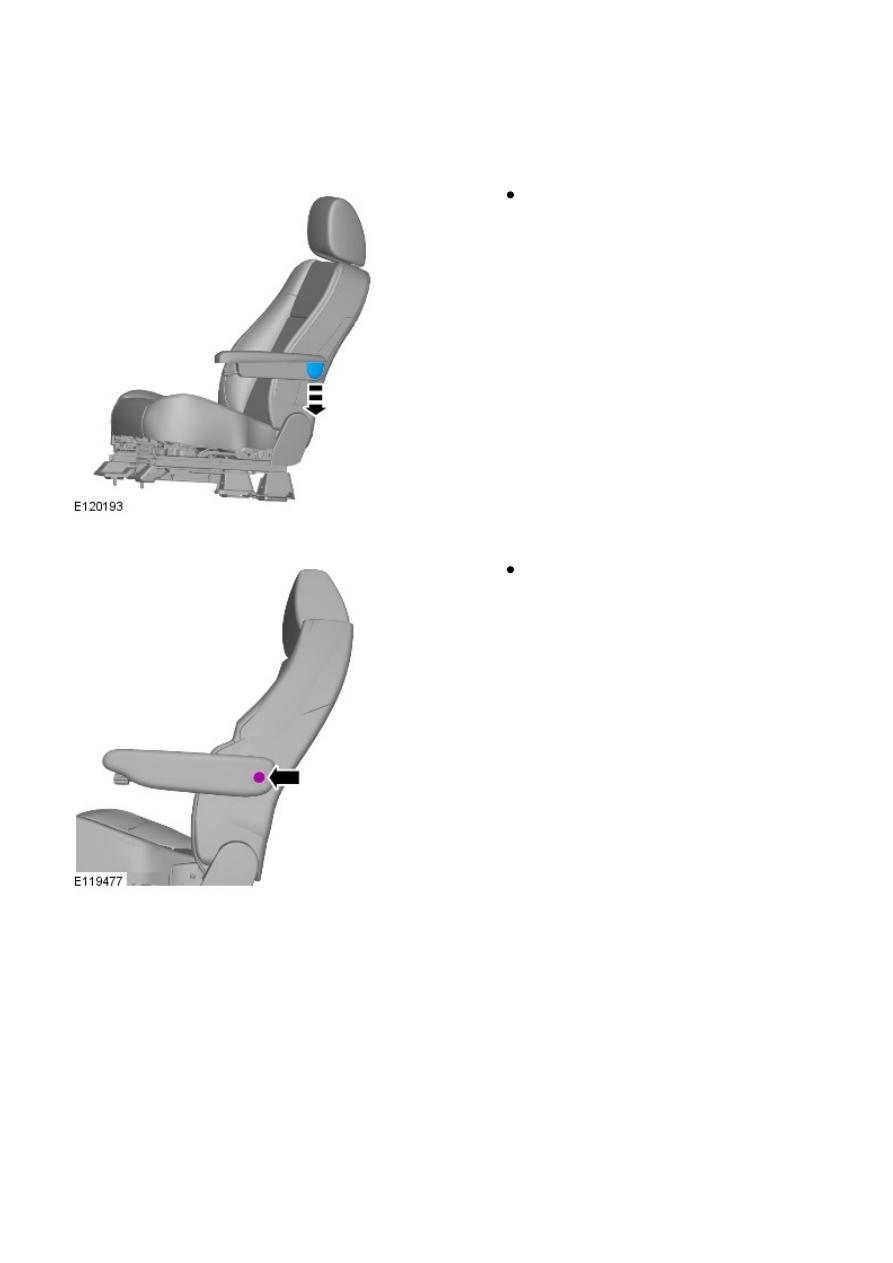

Seating - Front Seat Armrest

Removal and Installation

Removal



Remove the cover.

1.



Remove the Torx bolt.

2.
