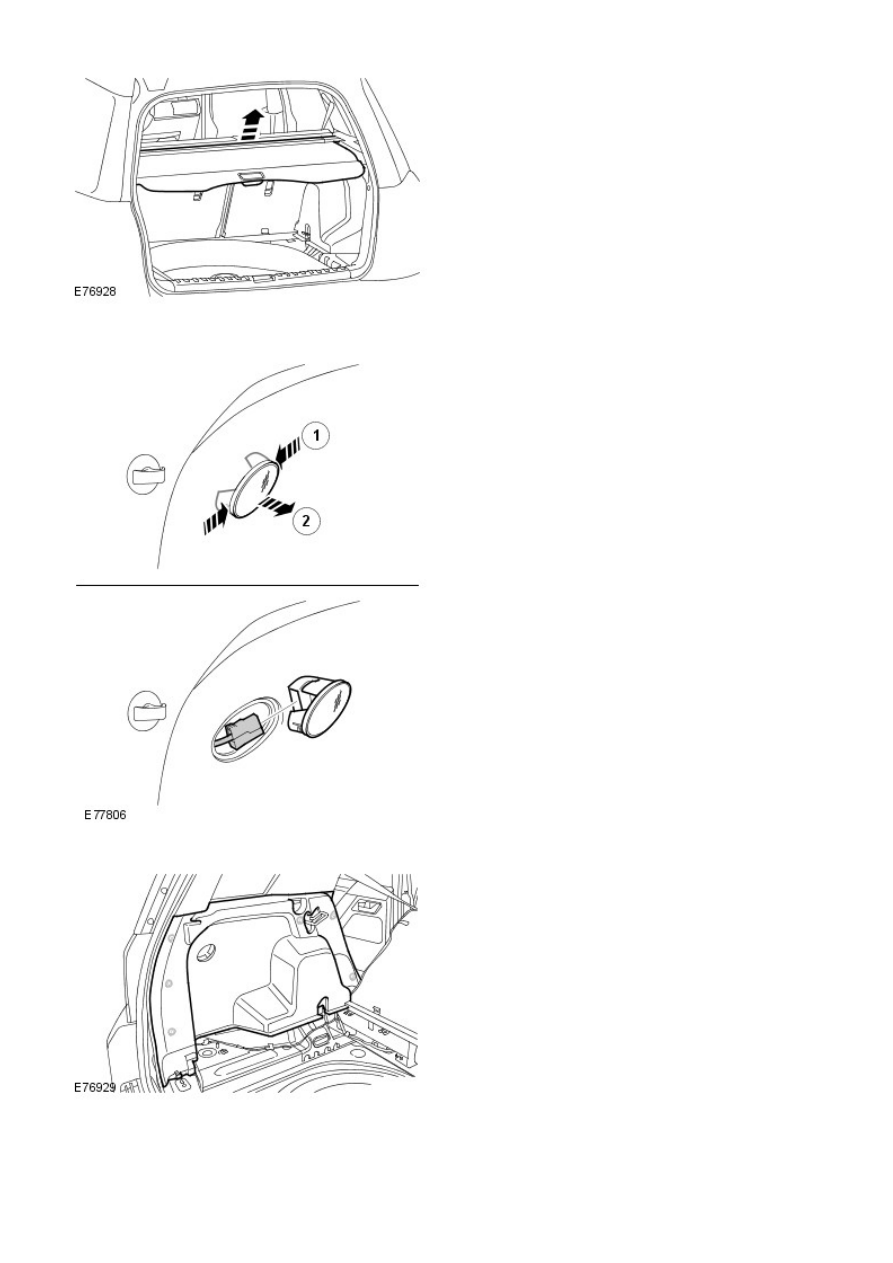

If installed, remove the loadspace lamp.

8.

Remove the rear quarter trim panel.

9.

10. NOTE: Do not disassemble further if the component
is removed for access only.

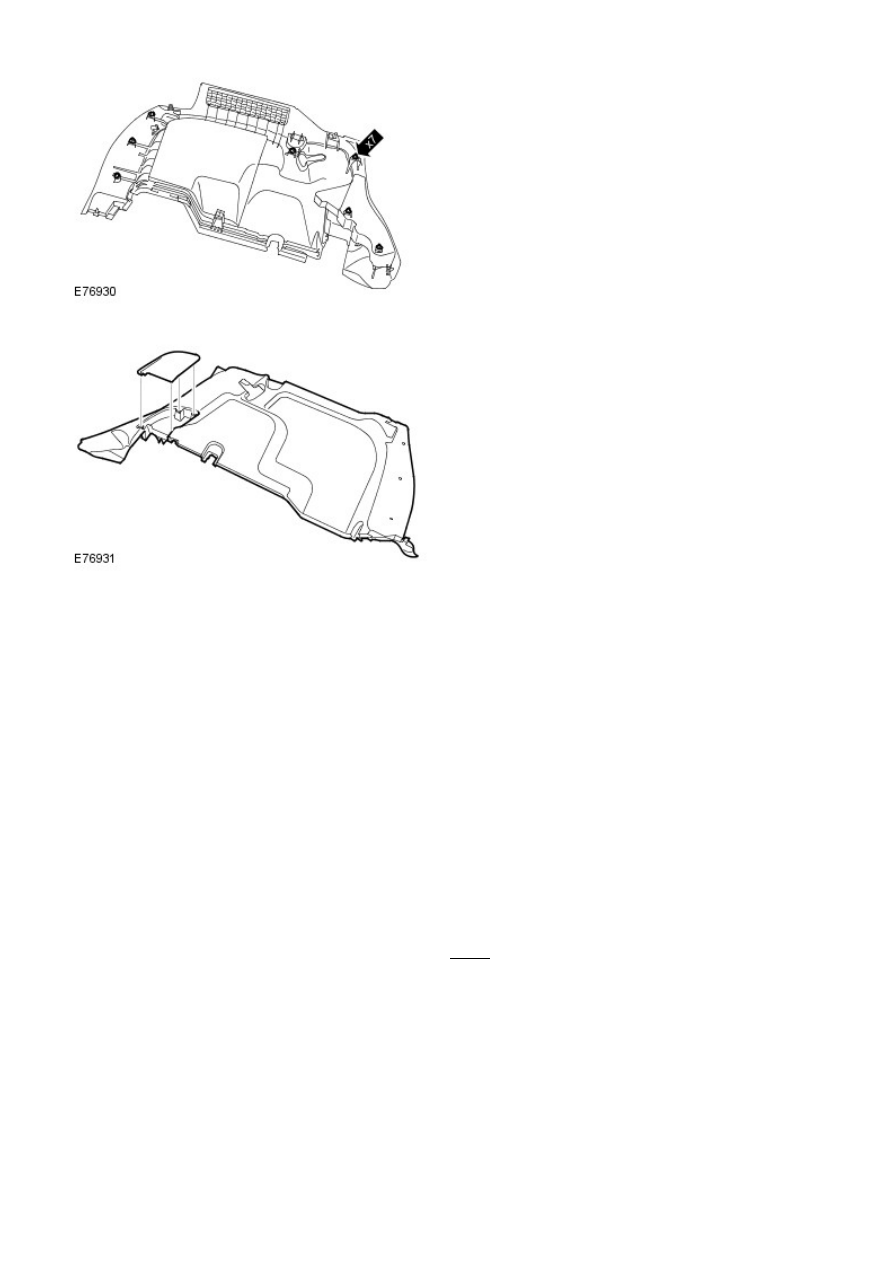

Remove the 7 clips.

10.

Remove the access cover.

11.

Installation

Install the access cover.

1.

Install the clips.

2.

Install the rear quarter trim panel.

3.

Install the loadspace lamp.

4.

Install the loadspace roller blind.

5.

Secure the rear door seal.

6.

Install the loadspace securing ring and tighten the Torx screw.

Torque: 25 Nm

7.

Install the loadspace stowage tray.

8.

Secure the liftgate seal.

9.

Install the loadspace scuff plate.

10.

Install the spare wheel cover.

11.

Exterior Trim and Ornamentation -

Torque Specifications

Description

Nm

lb-ft

Rear outer quarter panel moulding fixings

4

3

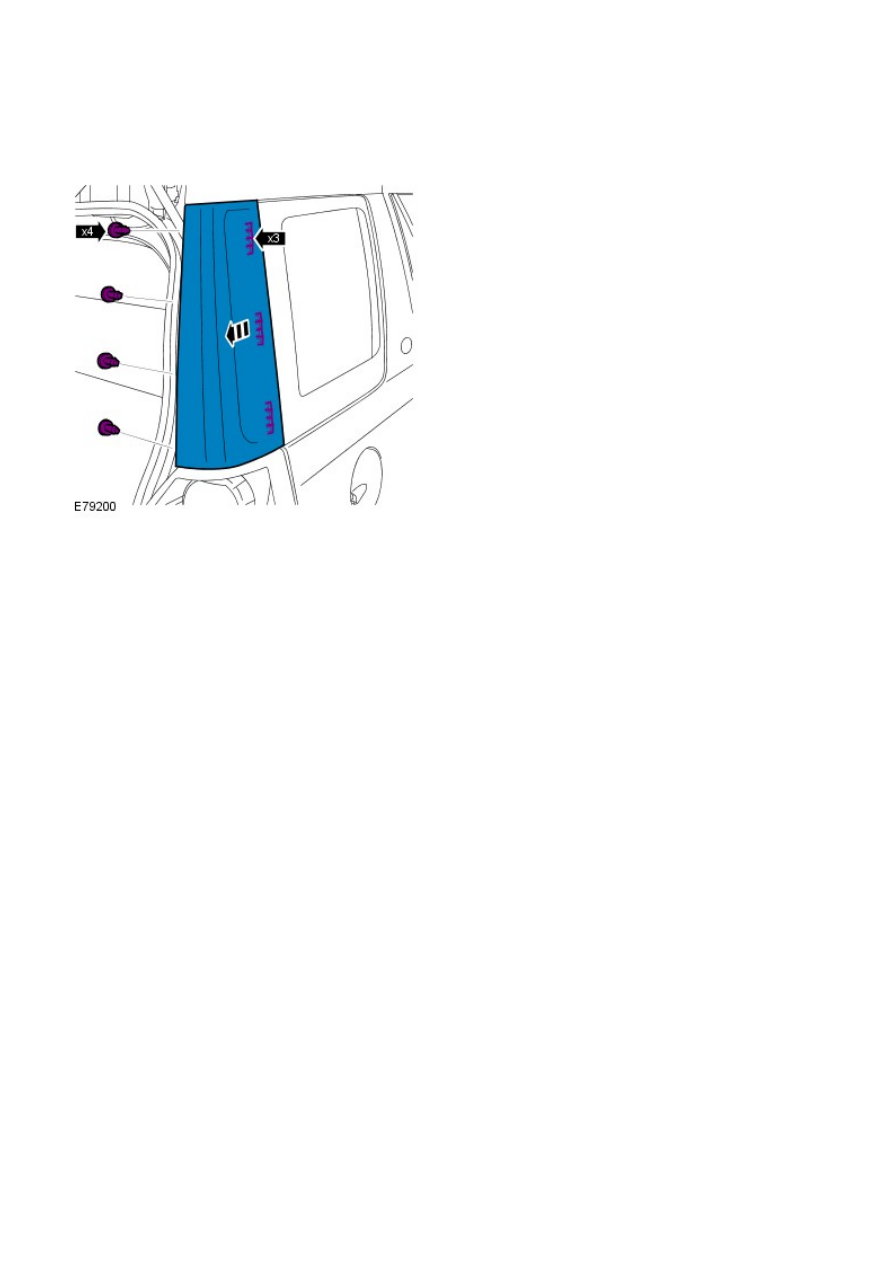

Exterior Trim and Ornamentation - Rear Quarter Panel Moulding

Removal and Installation

Removal

1.

Installation

To install, reverse the removal procedure.

1.
