Parking Aid - Front Inner Parking Aid Sensor

Removal and Installation

Removal

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the front wheels and tires.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

2.

Remove the front bumper cover.

Refer to:

Front Bumper Cover

 (501-19 Bumpers, Removal and

Installation).

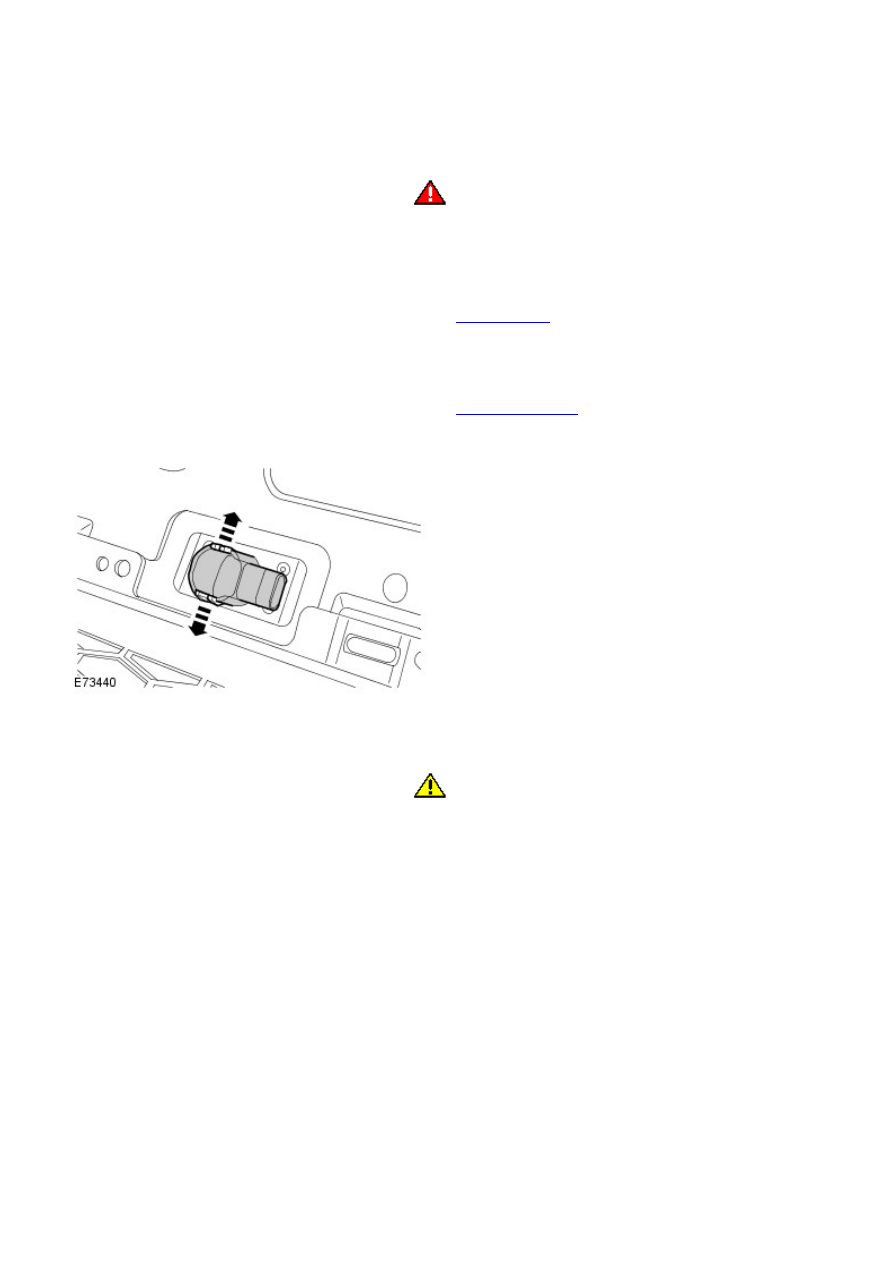

3.

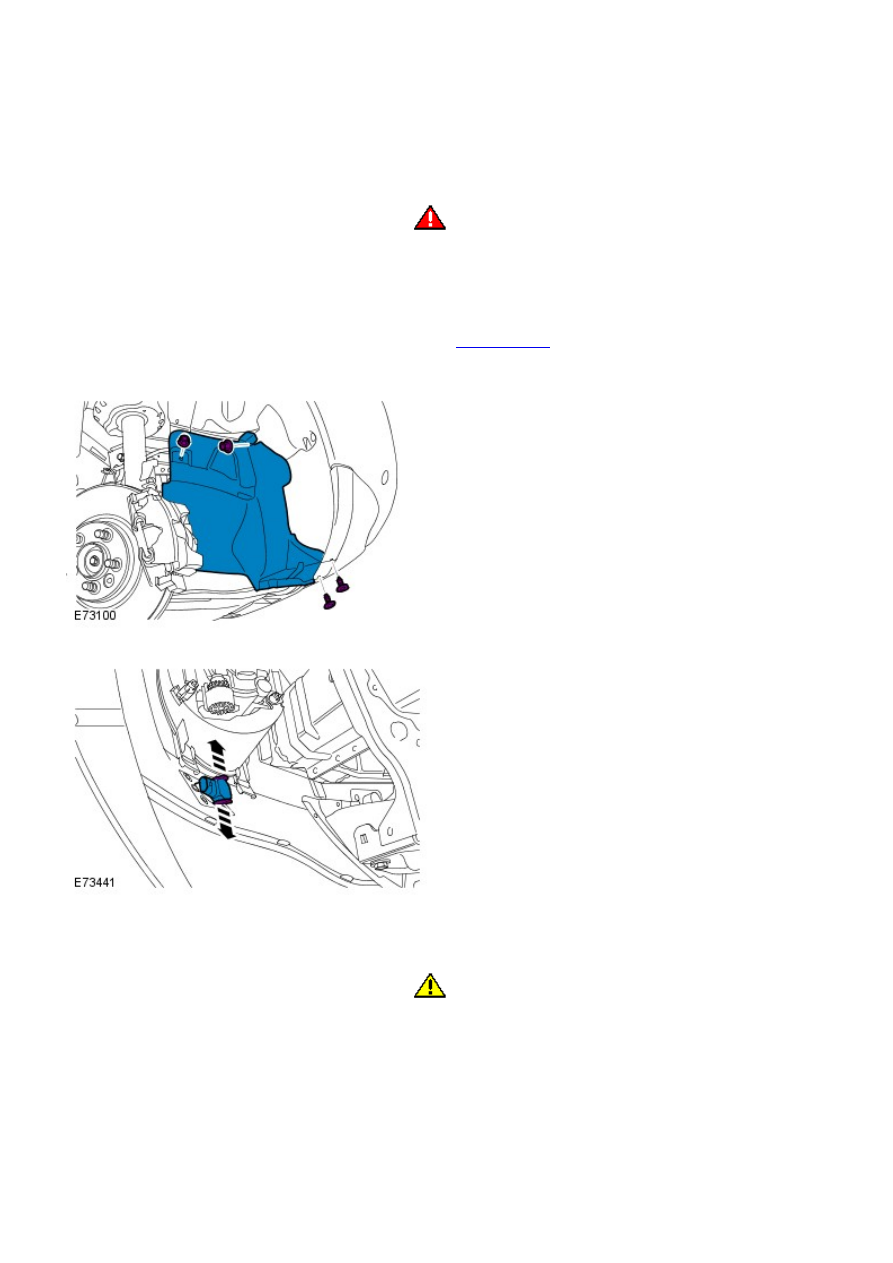

4.

Installation

1.

CAUTION: If a new sensor is installed, only the front face

must be painted. Failure to follow this instruction may result in the
component malfunctioning.

To install, reverse the removal procedure.

1.

Parking Aid - Front Outer Parking Aid Sensor

Removal and Installation

Removal

• NOTE: Removal of the RH front outer parking aid sensor will require the removal of the front bumper cover.

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the front wheel and tire.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

2.

3.

4.

Installation

1.

CAUTION: If a new sensor is installed, only the front face

must be painted. Failure to follow this instruction may result in the
component malfunctioning.

To install, reverse the removal procedure.

1.

Parking Aid - Parking Aid Module

Removal and Installation

Removal

Remove the LH rear quarter trim panel.

Refer to:

Rear Quarter Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

1.

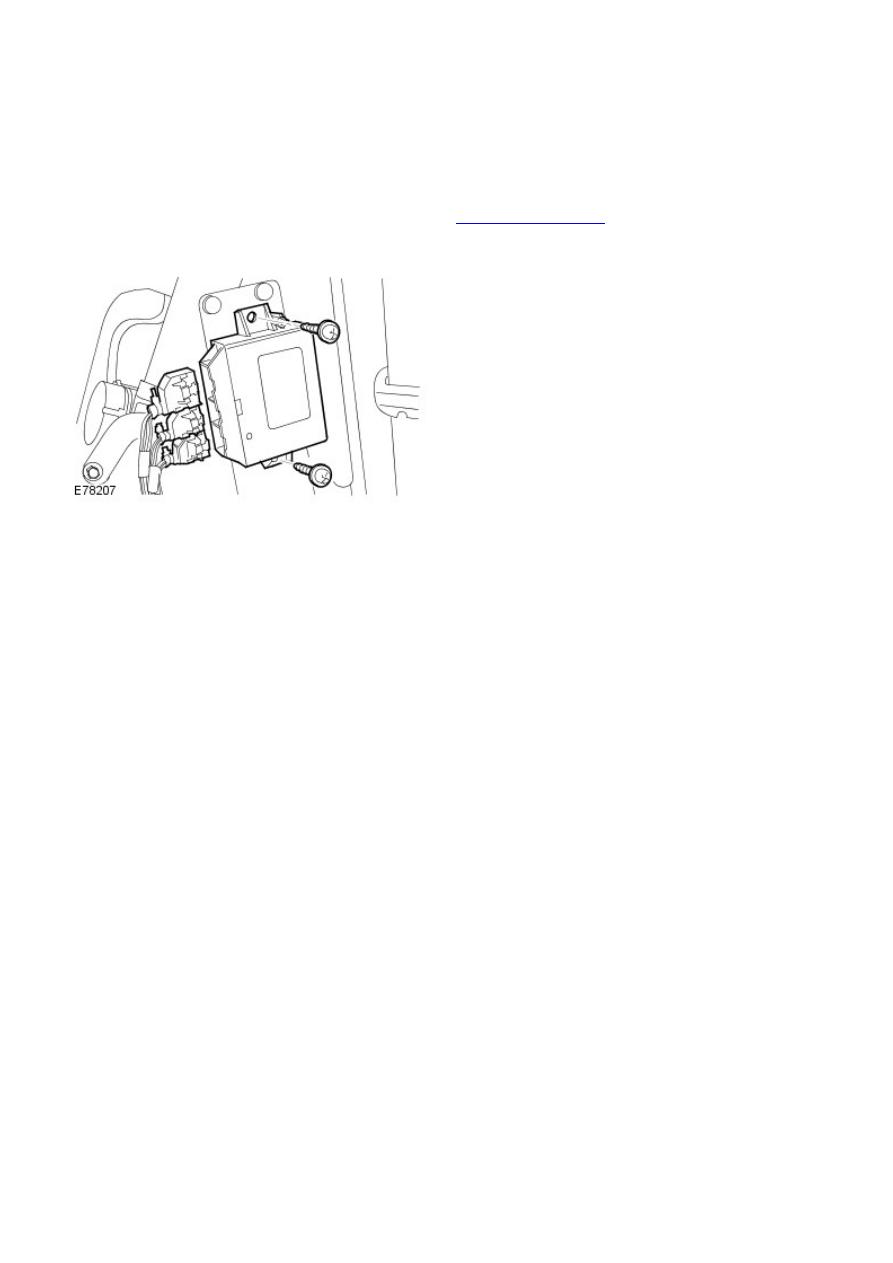

Remove the parking aid module.

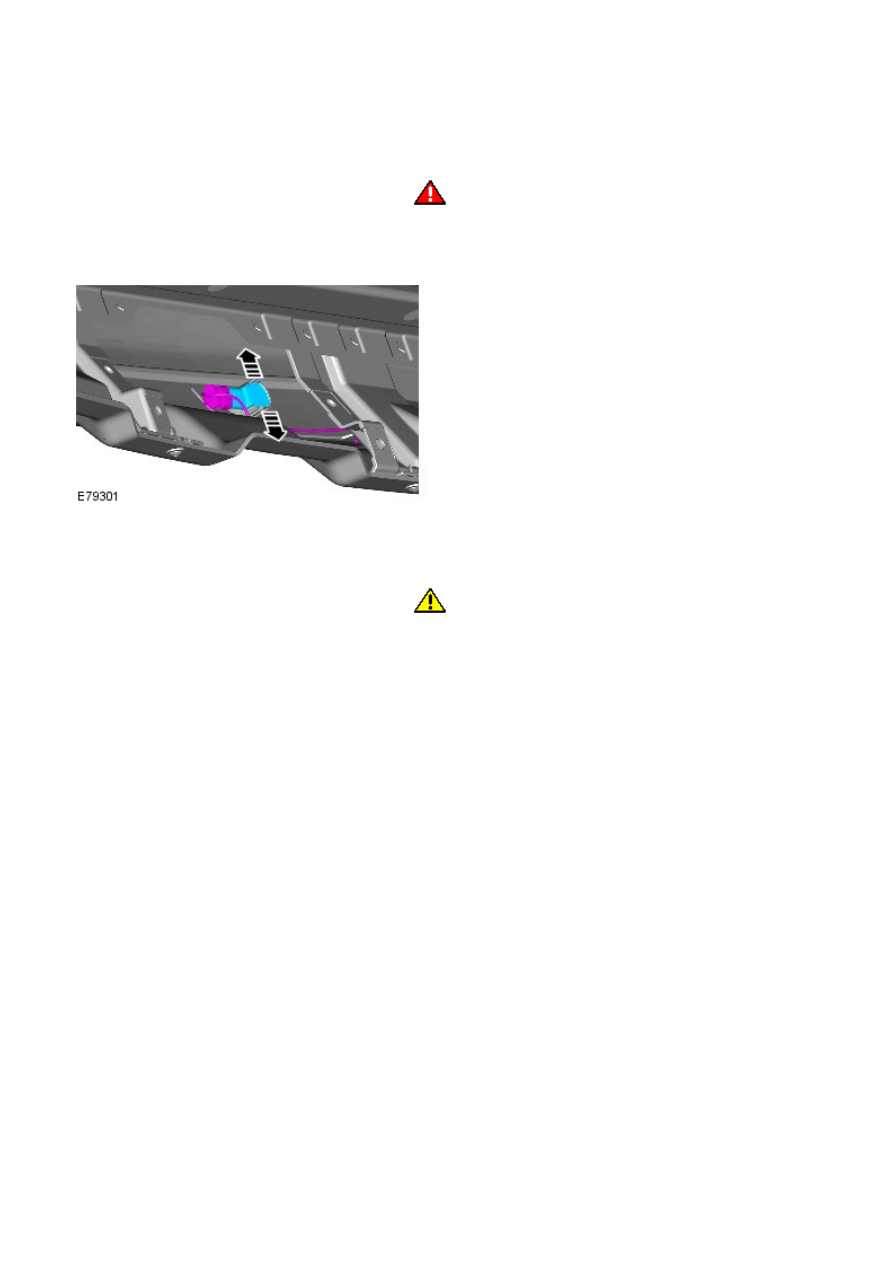

2.

Installation

To install, reverse the removal procedure.

1.

If a new component is to be installed, configure using IDS.

2.

Parking Aid - Rear Inner Parking Aid Sensor

Removal and Installation

Removal

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

2.

Installation

1.

CAUTION: If a new sensor is installed, only the front face

must be painted. Failure to follow this instruction may result in the
component malfunctioning.

To install, reverse the removal procedure.

1.
