Climate Control System - General Information - Air Conditioning (A/C)
System Recovery, Evacuation and Charging

General Procedures

1.

WARNING: Servicing must be carried out by personnel

familliar with both vehicle system and the charging and testing
equipment. All operations must be carried out in a well ventilated
area away from open flame and heat sources.

• NOTE: The receiver drier need only be changed under the following
circumstances: There is dirt in the refrigerant circuit ( eg.
compressor seizure ), the system is leaking and refrigerant has been
lost to atmosphere, or the refrigerant circuit has been open more
than 24 hours, due to repair.

Refrigerant recovery and recycle.

1.

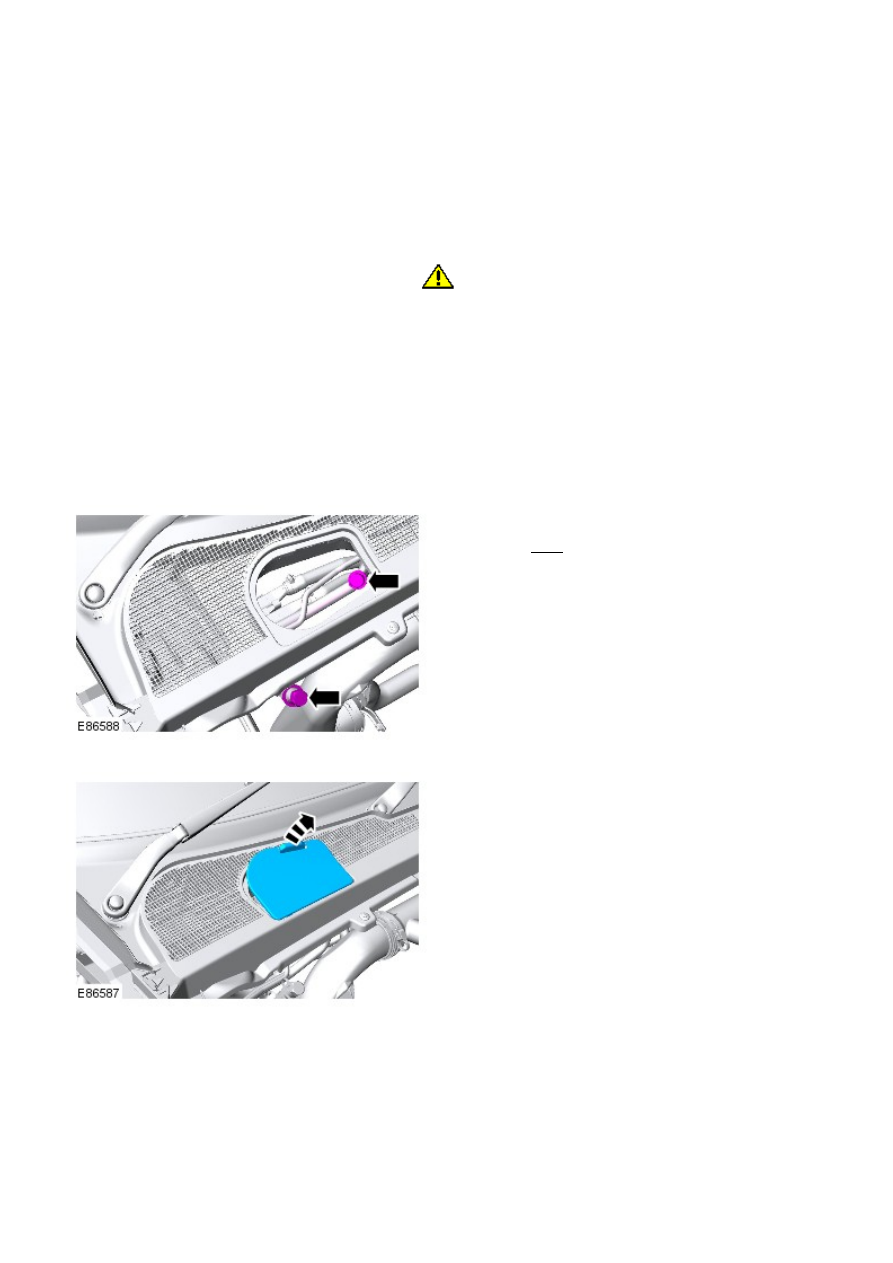

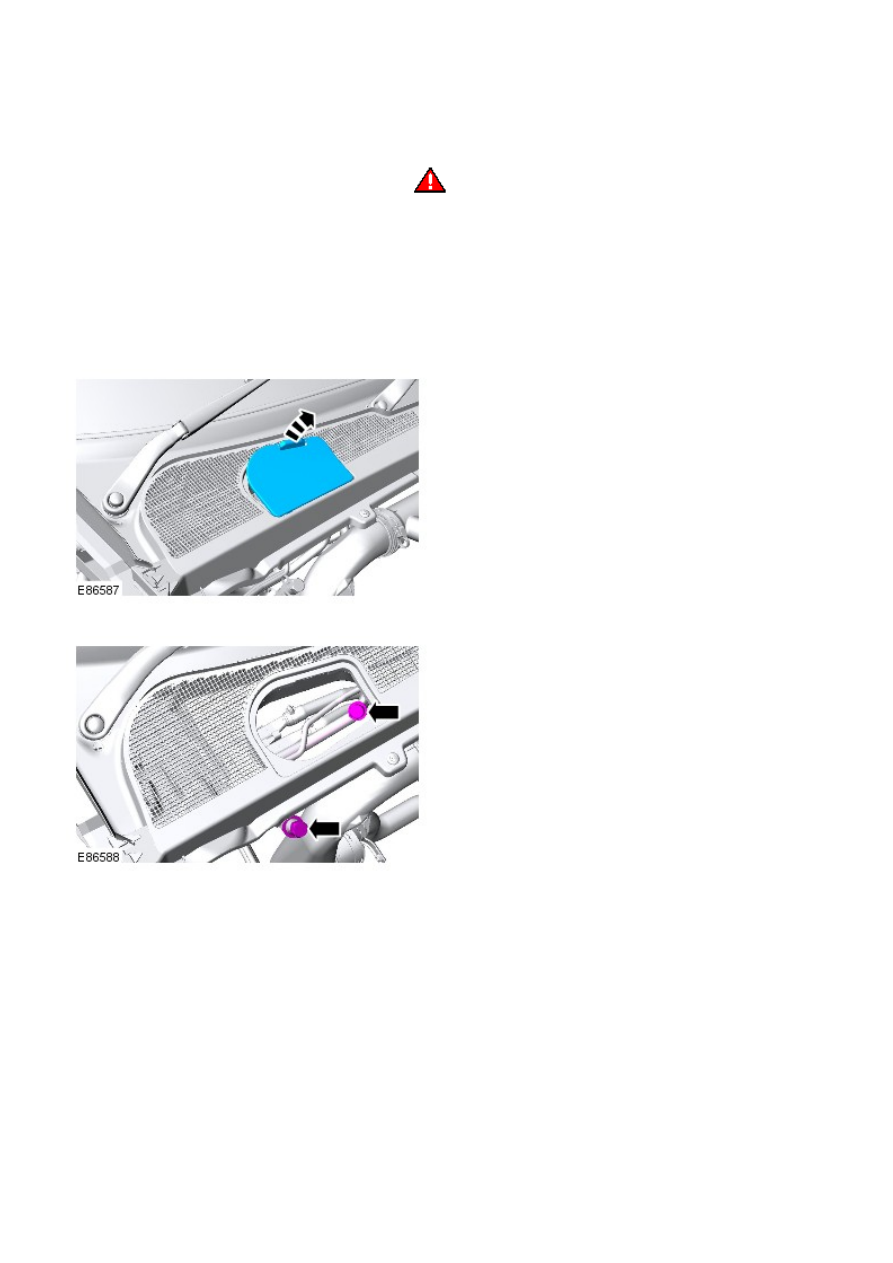

Remove the access cover.

2.

Remove the dust covers from the high and low pressure
connections.

3.

Connect the high and low pressure lines to the appropriate
connections.

4.

Open the valves on the connections.

5.

Turn the valves on the station to the correct positions.

6.

Allow the system to recover the refrigerant from the system.

7.

Close the valves on the refrigerant station.

8.

Close the valves on the connections.

9.

Disconnect the high and low pressure connections.

10. Install the dust covers to the connectors.

11. Evacuation.

12.

Remove the dust covers from the high and low pressure connections.

13.

Connect the high and low pressure lines to the appropriate
connections.

14.

Open the valves on the connections.

15.

Allow the station to evacuate the A/C system.

16.

17.

CAUTION: The system must be evacuated immediatley

before recharging commences. Delay between evacuation and
recharging is not permitted

Recharging

17.

Close the valves on the refrigerant station.

18.

Close the valves on the connections.

19.

Disconnect the high and low pressure connections.

20.

Install the dust covers to the connectors.

Torque: 6 Nm

21.

Install the access cover.

22.

Climate Control -

Torque Specifications

Description

Nm

lb-ft

A/C compressor refridgerant line connections

24

18

A/C condenser refridgerant line connections

10

7

Compressor lower support bracket - 3.2 Petrol

25

18

Compressor upper support bracket - 3.2 Petrol:
M10

45

33

M8

25

18

M6

10

7

Compressor mounting bolts - All engines

25

Condenser core bolts

10

7

Heater core and evaporator core housing bolts

7

6

Heater housing to bulkhead Torx bolts

7

6

Pressure transducer

8

6

Thermostatic expansion valve bolts

4

3

Thermostatic expansion valve nut

9

7

Climate Control - Air Distribution and Filtering

Description and Operation

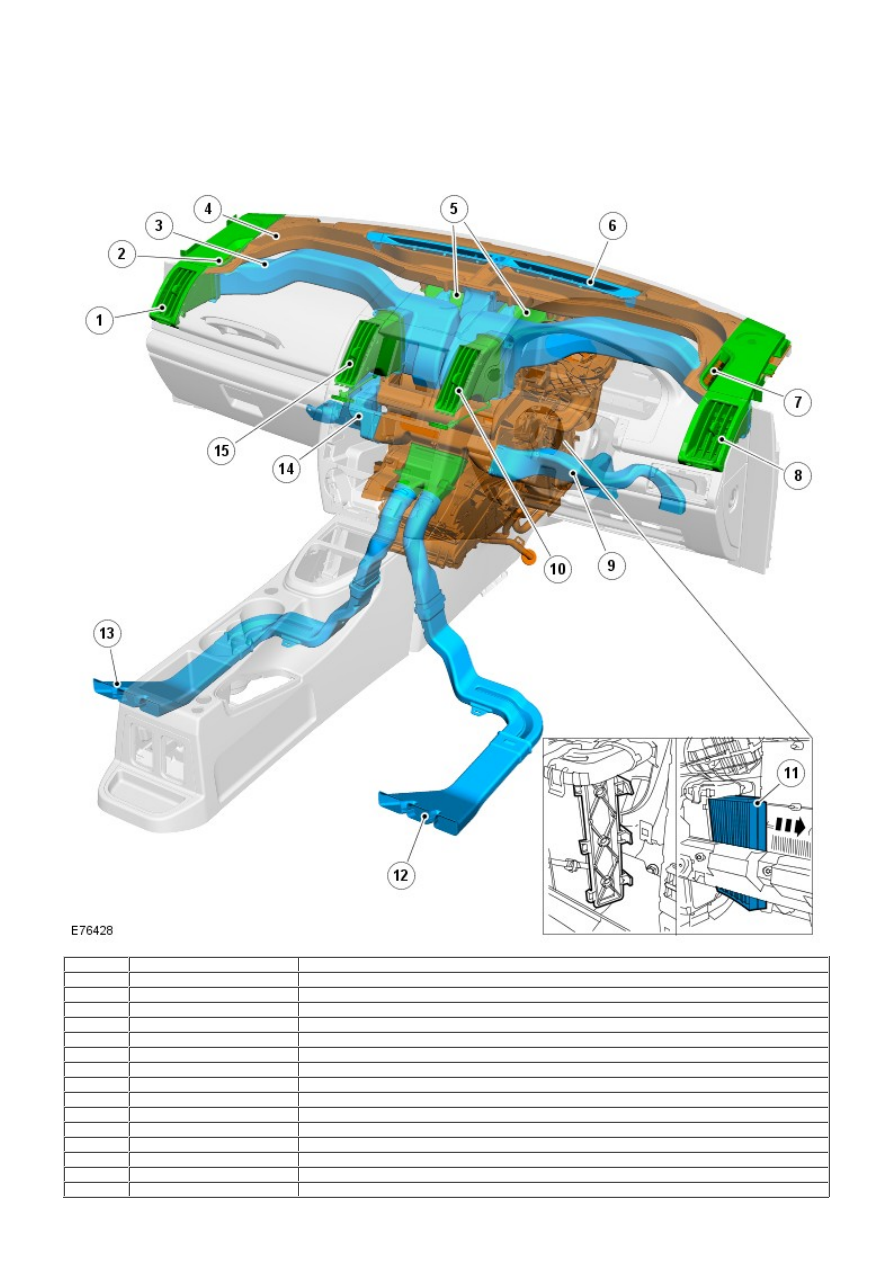

COMPONENT LOCATION

• NOTE: Right Hand Drive (RHD) shown, Left Hand Drive (LHD) similar

Item

Part Number

Description

1

-

Passenger face level/side window register

2

-

Side window vent

3

-

Face level duct

4

-

Side window duct

5

-

Windshield duct

6

-

Windshield vent

7

-

Side window vent

8

-

Driver face level/side window register

9

-

Driver footwell duct

10

-

Instrument panel center register

11

-

Cabin air filter

12

-

Rear cabin Right Hand (RH) duct

13

-

Rear cabin Left Hand (LH) duct

14

-

Passenger footwell duct

15

-

Instrument panel center register
