Symptom
Possible Cause
Action
Ignition, Diagnosis and Testing).
For VCT system tests.
REFER to:
Electronic Engine Controls
(303-14A
Electronic Engine Controls - I6 3.2L Petrol,
Diagnosis and Testing).
Engine surges
Fuel pump, fuel lines
Electronic engine controls
Ignition system
For fuel pump tests, read DTCs and refer to
DTC Index in this section. For fuel line tests.
GO to Pinpoint Test
A.
For electronic engine control tests.
REFER to:
Electronic Engine Controls
(303-14A
Electronic Engine Controls - I6 3.2L Petrol,
Diagnosis and Testing).
For ignition system tests.
REFER to:
Engine Ignition
(303-07A Engine
Ignition, Diagnosis and Testing).
Engine detonates/knocks
Electronic engine controls
Fuel pump, fuel lines, fuel
quality
Air leakage
Sticking VCT hub
For electronic engine control tests.
REFER to:
Electronic Engine Controls
(303-14A
Electronic Engine Controls - I6 3.2L Petrol,
Diagnosis and Testing).
For fuel pump tests, read DTCs and refer to
DTC Index in this section. For fuel line tests.
GO to Pinpoint Test
A.
Check for leakage from air intake system
For VCT system tests.
REFER to:
Electronic Engine Controls
(303-14A
Electronic Engine Controls - I6 3.2L Petrol,
Diagnosis and Testing).
DTC Index
• NOTE: If a module or component is suspect, and the vehicle remains under the Manufacturers warranty, refer to the
Warranty Policy and Procedure manual (section B1.2), or determine if any prior approval programme is in operation, prior to
the installation of a new module/component.
• NOTE: Generic scan tools may not read the codes listed, or may read only five digit codes. Match the five digits from the
scan tool to the first five digits of the seven digit code listed to identify the fault (the last two digits give extra
information read by the manufacturer-approved diagnostic system).
• NOTE: When performing electrical voltage or resistance tests, always use a digital multimeter (DMM) accurate to three
decimal places, and with an up-to-date calibration certificate. When testing resistance, always take the resistance of the
DMM leads into account.
• NOTE: Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.
• NOTE: If DTCs are recorded and, after performing the pinpoint tests, a fault is not present, an intermittent concern may
be the cause. Always check for loose connections and corroded terminals.
For a complete list of all diagnostic trouble codes that could be logged on this vehicle, please refer to section 100-00.
REFER to:
Diagnostic Trouble Code (DTC) Index - I6 3.2L Petrol, DTC: Engine Control Module (ECM)
(100-00 General
Information, Description and Operation),
Diagnostic Trouble Code (DTC) Index - I6 3.2L Petrol, DTC: Engine Control Module (ECM) - From 10MY (100-00,
Description and Operation).
PINPOINT TEST A : CHECK THE FUEL LINES
TEST
CONDITIONS
DETAILS/RESULTS/ACTIONS
A1: CHECK THE FUEL LINES FOR RESTRICTIONS
W ARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and
always observe fuel handling precautions. Failure to follow these instructions may result in personal
injury.
Detach the fuel line from the fuel rail and from the fuel pump module.
Using an air line gently blow through the line checking for blockages or restrictions.
Is a blockage or restriction evident?
Yes
CLEAR/REPAIR the blocked or restricted fuel line and test the system for normal operation.
No
GO to A2
.
A2: CHECK THE FUEL TANK LINES FOR RESTRICTIONS

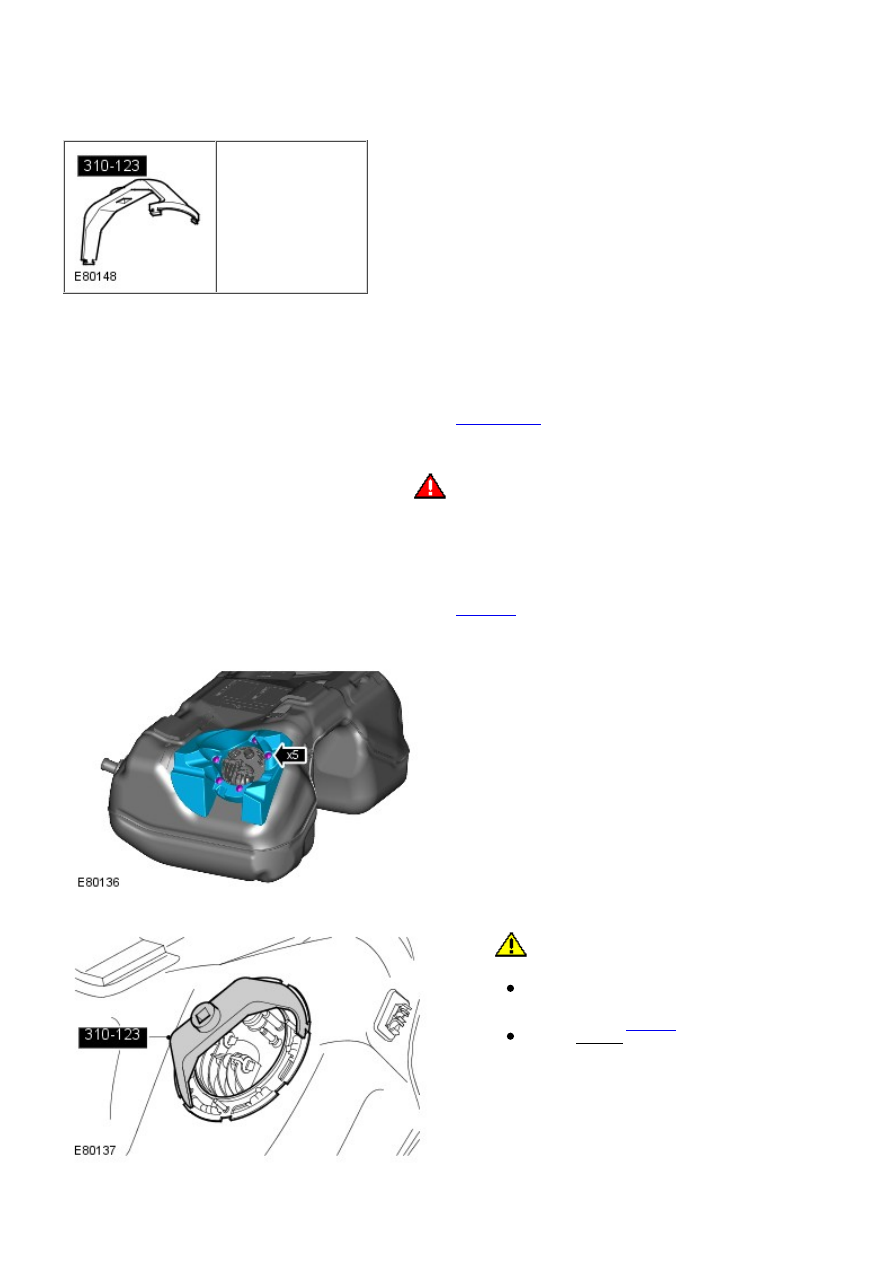

Remove the fuel pump module locking ring.
REFER to:
Fuel Pump and Sender Unit
(310-01A Fuel Tank and Lines - I6 3.2L Petrol, Removal and
Installation).

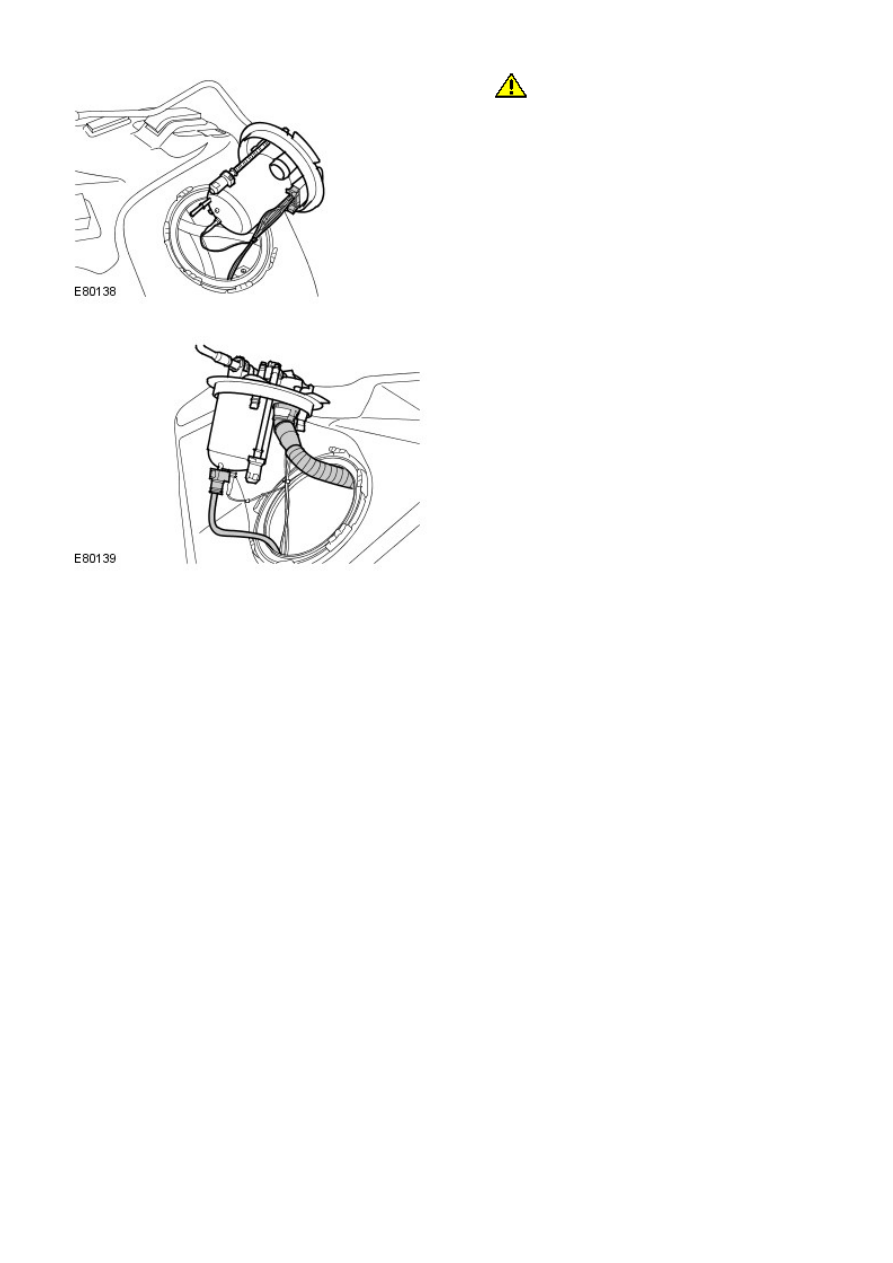

Detach the fuel lines from the fuel pump module.
Using an air line gently blow through the tank lines checking for blockages or restrictions.
