Fuel System - General Information - Fuel System BleedingTD4 2.2L Diesel

General Procedures

Special Tool(s)

310-163
Bleeder, Fuel System

• W ARNINGS:

 Avoid flames, sparks or lighted substances.

 W ait for a minimum of 1 minute after the engine has stopped before carrying out any repair to the fuel injection

system.

CAUTION: Make sure that the area around the component is clean and free of foreign material.

This procedure is necessary if any of the following fuel system
components are removed, disconnected or replaced: Fuel tank, low
pressure fuel lines or the fuel filter.

1.

Remove the engine cover.

Refer to:

Engine Cover - TD4 2.2L Diesel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

2.

3. CAUTIONS:

 Extreme cleanliness must be exercised when

handling these components.

 Be prepared to collect escaping fuel.

Disconnect the fuel line.

3.

4.

CAUTION: Be prepared to collect escaping fuel.

• NOTE: Make sure that the fuel flow direction arrow on
the special tool is pointing towards the fuel filter.

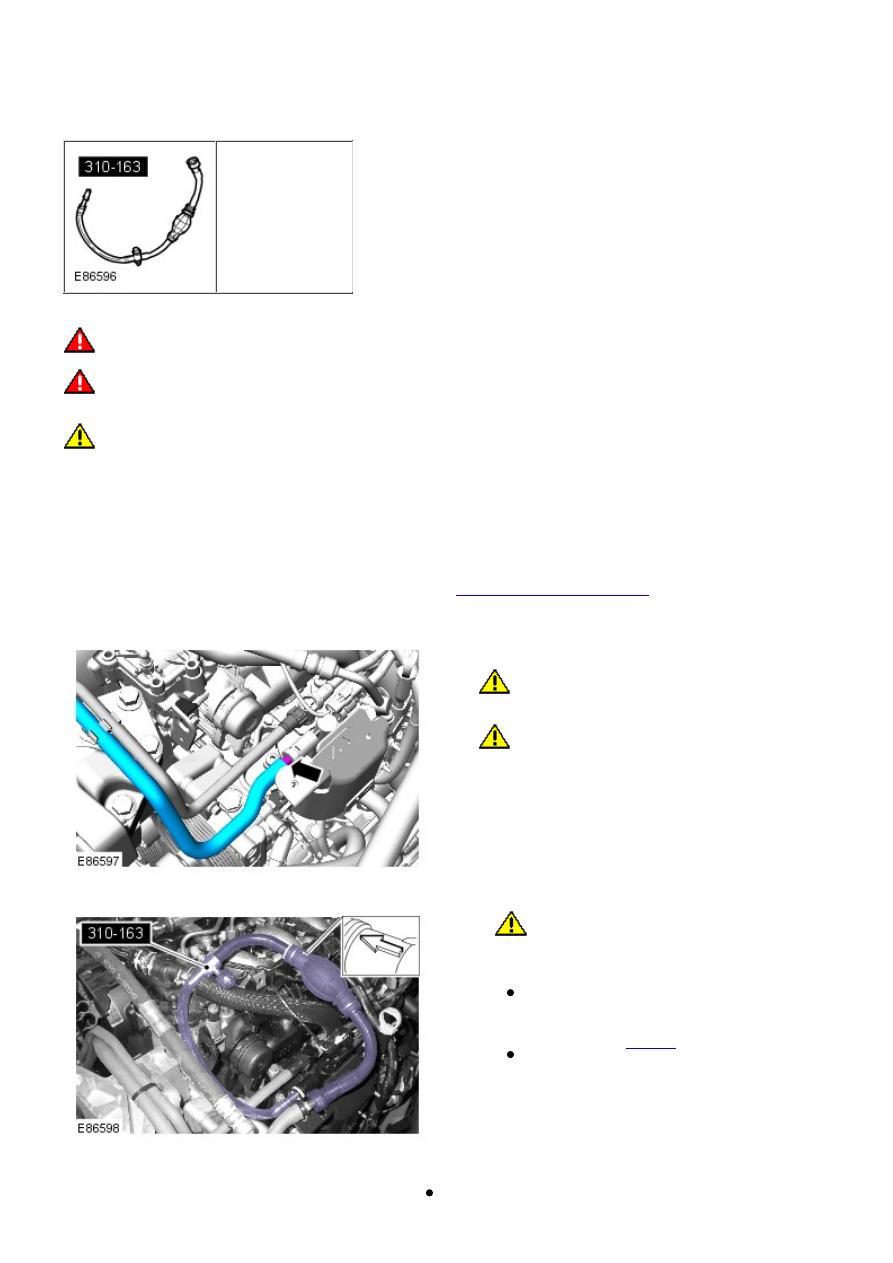

Install the special tool between the fuel supply
line and the fuel filter.

Special Tool(s):

310-163

Prime the fuel filter by squeezing the hand
pump several times until the pump is hard.

4.



Remove the special tools.

5.

Special Tool(s):

310-163

Connect the fuel lines.

Install the engine cover.

Refer to:

Engine Cover - TD4 2.2L Diesel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

6.

Fuel Tank and Lines - I6 3.2L Petrol -

Capacities

Item

Capacity (liters/gallons)

Fuel tank

70.0/15.4

General Specification

Item

Specification

System type

ERFS Electronic Returnless Fuel System

Fuel delivery module

PAG Module

Fuel pump:
Maximum output @ 11.5 volts min

110l/hr max

Operating pressure

Variable

Maximum operating pressure

3.8 Bar max

Fuel tank sender units

Magnetic Passive Position Sensor (MAPPS)

Torque Specifications

Description

Nm

lb-ft

Fuel tank bolts*

25

18

Fuel tank filler pipe lower bracket

10

7

Fuel tank filler pipe upper bracket

10

7

* New nuts/bolts must be fitted

Fuel Tank and Lines - I6 3.2L Petrol - Fuel Tank and Lines

Description and Operation

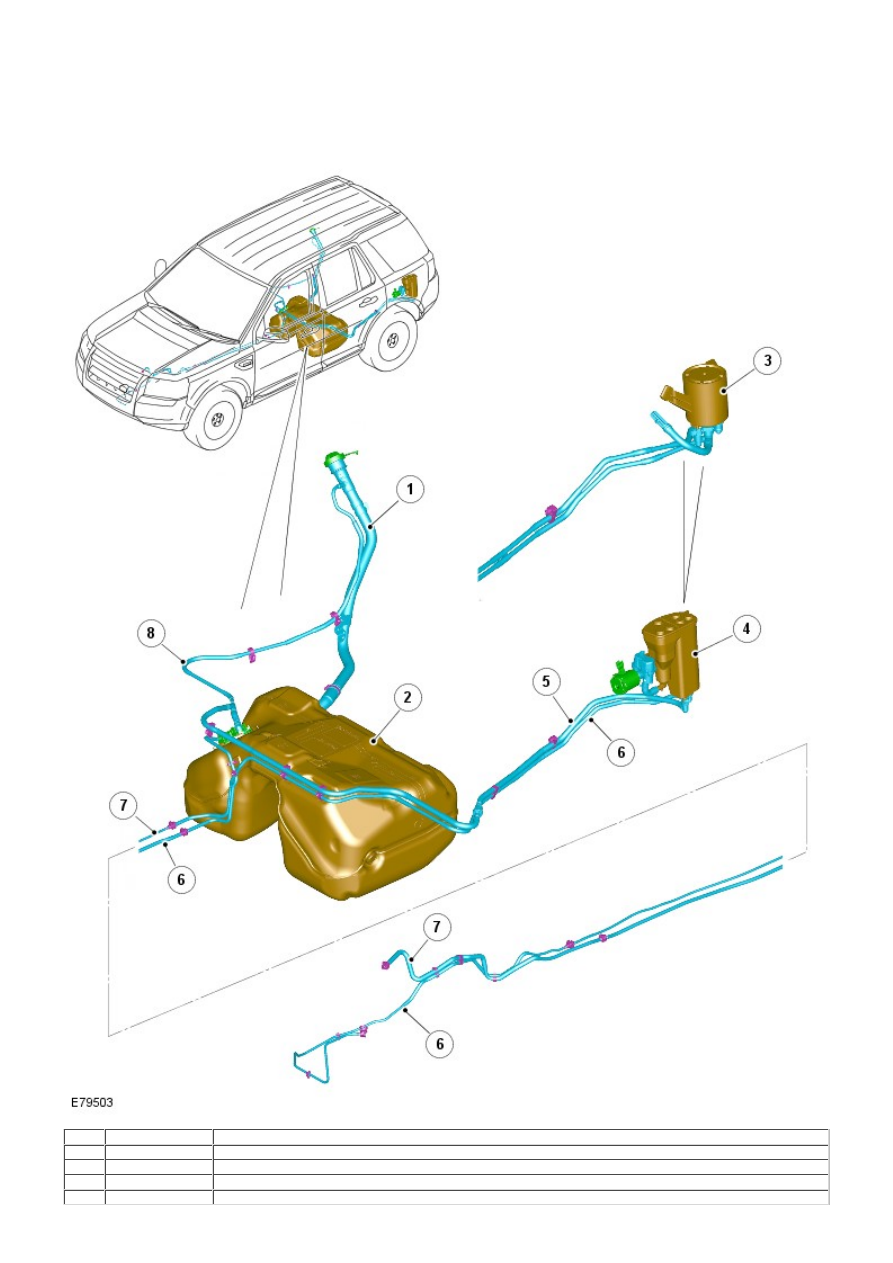

COMPONENT LOCATION

Item

Part Number

Description

1

-

Filler neck

2

-

Fuel tank

3

-

Evaporative emission canister - Rest of World (ROW) derivative

4

-

Evaporative emission canister - North American Specification (NAS) derivative
