Frelander 2. Manual - part 343





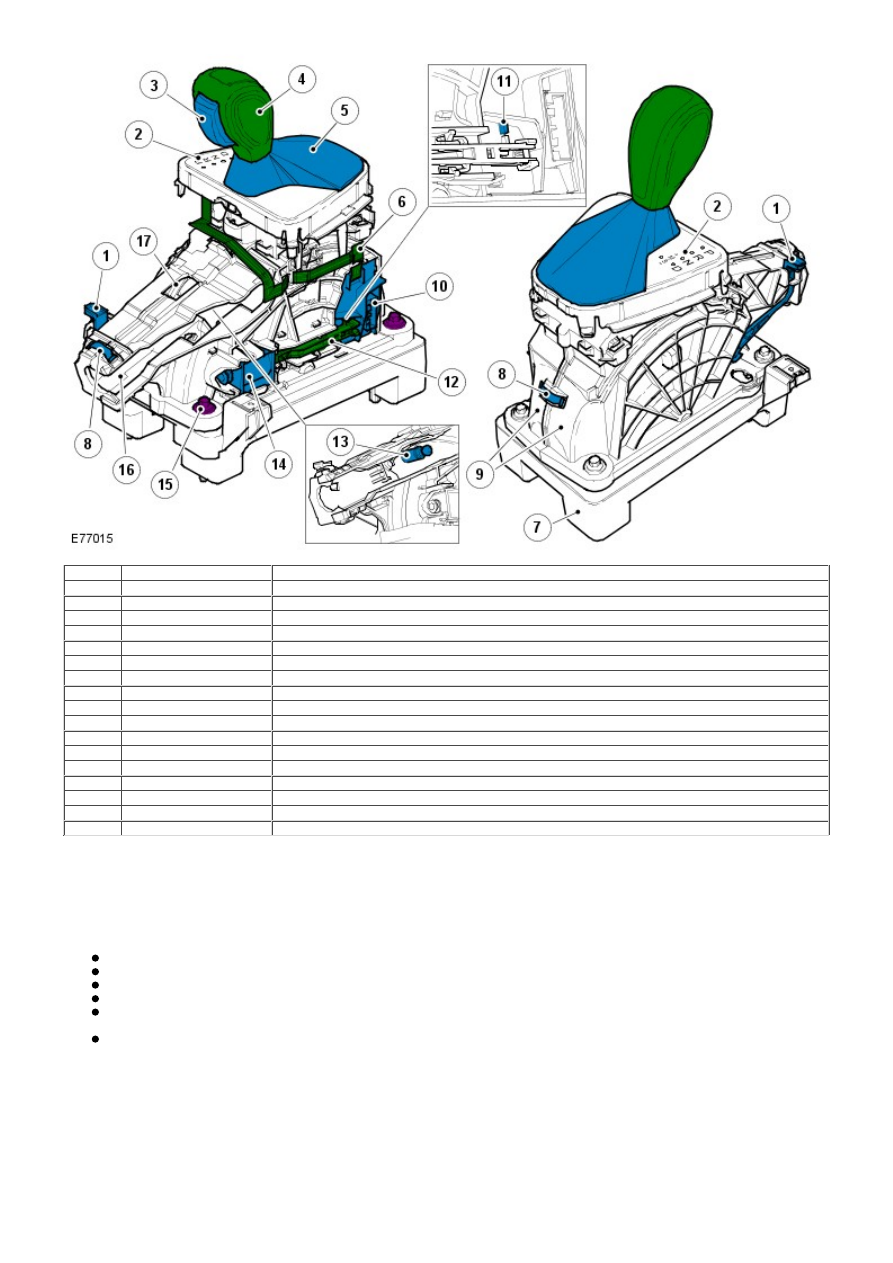

Item

Part Number

Description

1

-

Interlock solenoid - Emergency release lever

2

-

Selector position Light Emitting Diodes (LED's)

3

-

Selector lever button

4

-

Knob

5

-

Gaiter

6

-

PCB ribbon cable and connector

7

-

Selector lever mounting plate

8

-

Spring clip

9

-

Shift housing Left Hand (LH) and Right Hand (RH)

10

-

Gear shift module

11

-

Optical sensor alignment mark

12

-

Sensor arm

13

-

Cable attachment ball pin

14

-

Shift interlock solenoid

15

-

Mounting bolt (4 off)

16

-

Cable abutment aperture

17

-

Cable adjustment/setting aperture

The selector lever assembly is located in a central position on the transmission tunnel, between the front driver and
passenger seats and is secured to the transmission tunnel with 4 bolts. The selector lever assembly is a non-serviceable
electro-mechanical assembly which is used by the driver to select the required transmission mode.

Selections made using the selector lever are passed to the transmission lever arm by a cable. A ball pin is attached to the
lever mechanism and provides for the attachment of the cable.

There are five selector lever positions and two additional positions for manual 'CommandShift™' operation:

(Park) - Prevents the vehicle from moving by locking the transmission
R (Reverse) - Select only when the vehicle is stationary and the engine is at idle
N (Neutral) - No torque transmitted to drive wheels
D (Drive) - This position uses all six forward gears
M/S (Sport Mode) - This position uses all forward gears in 'D' but will upshift at higher engine speeds to improve
acceleration and downshift at higher engine speed to give increased engine braking
+ and - Manual ('CommandShift™') mode - Movement of the selector lever in the +/- positions, when the lever is in
the M/S position, will operate the transmission in manual (CommandShift™) mode allowing the driver to manually
select all six forward gears.

The selector lever position is displayed to the driver on the selector position LED and in the instrument cluster. In
'CommandShift™' mode, if a gear is selected but the Transmission Control module (TCM) logic prevents selection of that
gear, the requested gear will be initially displayed. The TCM will engage the next allowed gear and then display that gear.

Sensor Module

A sensor module is located on the LH side of the selector lever. The sensor module is an intelligent unit and controls the
selector position LED operation and also the shift interlock solenoid operation. The sensor module comprises a Printed

Circuit Board (PCB) and Hall effect sensors which detect the selected position of the selector lever (M/S and +/-) via a
magnet located on the lever mechanism. The signals from the Hall sensors are passed from a connector on the sensor
module to the TCM on a Local Interconnect Network (LIN) bus.

The sensor module main connector uses four pins for LIN bus, ground, power and neutral inputs and outputs. A second
connector allows for the connection of a ribbon cable from the selector position LED for night illumination and position
illumination. A third connector supplies power and ground connections to the shift interlock solenoid.

The sensor module also includes an optical sensor which determines that the selector lever is in the Park (P) position. The
sensor is located behind the module housing and is not visible. Alignment marks on the sensor housing and the sensor
arm must be aligned when the selector lever is in the Park (P) position. When these 2 marks are aligned the optical
sensor/park position is correctly adjusted. This adjustment is set at the point of manufacture and does not require
re-setting under normal operating conditions.

Sport/Manual +/- CommandShift™

The sensor module contains the hall effect sensors to activate the sport/manual mode and also the sensors which provide
the +/- signals. W hen the selector lever is moved to the manual/sport position, the magnet located in the selector lever
mechanism is moved within proximity of the M/S hall effect sensor on the PCB. This provides the signal which is received
by the TCM, which in turn initiates sport mode.

When the lever is moved to the + or - position, the magnet is moved within proximity of one of the hall effect sensors
positioned either side of the M/S hall effect sensor. When an input from either the + or - sensors is received, manual
CommandShift™ mode will be initiated. In this position a spring will move the selector lever back to the centre position
when released. To leave the CommandShift™ mode, return the lever to the 'D' position.

Shift Interlock

The shift interlock solenoid is located on the LH side of the selector lever assembly. The solenoid operates two locking
levers which engage with the lever mechanism and lock it in the Park (P) and Neutral (N) positions. When the ignition is
off, the solenoid is de-energized, locking the selector lever in the Park (P) position. If the selector lever is in any position
other than Park (P), the remote handset cannot be removed from the start control module until the lever is moved to the
Park (P) position.

The shift interlock solenoid has a mechanical connection to the sensor module using a sensor arm. Movement of the
solenoid is transferred via the sensor arm to the sensor module which detects the movement using an optical sensor. The
sensor arm movement provides a confirmation to the sensor module that the solenoid is in its interlocked position. The
sensor arm has a ratchet adjustment for alignment of the optical sensor and is factory set and must not be adjusted.

The shift interlock solenoid locks the selector lever in the park position or the neutral position to prevent inadvertent
selections on the selector lever. The interlock is released when the ignition is on and the driver presses the brake pedal. A
signal from the brake switch is passed on the high speed Controller Area Network (CAN) bus to the TCM and is then
passed on the LIN bus to the sensor module. On receipt of this signal the sensor module logic energizes the solenoid if in
the Park (P) position or de-energizes the solenoid if in the Neutral (N) position, releasing the interlock mechanism.

If the selector lever is left in the 'N' position for more than 3 seconds, the solenoid will be energized and the selector lever
will become locked in the 'N' position. To move the selector lever from the 'N' position in this condition, the footbrake must
be applied. This prevents the selector lever from being moved to the 'D' or 'R' position unintentionally and the application
of the brakes also prevents the vehicle 'creeping' when the gear is engaged. Movement of the selector lever from the 'P' or
'N' positions is also prevented if the TCM senses the engine speed is above 2500 rev/min, even if the brake pedal is
depressed.

If a fault occurs with the shift interlock solenoid, the sensor module, the brake switch or associated wiring, an emergency
release lever is provided to disconnect the interlock mechanism. The emergency release lever can be accessed by using a
tool to remove the selector lever trim finisher from the floor console. The finisher can be lifted to gain access to the
release lever which is located at the front the selector lever assembly and is colored yellow for identification.

• NOTE: The selector lever cannot be moved from the 'Park' position if the ignition is switched off unless the emergency
release lever is used.

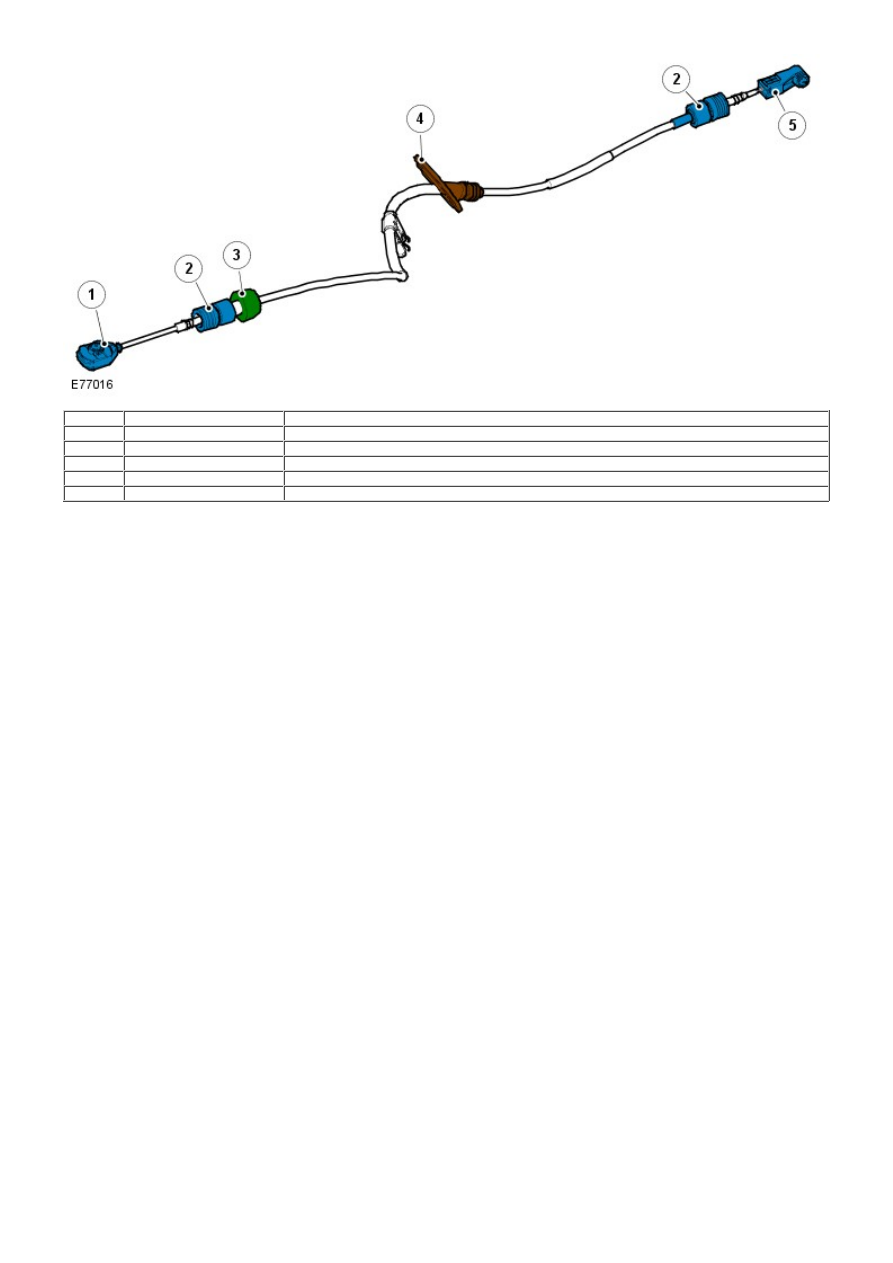

TRANSMISSION CABLE

Item

Part Number

Description

1

-

Transmission eye end

2

-

Abutment

3

-

Damper weight

4

-

Bulkhead grommet

5

-

Selector lever arm eye end and setting button

The transmission cable assembly is a one-piece, push/pull cable connected between the transmission and the selector
lever.

The selector lever end of the cable has an adjustable eye end which locates on a ball pin on the selector lever. An
abutment on the cable outer sheath locates in an aperture at the front of the selector lever shift housing.

A fireproof grommet seal is positioned approximately half way along the length of the cable and seals the cable through a
hole in the bulkhead.

The transmission end of the cable also has an eye end which locates on a ball pin on the end of the transmission lever
arm. An abutment on the outer sheath locates in a bracket attached to the top of the transmission.

Linear movement of the selector lever is transferred, via the inner cable, into movement of the transmission lever arm. The
lever arm converts the linear movement of the selector cable into rotary movement of the manual shaft in the
transmission.

Cable Setting Procedure

The correct cable adjustment is achieved by use of a yellow button in the selector lever arm eye end. The setting process
is to ensure that the transmission is in Park (P) and the selector lever is in its detente park position. This can be checked
by selecting the Park (P) position and with the park brake released, rocking the vehicle forward and back to ensure that the
transmission parking pawl is engaged.

Once the cable is in the correct position, the yellow setting button can be engaged with the serrated portion of the cable.
Access to the setting button is through the aperture in the upper face of the shift housing.

The cable should be reset whenever any part of the transmission shift system has been disturbed or replaced, including
the transmission, operating arms, abutment brackets cables or selector lever assembly.

Automatic Transmission/Transaxle External Controls - External Controls

Diagnosis and Testing

Principles of Operation

For a detailed description of the automatic transmission external controls, refer to the relevant Description and Operation
section in the workshop manual.
REFER to:

External Controls

 (307-05 Automatic Transmission/Transaxle External Controls, Description and Operation).

Inspection and Verification

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does

not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor
vehicle.

1. Verify the customer concern.

1.

2. Visually inspect for obvious signs of mechanical or electrical damage.

2.

Visual Inspection

Mechanical

Electrical

Check for correct gear selector lever cable adjustment.
REFER to:

Selector Lever Cable

 (307-05 Automatic Transmission/Transaxle

External Controls, Removal and Installation).
Visibly damaged or worn components
Loose or missing fasteners

Fuse(s)
Loose or corroded electrical
connector(s)

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before

proceeding to the next step.

3.

4. If the cause is not visually evident, check the TCM for Diagnostic Trouble Codes (DTCs) and refer to the DTC

Index.

4.

DTC Index

• NOTE: If the control module or a component is suspect and the vehicle remains under manufacturer warranty, refer to the
Warranty Policy and Procedures manual (section B1.2), or determine if any prior approval programme is in operation, prior
to the installation of a new module/component.

• NOTE: Generic scan tools may not read the codes listed, or may read only five digit codes. Match the five digits from the
scan tool to the first five digits of the seven digit code listed to identify the fault (the last two digits give additional
information read by the manufacturer approved diagnostic system).

• NOTE: When performing electrical voltage or resistance tests, always use a digital multimeter (DMM) accurate to three
decimal places, and with an up-to-date calibration certificate. When testing resistance, always take the resistance of the
DMM leads into account.

• NOTE: Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.

• NOTE: Inspect connectors for signs of water ingress, and pins for damage and/or corrosion.

• NOTE: If DTCs are recorded and, after performing the pinpoint tests, a fault is not present, an intermittent concern may
be the cause. Always check for loose connections and corroded terminals.

DTC

Description

Possible Cause

Action

P070500 Transmission range sensor

A circuit (PRNDL input)

Incorrect adjustment of the
gear selector lever cable
Incorrect adjustment of the
gear position sensor
Internal transmission
control module (TCM) fault

Check the adjustment of the gear selector lever
cable and sensor.
REFER to:

Selector Lever Cable

 (307-05 Automatic

Transmission/Transaxle External Controls,
Removal and Installation).
Refer to the warranty policy and procedures
manual if a module is suspect.

P070600 Transmission range sensor

A circuit
range/performance

Incorrect adjustment of the
gear selector lever cable
Incorrect adjustment of the
gear position sensor
Internal transmission
control module (TCM) fault

Check the adjustment of the gear selector lever
cable.
REFER to:

Selector Lever Cable

 (307-05 Automatic

Transmission/Transaxle External Controls,
Removal and Installation).
Calibrate the gear position sensor using the
approved diagnostic system. Refer to the warranty
policy and procedures manual if a module is
suspect.

P070900 Transmission range sensor

A circuit intermittent

Incorrect adjustment of the
gear selector lever cable
Incorrect adjustment of the
gear position sensor
Internal transmission
control module (TCM) fault

Check the adjustment of the gear selector lever
cable.
REFER to:

Selector Lever Cable

 (307-05 Automatic

Transmission/Transaxle External Controls,
Removal and Installation).
Calibrate the gear position sensor using the
approved diagnostic system. Refer to the warranty
policy and procedures manual if a module is
suspect.
