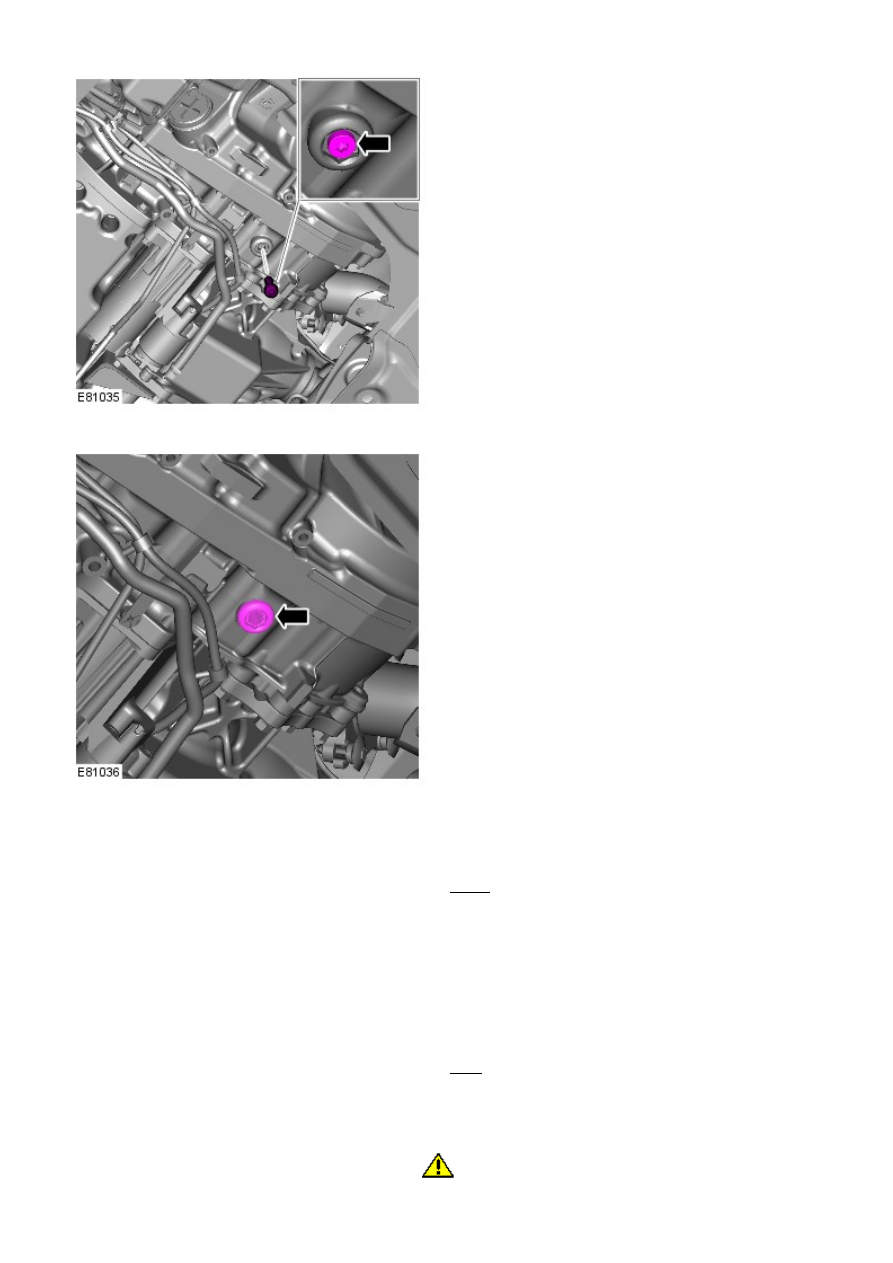

Remove the transmission fluid level plug.

8.

Remove the transmission fluid drain plug.

9.

10. NOTE: Install a new gasket.

Install the transmission fluid drain plug.

Torque: 47 Nm

10.

Lower the vehicle.

11.

Fill the transmission with the correct fluid until it runs from the level
plug.

12.

Install the transmission fluid level plug.

Torque: 7 Nm

13.

Add an additional 0.5 litres of transmission fluid.

14.

15.

CAUTION: A new O-ring seal is to be installed.

Install the transmission fluid filler plug.

15.

Torque: 40 Nm

Connect the Land Rover approved diagnostic equipment. Start and
run the engine.

16.

Using the diagnostic equipment to monitor the transmission fluid
temperature, allow the temperature to reach 60 degrees C.

17.

Move the selector lever from 'P' through all the gear positions,
pausing in each gear position for 2-3 seconds and return to the 'P'
position.

18.

Raise the vehicle.

19.

20.

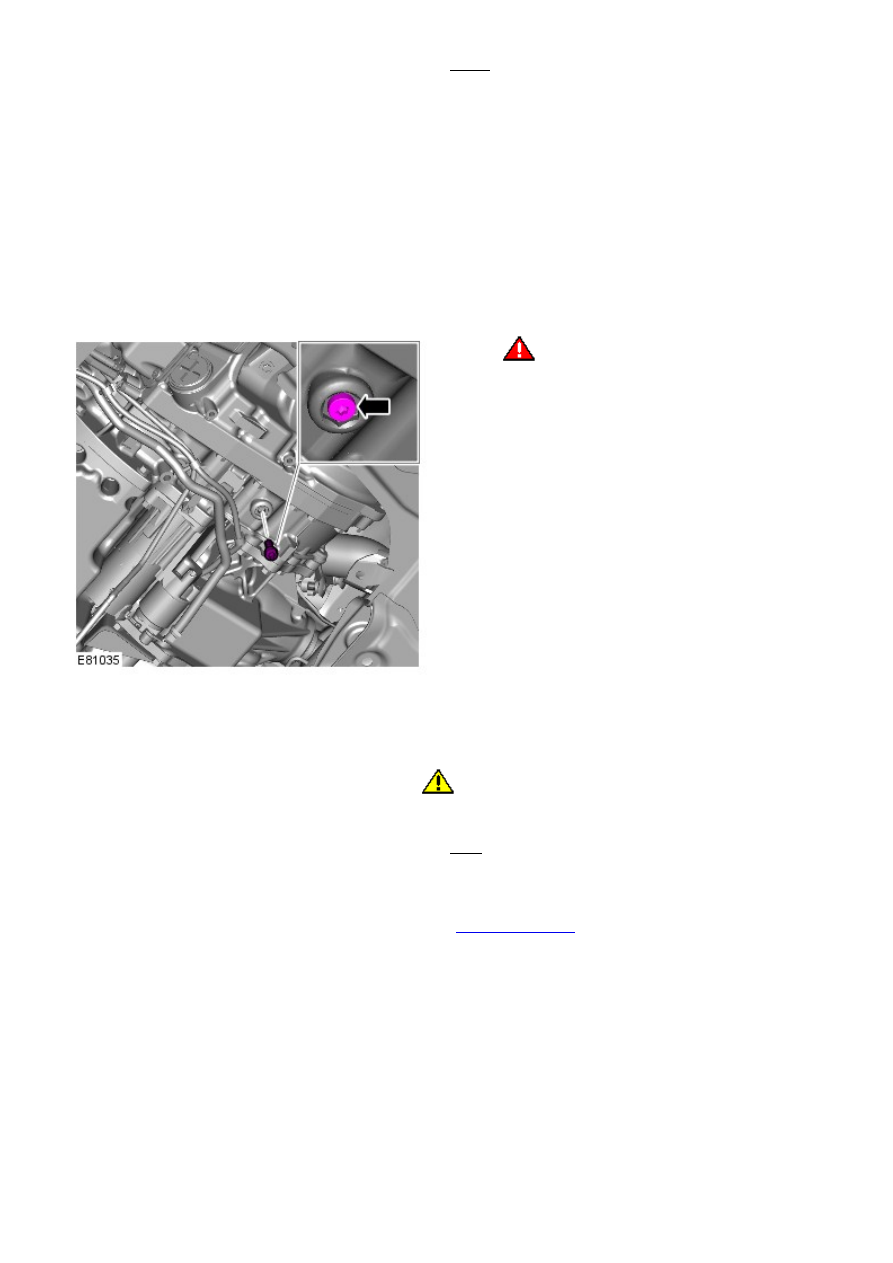

WARNING: Wear protective gloves.

• NOTE: The fluid level plug and drain plug both use
the same point on the transmission. The inner plug is
the level indication and the outer plug is to drain the
fluid.

Remove the transmission fluid level plug.

20.

W ith the engine running a small amount of fluid should drip out of
the level plug.

21.

22.

CAUTION: A new O-ring seal is to be installed.

Install the transmission fluid level plug.

Torque: 7 Nm

22.

Install the front undershield.

Refer to:

Engine Undershield

 (501-02 Front End Body Panels,

Removal and Installation).

23.

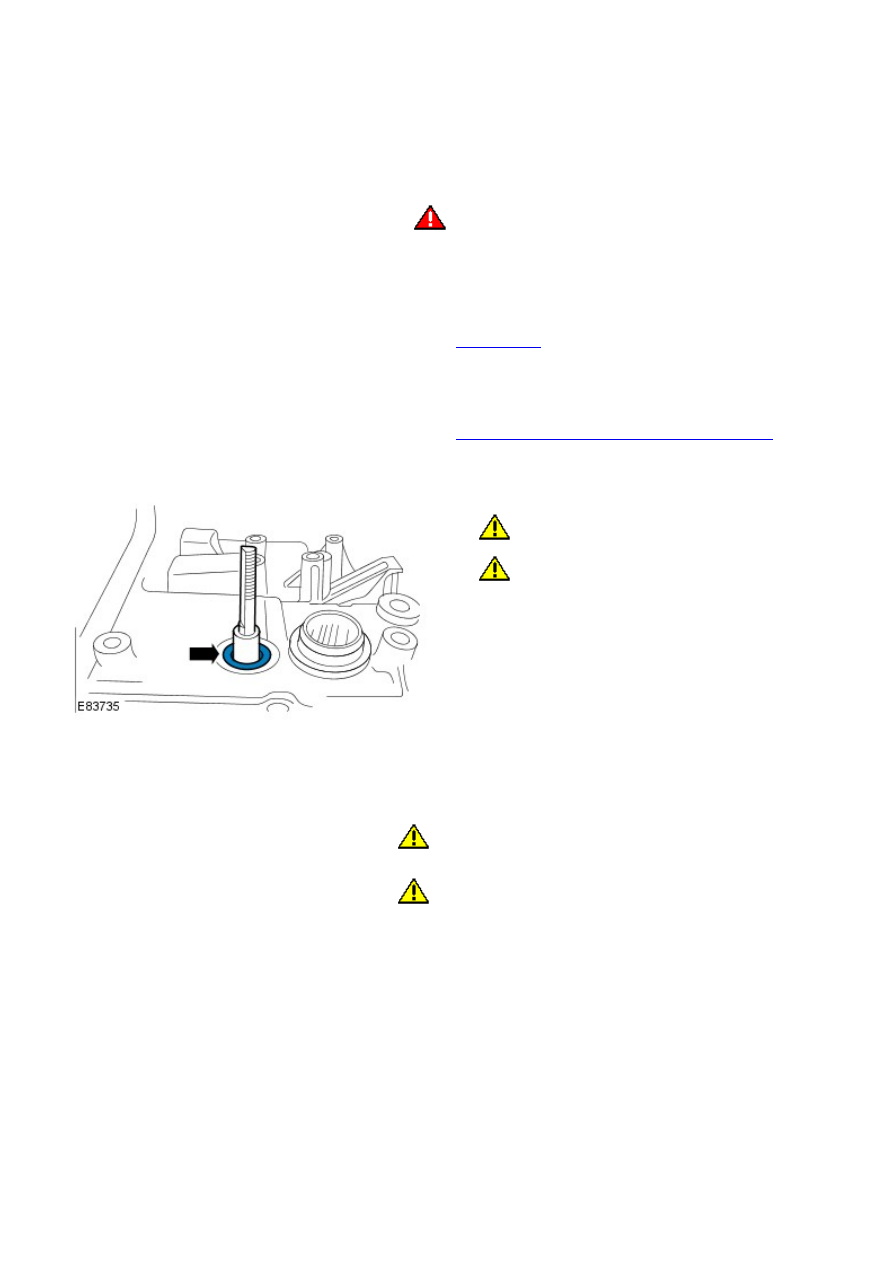

Automatic Transmission/Transaxle - Selector Shaft SealI6 3.2L Petrol

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the cover and disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

2.

Remove the transmission control module (TCM).

Refer to:

Transmission Control Module (TCM) - I6 3.2L Petrol

 (307-01

Automatic Transmission/Transaxle, Removal and Installation).

3.

4. CAUTIONS:

 Take extra care not to damage the mating faces.

 "Make sure that a new component is installed. "

4.

Installation

1. CAUTIONS:

 Make sure that the mating faces are clean and free of foreign

material.

 Install the seal, flush with the transmission case.

To install, reverse the removal procedure.

1.

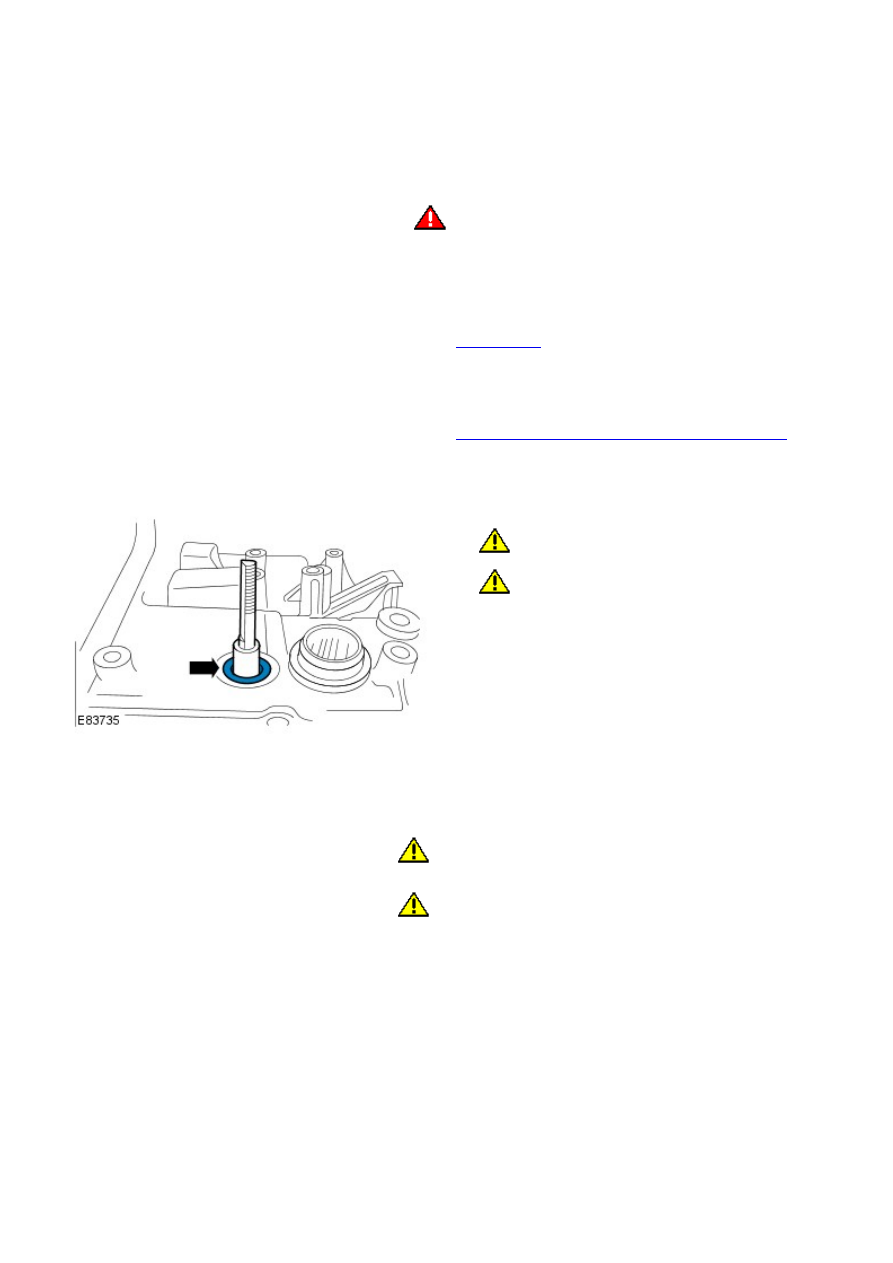

Automatic Transmission/Transaxle - Selector Shaft SealTD4 2.2L Diesel

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the cover and disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

2.

Remove the transmission control module (TCM).

Refer to:

Transmission Control Module (TCM) - TD4 2.2L Diesel

(307-01 Automatic Transmission/Transaxle, Removal and
Installation).

3.

4. CAUTIONS:

 Take extra care not to damage the mating faces.

 "Make sure that a new component is installed. "

4.

Installation

1. CAUTIONS:

 Make sure that the mating faces are clean and free of foreign

material.

 Install the seal, flush with the transmission case.

To install, reverse the removal procedure.

1.
